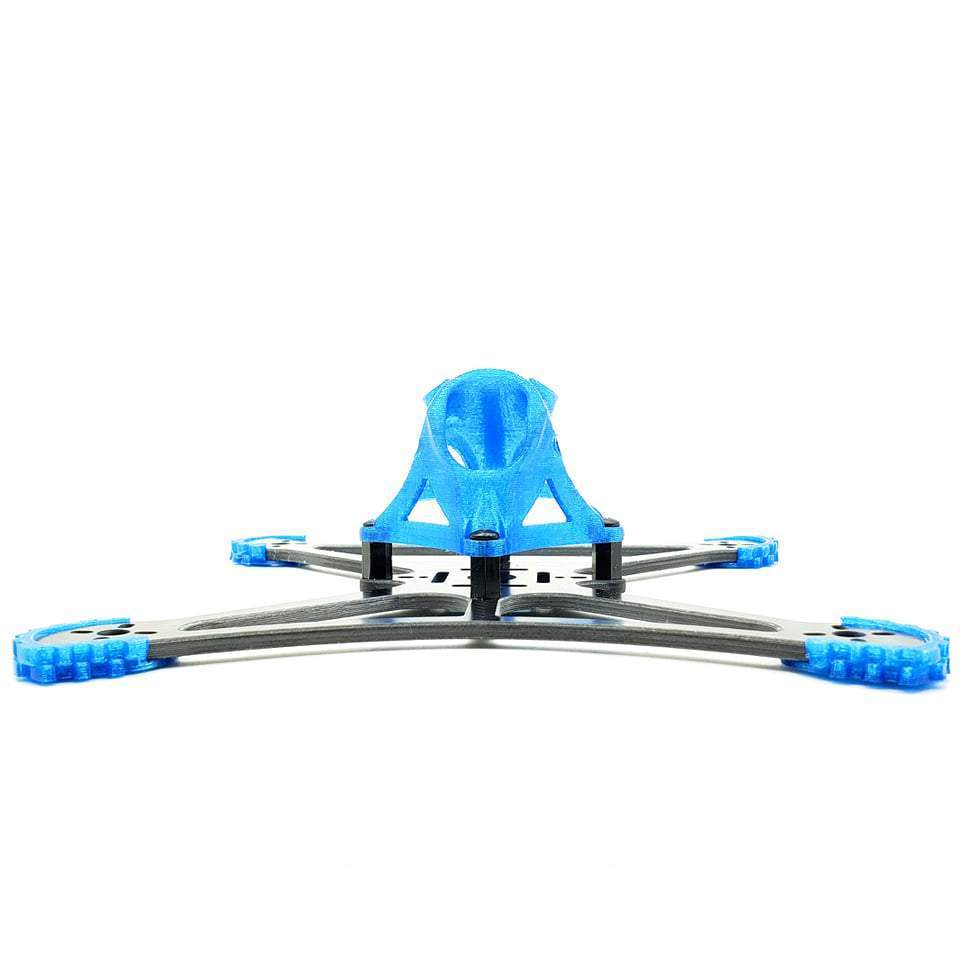

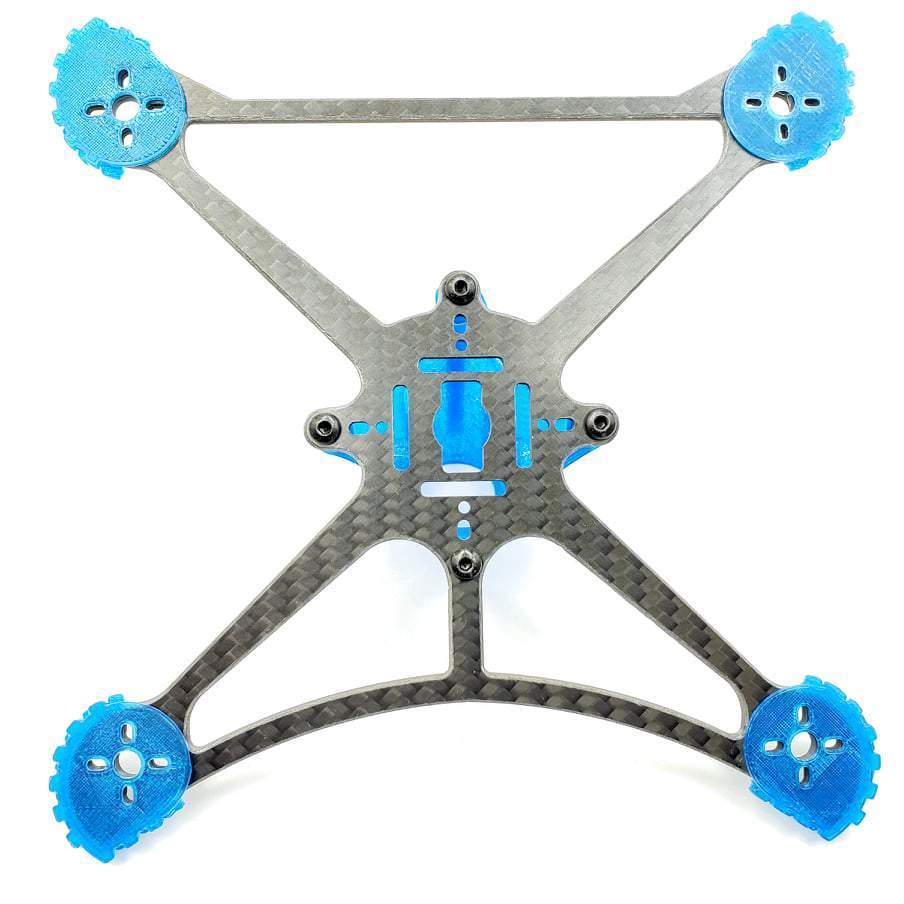

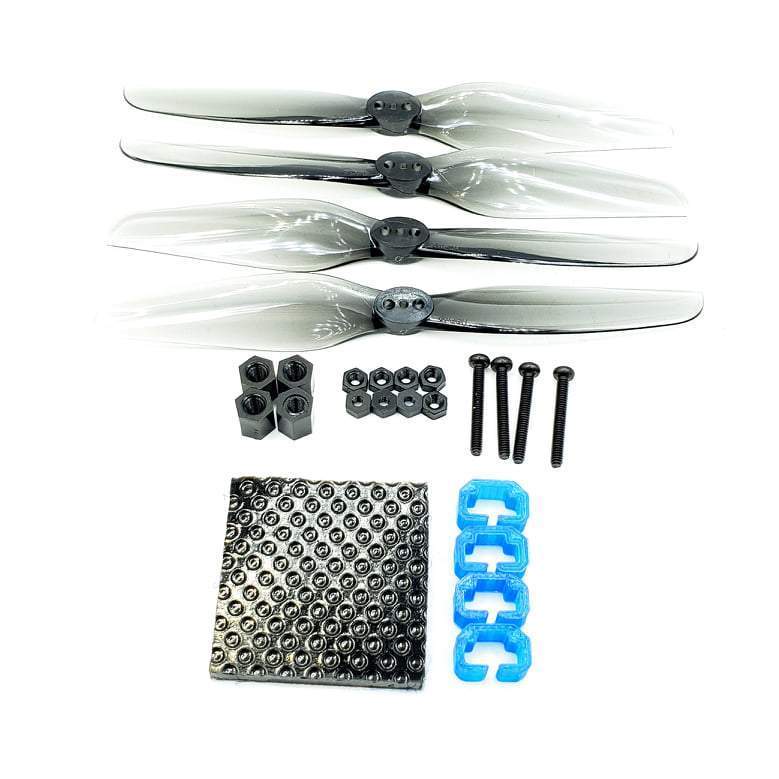

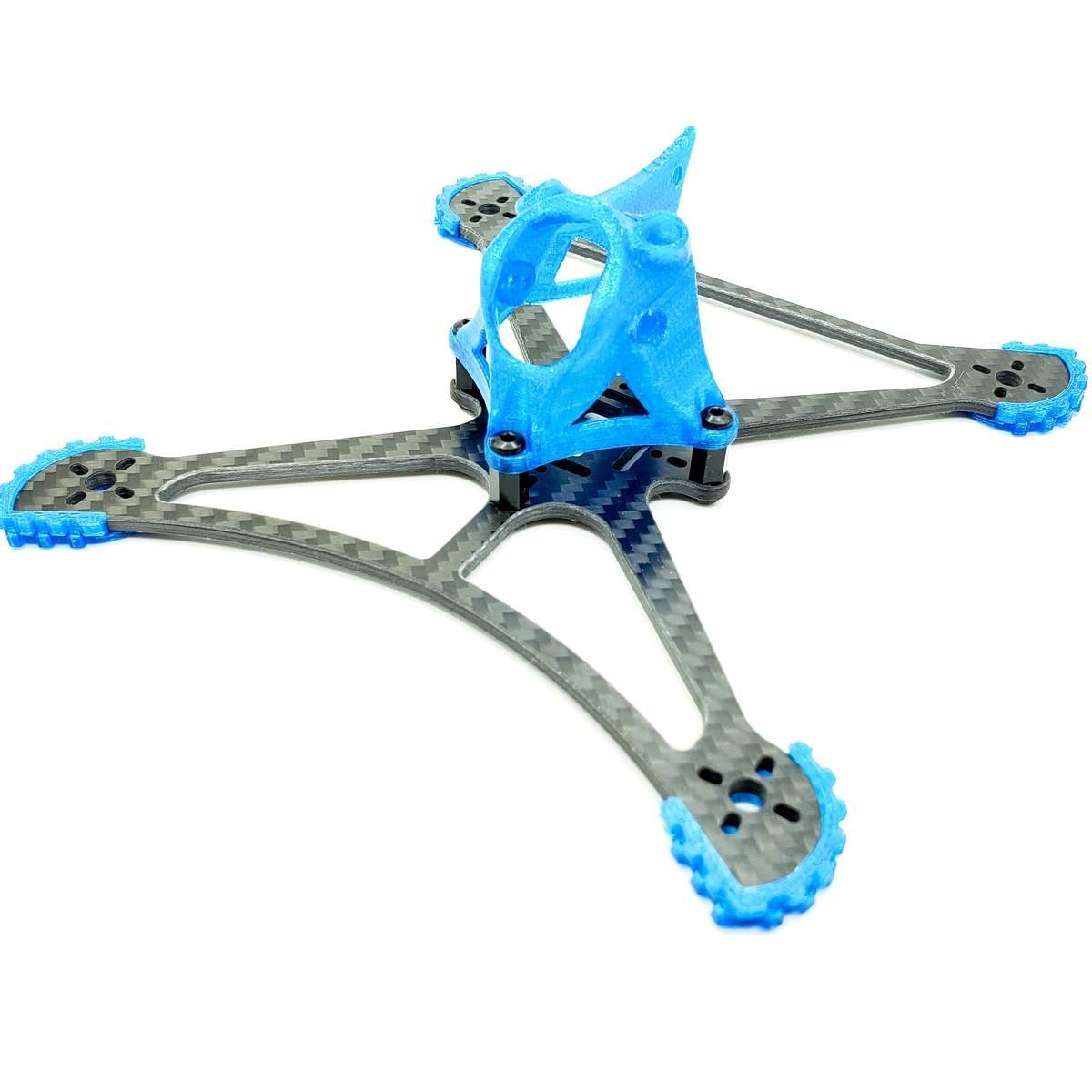

Are you in Australia looking to buy the BetaFPV Twig Mutant 4 Frame Kit? Visit our Phaser FPV store in NSW Gosford or buy online today. Check out all other BetaFPV products here. This frame kit features a premium 3mm thick high - grade T700 carbon frame with .7mm chamfered edges. It has a 160mm motor - to - motor post distance and can swing up to 4” props. The motor mounting supports 4 - hole 9x9 or 12x12 motor mounts. It can accommodate a 20x20 stack or a Whoop 26x26 Toothpick AIO FC, allowing for larger props and motors. It's compatible with standard and toilet tank mounting battery strap slots and has TWIG TWIST keyholes for TPU battery mounts. The kit uses interchangeable TWIG XL canopies with 5 to 55 degrees of angle adjustment for 19x19 micro cameras. The standard canopy can also work with the HappyModel Diamond DVR/VTX. The kit includes a frame, battery pad, strap, canopy, arm guards, motor wire clips, standoffs, screws, nuts, props, and packaging. When you buy from Phaser FPV in Australia, you're an official reseller. Get a free gift on first and recurring orders, free shipping on orders over $120, and free express* shipping over $250. Enjoy a 2 - year local repair Centre Fatshark warranty, join our large Facebook community, and reach out to our experienced staff.
Using the BetaFPV Twig Mutant 4 Frame Kit is easy. First, assemble the frame using the included standoffs, screws, and nuts. Make sure to follow the proper order of parts. Attach the motor mounts according to your motor size (9x9 or 12x12). Then, install the battery strap in the appropriate slot, either standard or toilet - tank mounting. You can also use the TPU battery mounts if you purchased them separately. Next, mount your FC, either a 20x20 stack or a Whoop 26x26 Toothpick AIO FC. After that, attach the motors and propellers. Adjust the canopy angle according to your camera. For a 19x19 micro camera, you can set the angle between 5 to 55 degrees. If you're using a 14x14 Nano camera, you'll need a micro camera adapter (not included). When it comes to maintenance, keep the frame clean from dirt and debris. Check the screws and standoffs regularly to make sure they're tight. If the TPU parts like arm guards or motor wire clips get damaged, you can replace them easily. Also, be careful when handling the carbon frame to avoid cracks. If you're using the HappyModel Diamond DVR/VTX, make sure to access the SD card and buttons as designed by the canopy.
