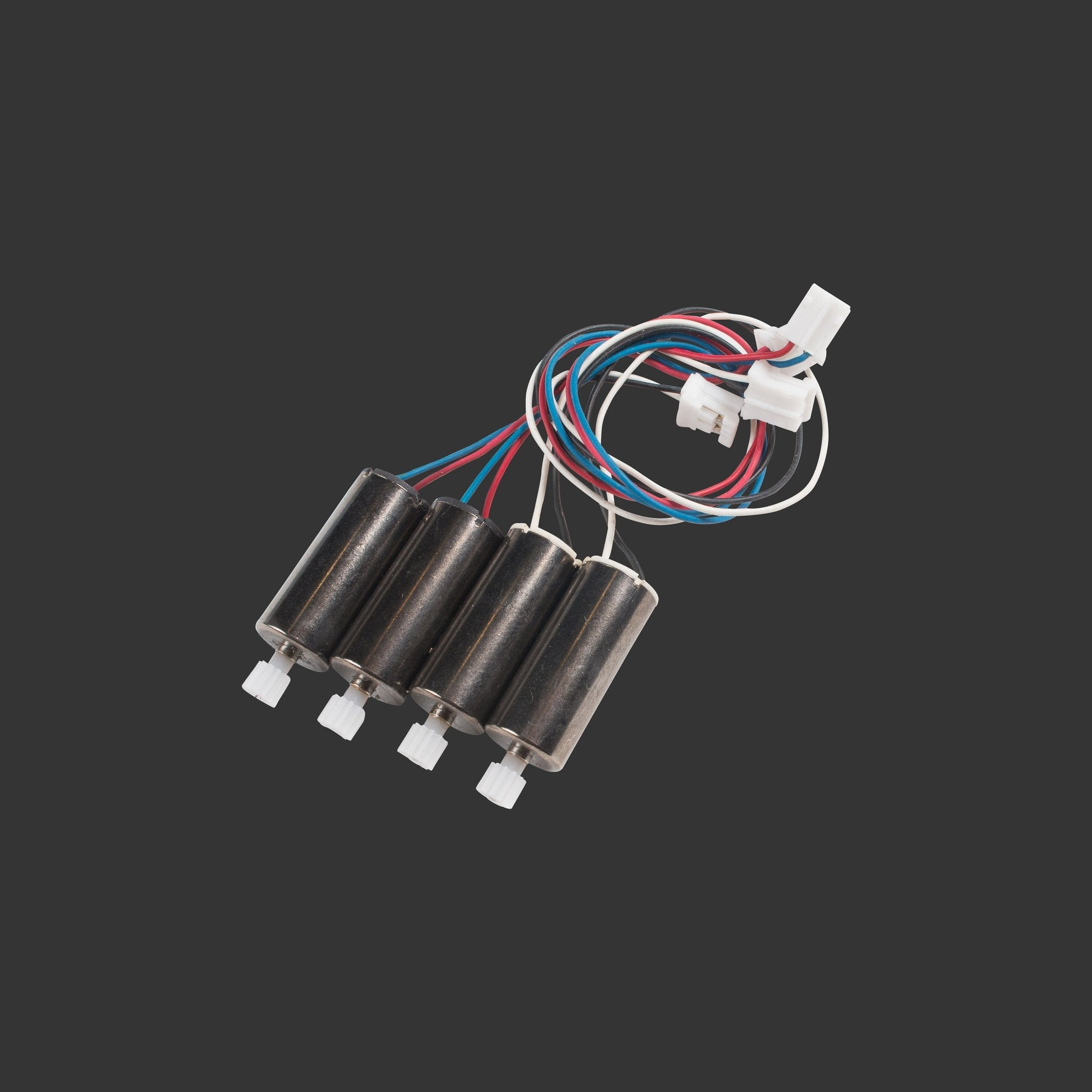

CL-0820-17-11T coreless motor for Latrax Alias

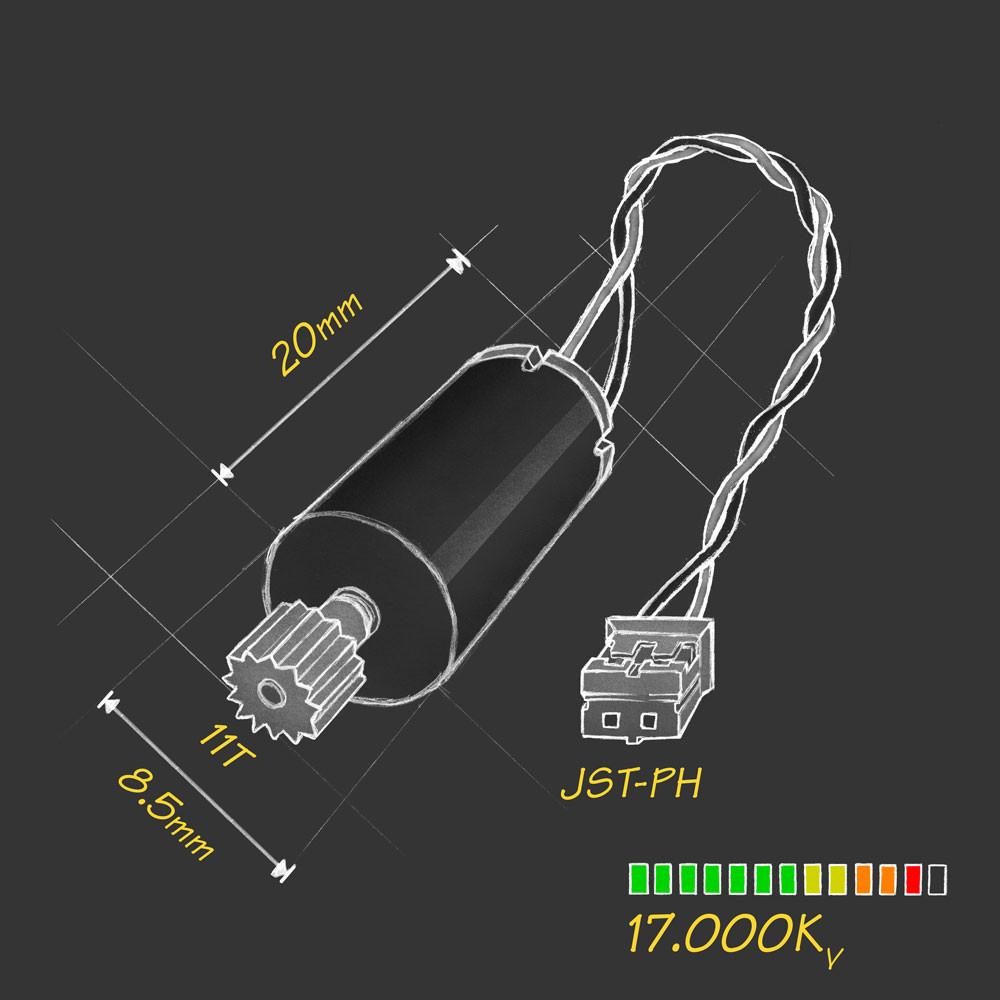

The CL-0820-17 'Dark Edition' is the ultimate upgrade for your Latrax Alias! It comes with installation instructions (with pictures). Its performance is outstanding, reaching a speed of 17,000K. It operates at a voltage of 1.5 - 3.7V, with a maximum current of 3.2A at 3.7V. The factory lifetime rating is 5 - 6 hours. The motor has a can diameter of 8.5mm, a can length of 20mm, a shaft diameter of 1mm, and a shaft length of 5mm. It has an 11T polymer pinion, 120mm wire length, and weighs only 4.9g. The housing is black anodized. The wire color indicates motor rotation and correct polarity: red + and blue - for clockwise, white + and black - for counter - clockwise.

Using the CL - 0820 - 17 - 11T coreless motor is easy. First, follow the provided installation instructions with pictures to install the motor in your Latrax Alias. Make sure to connect the wires correctly according to the color - coding for the desired rotation direction. When using, ensure the operating voltage is within 1.5 - 3.7V. Don't exceed the maximum current of 3.2A at 3.7V to avoid damaging the motor. The factory - rated lifetime is 5 - 6 hours, so try not to overuse it continuously. For maintenance, keep the motor clean and dry. If it gets dirty, use a soft brush to gently clean it. Store the motor in a cool and dry place when not in use.
