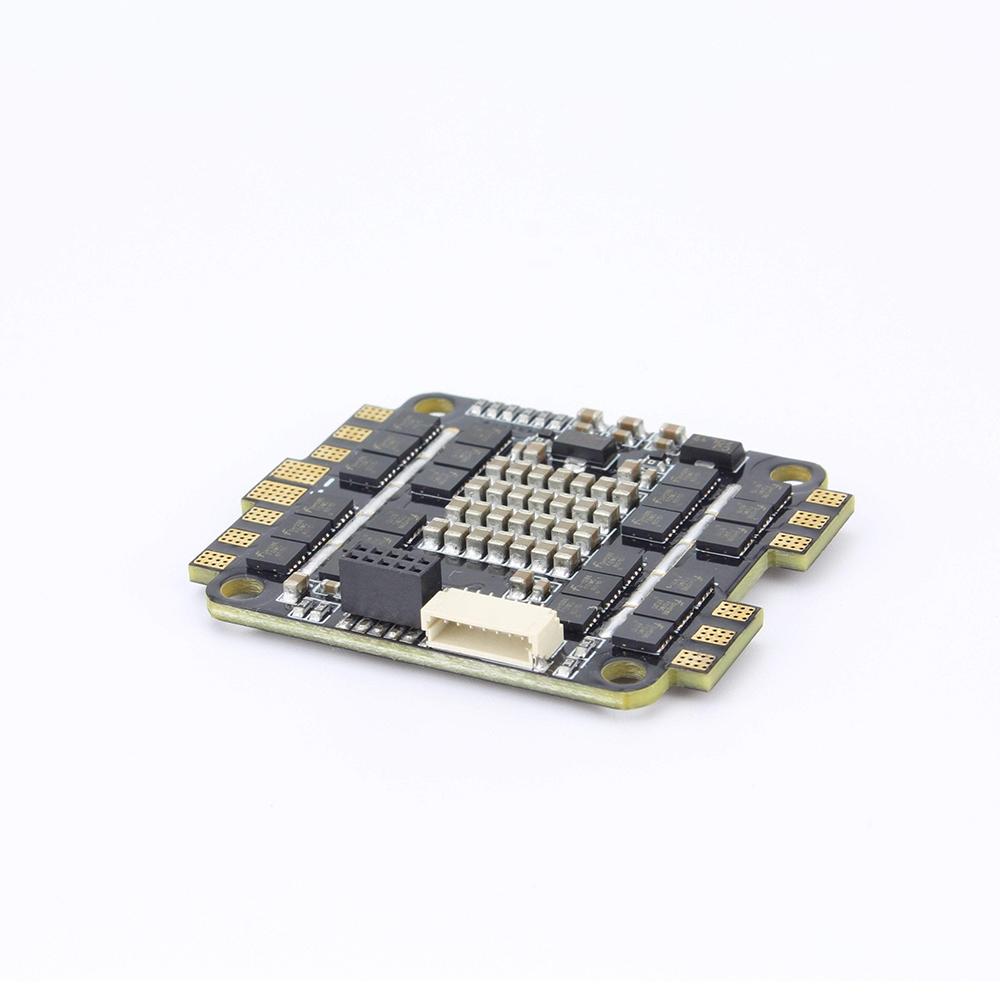

EMAX F4 Magnum Tower Parts - Bullet 30A 4 In 1 ESC Board 0203002107

Please note that the ESC board has been changed to black since the second batch. This 4-in-1 ESC and current sensor board offers great performance. It can handle a continuous current of 30A and a 40A burst per motor. It supports a supply voltage of 2 - 4S Lipo. With a Silabs EFM8BB21F16G 50mhz MCU and BLHeli_S firmware, it supports DSHOT, MULTISHOT, and ONESHOT125. It features top - quality MOSFETs and a 3oz high TG PCB board, along with an on - board current sensor.

Using this ESC board is quite straightforward. First, make sure your power source is within the 2 - 4S Lipo voltage range. Connect it properly to your motor and other relevant parts according to the wiring diagram. When flying or using your device, keep an eye on the current, as the continuous current per motor is 30A and it can handle a 40A burst. Regarding maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or moisture. If you notice any issues with the performance, check the connections and the firmware. You may need to update the BLHeli_S firmware from time to time for better performance.
