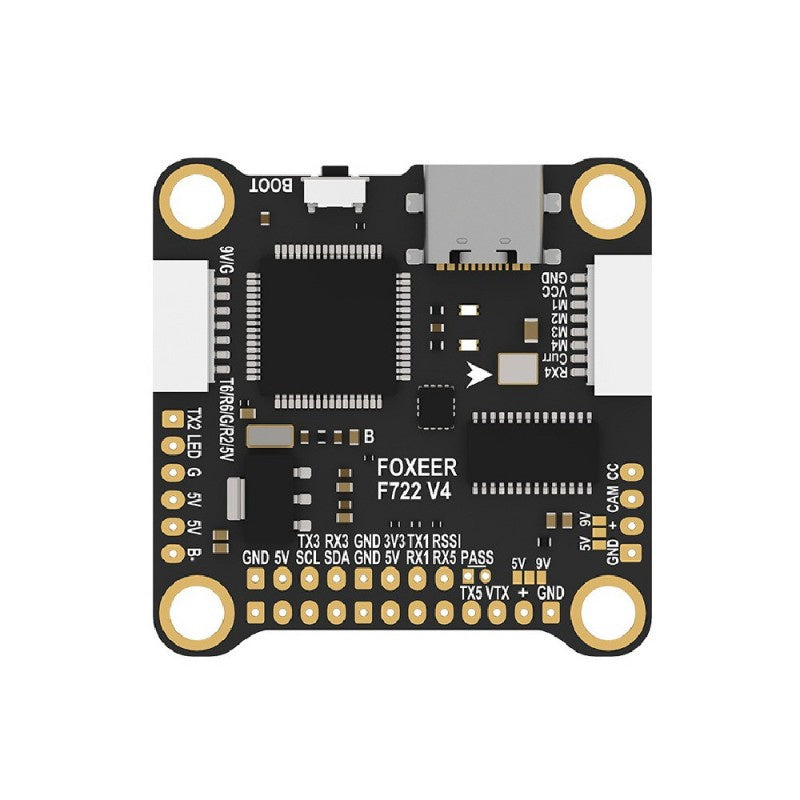

Foxeer F722 V4 ICM42688-P Flight Controller X8 DJI Type-C

Are you searching to purchase a Foxeer F722 V4 Flight Controller in Australia? The F722 V4 is a high - performance flight controller with a STM32F722RET6 CPU. It supports a 3 - 6S Lipo power supply (11V - 30V) and has BEC outputs of DC5V/3A and DC9V/3A. It comes with BF OSD, a 16M Flash Memory black box, and 6 sets of UART. ESC Telemetry is RX4, and it has features like a buzzer, smart audio, and a set of 2812 LED. The USB is Type - C, and it supports X8 with CLI. The firmware is FOXEERF722V4. It measures 37X37mm with a 30.5X30.5mm, Φ4mm mounting hole and weighs only 8g. It can work in temperatures from - 20℃ to + 55℃ and humidity of 20 - 95%. Storage temperature ranges from - 20℃ to + 70℃. The package includes 1 FC and 4 rubber columns. Browse more F7, Foxeer, and all flight controllers.

Using this Foxeer F722 V4 Flight Controller is quite straightforward. First, make sure to connect it to the appropriate power supply within the 3 - 6S Lipo (11V - 30V) range. You can then use the Type - C USB to connect it to your device for firmware updates and configuration. When using the X8 support, you'll need to use the CLI. As for maintenance, keep it in a dry place within the storage temperature range of - 20℃ to + 70℃. Avoid exposing it to extreme humidity. If you notice any issues, check the connections and make sure the firmware is up - to - date. Remember to handle it gently due to its light weight of 8g. And always keep the rubber columns in place for proper mounting.
