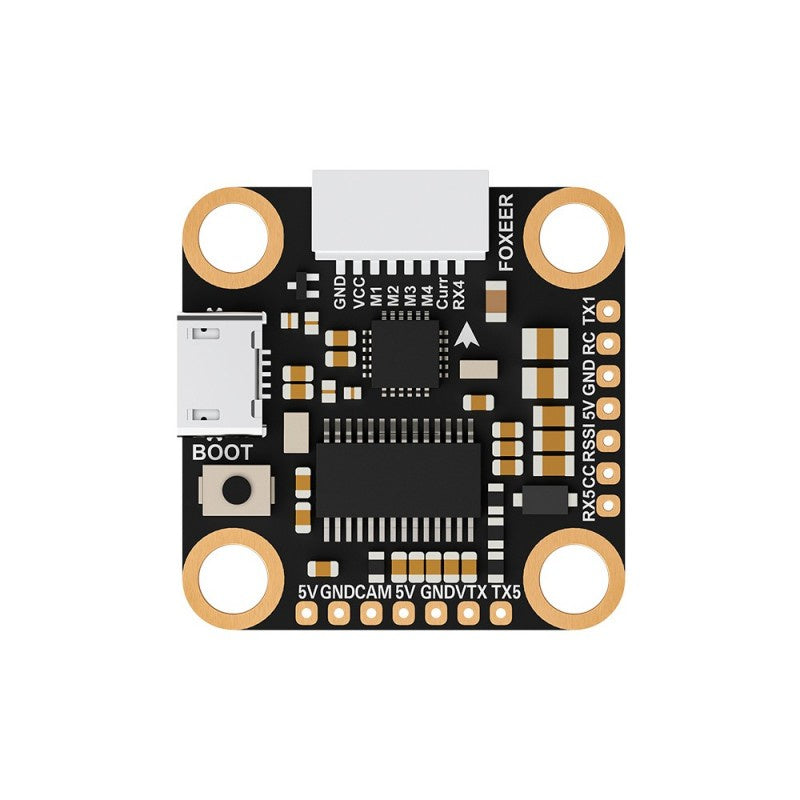

Foxeer F722 V4 Mini 20x20mm ICM42688-P Flight Controller

Are you in Australia and looking to buy a top - notch flight controller? Look no further than the Foxeer Mini F722 V4! It comes with a powerful STM32F722RET6 CPU and can handle a 2 - 6S Lipo power supply (6.5V - 30V). The DC5V/3A BEC output ensures stable power. It features BF OSD and has a 16M Flash Memory black box. With 4 sets of UART, RX4 ESC Telemetry, and support for buzzer and smart audio, it's a well - equipped choice. There's also 1 set of 2812 LED and a Micro USB port. The firmware is FOXEERF722V4. Measuring 26X26mm with 20X20mm, Φ4mm mounting holes and weighing just 4g, it's compact and lightweight. It can work in temperatures from - 20℃ to +55℃ and humidity from 20% to 95%, and can be stored at - 20℃ to +70℃. The package includes 1 FC and 4 rubber columns. Browse all F7, all flight controllers, or all Foxeer products.

Using the Foxeer Mini F722 V4 flight controller is easy. First, connect it to your drone according to the mounting holes (20X20mm, Φ4mm). Make sure to use a 2 - 6S Lipo power supply (6.5V - 30V) to power it up. Connect other components like the ESC and receiver using the available UART ports. When using the USB port, ensure it's a proper Micro USB connection. As for the LED, it's there for indication purposes. When you're done flying, store it in a place with a temperature between - 20℃ and +70℃ and humidity between 20% and 95%. Keep it clean and free from dust. Avoid dropping it or subjecting it to strong impacts. If you notice any issues, check the firmware (FOXEERF722V4) and consider updating it if necessary.
