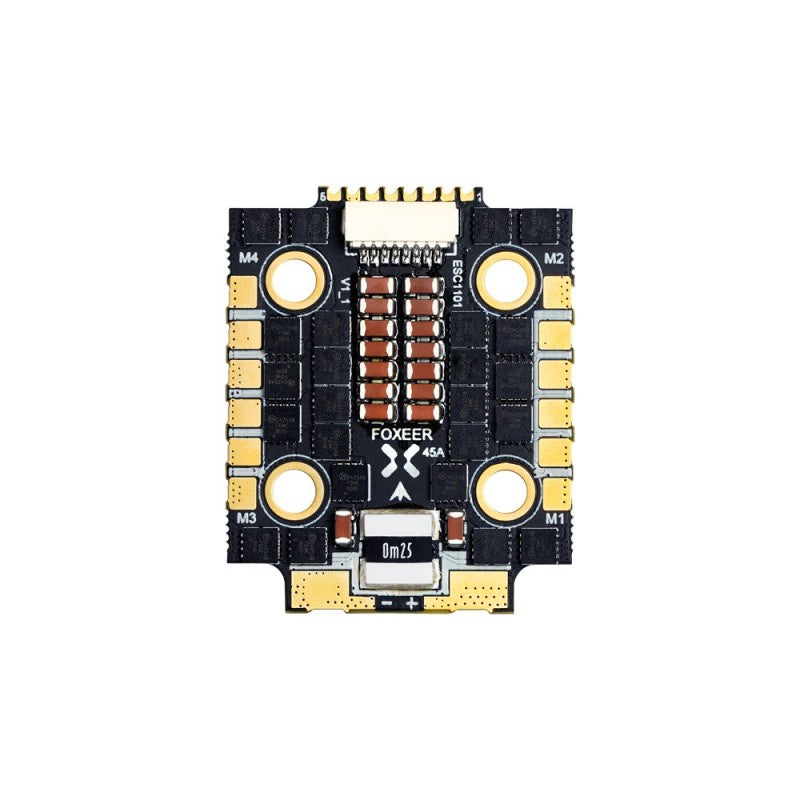

Foxeer Mini Reaper 128K 45A BL32 4in1 ESC 20x20

Are you in Australia and seeking to purchase a high - performance ESC? The Foxeer Mini Reaper 128K is here for you! This 4 - in - 1 ESC features 20x20 mounting holes, offering a continuous current of 45A and handling a burst current of 65A. It's suitable for various applications. Key Specifications: It has a continuous/burst current of 45A*4 / 65A*4, an input voltage of DC 10V - 26.2V (3 - 6S Lipo). It doesn't have a BEC but supports telemetry. The ESC programming is BLHeli32, and it accepts input signals like DShot 150/300/600/1200, MultiShot, OneShot etc. It can work in a temperature range of - 20℃ to +55℃ and humidity of 20 - 95%, and can be stored between - 20℃ and +70℃. The mounting holes are 20×20mm, Φ4mm/ M3, with dimensions of 40.5×33×5.5mm and a weight of just 10g. What's included: 1 x Foxeer Reaper Mini 4 - in - 1 BL32 45A ESC. Browse more 4 - in - 1 ESCs, all ESCs, and other Foxeer products.

Using the Foxeer Mini Reaper 128K 45A 4 - in - 1 ESC is easy. First, make sure to connect it to a power source within the specified input voltage range of 10V - 26.2V (3 - 6S Lipo). When mounting, use the 20x20mm holes to secure it firmly. The ESC supports various input signals like DShot 150/300/600/1200, so choose the one that suits your needs. As for maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures outside the working range of - 20℃ to +55℃. When storing, make sure the temperature is between - 20℃ and +70℃. If you encounter any issues, check the telemetry data to diagnose problems. Also, since it doesn't have a BEC, ensure your power setup is appropriate.
