Happymodel ELRS EPW6 6CH PWM RC receiver (2.4ghz)

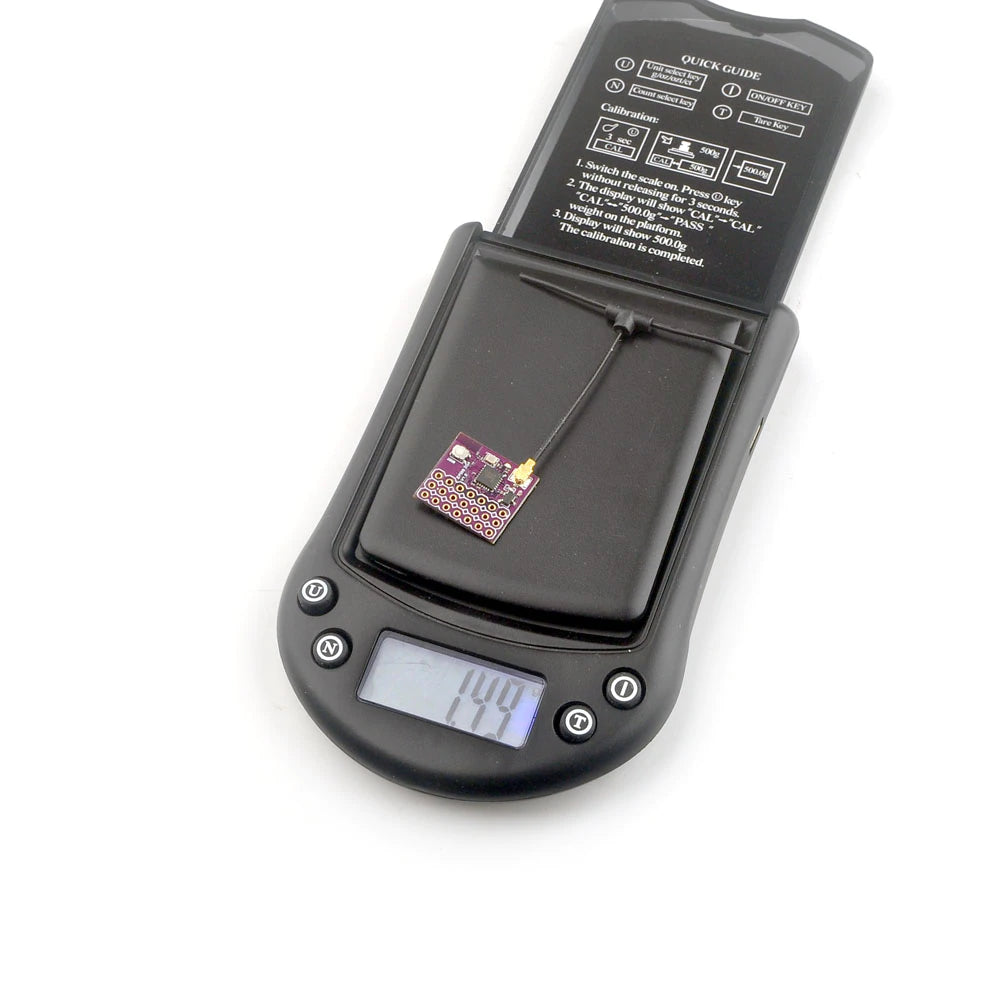

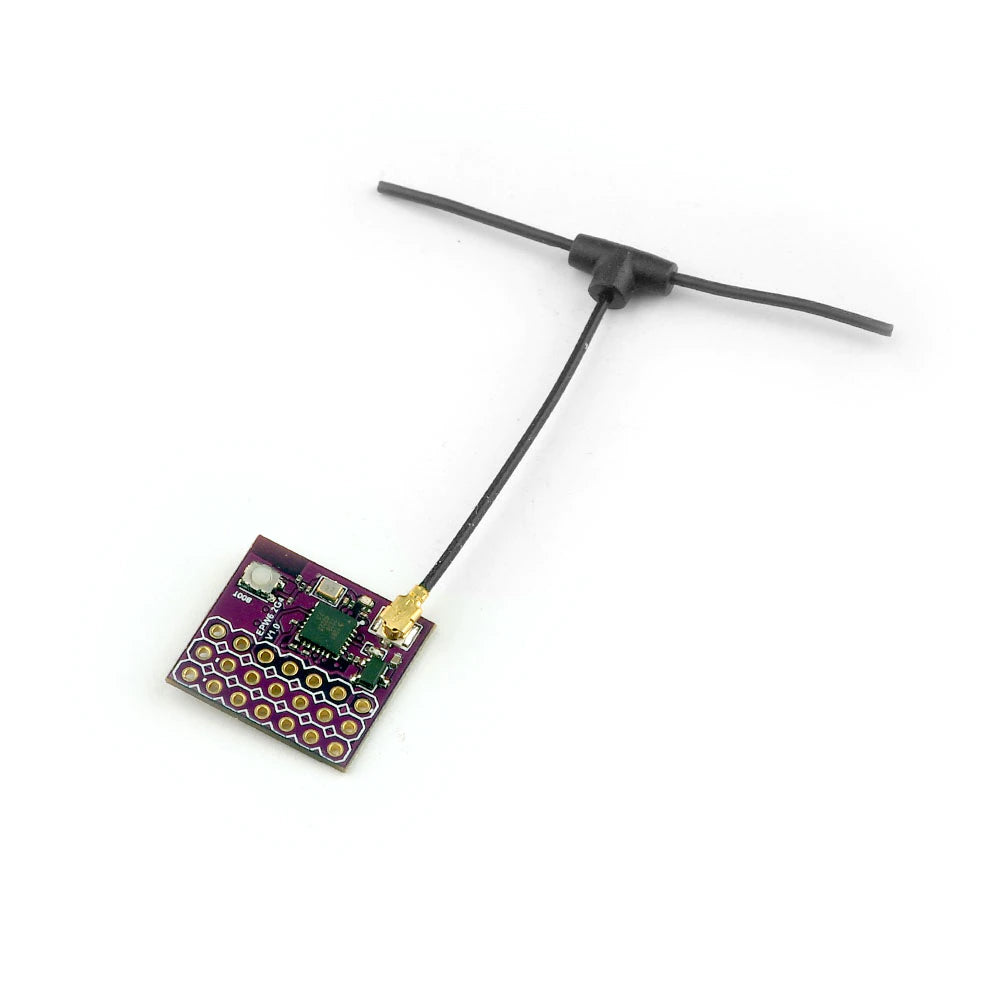

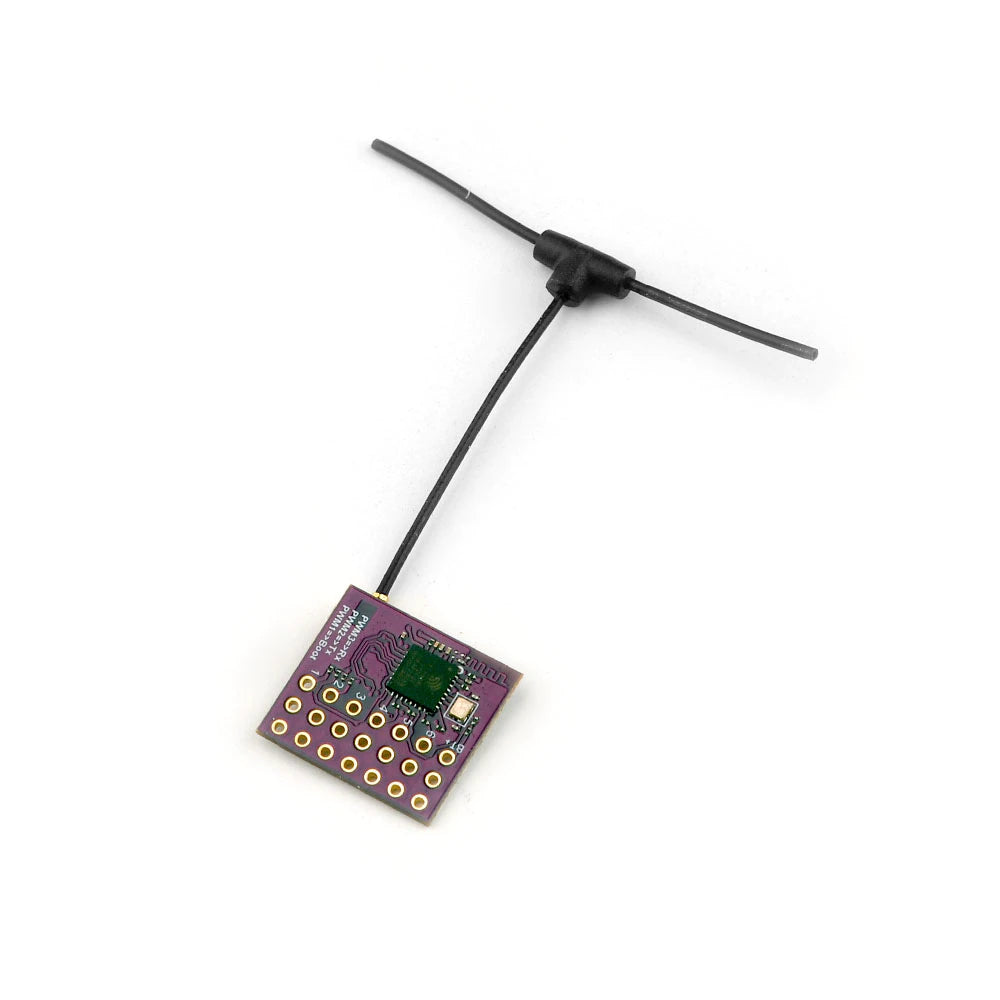

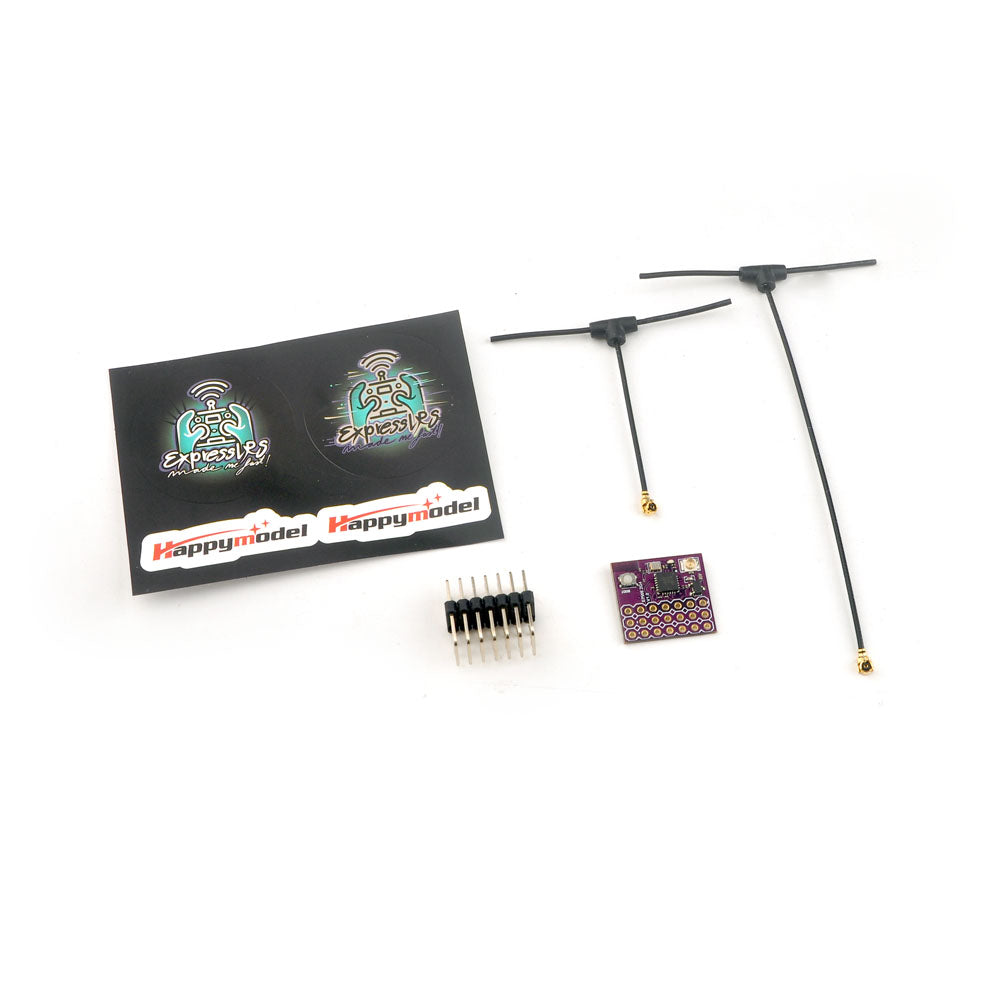

Are you in Australia looking to purchase a top - notch Happymodel ELRS EPW6 2.4GHz 6CH PWM RC receiver? This receiver is a fantastic choice. Here are its key features: It's an EPW6 TCXO 2.4GHz pwm receiver with ESP8285, SX1280/1281 components. The antenna connector is IPEX MHF 1/U.FL. It offers 6x PWM outputs, operates at an RF Frequency of 2.4GHz (2400 - 2480MHz), and has a telemetry power of 12dbm. You can choose between PWM or CRSF as the receiver protocol. It can handle an input voltage from +5v to 8.4v. The PCB size is 19mm x 17.5mm, and it weighs just 1.49g per antenna. For firmware, you have two target options. Option 1 is Generic ESP8285 6xPWM 2.4Ghz RX for PWM receiver via 1 - 6 PWM outputs. Option 2 is HappyModel_EP_2400_RX for CRSF Serial receiver via TX and RX. You can update the firmware via WIFI. The package includes 1x Happymodel EPW6 TCXO 2.4GHz PWM Receiver, 2x 2.4GHz antennas, and 3x 7pin 2.54mm connectors. Browse more receivers, Happymodel products, and antennas on our site.

Using the Happymodel ELRS EPW6 2.4GHz 6CH PWM RC receiver is easy. First, connect the antennas to the IPEX MHF 1/U.FL antenna connector. Then, make sure to connect the receiver to a power source with a voltage between +5v and 8.4v. You can choose the firmware that suits your needs, either the PWM or CRSF option. When it comes to updating the firmware, just use the WIFI feature. As for maintenance, keep the receiver clean and dry. Avoid exposing it to extreme temperatures or humidity. If you have any issues with the receiver, check the connections first. And always store it in a safe place when not in use.
