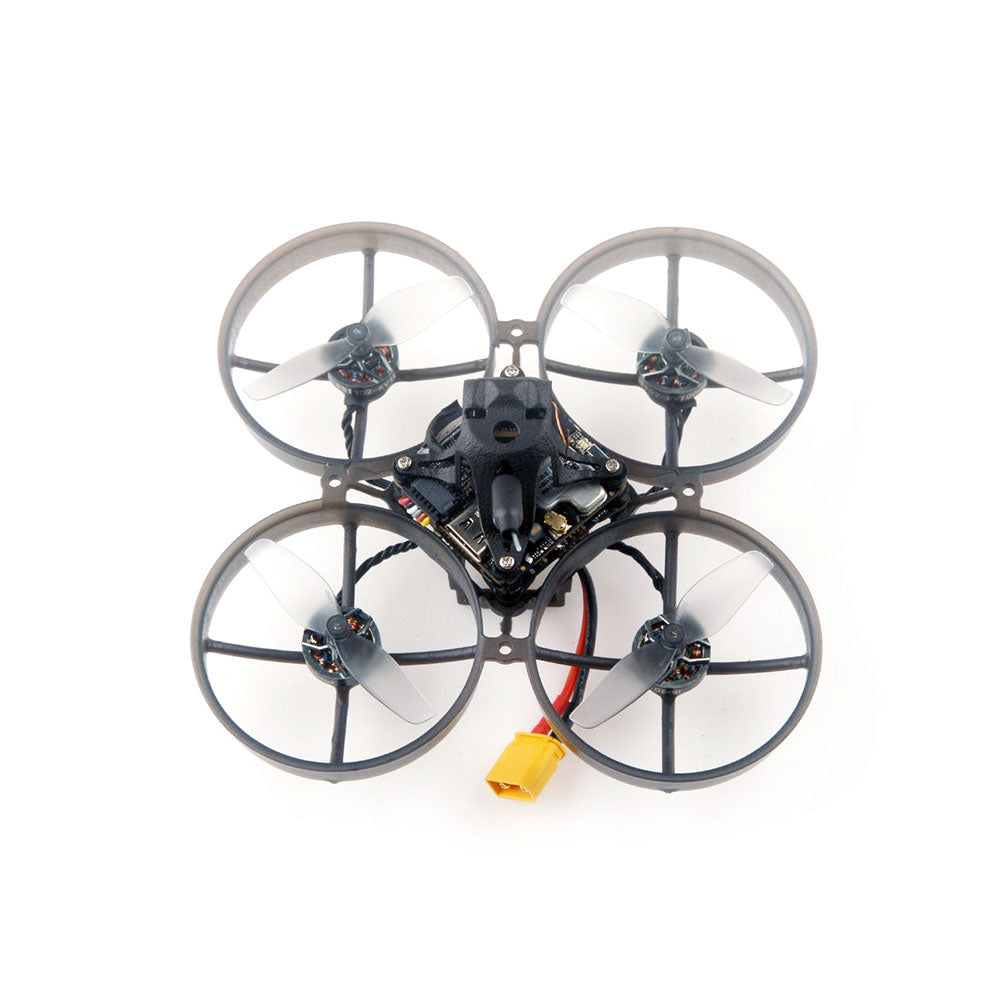

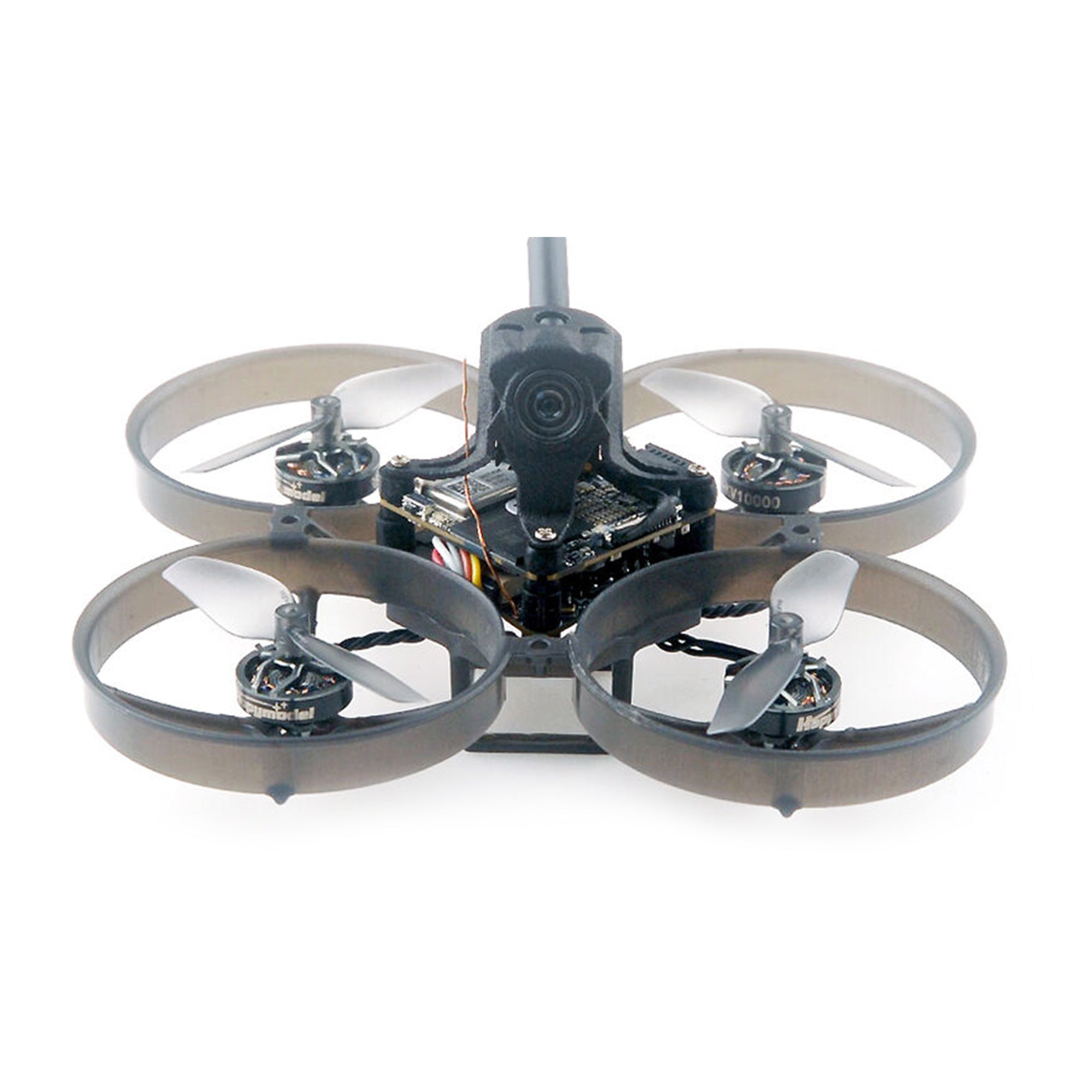

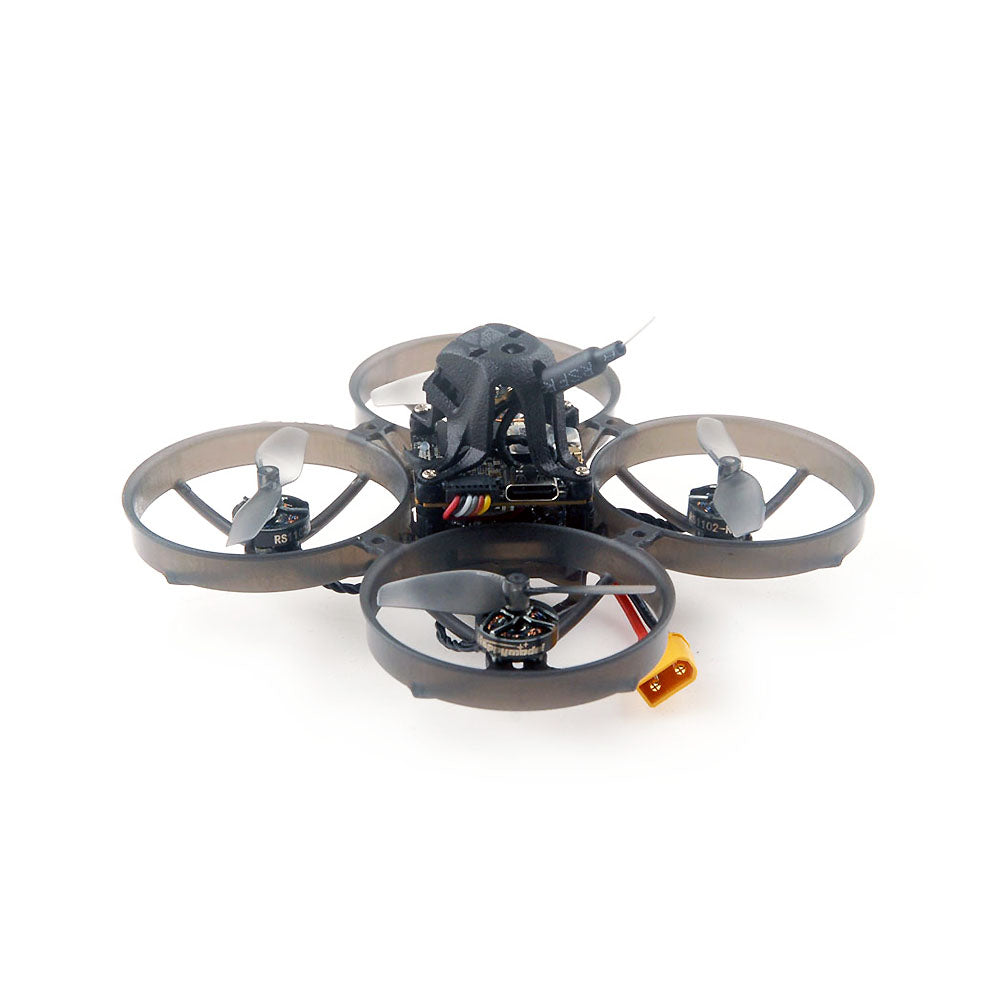

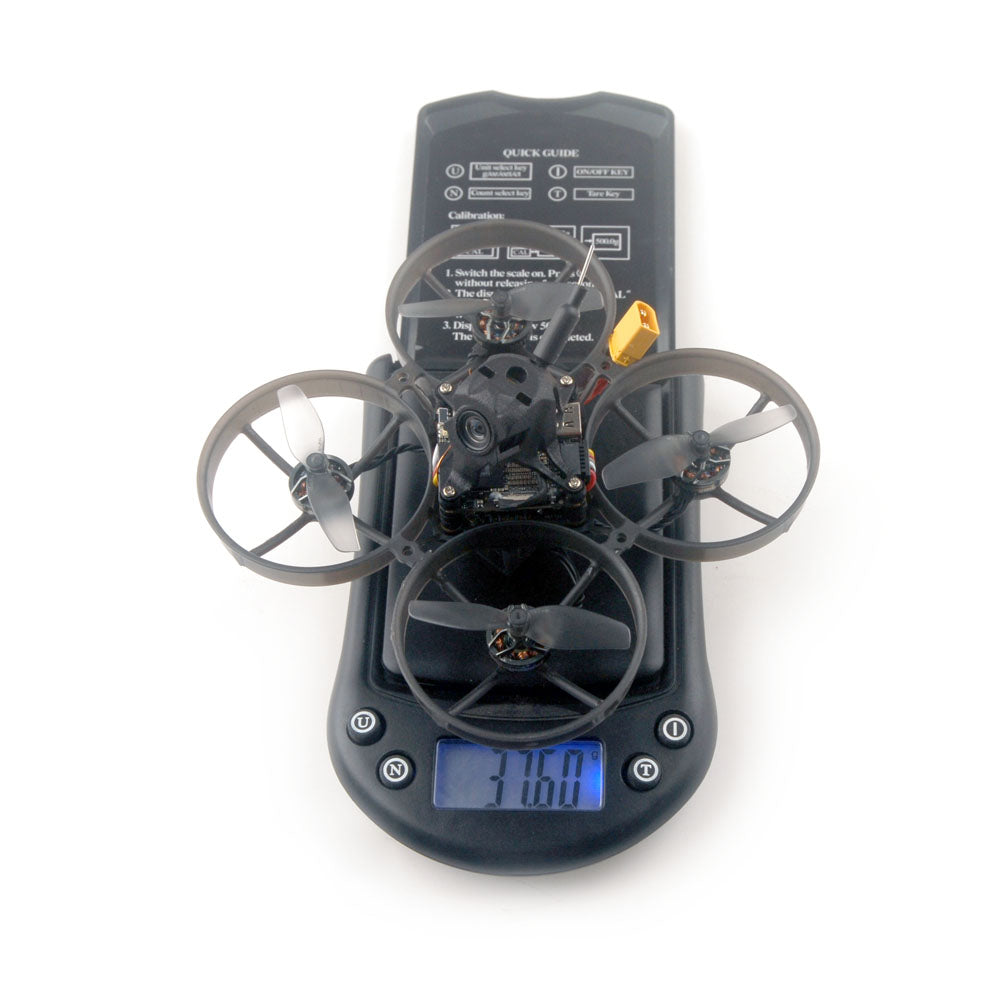

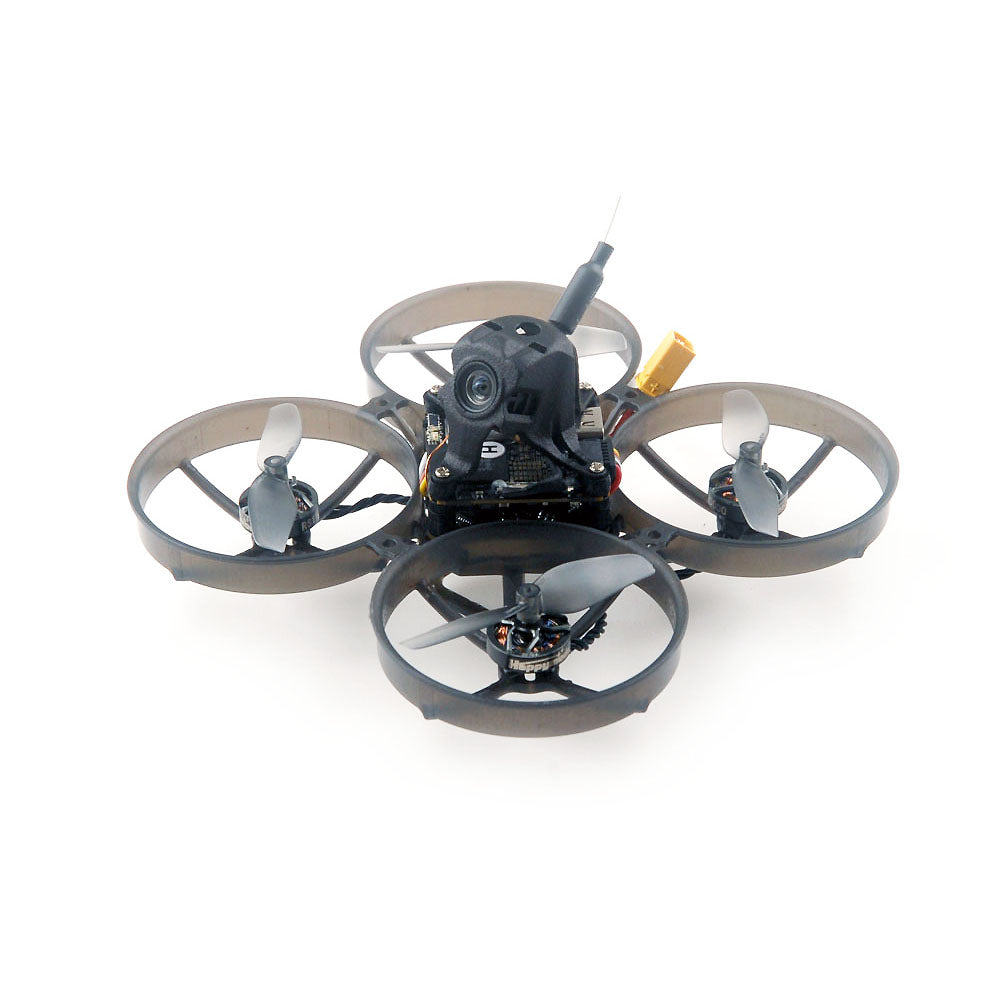

HappyModel Mobula7 DJI O4 2S HD Micro FPV Whoop

Discover the amazing Happymodel Mobula7 O4 micro FPV whoop! It's equipped with the brand - new DJI O4 air unit, delivering outstanding and incredible FPV footage. The new Happymodel RS1102 KV10000 motor paired with HQPROP 45mm propellers offers a powerful and smooth flying experience. Ideal for indoor and backyard FPV flights. **Features** - New DJI O4 air unit for top - notch video quality. - Supports 2S battery for powerful and smooth freestyle flying. - UART ExpressLRS receiver ensures a stable control link. - Lightweight and compact design for indoor FPV. **Specifications** - **Motor**: RS1102 KV10000, 9N12P configuration, 11mm stator diameter, 2mm stator length, Φ1.5mm shaft diameter, Φ13.5mm*14mm dimension, 2.8g weight, 1 - 2S cell support. - **Propellers**: 0.25g weight, polycarbonate material, 0.9 pitch, 45mm diameter, 5mm hub thickness, 1.5mm shaft. - **Flight Controller**: STM32F405RGT6 MCU, BMI270 gyro sensor, 25.5mm*25.5mm mount hole size, 1 - 2S battery input, built - in 12A Blheli_S 4in1 ESC, Serial ExpressLRS 2.4G, BMP280 barometer, 8MBp blackbox, voltage and current meter sensors. - **Onboard 4in1 ESC**: 1 - 2S LiPo/LiPo HV power supply, 12A continuous peak 15A (3 seconds), supports BLHeli_S Bluejay firmware. - **Onboard UART ExpressLRS 2.4GHz Receiver**: Multiple packet rate options, 2.4GHz RF frequency, enameled copper wire antenna, telemetry output power <12dBm, default firmware ExpressLRS V3.0.1. - **DJI O4 Air Unit**: Varies in weight, 30×30×6 mm transmission module, 13.44×12.36×16.50 mm camera module, 1080p at 30/50/60/100fps live view quality. **Important Information** If you want to use the DJI FPV Remote controller, just change the betaflight settings as shown in the picture. No hardware modification to the flight controller is needed. **Includes** - 1x HappyModel M80 Frame - 1x CrazyF405HD ELRS flight controller - 4x RS1102 KV10000 brushless motor - 1x HQPROP 45MMX2 Bi - blade propellers set - 1x DJI O4 Air Unit - 1x Canopy - 1x Screw driver

Using this HappyModel Mobula7 DJI O4 2S HD Micro FPV Whoop is a breeze. First, make sure you have a properly charged 1 - 2S battery. Connect the battery to the flight controller and turn on your transmitter. When using the DJI FPV Remote controller, remember to adjust the betaflight settings as per the given picture. Take off gently and enjoy the smooth and powerful flight. For safety, always fly in an open area, away from people and obstacles. Check the motor and propellers before each flight to ensure they are in good condition. If you notice any signs of damage, replace the parts immediately. When it comes to maintenance, keep the flight controller and other components clean. You can use a soft brush to remove dust. Store the whoop in a dry and cool place to prevent damage. If you want to update the firmware of the receiver, use the ExpressLRS configurator as described in the specifications.
