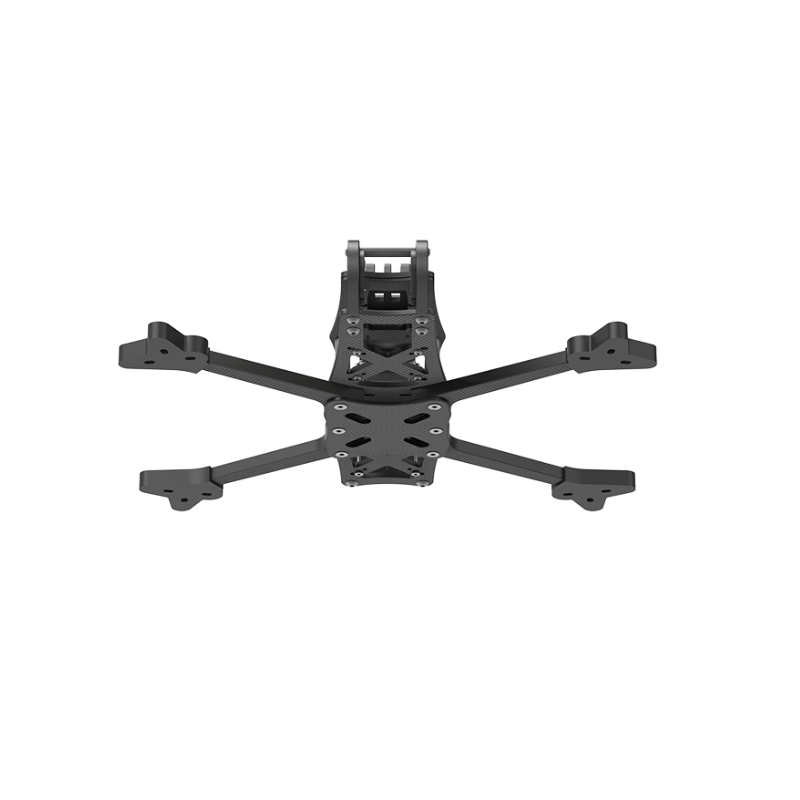

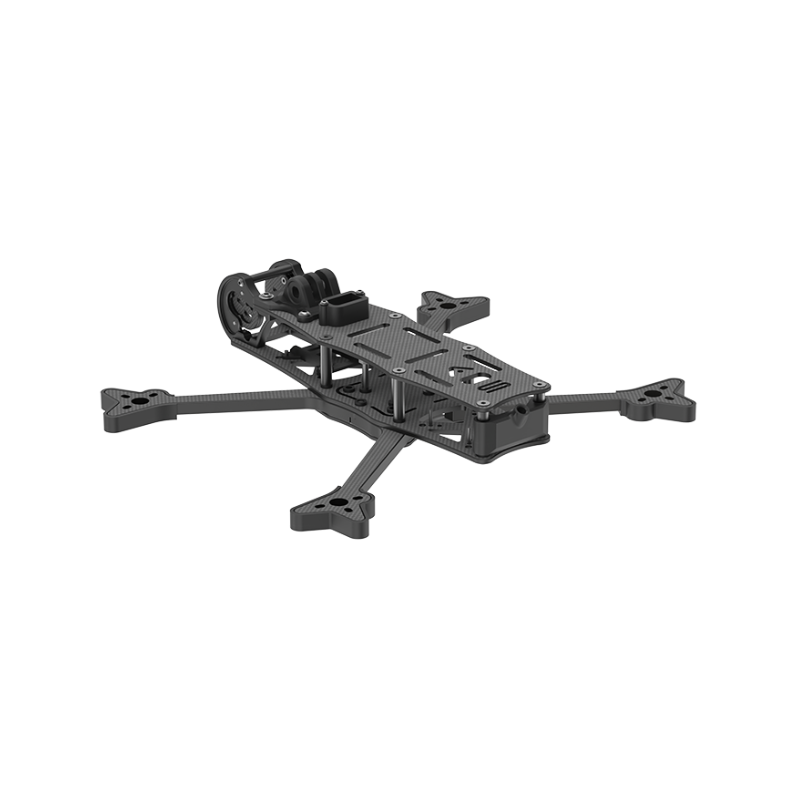

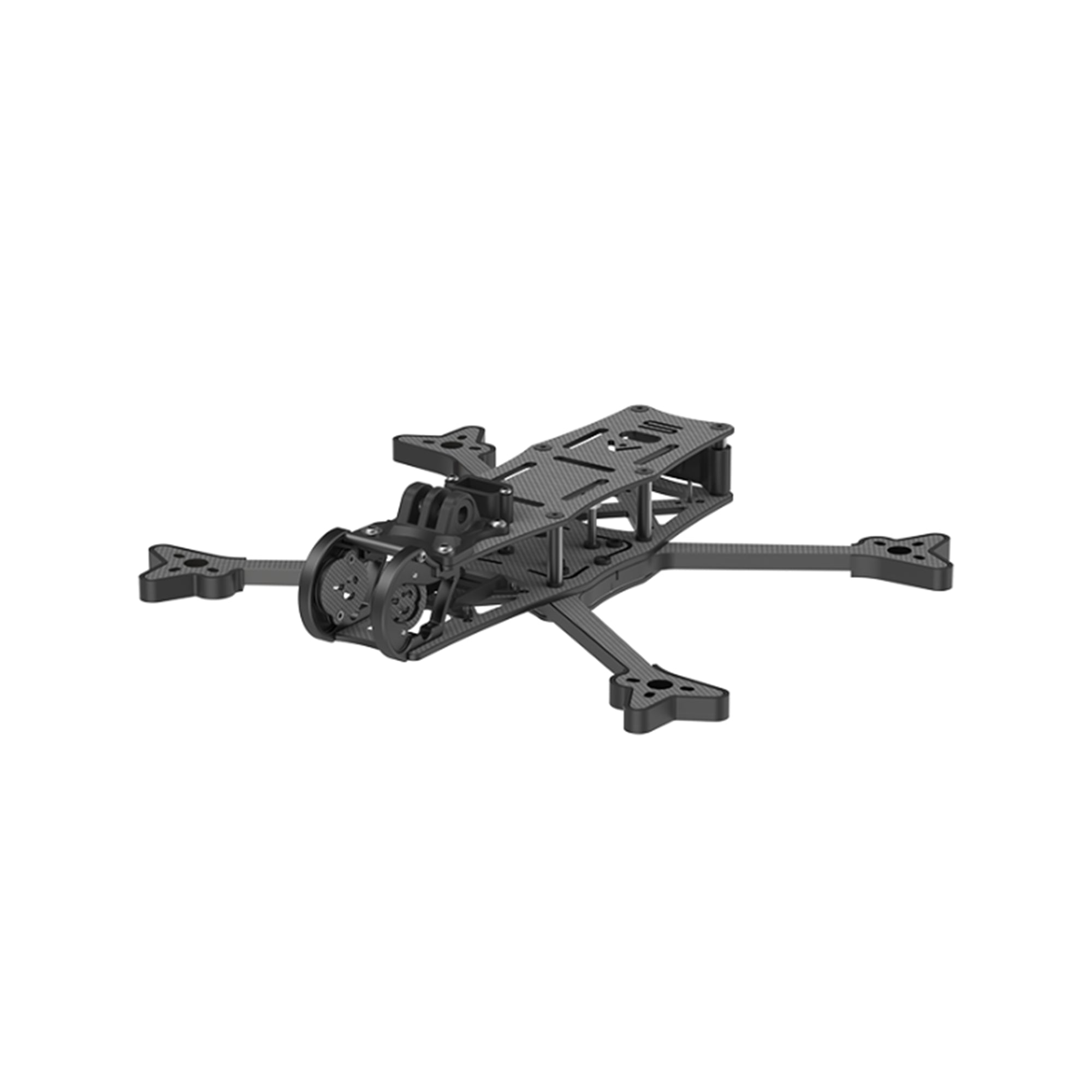

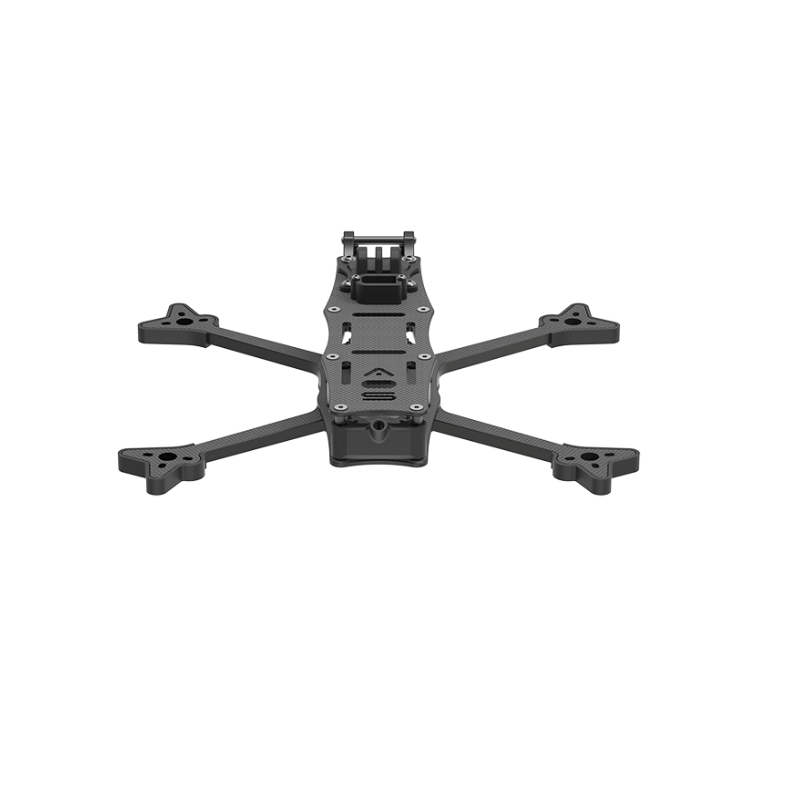

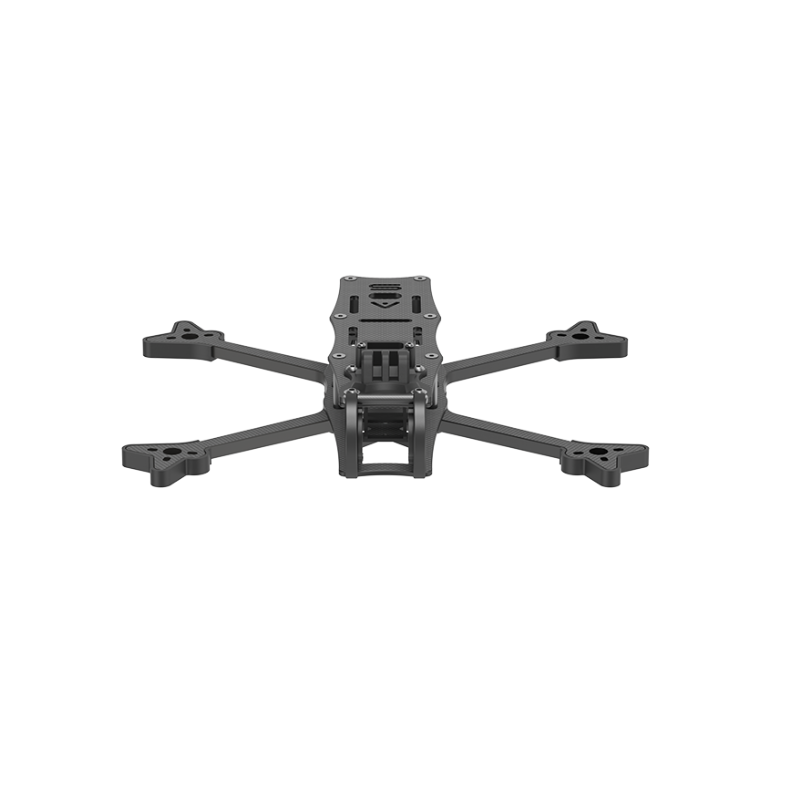

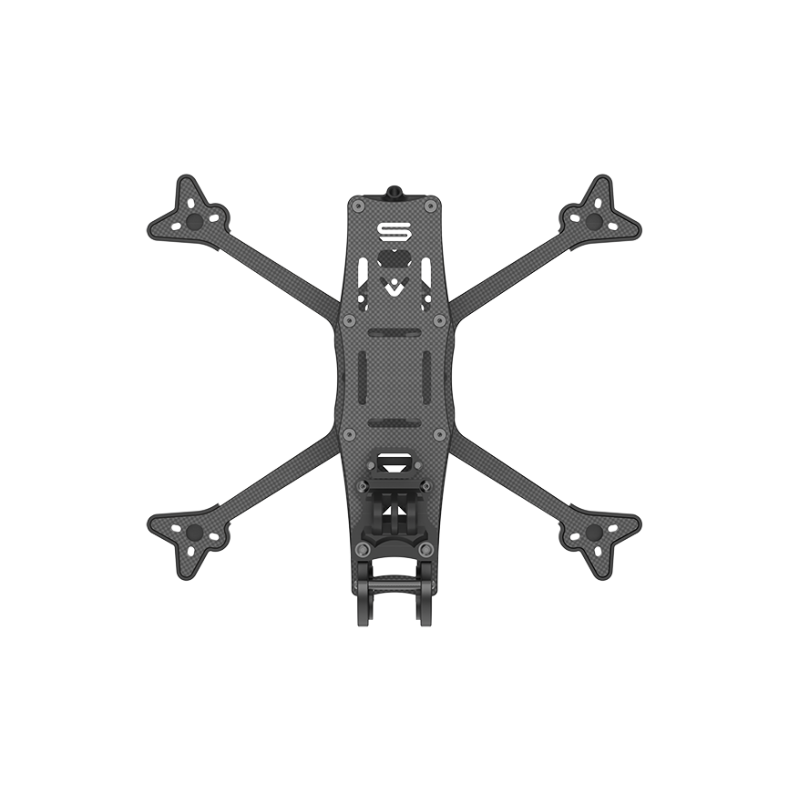

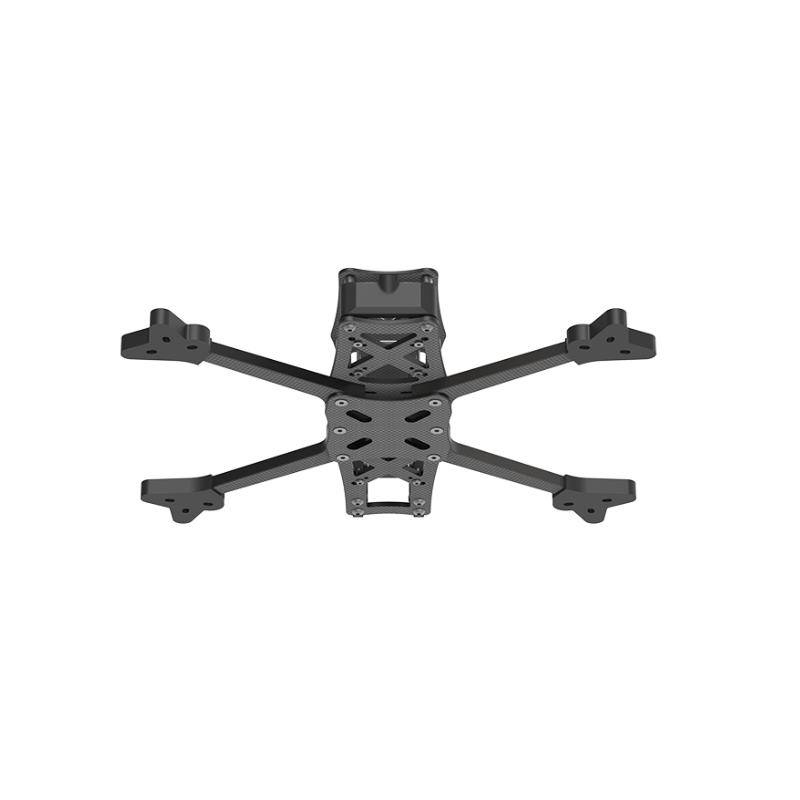

iFlight AOS 5 V5 Frame Kit

Explore the cutting - edge of 5' FPV technology with the AOS 5 V5 Frame Kit. It's set to transform your freestyle flying experience. This fifth - generation frame is compatible with VTX O3, Vista, and Blitz systems. It offers three stack mounting options, a 155° FOV without propellers in sight, and AOS X - Cell anti - vibration tech. Key features include support for up to 5.2' props, full DJI O3 compatibility, and a reinforced 7075 Aluminium Camera Cage. It's the top pick for drone lovers. With specifications like a 228mm wheelbase and weighing just 150g, it's both compact and lightweight. The kit includes an AOS 5 V5 Frame, TPU parts, battery pads, a screw bag, and battery straps.

Using the iFlight AOS 5 V5 Frame Kit is straightforward. First, choose your preferred stack mounting option according to your equipment. You can use 30.5x30.5, 25.5x25.5, or 20x20 mm stacks. Mount your motors in the 19 - 20mm motor mounts which support all standard 5' motors. Then, install your camera in the reinforced 7075 Aluminium Camera Cage. You can use either a hard or soft mount for 19 - 20mm cameras. For the battery, you have the choice of lengthwise or toilet tank mounting. Make sure to connect the XT60 connector properly. When it comes to maintenance, keep the frame clean. After each flight, check for any loose screws in the screw bag and tighten them if necessary. Store the frame in a dry place to prevent corrosion. Also, be careful with the TPU parts and battery pads as they can be easily damaged. If you're using the DJI O3 air unit, follow the specific guidelines for its care. And don't forget to regularly inspect the battery straps for any signs of wear and tear.
