iFlight Xing 2 1806 FPV Motor 1.5mm Shaft 1600Kv/2500Kv

Are you in Australia and on the hunt for top - notch iFlight Xing 2 1806 FPV motors? Our XING series NextGen motors took the market by storm after their 2018 debut, setting a new industry standard. Whether it was the sleek curved shape, the internal damping ring protecting the bearing, or the high - quality NSK bearings paired with a high - grade titanium alloy shaft, we've been the benchmark all these years. Now, we're ready to raise the bar again with the XING2! The XING motors, already smooth, reliable, and powerful, have been upgraded. We've reached new manufacturing heights and delivered better performance than ever. Introducing new center - slotted N52H curved arc magnets that slash the motor's response time. Often, the motor is the bottleneck in FPV flight controllers due to braking and accelerating delays. The XING2 motors offer a faster response, translating your PID loop quicker and giving you that locked - in feeling you've always wanted. Thanks to high - quality materials and a durable bell - shaft joint, we've minimized the magnet air gap and stator lamination. A smaller air gap means lower reluctance and higher magnetic flux, leading to more efficiency and power. Back in early 2018, we added o - rings on top of the bearings between the motor bell and stator. These o - rings absorb shocks from crashes, keep the bearing gap tight, and reduce high - rpm vibrations. They also cushion the axial impact force, ensuring your bearings run smoothly and quietly. All the great features of the original XING series, like the high - quality 7075 bells and O - ring bearing protection, are now built into a new, improved design. Features: 1.5mm outer titanium alloy shaft, Japanese NSK φ5*φ5*2.5mm bearings, N52H curved magnets, protected motor wires, and dynamic balance. Specifications: Model: XING2 1806; KV: 1600KV / 2500KV (select); Input Voltage: 4S/6S Lipo; Configuration: 12N14P; Stator Diameter: 18mm; Stator Length: 6mm; Weight: 19.3g with short wire; Wire length: 24AWG 160mm; Bottom Mounting pattern: 12*12mm φ2mm; Top Mounting pattern: 6*6mm φ2mm. Package includes: 1x XING2 1806 Brushless Motor 1.5mm Shaft (KV is optional) and 6x M2*7mm screws. Browse more: All 1806 Motors, All iFlight Motors, All Motors.

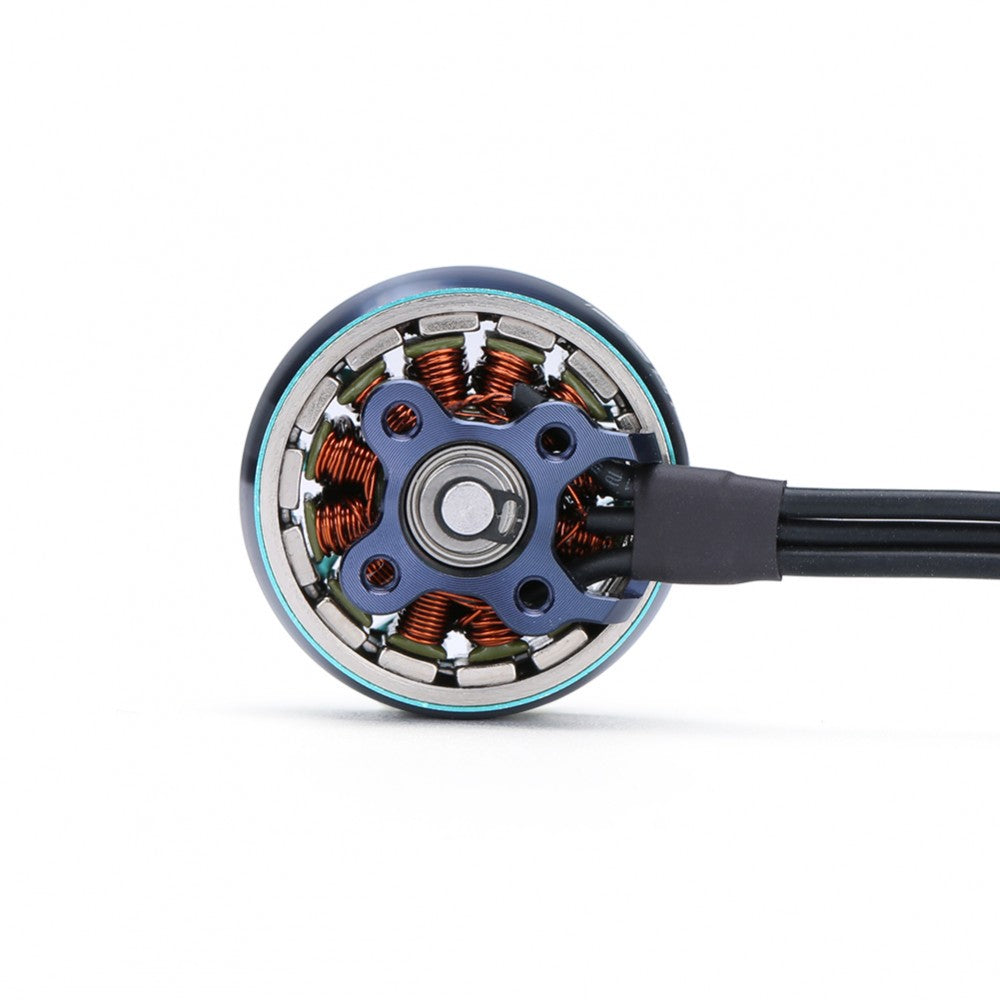

Using the iFlight Xing 2 1806 FPV motor is straightforward. First, select the appropriate KV value (either 1600KV or 2500KV) based on your needs. Make sure to connect it to a 4S or 6S Lipo battery as specified. When mounting, use the provided M2*7mm screws and follow the bottom 12*12mm φ2mm and top 6*6mm φ2mm mounting patterns. During use, be aware that the motor can generate heat, especially during long - term operation. Avoid overloading it to prevent overheating. For maintenance, regularly check the o - rings on top of the bearings. If they're damaged or worn, replace them to keep the bearing protected. Also, check the motor wires for any signs of wear or damage. Keep the motor clean and free from dust and debris. If you notice any unusual vibrations or noises, stop using the motor immediately and check for possible issues like loose parts or damaged bearings.
