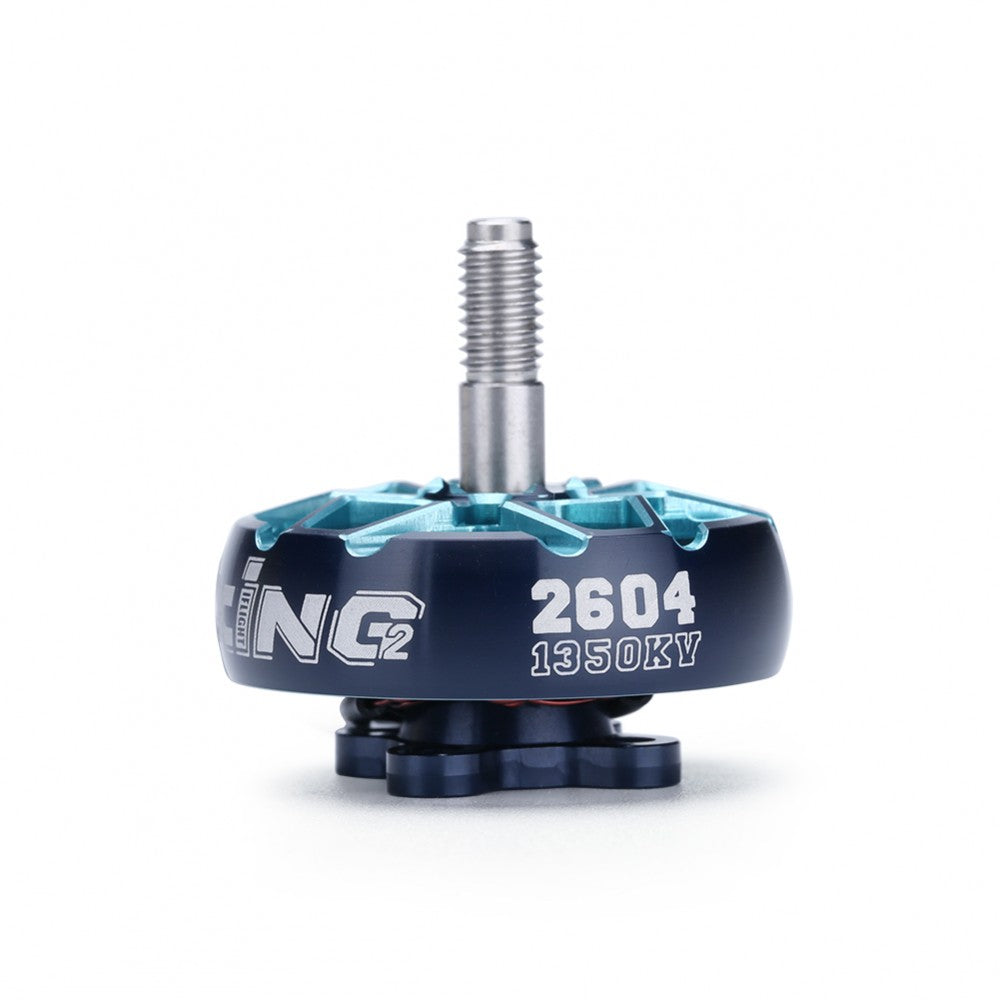

iFlight Xing 2 2604 FPV Motor 1350Kv/1650Kv - EOL

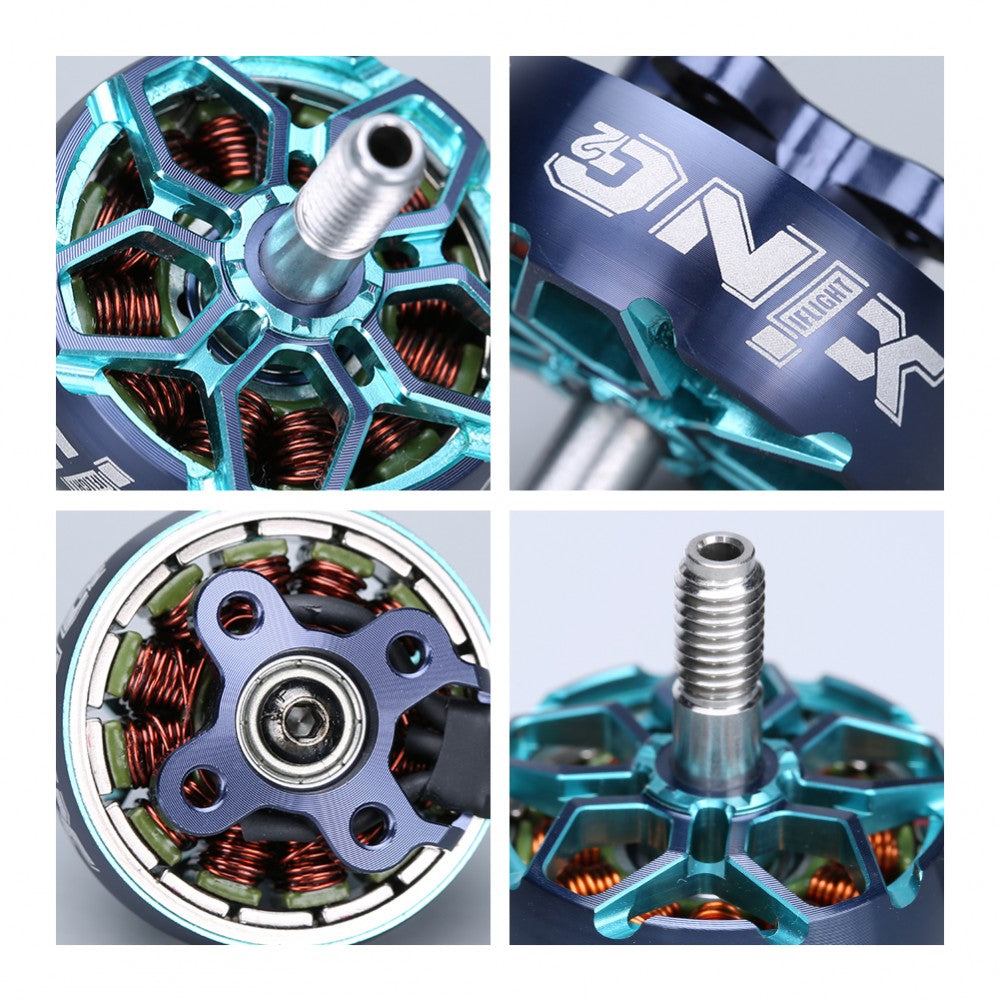

Are you in Australia and eager to buy top - notch iFlight Xing 2 2604 FPV motors? Our XING series NextGen motors made a splash in 2018 and set a new market standard. Whether it was the unique curved shape, the internal damping ring protecting the bearing, or the high - quality NSK bearings paired with a top - grade titanium alloy shaft, we've been a benchmark in the industry. After years of being copied and compared, we're excited to unveil the XING2! The XING motors, already smooth, reliable, and powerful, have been upgraded to an even higher level. We've introduced new center - slotted N52H curved arc magnets, which significantly cut down the motor's response time. In FPV flights, the motor has often been the bottleneck due to braking and accelerating delays. But with XING2 motors, you'll experience a quicker response, translating your PID loop faster and giving you that locked - in feeling you've always craved. Thanks to the high - quality materials and a durable bell - shaft joint, we've minimized the magnet air gap and stator lamination. A smaller air gap means lower reluctance, higher magnetic flux, and thus greater efficiency and power. Back in early 2018, we added o - rings on top of the bearings between the motor bell and stator. These o - rings act as shock absorbers in case of crashes, keep the bearing gap tight, and reduce high - rpm vibrations. They also lessen the axial impact force, ensuring your bearings run smoothly and quietly. All the great features of the original XING series, like the high - quality 7075 bells and O - ring bearing protection, are still built into the new design. Features: 5mm titanium alloy shaft (our strongest ever), crash - resistant 7075 aluminum bell, smooth and long - lasting NSK 9x9x4 bearings, center - slotted N52H curved arc magnets, XING O - ring bearing gap protection, motor wires protector, and dynamic balance. Specifications: Model is XING2 2604, with KV options of 1800KV or 1950KV. A common setup is 1800KV/1950KV with a 6S battery and 5 - inch propeller. The prop shaft has a CW thread, and the recommended input voltage is 4S - 6S (16V - 26V). It has a 12N14P configuration, a 15mm stator diameter, 5mm stator height, and comes with 20AWG 160mm wires. The mounting pattern is 16*16*3mm. Package includes 1x XING2 2604 Brushless Motor, 4x M3x8 screws, and 1x Prop nut. You can also browse more iFlight Motors, all Motors, and all 13xx Motors.

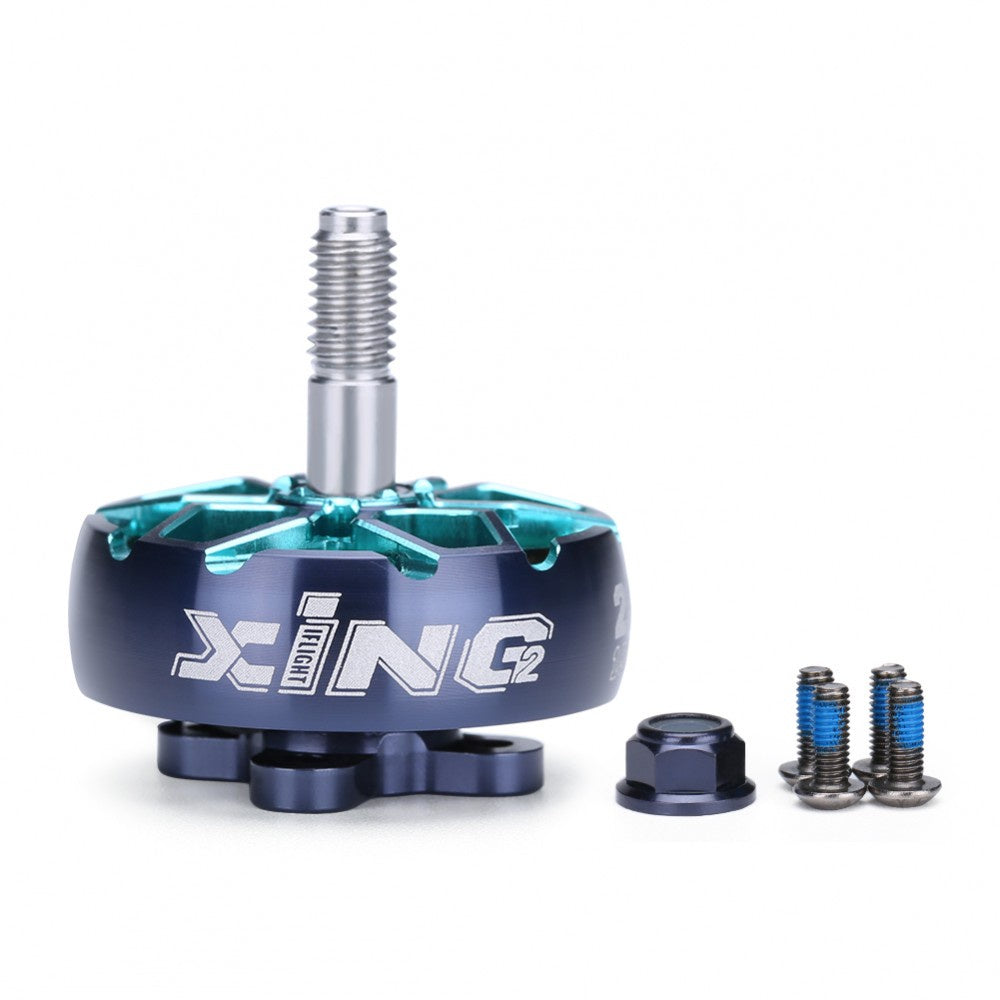

Using your iFlight Xing 2 2604 FPV motor is easy. First, make sure to choose the right KV value according to your flight needs. The common setup is 1800KV/1950KV with a 6S battery and 5 - inch propeller, but you can adjust based on your preference. When installing, use the included M3x8 screws and prop nut to secure the motor properly to your drone. Make sure the prop shaft is tightened with the CW thread. The recommended input voltage is 4S - 6S (16V - 26V), so always use a battery within this range to avoid damaging the motor. As for maintenance, keep an eye on the o - rings between the motor bell and stator. They help reduce vibrations and protect the bearings. If you notice any signs of wear or damage, it might be a good idea to replace them. Also, regularly check the motor wires protector to ensure the wires are not exposed or damaged. When storing the motor, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or humidity, as this can affect its performance and lifespan. If you crash your drone, inspect the motor carefully for any visible damage. If there are issues with the bearing or the bell, it's best to get it repaired or replaced as soon as possible to keep your flights smooth and safe.
