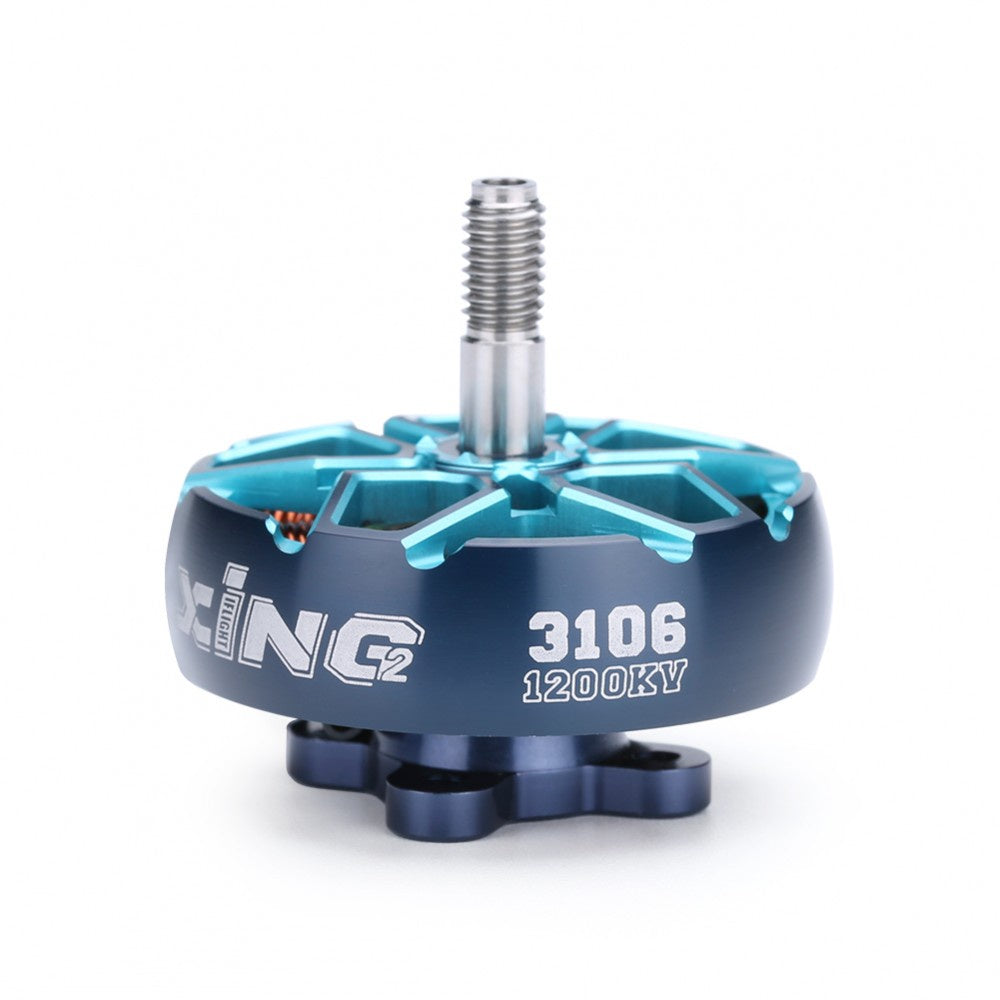

iFlight Xing 2 3106 FPV Motor 1200Kv/1500Kv

Are you in Australia and looking to buy top - notch iFlight Xing2 3106 FPV motors? Our XING series NextGen motors hit the market in 2018 and quickly became a hit, setting a new industry standard. Whether it was the unique curved shape, the internal damping ring protecting the bearing, or the high - quality NSK bearings paired with a high - grade titanium alloy shaft, we've been a benchmark for years. Now, we're proud to present the XING2! The XING motors, already smooth, reliable, and powerful, have been upgraded. In our factory, we've reached even higher manufacturing standards and achieved better performance. New center - slotted N52H curved arc magnets are introduced, which significantly cut down the motor's response time. In FPV flights, the motor's braking and accelerating delays can be a big bottleneck, but the XING2 motors respond faster, translating your PID loop quicker and giving you that locked - in feeling you've always wanted. Thanks to high - quality materials and a durable bell - shaft joint, we've minimized the magnet air gap and stator lamination. A smaller air gap means lower reluctance and higher magnetic flux, leading to greater efficiency and more power. Back in early 2018, we added o - rings on top of the bearings between the motor bell and stator. These o - rings act as shock absorbers when the bell or shaft endures crashes, keep the bearing gap tight, and reduce high - rpm vibrations. They also lessen the axial impact force, keeping your bearings smooth and quiet. All the great features of the original XING series, like the high - quality 7075 bells and O - ring bearing protection, are still here in a new design. Features: 5mm titanium alloy prop shaft, the sturdiest ever! Crash - resistant 7075 aluminum bell, smooth and long - lasting NSK 9x9x4 bearings, center - slotted N52H curved arc magnets, XING O - ring bearing gap protection, motor wires protector, and dynamic balance. Specification: Model: XING2 3106; KV: 1200KV / 1500KV (selectable); Prop shaft: CW thread; Recommended input voltage: 4S - 6S (16V - 26V); Configuration: 12N14P; Stator Diameter: 31mm; Stator Height: 6mm; Weight: 65.5g with short wire; Wire length: 16AWG 260mm; Mounting pattern: 16*16mm. Package includes: 1x XING2 3106 Brushless Motor, 4x M3x6 screws, 1x Prop nut. Browse more iFlight Motors, Long Range Motors, and all Motors.

Using the iFlight Xing 2 3106 FPV motor is quite straightforward. First, make sure to choose the right KV value (1200KV or 1500KV) according to your flight needs. When installing, use the provided M3x6 screws and prop nut to mount the motor securely on your FPV drone. Connect the motor wires carefully, following the correct polarity. Remember to select an appropriate input voltage between 4S - 6S (16V - 26V) as recommended. For safety, always check the motor and its connections before each flight. If you experience a crash, inspect the motor for any visible damage, especially the bell and shaft. The O - ring on the bearing provides some protection, but severe impacts may still require a check. To maintain the motor, keep it clean from dust and debris. You can use a soft brush to gently clean the exterior. The high - quality NSK bearings are designed to last, but if you notice any unusual noise or vibration during operation, it might be a sign that the bearings need attention. With proper use and maintenance, your iFlight Xing 2 3106 motor will serve you well for a long time.
