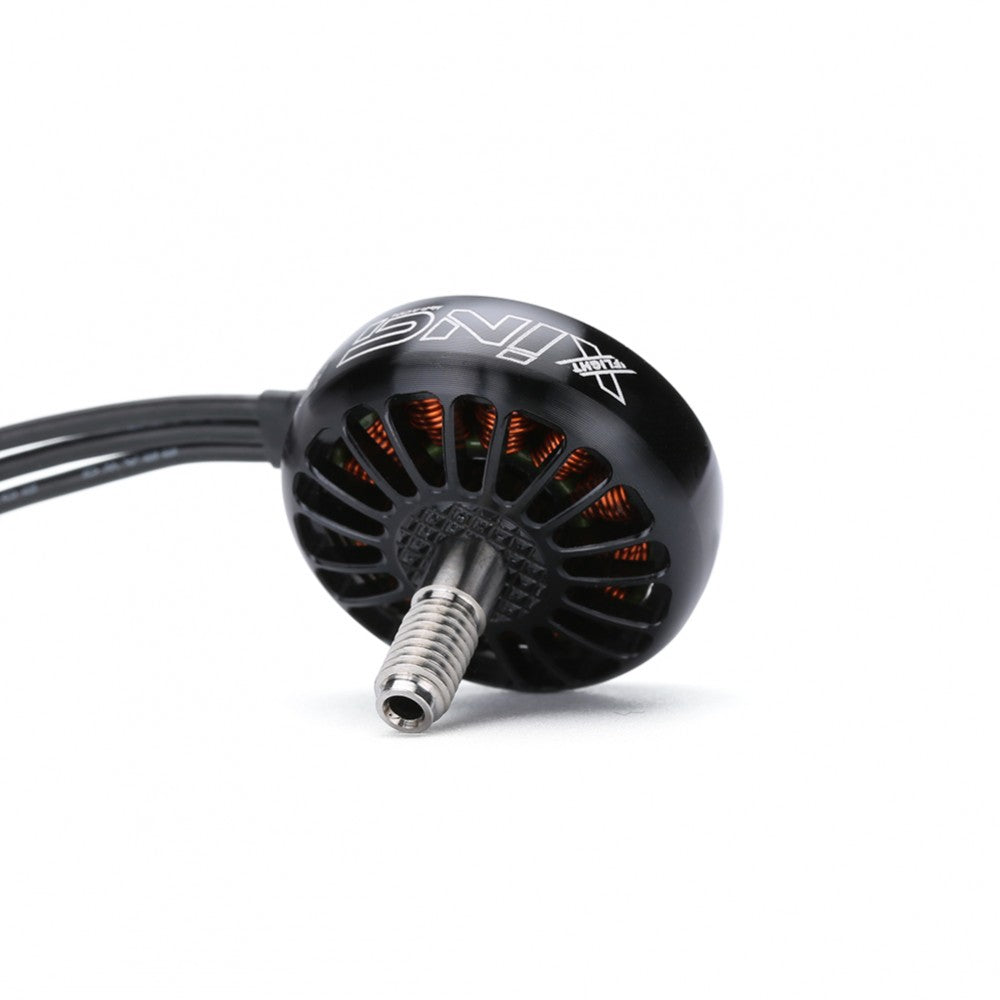

iFlight Xing 2205 NextGen FPV Motor - 2300KV/3200KV

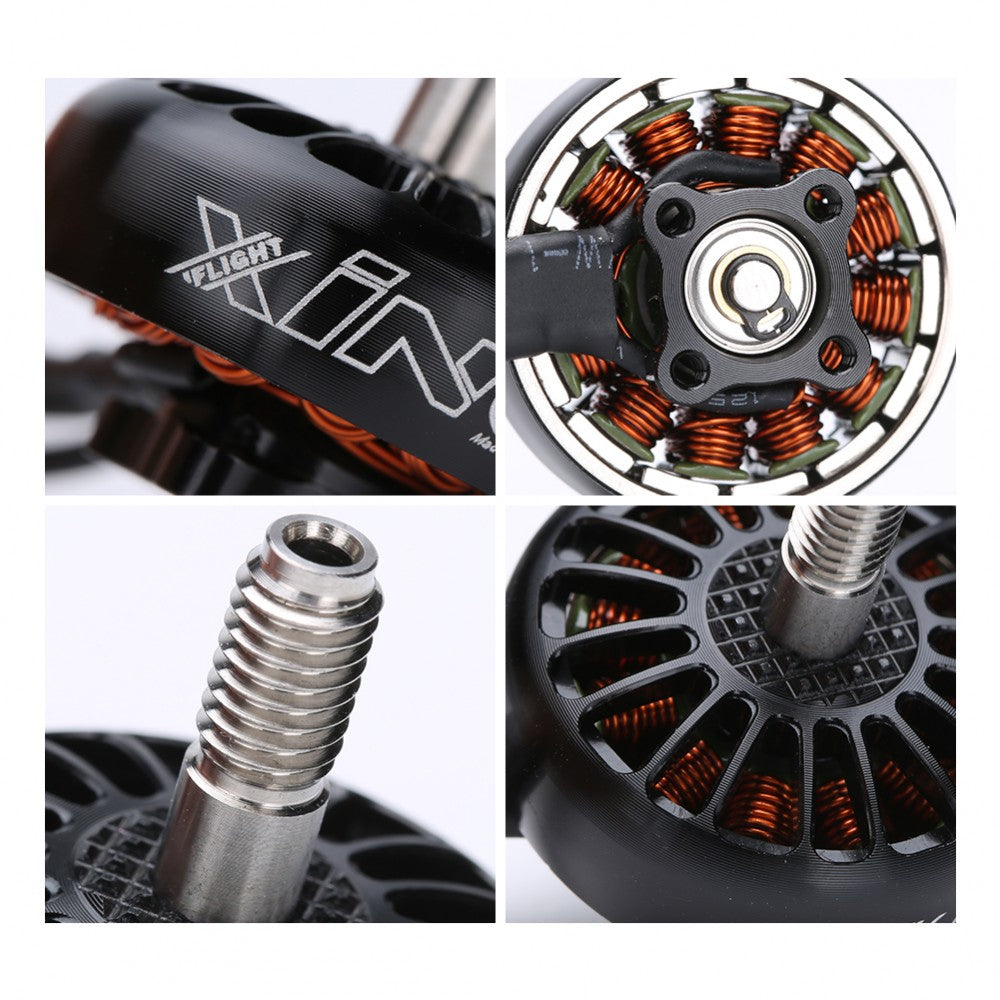

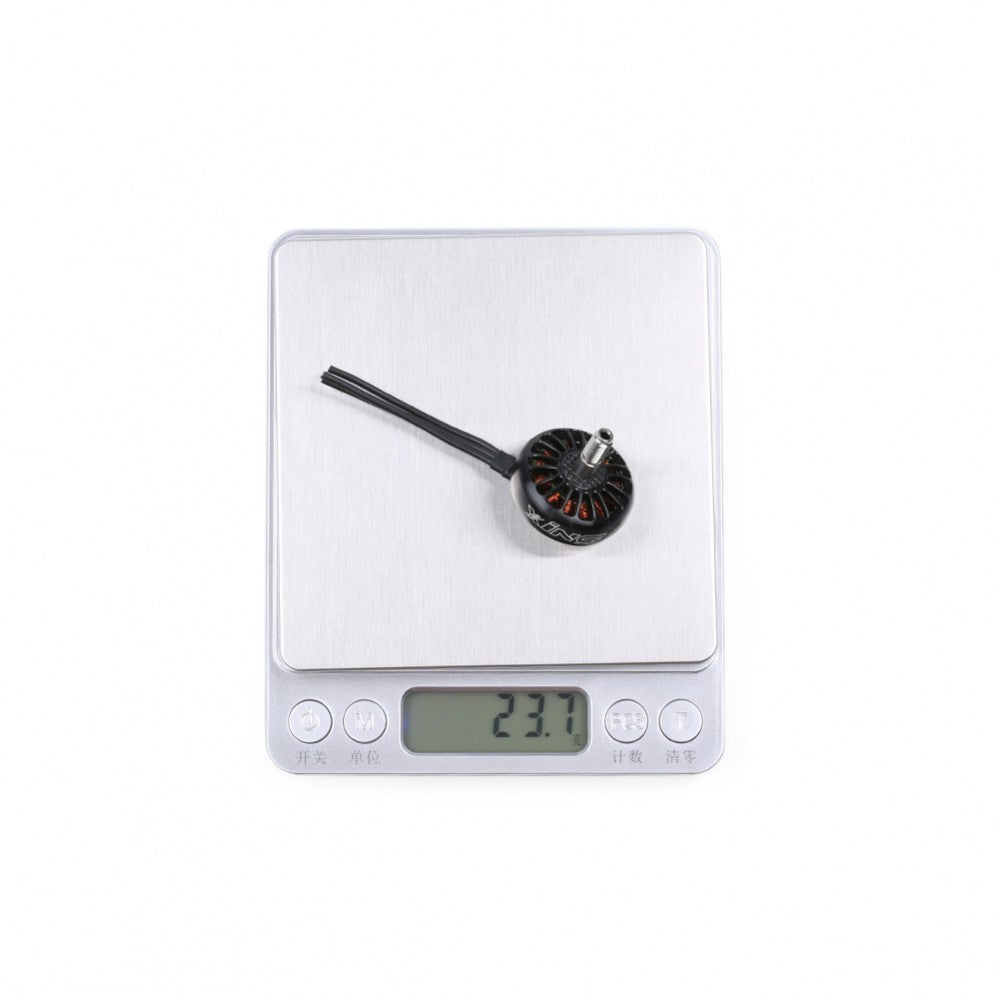

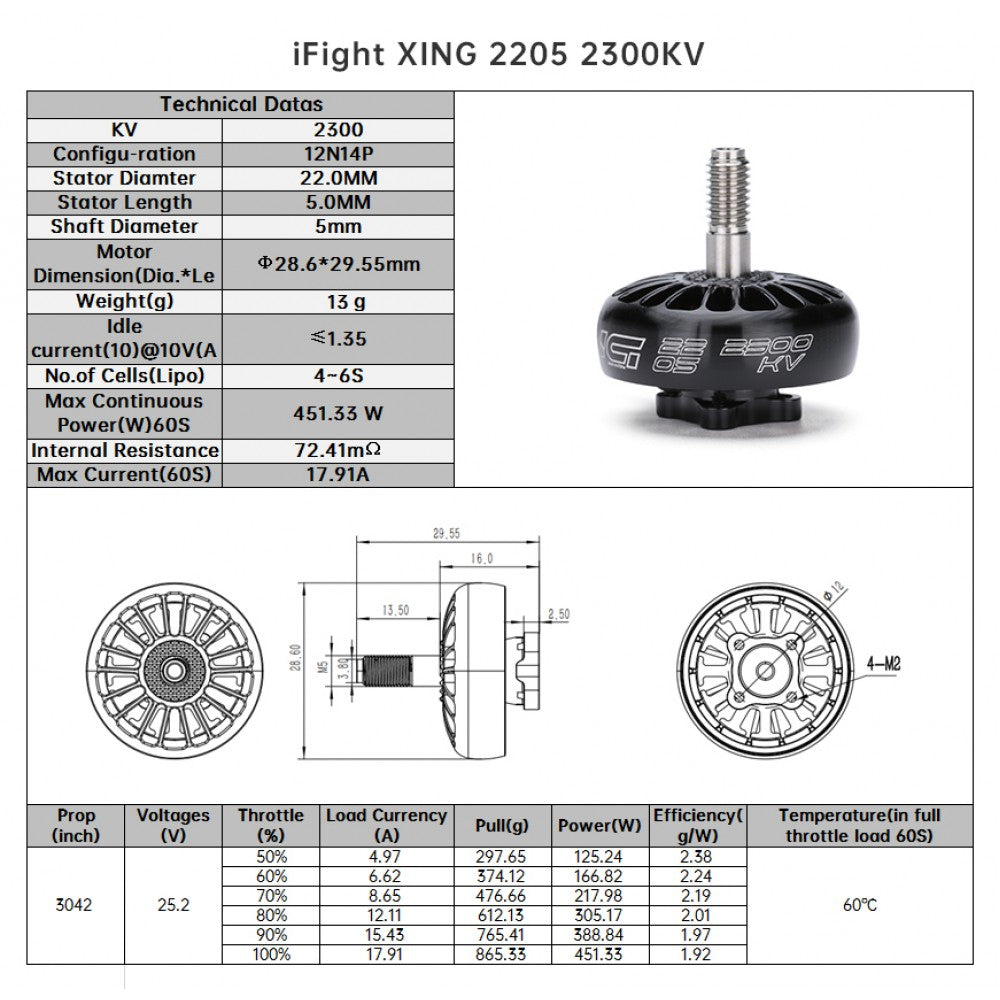

Are you in Australia and seeking a top - notch FPV motor? Look no further! The iFlight Xing 2205 NextGen FPV motor is a masterpiece. It's exquisitely designed, offering smooth operation and high efficiency, ready to elevate your quad - copter performance. Key features include a high - strength 5mm steel shaft, Japanese NSK φ8*φ3*4 bearings, N52H curved magnets, protected motor wires, and dynamic balancing. Specifications are as follows: Model is XING 2205 with a 2300KV rating, 4S/6S Lipo input voltage, 12N14P configuration, 22mm stator diameter, 5mm stator length, and it weighs 13g with short wire. The bottom mounting pattern is 12*12mm/M2. The package includes 1 black XING 2205 FPV NextGen Motor and 4 M2*6mm screws. Note that the propeller is not included. You can also browse more 22xx Motors, iFlight Motors, or all Motors.

Using the iFlight Xing 2205 NextGen FPV motor is quite straightforward. First, make sure your quad - copter is powered off. Then, use the provided M2*6mm screws to mount the motor onto your quad - copter following the 12*12mm/M2 bottom mounting pattern. Connect the motor wires carefully to the appropriate power source, which is 4S/6S Lipo as specified. When it comes to using it, start with a gentle power - up to check for smooth rotation. As for precautions, never use the motor without proper mounting, as it may cause damage or pose a safety risk. Also, always keep the motor away from water and high - humidity environments. For maintenance, regularly check the bearings for smoothness. If you notice any abnormal noises or vibrations, it might be a sign that the motor needs some attention. You can clean the motor with a soft brush to remove dust and debris, but be gentle with the wires and other components.
