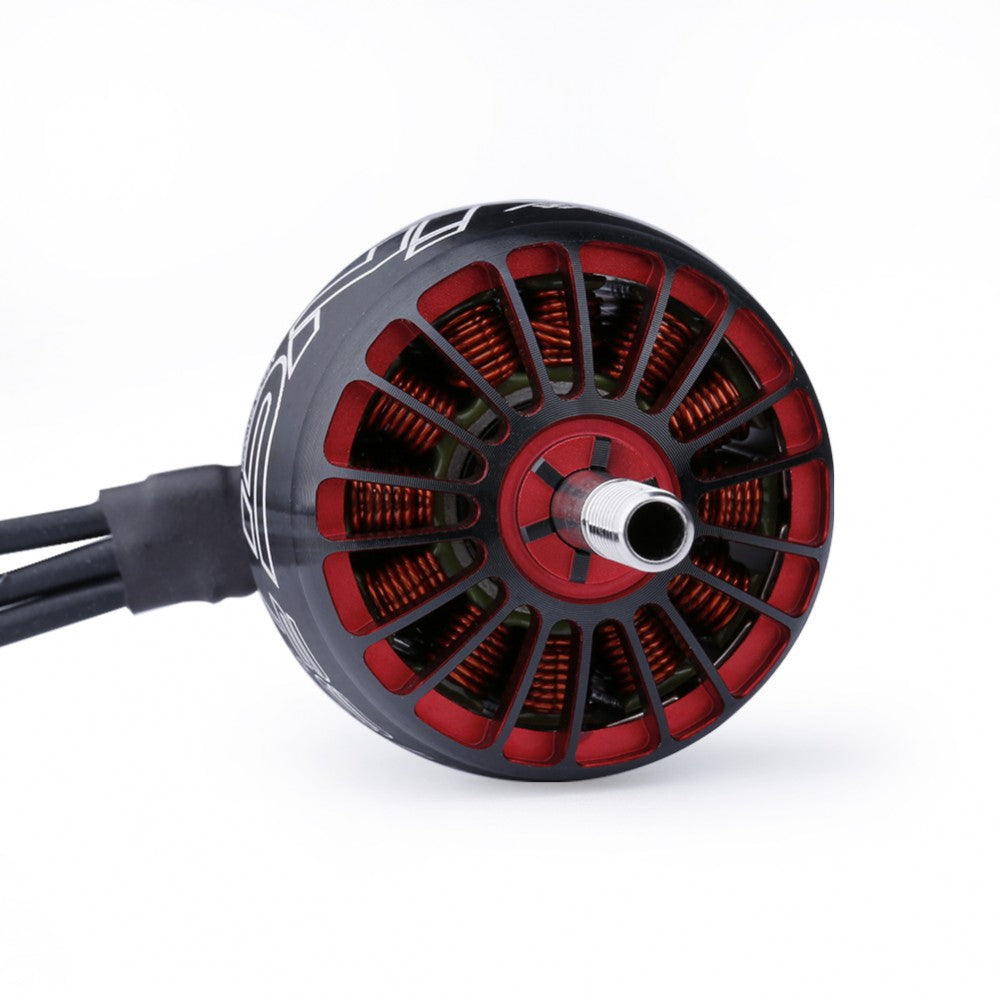

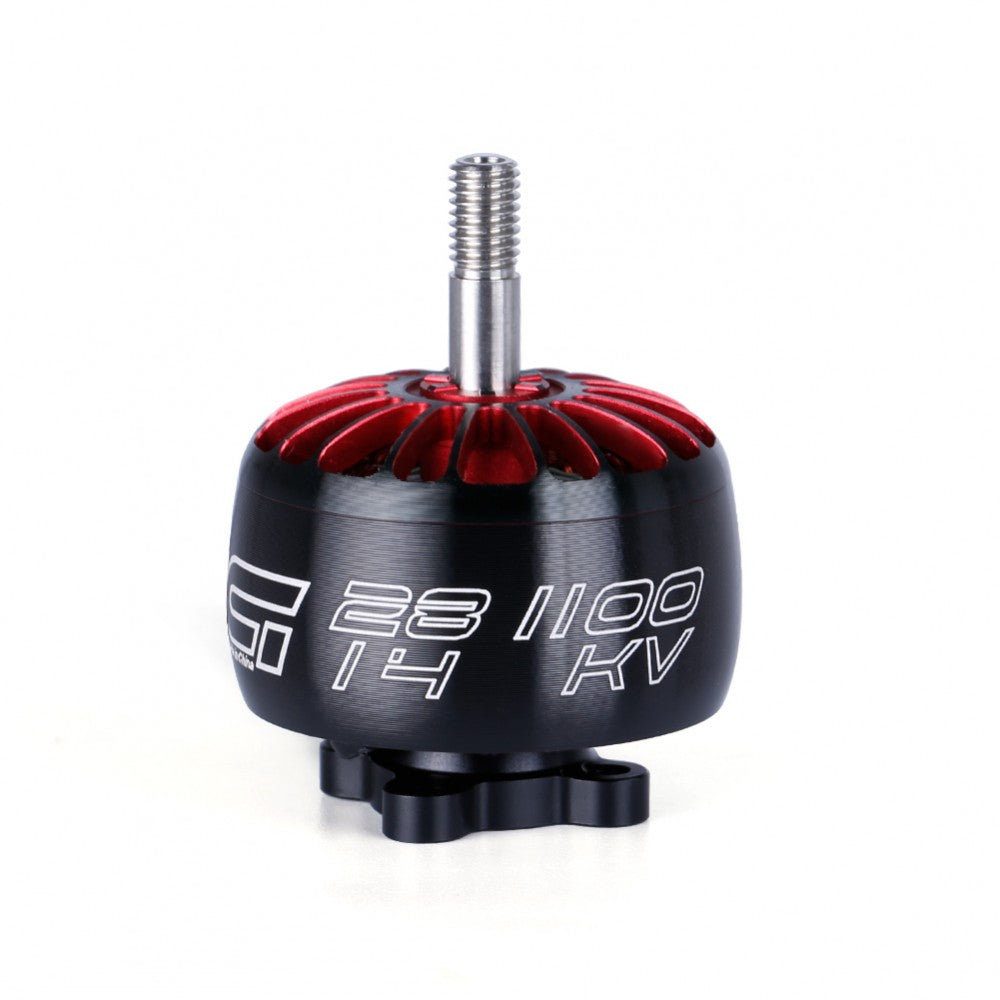

iFlight Xing x2814 NextGen Motor

Are you in Australia looking to buy high - performing iFlight Xing X2814 motors? These motors are specially designed for larger quads, such as 9 - 10 inch quad frames, delivering excellent efficiency within this size range. The XING 2814 features top - notch components like Japan NSK bearings and N52H arc magnets. It offers amazing thrust, quick responsiveness, and incredibly smooth flight. The 2814's larger stator size provides instant power, rescuing you in tricky situations. Ideal for building 9 or 10 inch drones. Key features include a 7075 aluminum bell and base, electromagnetically matched magnets and stator, Japanese NSK 11*5*5 bearings, N52H arc curve magnets, protected motor wires, a hex bolt shaft set screw, and dynamic balance. Specifications include a 2 - 6S voltage range, multiple KV options (880KV/1100KV/1700KV/2200KV), a 12N14P configuration, an NSK/11*5*5 bearing, a 28mm stator diameter, a 14mm stator length, a 5mm shaft diameter, 2 - 6S Li - po cells, an 88.3g weight (with a short cable), and a 19*19 φ3mm motor mount hole. Each package includes 1 X2814 motor, 1 M5 screw nut, and 4 M3*8 screws. You can also browse more 28xx motors, iFlight motors, and all motors.

Using the iFlight Xing X2814 motor is straightforward. First, make sure to choose the right KV option based on your drone's needs and refer to the test report for suitable batteries in the 2 - 6S voltage range. When installing, use the included M5 screw nut and M3*8 screws to mount the motor securely on your 9 - 10 inch quad frame. During flight, you'll notice the amazing thrust and smooth performance. For maintenance, keep the motor clean and check the wires regularly to ensure they are protected. If you see any signs of wear on the Japanese NSK bearings, it might be time for a replacement. Always handle the motor with care to avoid damaging the components like the N52H arc magnets. Also, store the motor in a dry place when not in use to prevent corrosion.
