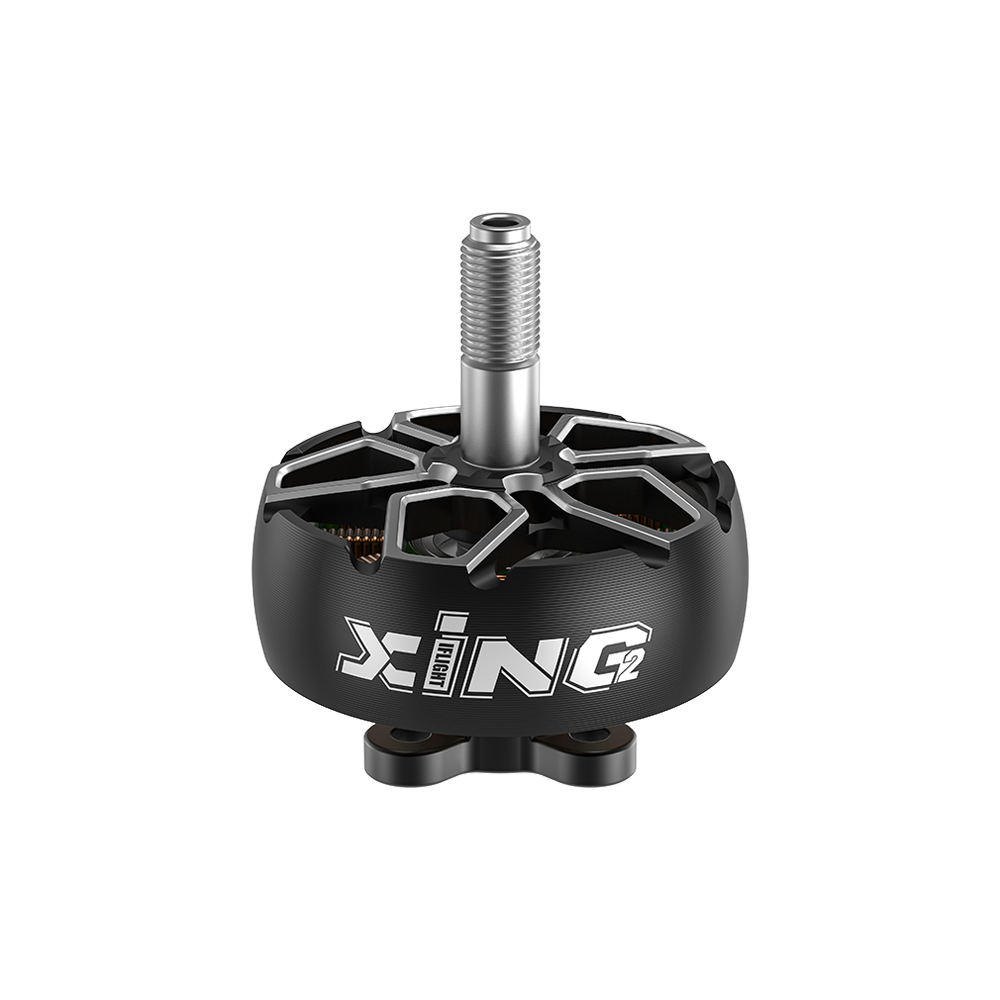

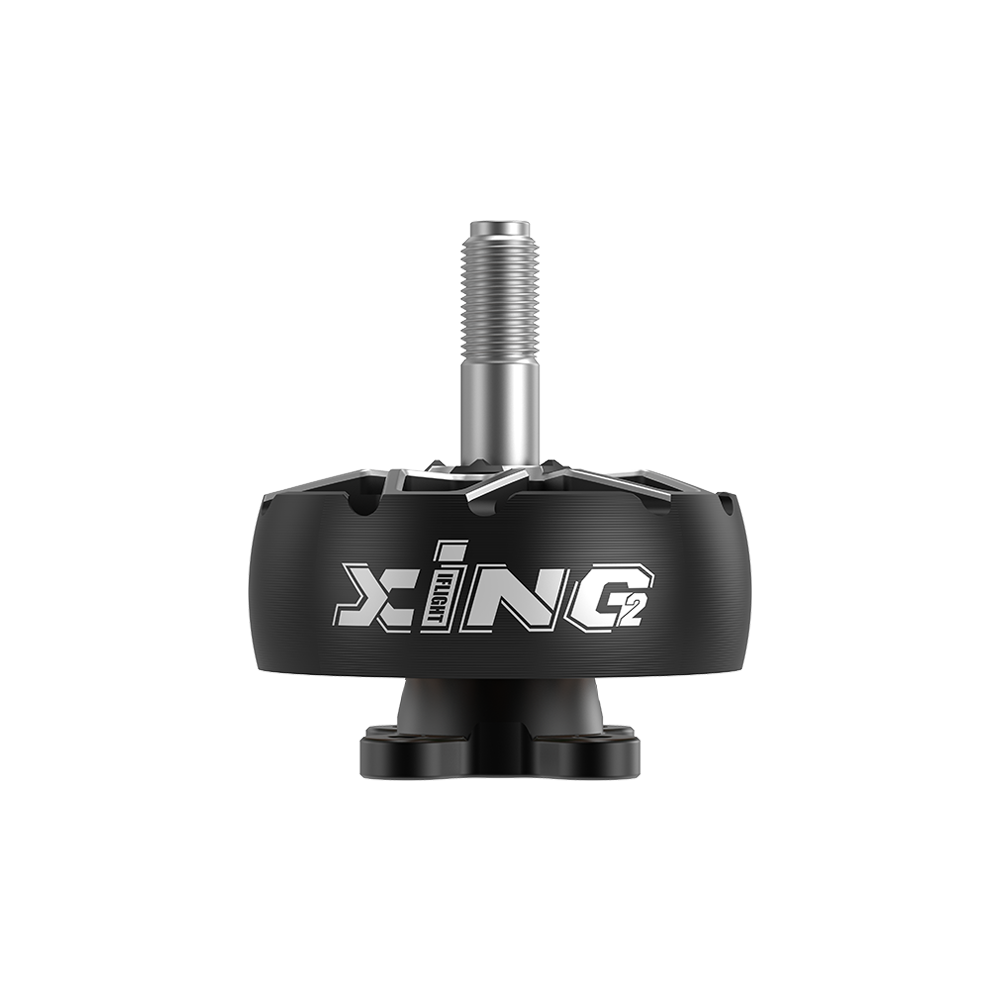

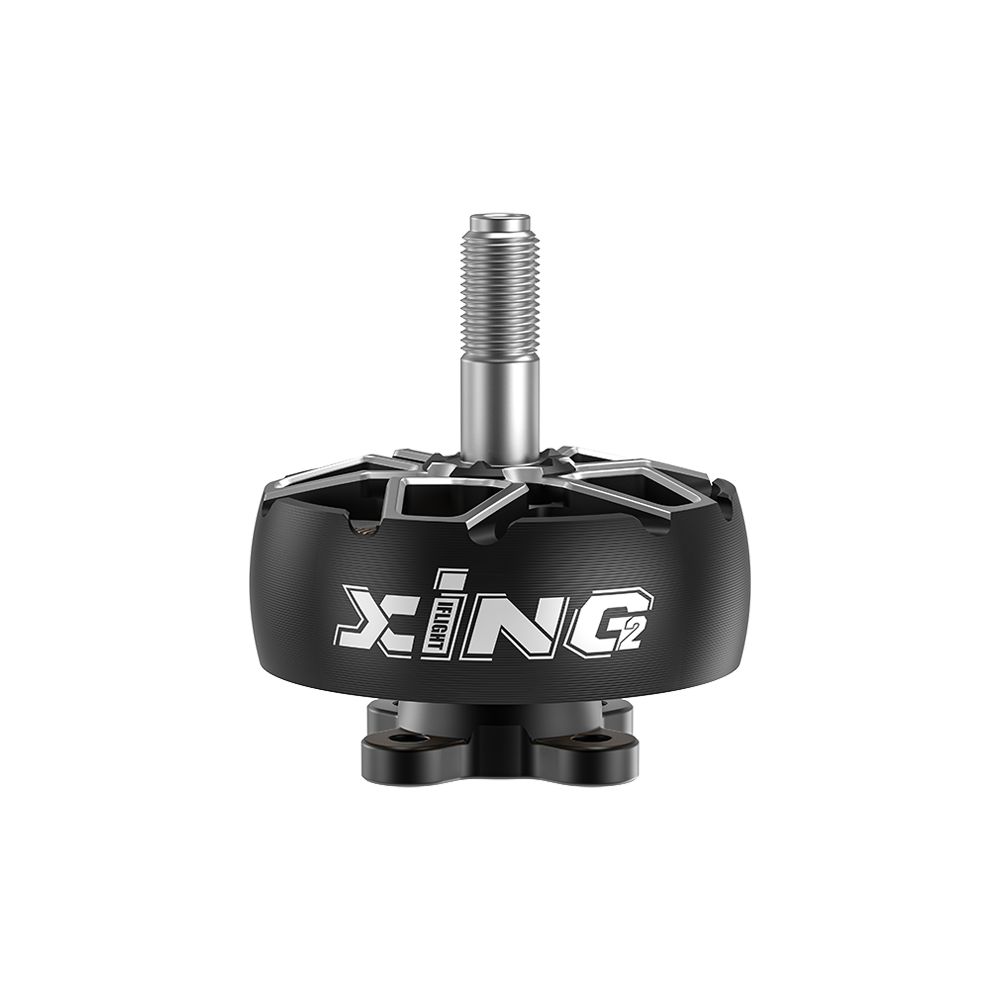

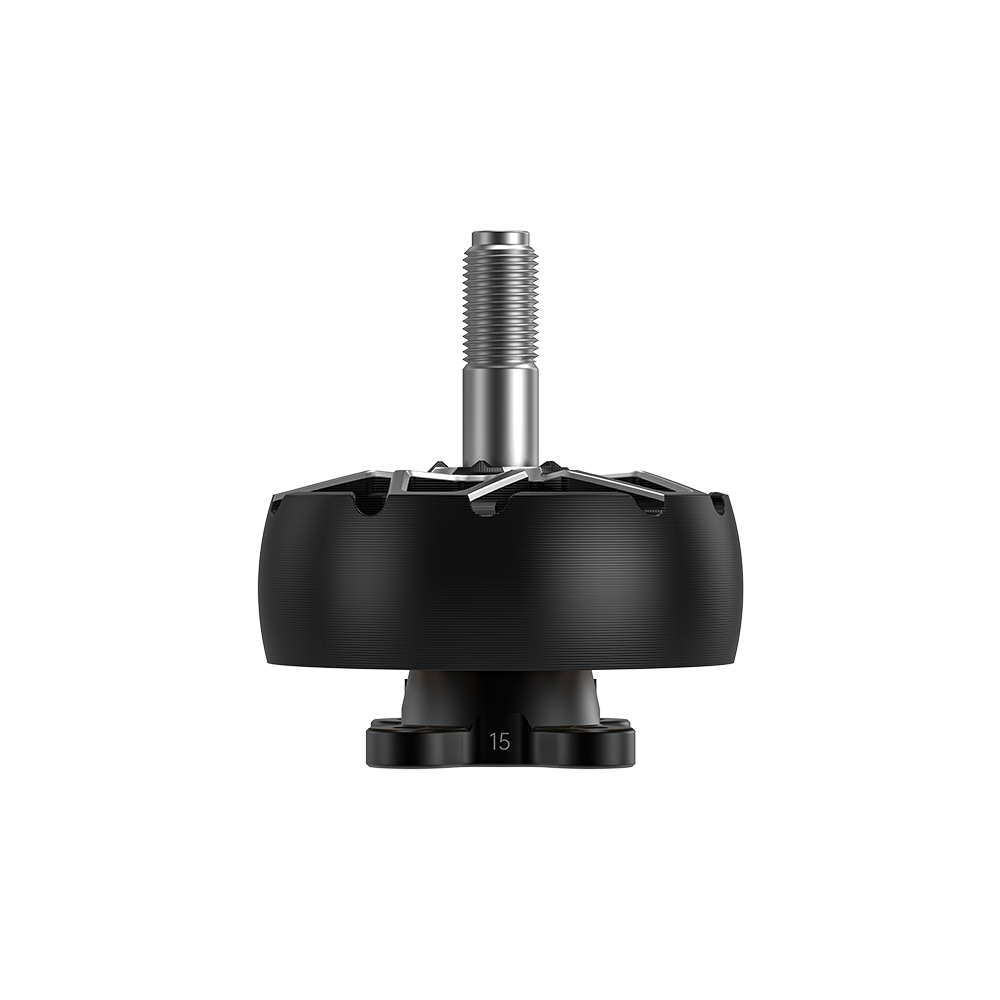

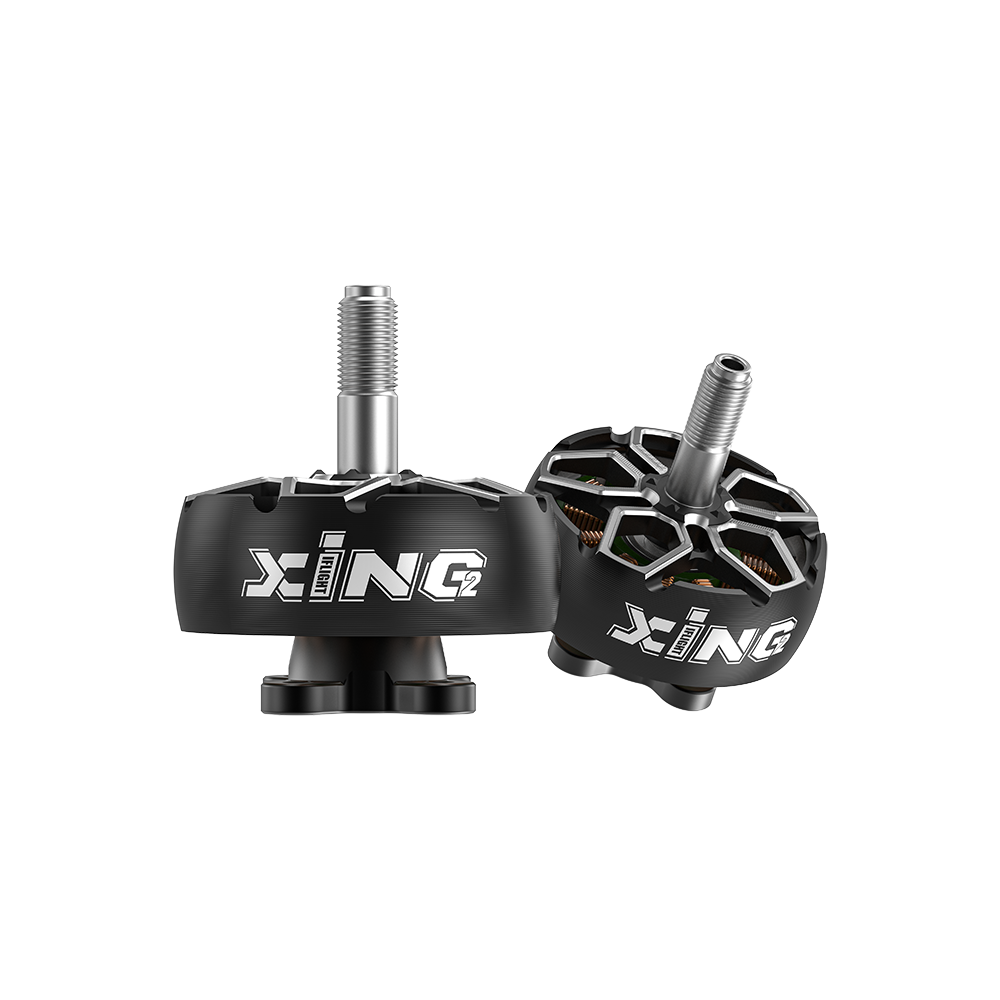

Our XING series NextGen motors hit the market in 2018 and quickly became a hit, setting a new industry standard. Whether it was the unique curved shape, the internal damping ring protecting the bearing, or the top - notch NSK bearings paired with a high - grade titanium alloy shaft, they've been copied and compared for years. Now, we're proud to introduce the XING2! The XING motors, already known for being smooth, reliable, and powerful, have been upgraded. In our factory, we've achieved a higher manufacturing standard, and the performance is better than ever. We've added new center - slotted N52H curved arc magnets, which significantly cut down the motor's response time. The motor has often been the bottleneck in FPV flight controllers due to the delay in braking and accelerating. But with XING2 motors, you'll get a faster response, quicker PID loop translation, and that locked - in feeling you've always wanted. Thanks to the high - quality materials and the durable connection between the bell and the shaft, we've minimized the magnet air gap and stator lamination. A smaller air gap means lower reluctance and higher magnetic flux, leading to greater efficiency and more power! Features: 5mm titanium alloy shaft, the sturdiest prop shaft we've ever made; smooth and long - lasting NSK 10x4x4 bearings; center - slotted N52H curved arc magnets; XING O - ring bearing gap protection; crash - resistant 7075 aluminum bell; motor wires protector; dynamically balanced. Specifications: Model: XING2 2506 Black Motor; KV: 1500KV / 1850KV; Weight(included wire): 38.2g / 40.2g; Dimension: φ31.7*19.6mm; Interphase Resistance: 74.88mΩ / 64.33mΩ; Input Volts: 25.2V; Peak Current: 33.26A / 41.55A; Max Watt: 817.5W / 1013W; Mounting Holes: 16*16 φ3mm; Rotor Specifications: Unibell; Shaft Diameter: 5mm; Shaft Protruding Length: 15mm; Lead: 160mm - 20AWG / 200mm - 18AWG; Magnet: N52H Curved; Configuration: 12N14P; Bearing Type: NSK; Bearing Specification: φ10*φ4*4; Winding: Single Strand copper winding. Includes: 1 x M5 Flanged Nylon Insert Lock Nut, 1 x XING2 2506 Motor Black (KV is optional), 4 x M3*8mm screws. Browse more: Browse all 24xx Motors, Browse all iFlight Motors, Browse all Motors.
Using your iFlight Xing2 2506 FPV Motor is straightforward. First, choose the right KV value (1500KV or 1850KV) according to your flight needs. Then, use the provided M3*8mm screws to mount the motor onto your FPV drone. Make sure to tighten them properly to avoid any vibrations during flight. Connect the motor wires carefully following the wiring diagram of your flight controller. When it comes to power, the motor works best at an input voltage of 25.2V. Be aware of the peak current and max watt limits. Don't exceed 33.26A or 41.55A (depending on the KV value) and 817.5W or 1013W to prevent overheating and damage. As for maintenance, after each flight, check the motor for any signs of damage, like a bent shaft or a cracked bell. Clean the motor regularly to remove dirt and debris. The NSK bearings are smooth and long - lasting, but if you notice any unusual noise, it might be time to replace them. Also, keep an eye on the magnet air gap and stator lamination. If you're not using the motor for a long time, store it in a dry and cool place to maintain its performance.
