Joshua Bardwell 32BIT 4-IN-1 3-6S 30A ESC BY RDQ

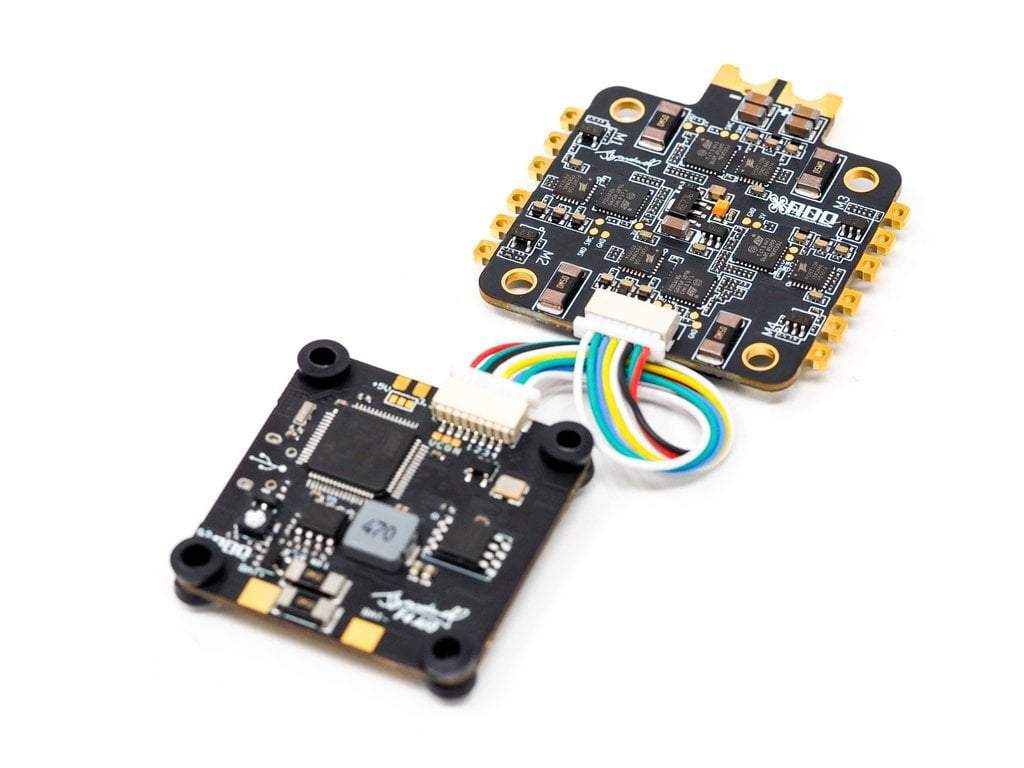

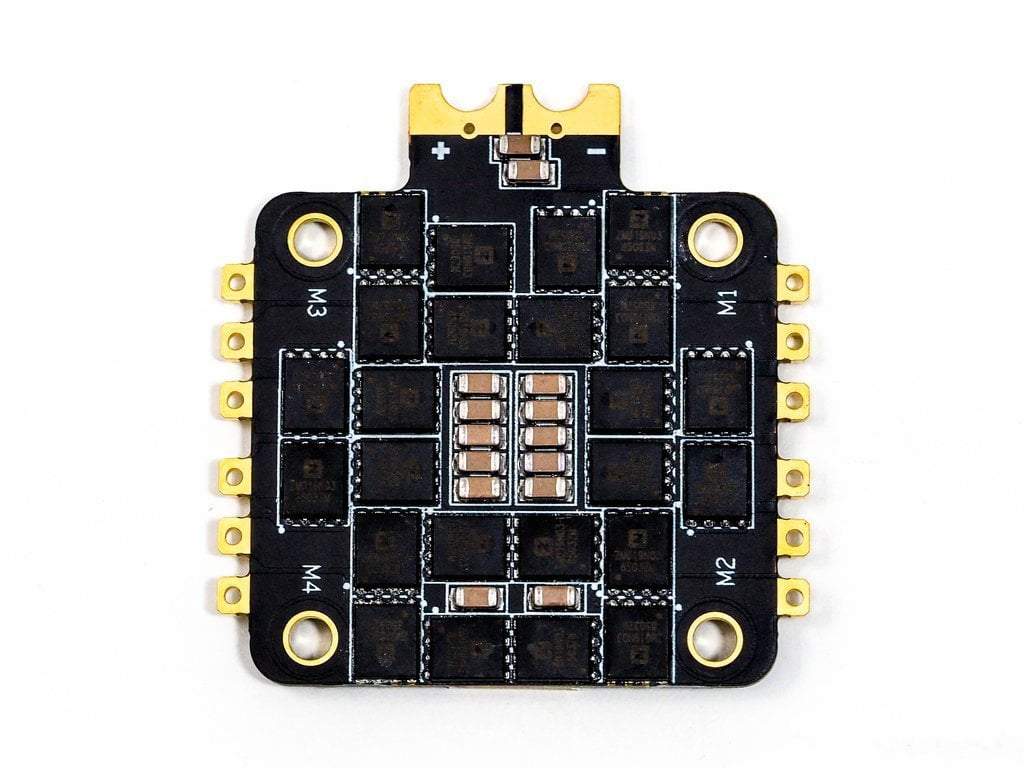

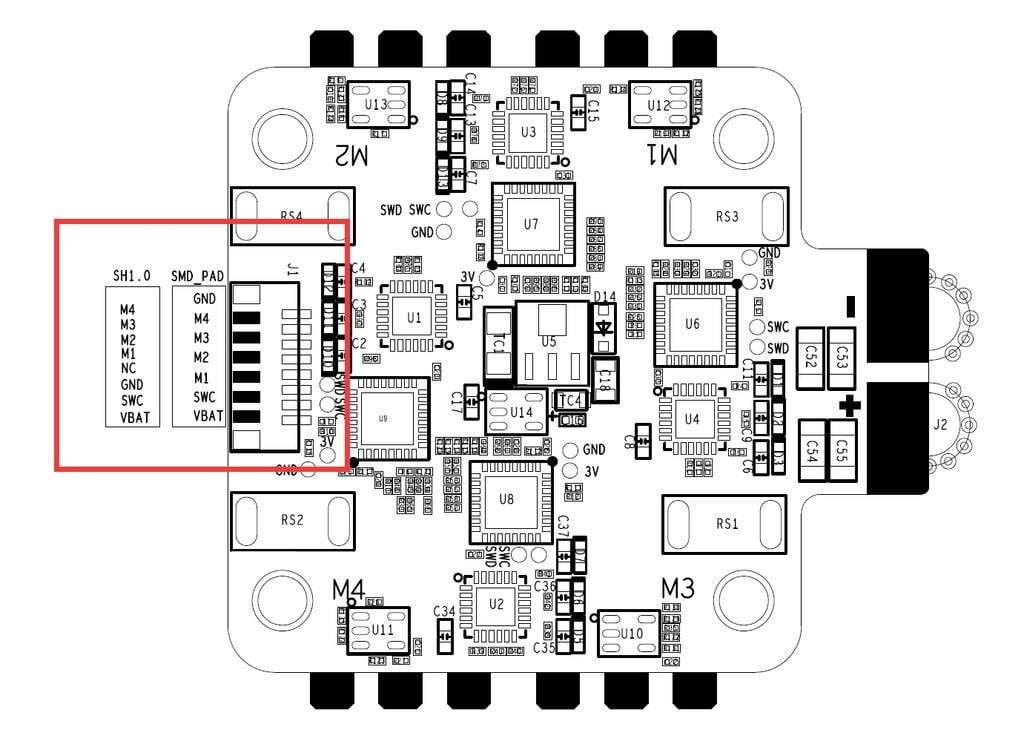

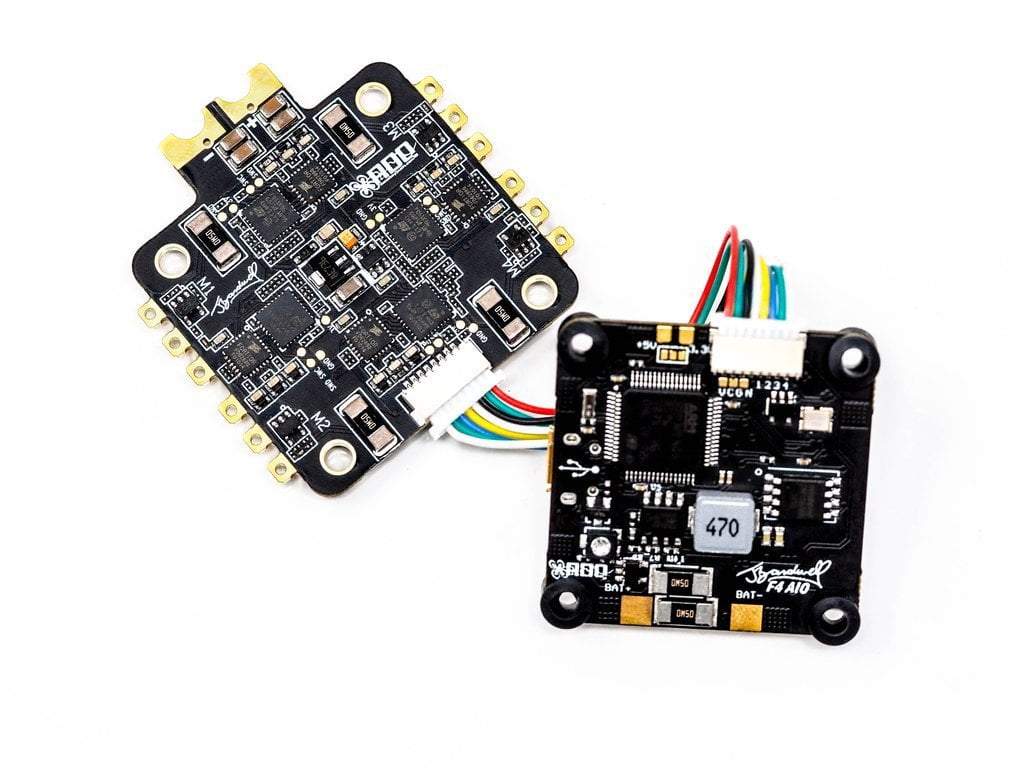

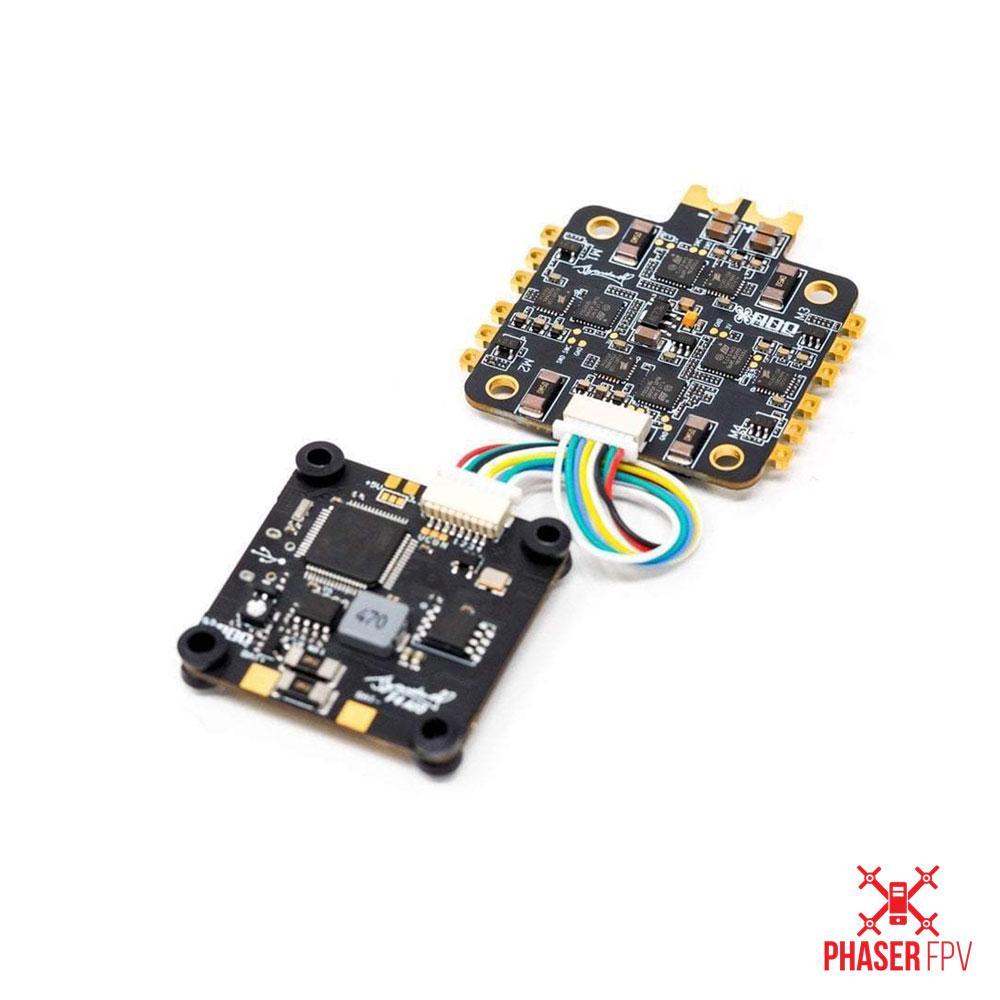

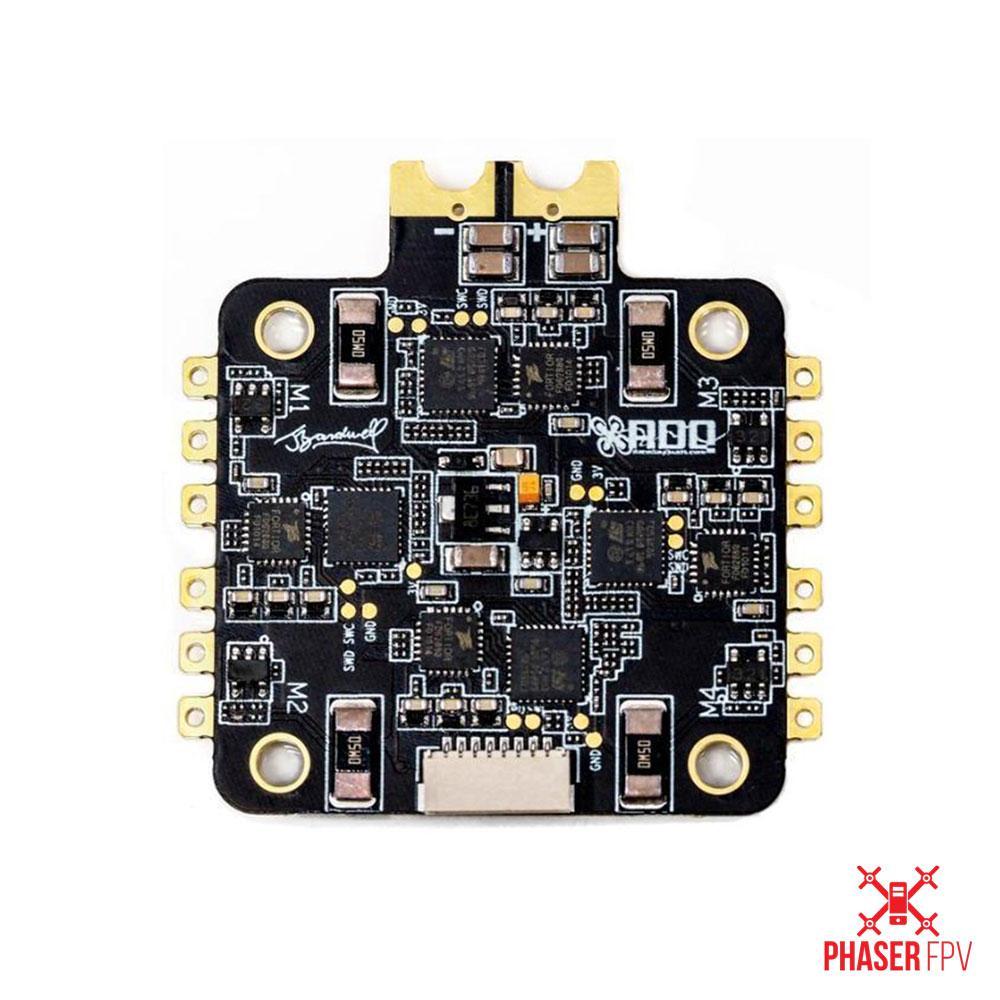

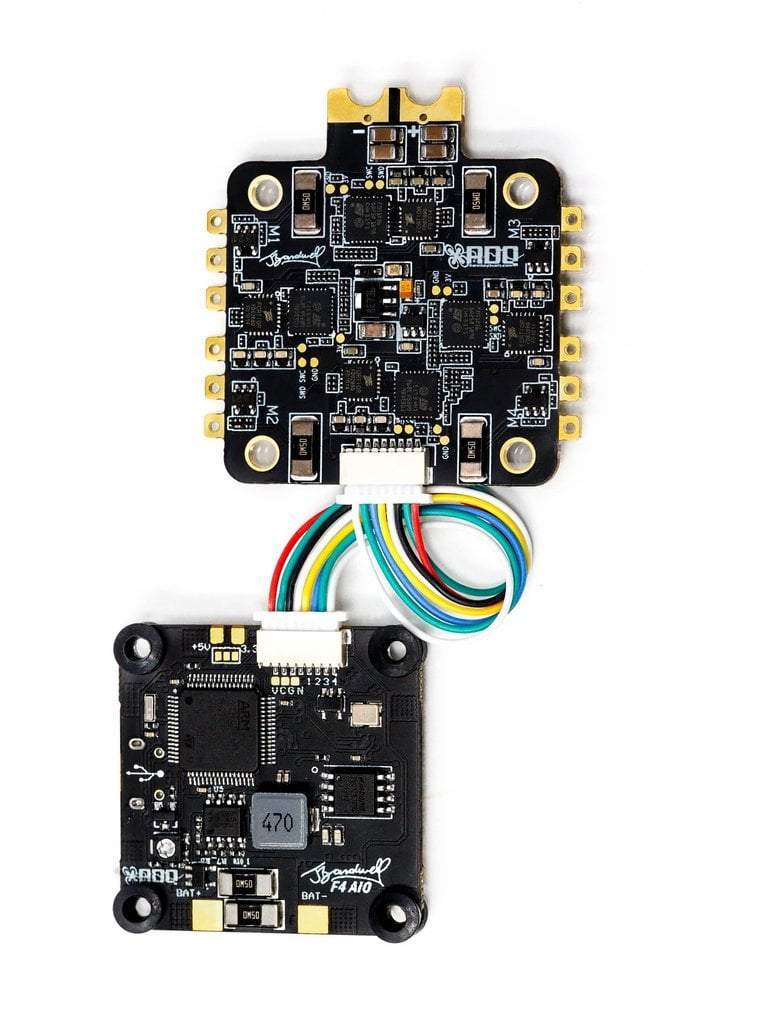

The Bardwell F4 AIO Flight Controller now has an ideal partner in this 32-bit 4-in-1 ESC! It's designed for plug-and-play use with the Bardwell F4 FC, offering an incredibly robust and clean setup at an unbeatable price. This ESC supports DShot1200 and can take a direct 3-6S LiPo input, making it perfect for racing or freestyle flying any day. Even if you're not using the Bardwell FC, it's still a great choice for any build. Just make sure to check that the pinout of your FC and ESC match, and adjust the wire harness pins as needed. Specifications: Battery: 3-6S; Constant Current: 30A; Burst Current: 40A; Size: 36*36mm, Mounting Holes: 30.5 x 30.5; Firmware: BLHeli32; Option of Wire Harness or Direct Solder; Weight: 13.1g; Harness length: 60mm; No BEC. Included: 1x 4-in-1 ESC, 1x 65mm Power / Signal Wire Harness. A neat feature is the direct solder pads under the wiring harness. If the harness gets damaged in a crash, you can remove it and solder directly to the pads to keep using the ESC. SWC is ESC Telemetry.

Using this ESC is easy. First, if you're using it with the Bardwell F4 FC, it's plug-and-play. Just connect the wire harness to the appropriate pins on both the ESC and the FC. If you're using a different flight controller, make sure to double-check that the pinout matches. You can adjust the pins of the wire harness if needed. When it comes to power, it can take a direct 3-6S LiPo input. This ESC supports DShot1200, which is great for high - performance flying. For maintenance, if the wiring harness gets damaged in a crash, don't worry. You can remove the harness and solder directly to the pads under it. Keep in mind that SWC is for ESC telemetry. Always handle the ESC carefully to avoid any physical damage, and store it in a dry and cool place when not in use.
