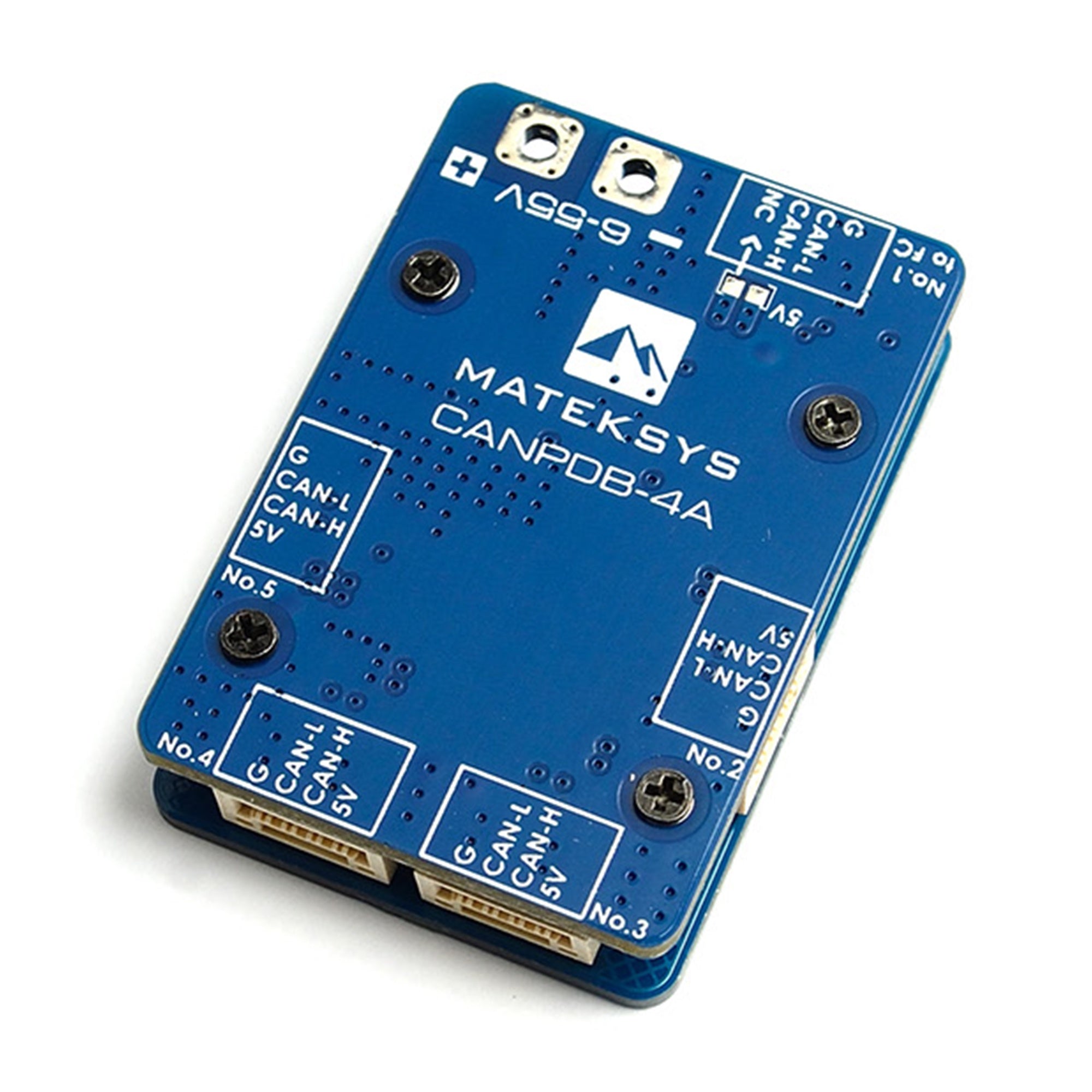

Matek CANPDB w 4A BEC & JST-GH Splitter CANPDB-4A

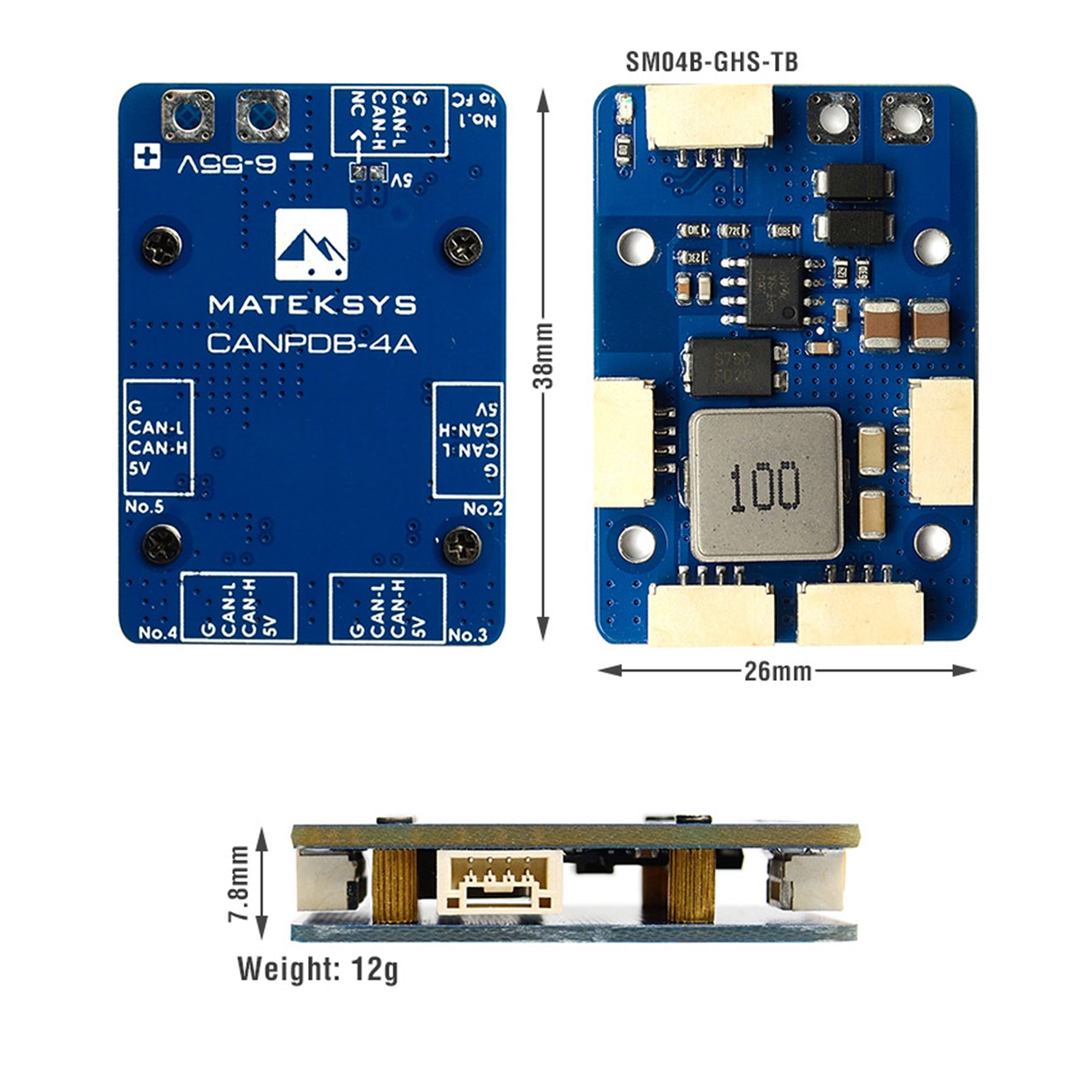

Are you in Australia and looking to purchase the Matek CANPDB with 4A BEC and JST - GH Splitter? This device is a great choice. It has a wide 6V to 55V operating input range (2S - 12S Li - xx). The '5V' pin/pads offer a 5.2V output. It can support a total continuous load current of 4A, with 1A for each JST - GH port. The maximum duty cycle is 100%. When the input voltage is less than the setting value, the regulator output voltage equals the input voltage. There's no protection for reversed input polarity, but it can tolerate output short - circuits for 3 seconds. Five CAN - H/CAN - L are in parallel, and the CAN port connector is JST - GH 4pin (SM04B - GHS - TB). It's compact, measuring 38 x 26 x 7.8mm and weighing only 12g. The package includes 1x CANPDB - 4A and 1x JST - GH - 4P to JST - GH - 4P 20cm silicon wire. Browse all regulators and all Matek products to find more options.

Using the Matek CANPDB with 4A BEC and JST - GH Splitter is quite straightforward. First, make sure the input voltage is within the 6V to 55V range. Connect the device to your system using the appropriate connectors. The '5V' pin/pads will provide a 5.2V output for your needs. Each JST - GH port can handle up to 1A of current. Note that there's no protection for reversed input polarity, so double - check your connections before powering on. If there's an output short - circuit, the device can tolerate it for 3 seconds. To maintain it, keep it in a clean and dry place. Avoid exposing it to extreme temperatures. If you need to connect multiple CAN - H/CAN - L, they are already in parallel for easy setup. The package comes with a 20cm silicon wire for further connections.
