Matek MICRO BEC 6~30V to 5V/9V-ADJ (3pcs) mbec6S

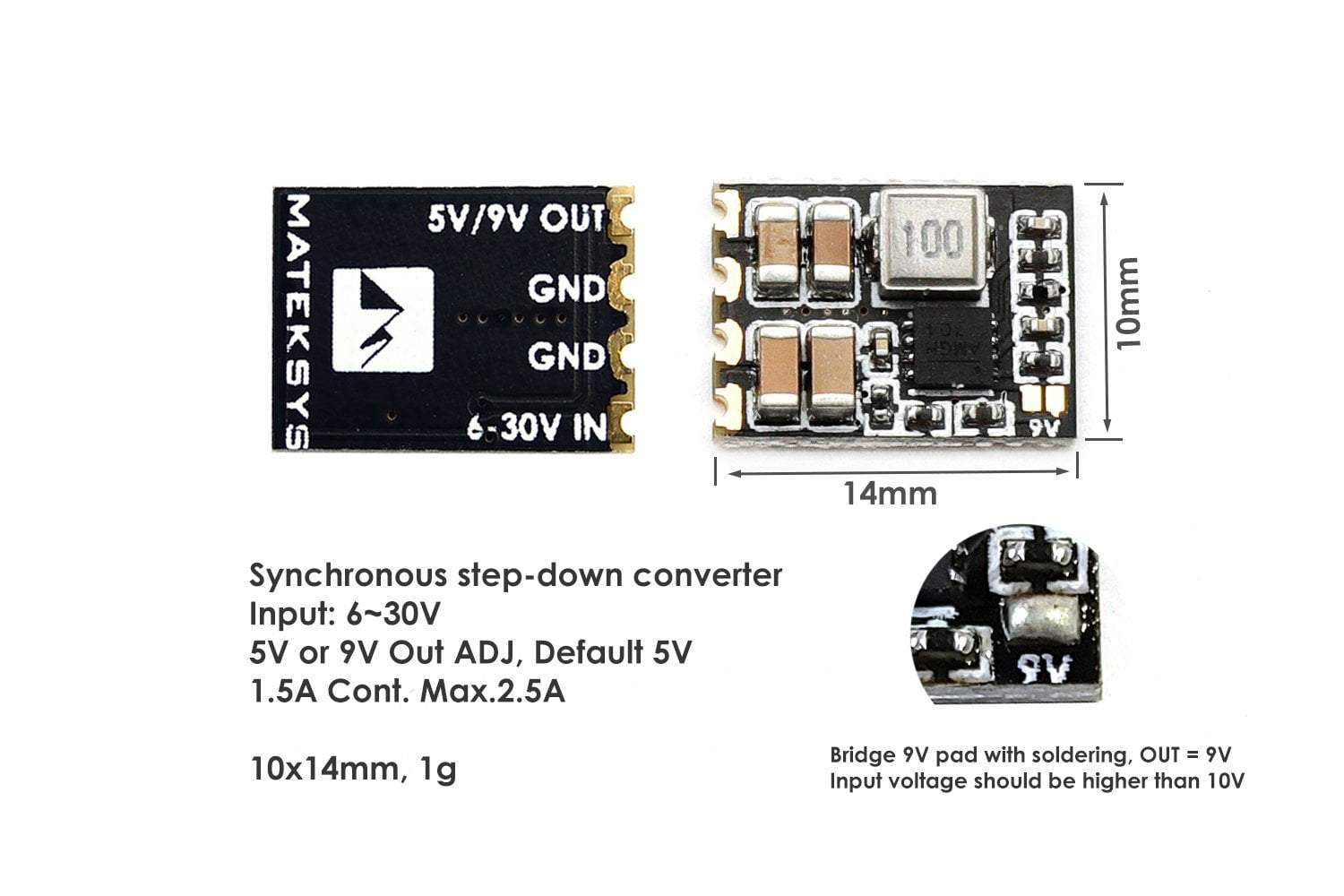

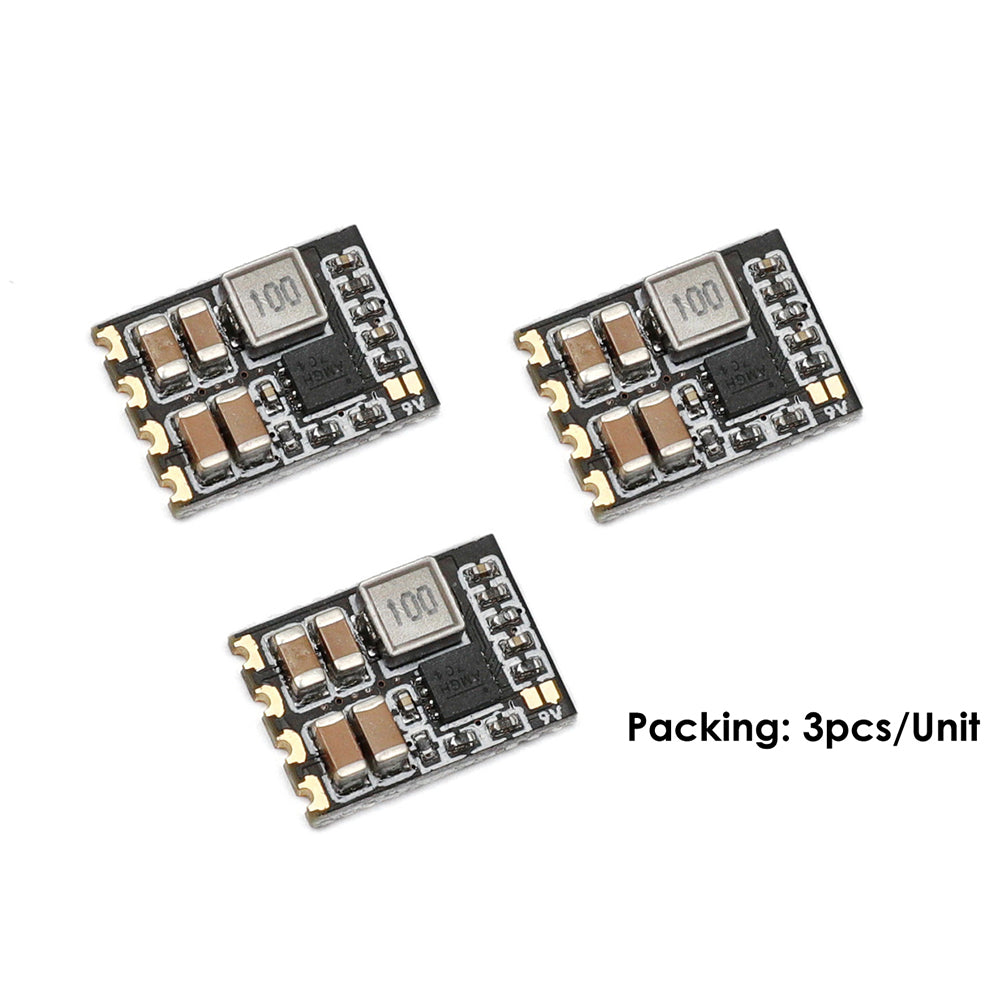

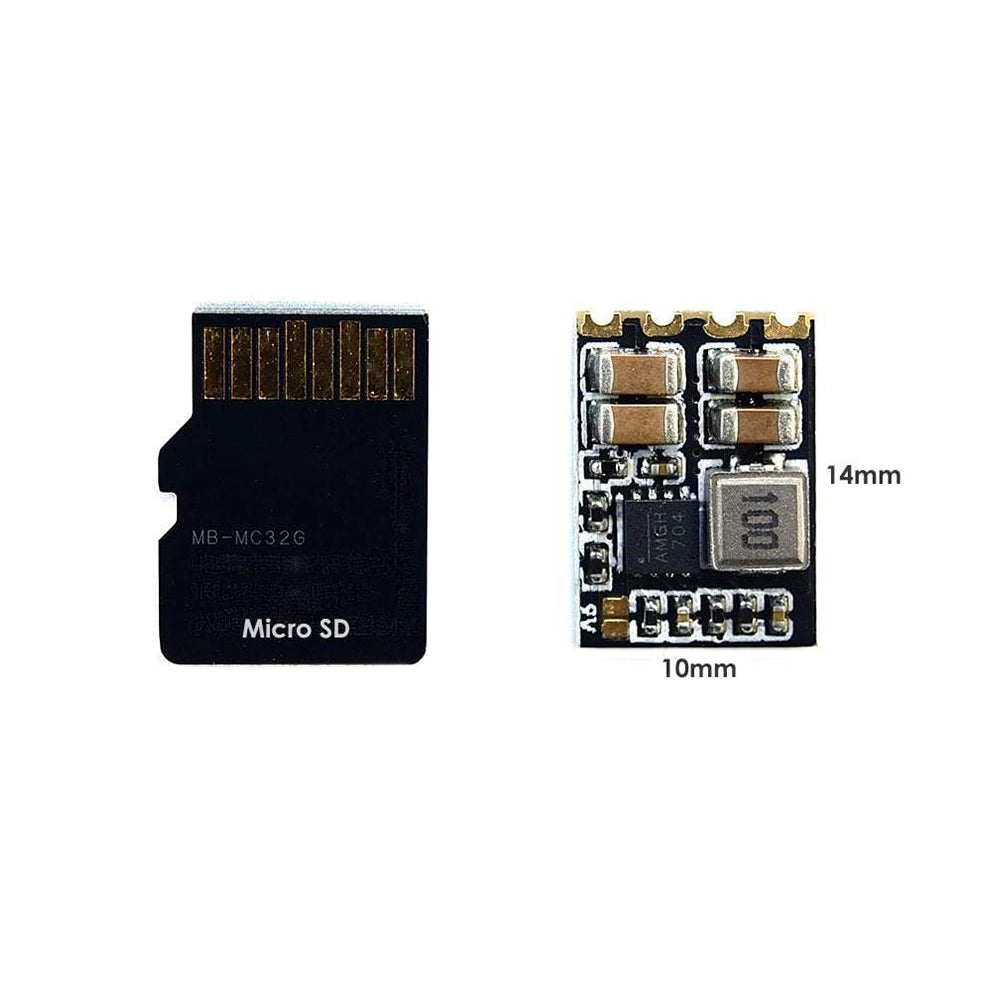

Are you searching for a reliable power converter for your electronics in Australia? Look no further! The Matek Micro BEC is an efficient, highly synchronized step - down switch mode converter. It's a compact solution that can convert an input voltage ranging from 6V to 30V into an output of 5V to 9V. This converter comes with many great features. It has a high - efficiency synchronous step - down regulator, a wide operating input range, and can handle a continuous load current of 1.5 Amps (with a max of 2.5A for 5 seconds per minute). The output voltage can be adjusted between 5V and 9V, with the default set at 5V. It also offers excellent load regulation, low standby current, and comes with multiple protections like OCP, thermal shutdown, and short - circuit tolerance. With a pin distance of 2.54mm and a compact size of 10x14x3mm weighing just 1g, it's perfect for small - scale projects. Each unit comes packed with 3 Micro BECs. Browse more drone electronics and Matek products.

Using the Matek Micro BEC is easy. First, make sure your input voltage is within the 6V - 30V range. You can adjust the output voltage to either 5V or 9V according to your needs, with 5V being the default setting. Connect it to your device carefully, paying attention to the 2.54mm pin distance. When using, don't exceed the continuous load current of 1.5 Amps. You can have a 2.5A load for 5 seconds per minute, but not more often. Be aware that it has an OCP protection and thermal shutdown feature. If the device gets too hot, it will automatically shut down to protect itself. For maintenance, keep it in a dry and cool place. If it's not in use for a long time, make sure to disconnect it from the power source. Also, note that it can tolerate output short - circuits for 5 seconds per minute, but avoid frequent short - circuits as much as possible.
