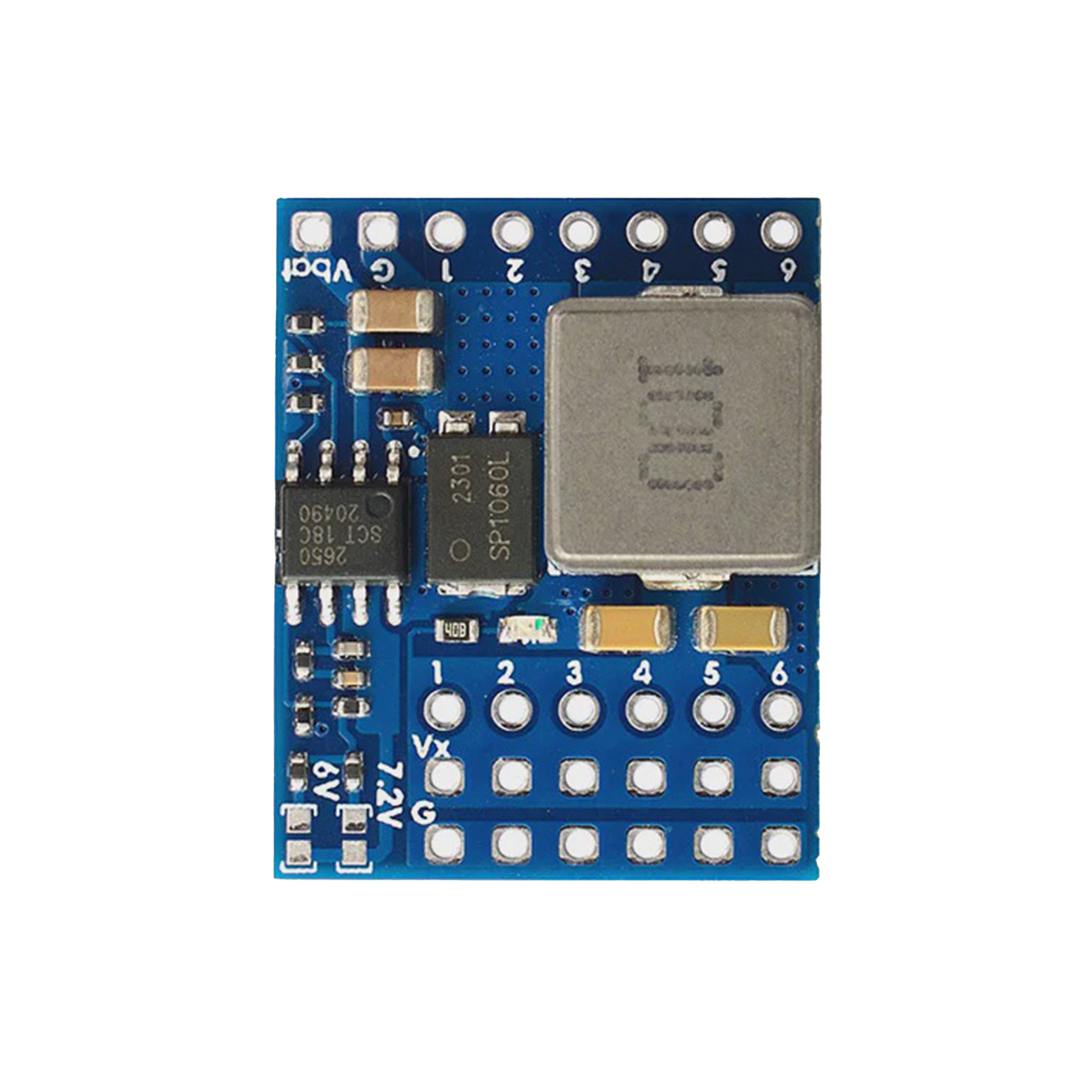

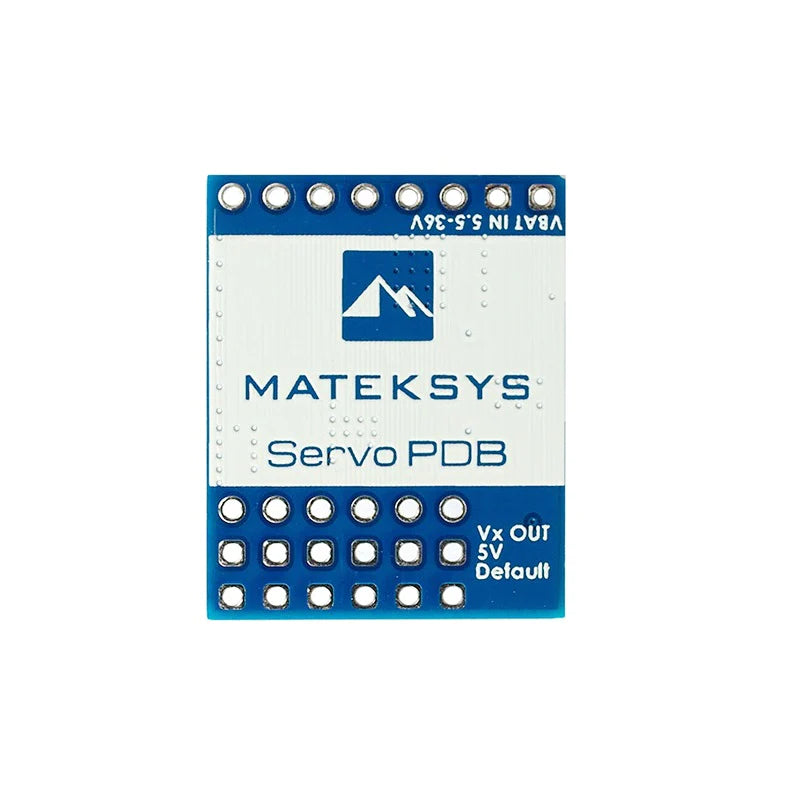

Matek Servo PDB W/ BEC 5.5-36V to 5-8.2V

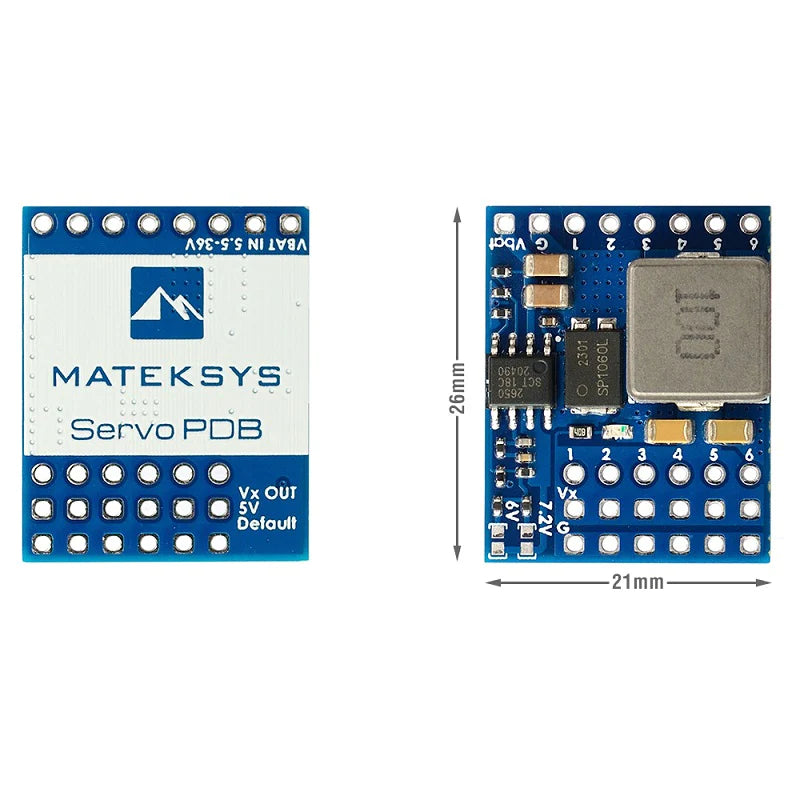

Are you in Australia and searching for a great Matek Servo PDB BEC? This product is a perfect fit! Applications: Ideal for flight controllers without a dedicated BEC for servos. It significantly reduces circuit loss and voltage drop on servo power wires, especially for big - scale RC airplanes. Specifications: It has an operating input range from 5.5V to 36V. The output voltage for servos can be adjusted to 5V, 6V, 7.2V, or 8.2V, with a default of 5V. It can handle a 4A continuous load current and a 7A burst. The maximum duty cycle is 100%. When the input voltage is less than the setting value, the regulator output voltage equals the input voltage. It's tolerant to output short - circuits for 3 seconds. However, there's no protection for reversed input polarity. The pins have a distance of 2.54mm, and it's compact, sized at 26 x 21 x 5mm and weighing only 4g. Includes: 1 x Matek Servo PDB with BEC (5.5 - 36V to 5 - 8.2V) and Dupont 2.54mm pins. Browse more Matek products, PDBs, and regulators.

Using the Matek Servo PDB with BEC is easy. First, connect it to your flight controller. Make sure to check the input voltage range, which is from 5.5V to 36V. You can adjust the output voltage for your servos to 5V, 6V, 7.2V, or 8.2V as needed, but the default is 5V. When connecting the wires, be careful of the polarity as there's no protection for reversed input. This product is great for reducing circuit loss and voltage drop in your big - scale RC airplane. If you encounter an output short - circuit, it can tolerate it for 3 seconds. For maintenance, keep it clean and dry. Store it in a safe place when not in use. And that's it, you're all set to enjoy a smooth flight with your RC plane!
