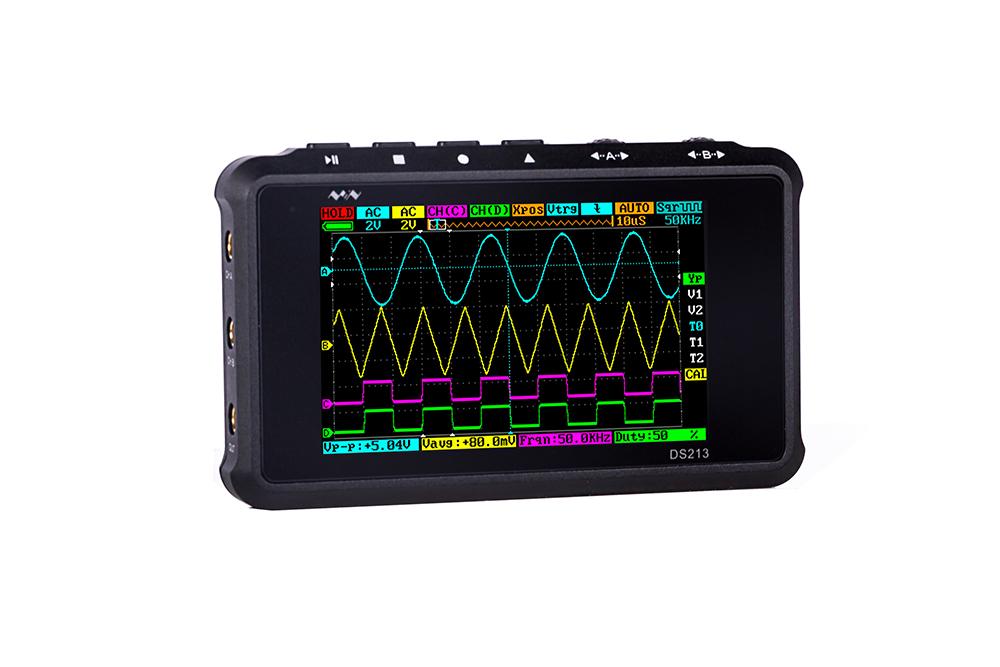

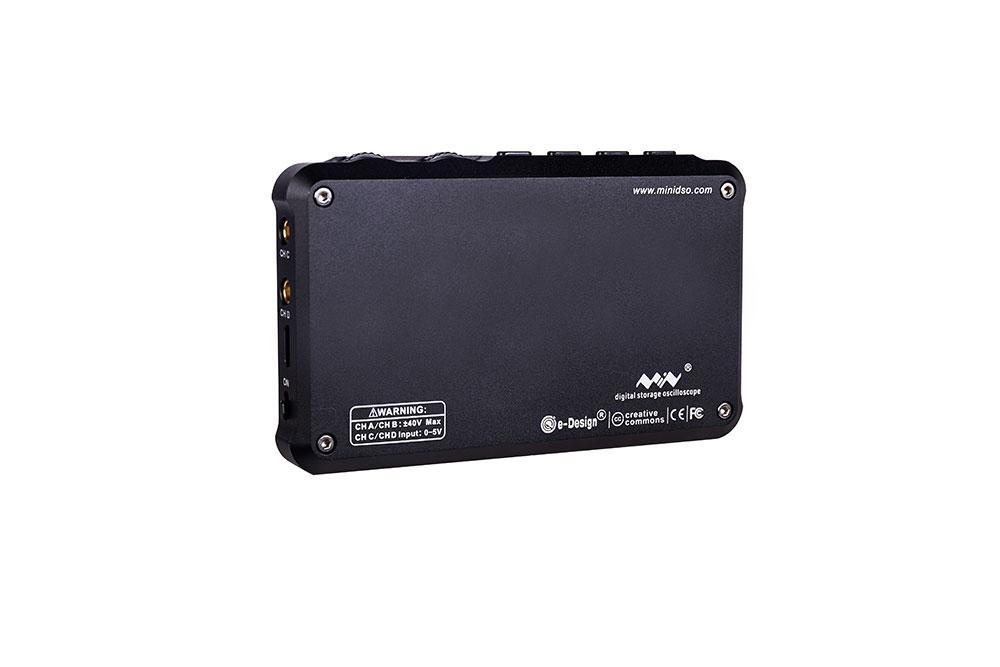

Miniware Digital Oscilloscope DS213 (Quad Channel) [DG]

Looking to buy a Miniware Digital Oscilloscope DS213 in Australia?

The DS213 (Mini DSO/ DSO Quad) is an ultra - portable 4 - channel digital oscilloscope perfect for common electronic engineering jobs.

Features

• Compact and portable, it can be taken anywhere and meets basic electronic engineering needs.
• Based on the ARM Cortex M3 core, it's a '5 - track, 4 - wave line' oscilloscope for general electronic tasks.
• Uses FPGA to manage external ADC control and data cache.
• Has 4 application partitions for loading and upgrading up to 4 different firmware.
• Comes with an inbuilt 8MB U - disk for storing waveform data and images.
• Powered by internal batteries, allowing ground - wire - free field measurements like a multimeter.
• Open - source oscilloscope code application layer enables users to develop custom firmware.
• Suitable for various fields such as school experiments, electronic repair, and electrical engineering.

Specifications

• Operation: Button, Encoder
• Channels: 2 Analog + 2 Digital
• H Sensitivity: 100nS/Div~1S/Div (1 - 2 - 5 sequence step)
• V Sensitivity: 10mV - 10V/nav (1 - 2 - 5 STEP) with X1 Probe Analyzer; 100mV - 100V/nav (1 - 2 - 5 STEP) with X10 Probe Analyzer
• Trigger Mode: Ascend/Descend Edge, Positive/Negative Pulse, Logic Trigger
• Math Waveforms: INV A, INV B, A + B, A - B, C&D, C|D, RecA, RecB, RecC, RecD
• Inbuilt Signal Generator: Sine, Square, Triangle, Sawtooth Wave
• Synchronous Mode: Auto, Normal, Single, Slow
• Auto Measurement: Signal Sequence, Cycle, Duty Ratio, Peak Voltage, Virtual Value, Max Value, Min Value, Average
• Open Source: Application Layer Open - Source
• MCU: STM32F103VE
• ADC: HWD9288
• Analog Bandwidth: 15MHz
• Max Sample Rate: 100MSa/s
• Max Sample Memory Depth: 4K
• Analog Input Impedance: 1MΩ
• Coupling: DC/AC
• AUTO_FIT: None
• Weight: 129g

Package List

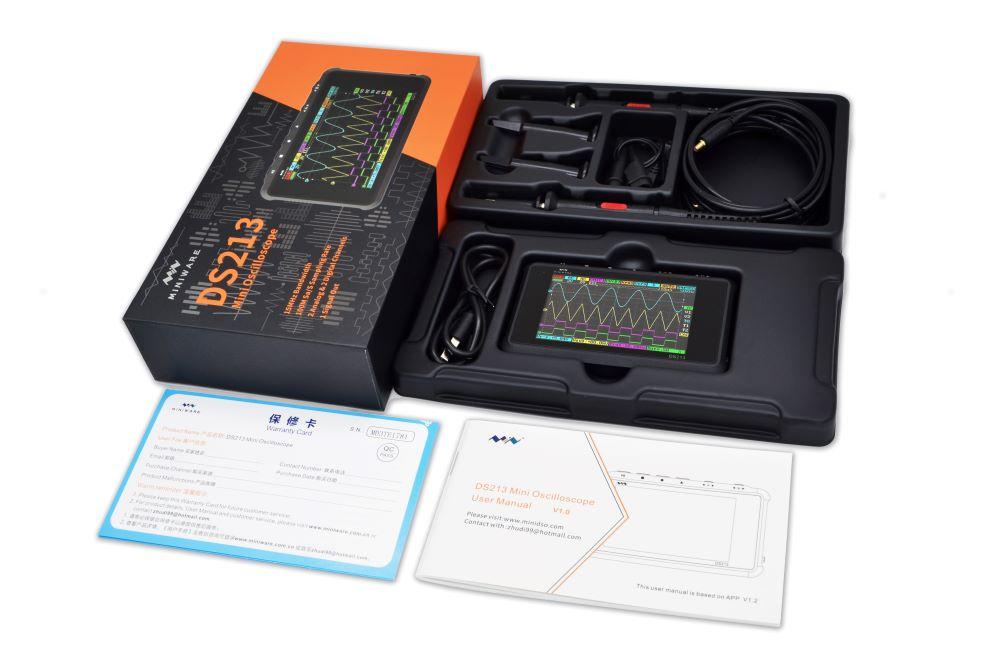

• DS213 (Black) x 1
• X10 Probe Analyzer x 1
• X1 Probe Analyzer x 1
• Hex Key x 1
• Safety Instructions x 1

Browse more

Browse all TS80
Browse all TS100
Browse all Miniware
Browse all soldering accessories

Using the Miniware Digital Oscilloscope DS213 is a breeze. First, turn it on using the button or encoder. You can connect your probes (either X1 or X10) to the channels as needed. To set the time and voltage sensitivity, use the corresponding controls. For triggering, select the mode that suits your signal, like ascend or descend edge trigger. When you want to generate a signal, use the in - built signal generator to choose from sine, square, triangle, or sawtooth waves. Remember, this oscilloscope can be powered by internal batteries, so you can use it freely in the field without worrying about grounding. When it comes to maintenance, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or humidity. If you need to update the firmware, use the 4 application partitions provided. And always refer to the safety instructions in the package for proper handling.
