MMW Micro Motor Warehouse CL-0615-17 coreless motor

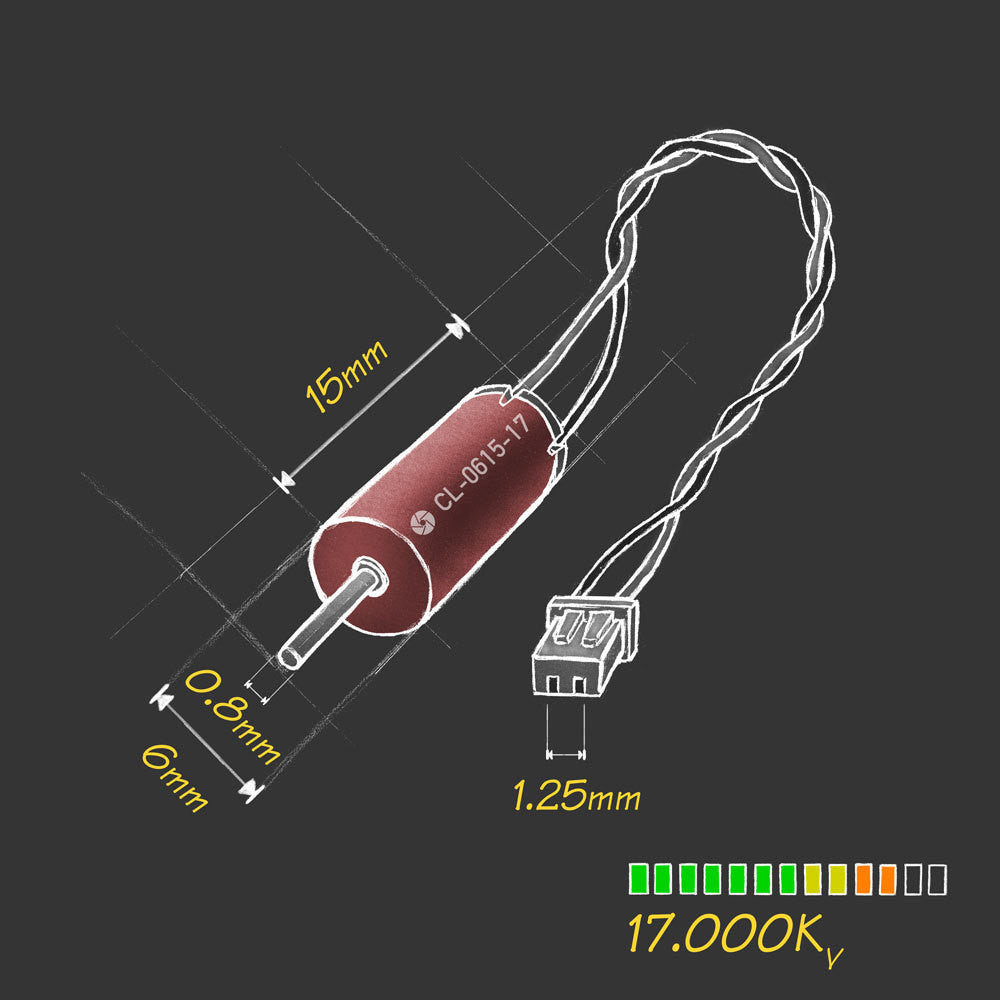

This high - performance coreless motor offers a speed of 17,000 Kv. It has a 1.5A load current at 3.7V in direct drive mode. With a lifetime rating of 5 - 6 hours, it's reliable for short - term use. The motor's can is 6x15mm in size, and the shaft diameter is 0.8mm. It weighs only 1.8g and comes with a Micro - JST - 1.25 plug. For clockwise rotation, connect red to positive and blue to negative; for counter - clockwise, use white for positive and black for negative.

Using this motor is quite easy. First, connect the wires according to the rotation direction you need. For clockwise, connect the red wire to the positive terminal and the blue wire to the negative one. If you want counter - clockwise rotation, use the white wire for positive and the black one for negative. Make sure to use a power source that provides 3.7V for the best performance. When it comes to maintenance, keep the motor clean and free from dust. Avoid overloading it as it has a load current limit of 1.5A. If you notice any abnormal noise or performance drop, stop using it immediately and check for any loose connections or damages. This motor has a lifetime rating of 5 - 6 hours, so don't expect long - term continuous use without replacement.
