RadioMaster RP3 V2 ExpressLRS ELRS Nano Receiver Dual Antenna (2.4ghz)

Looking to buy a Radiomaster RP3 ELRS Nano Dual - Antenna Receiver in Australia?

The RadioMaster RP series receivers are crafted with size, ease - of - use, and long - range performance in mind. Using the ExpressLRS 2.4GHz open - source firmware, these nano receivers offer the features and range that today's pilots love.

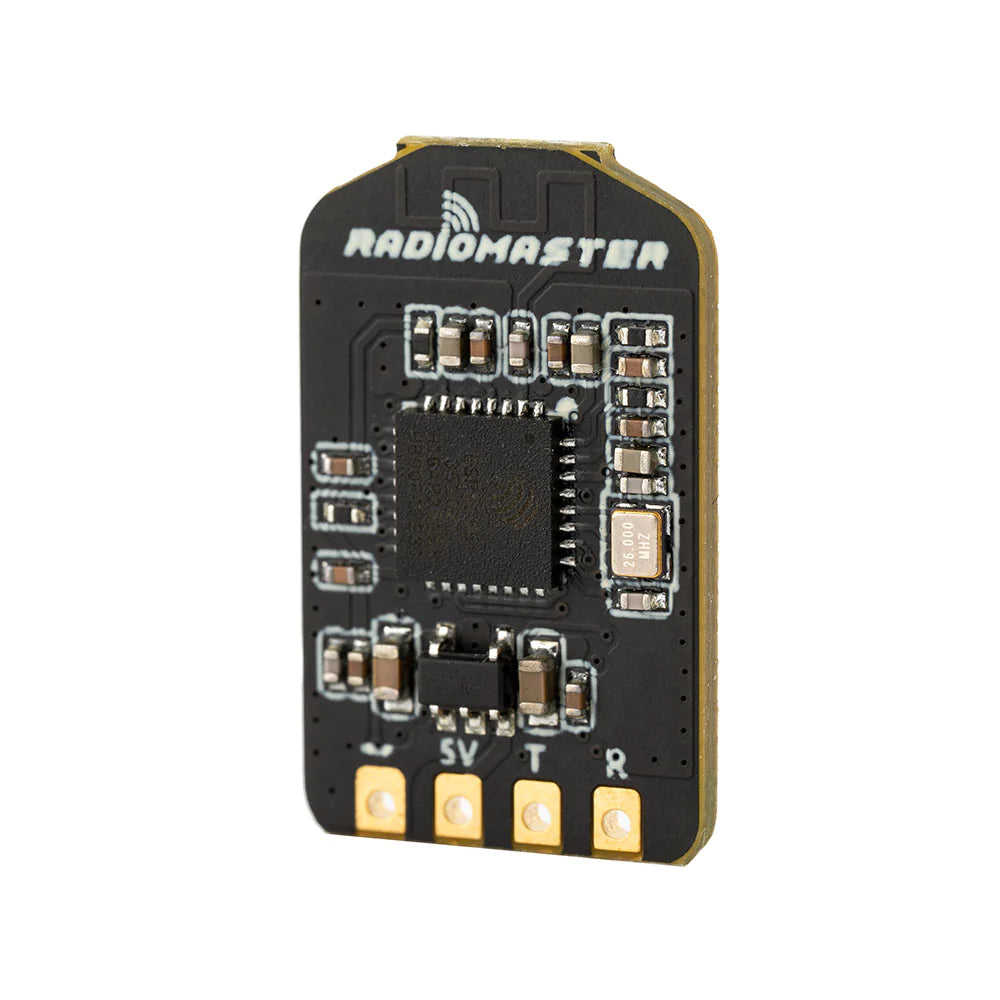

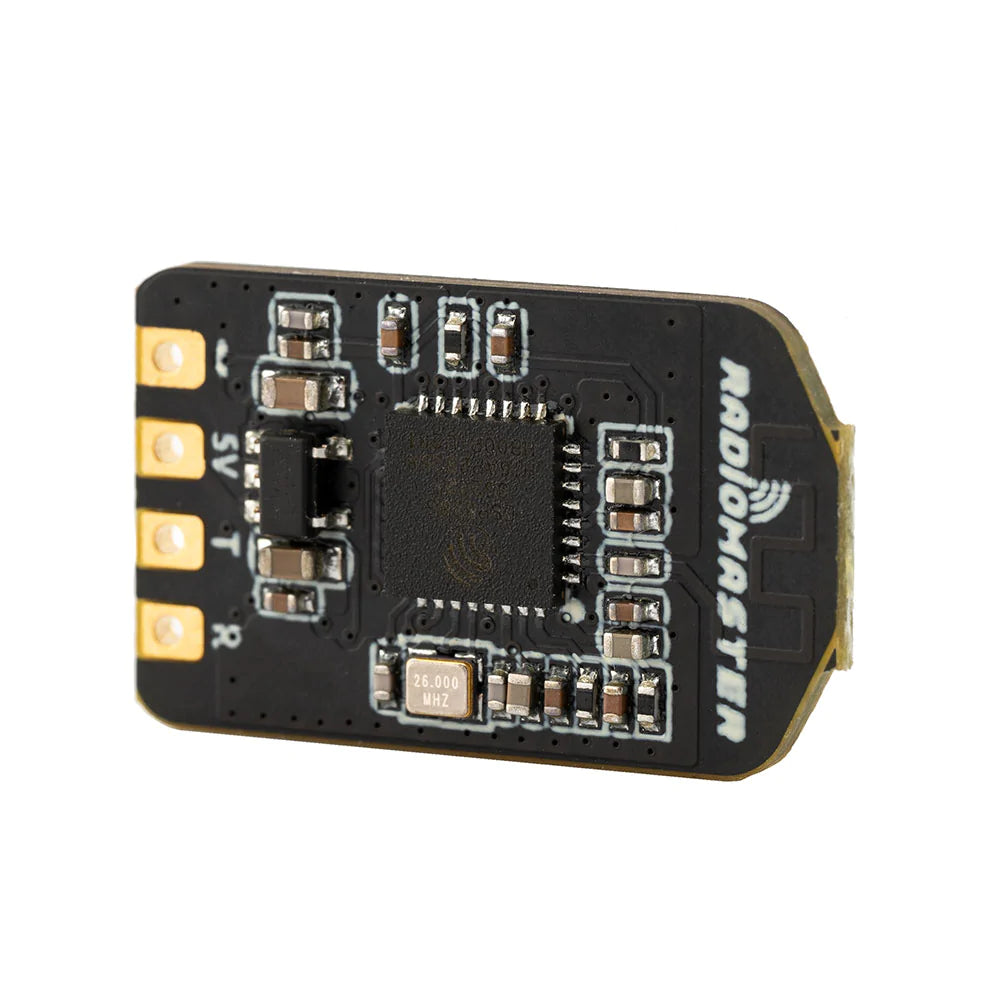

Built around the ESP8285 MCU and SX1280IMLTRT RF Chip, the RP series provides Lora and FLRC 2.4GHz RF links for amazing range and low latency. With built - in Wi - Fi, you can update the firmware on your craft without removing the receiver. Binding is a breeze with a bind phrase, no more bind plugs or fumbling with buttons when plugging in your battery.

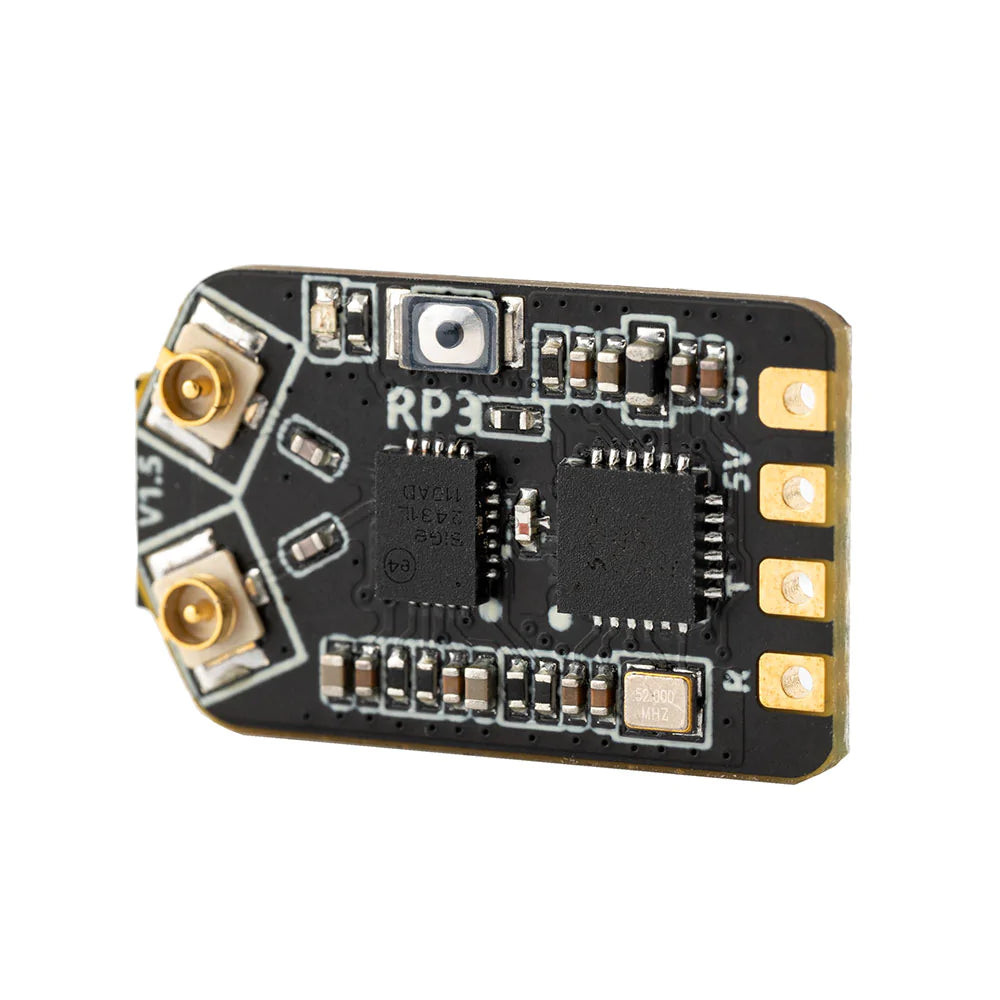

The RP3 receiver has a Skyworks SE2431L for an LNA that boosts receiver performance, a PA that offers up to 250mw of telemetry performance, and antenna switching for better signal.

Features

• Optimized PCB design for efficient heat dissipation.
• LNA for extended receiver range.
• PA for longer telemetry range.
• Antenna diversity for stable and long - range signals.

Specifications

• Item: RP3 Diversity Receiver
• Type: ISM
• MCU: ESP8285
• RF Chip: SX1280IMLTRT
• Telemetry RF power: max 250mw
• Antenna: 65mm 2.4GHz T Antenna x 2
• Frequency Range: 2400 MHz to 2480 MHz
• Maximum receive refresh rate: 500Hz / F1000Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 4.6g (Including two antenna)
• Dimension: 22mm*13mm*4mm
• Firmware Version: ExpressLRS v3.0 pre - installed
• FW Target: RadioMaster RP3 Diversity 2400 RX
• Bus interface: CRSF

Package Includes

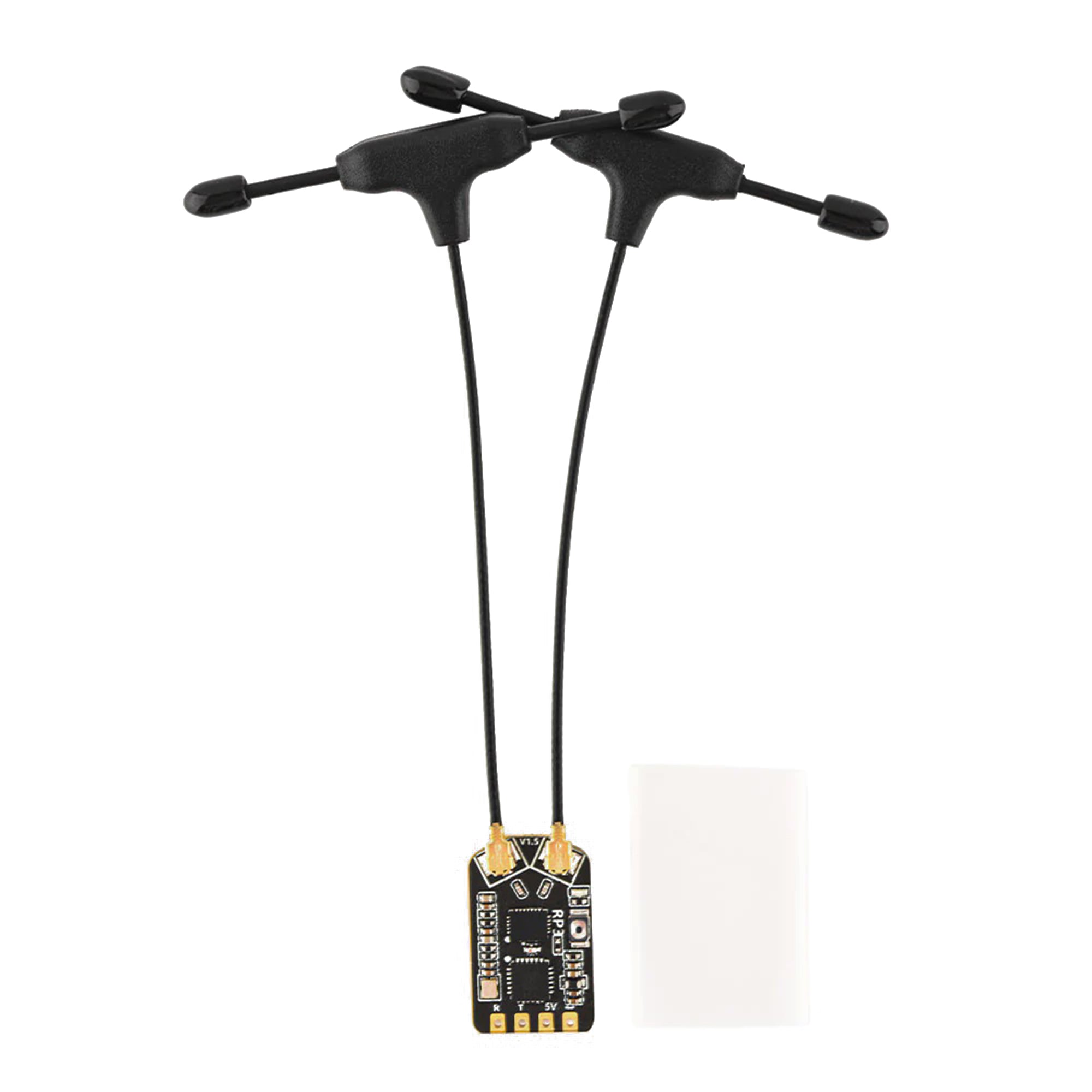

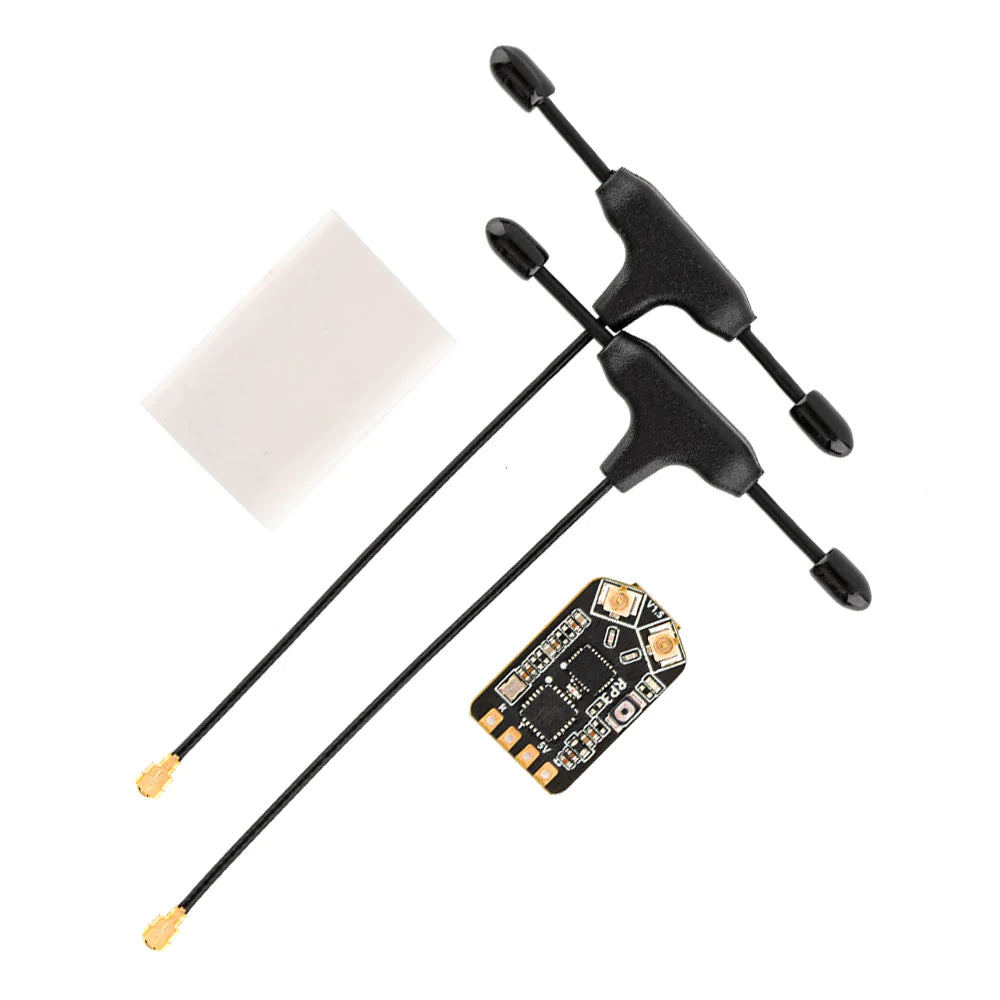

• 1x RP3 ExpressLRS 2.4GHz Nano Receiver
• 2x 65mm UFL 2.4GHz T Antenna
• 1x User Manual

Browse more

• Browse all Radiomaster
• Browse all ELRS
• Browse all Receivers

Using the RadioMaster RP3 V2 ExpressLRS ELRS 2.4GHz Nano Dual - Antenna Receiver is easy. First, make sure your craft is powered off. Connect the antennas to the receiver. Then, use the bind phrase to pair the receiver with your transmitter. Once paired, power on your craft. You can update the firmware via Wi - Fi without removing the receiver. When using, avoid exposing it to extreme temperatures or strong magnetic fields. For maintenance, keep it clean and dry. If it gets dirty, use a soft, dry cloth to wipe it. Don't use harsh chemicals. Check the antennas regularly for any signs of damage. If you encounter any problems, refer to the user manual or contact customer support.
