RadioMaster RP4TD ExpressLRS Diversity Receiver (2.4ghz)

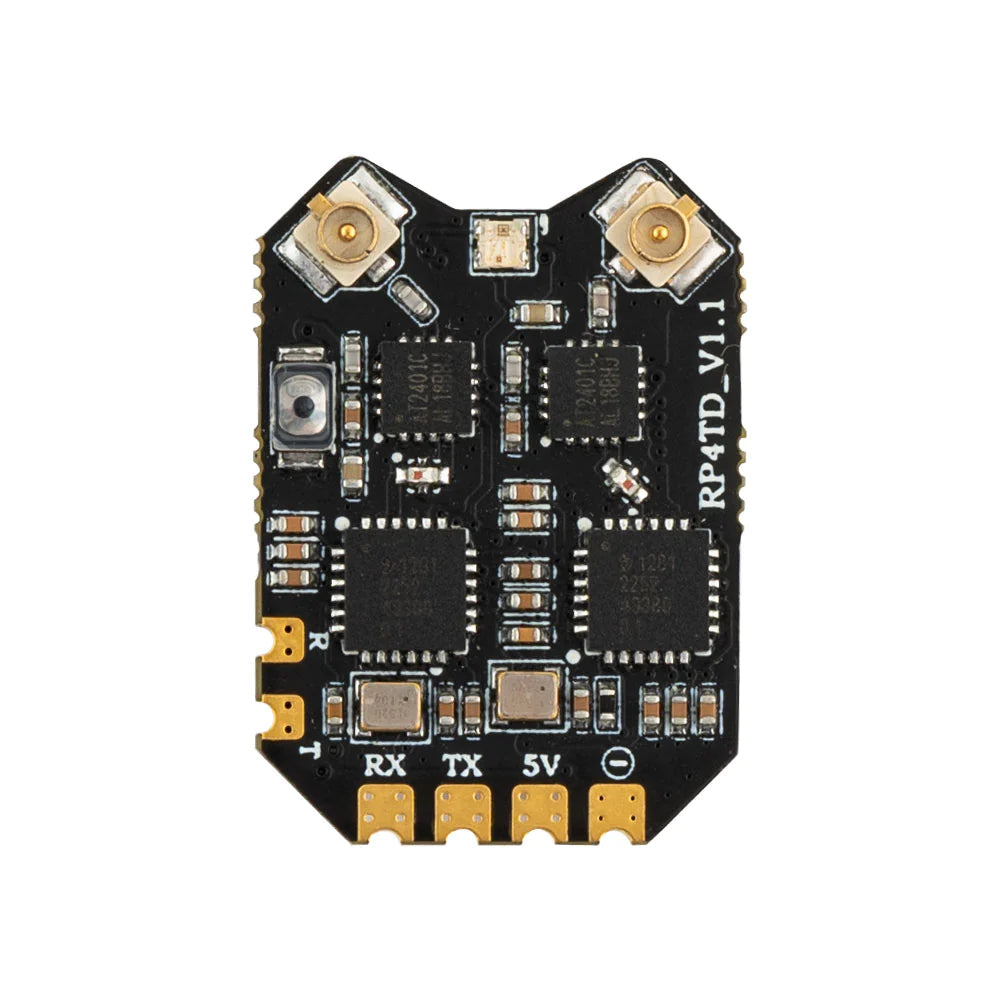

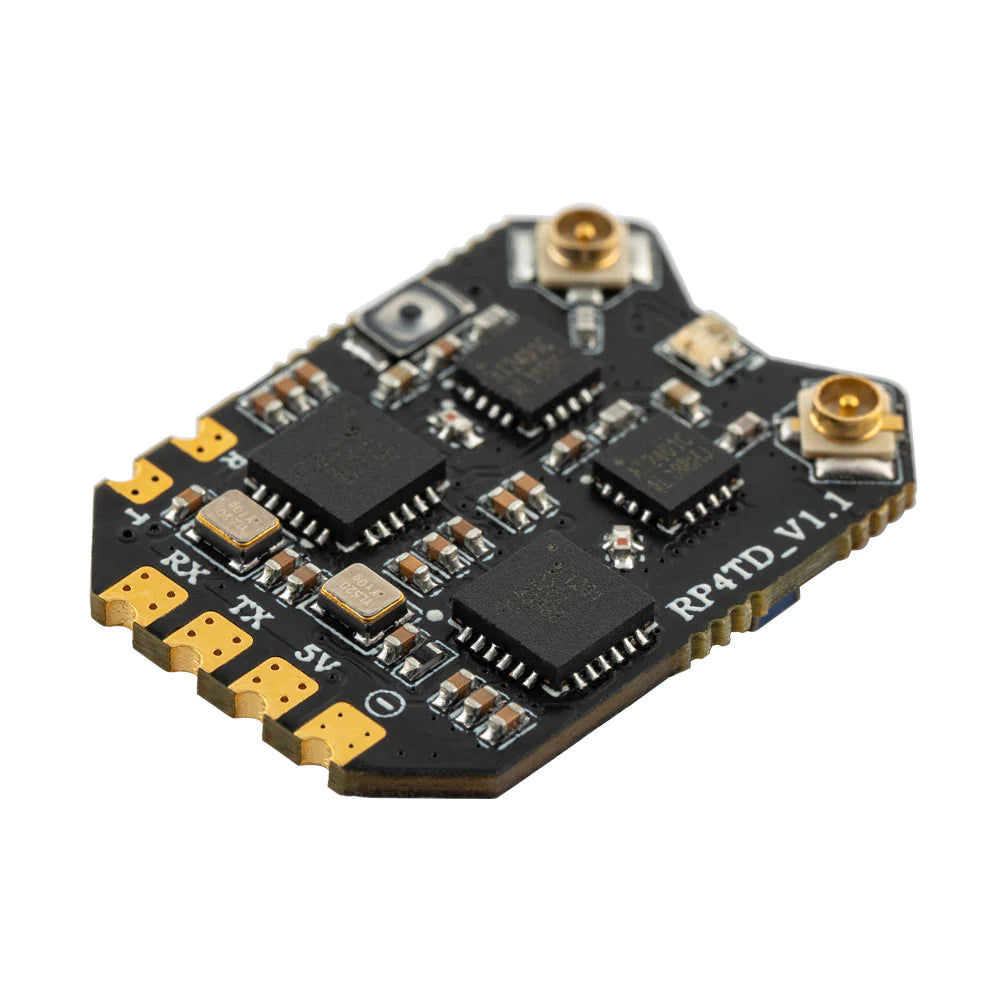

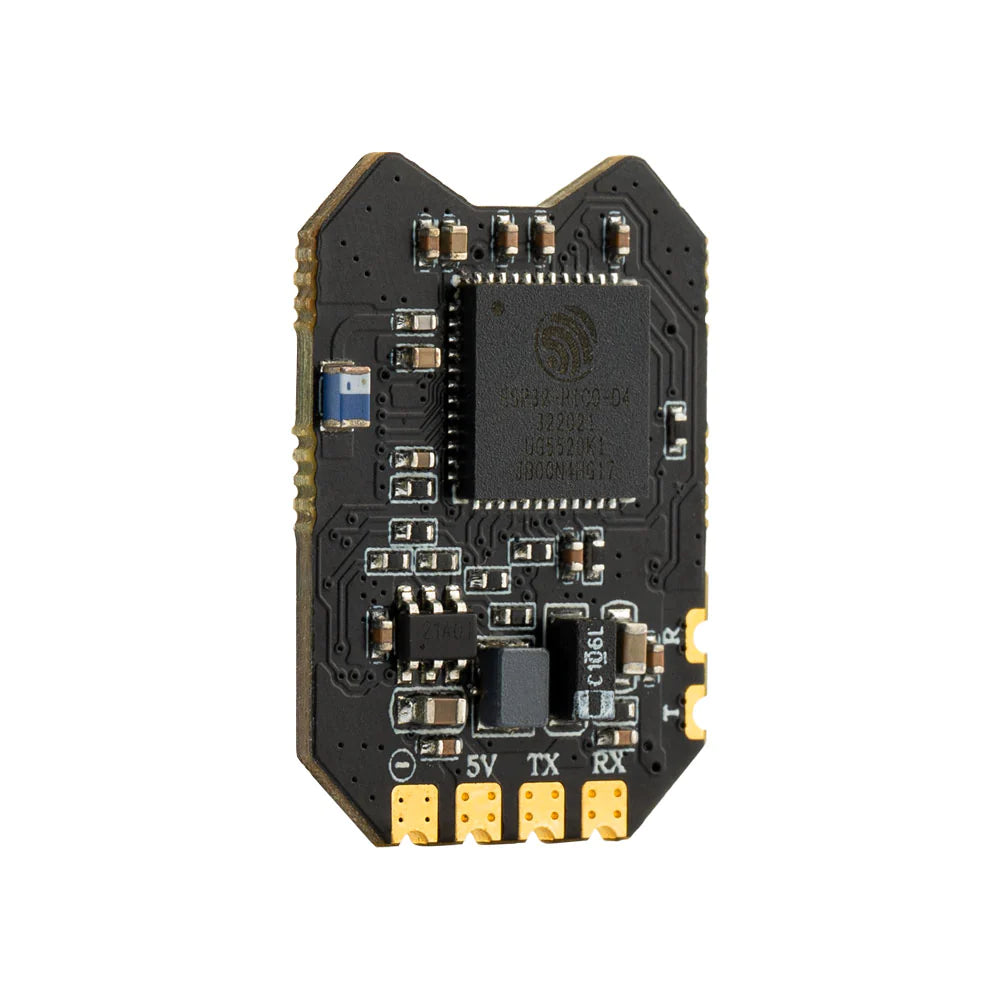

Are you in Australia and eager to purchase a RadioMaster RP4TD ExpressLRS 2.4GHz Diversity Receiver? The RP4TD is a top - notch choice. It comes with dual - channel 2.4GHz radios. Thanks to its optimized circuit design, it offers excellent signal sensitivity, high signal - to - noise ratio, and top - level performance. The reliable DCDC power supply circuit keeps the operating temperature low during long - term use. With dual TCXO, it ensures the highest frequency stability, leading its class. The built - in WIFI allows you to wirelessly upgrade the firmware and configure the receiver via the built - in WebUI on your PC or mobile phone. This receiver is suitable for drones and fixed - wing models and can be installed in any application that needs a serial receiver. Key features include Gemini mode compatibility, a reliable DCDC power supply, leading SNR and RSSI performance, an optimized PCB for better heat dissipation, an upgraded antenna, UART pads for extended use, dual TCXO, 2x 100mw RF Telemetry power output, and compatibility with all 2.4GHz ExpressLRS modules and transmitters. Specifications: It's an ISM - type receiver with an ESP32 MCU and two SX1281 RF chips. It has two 65mm 2.4GHz T Antennas, a 2.4GHz frequency range, a max refresh rate of 500Hz / F1000Hz, and a max telemetry RF power of 2x 100mW. It operates at a voltage of DC 4.5 - 12.0V, weighs 1.4g without the antenna, and has dimensions of 23.7*16.3*4.0mm. It comes pre - installed with ExpressLRS V3.3.0 firmware. The package includes 1 RP4TD receiver, 1 CRSF wire, 3 heat - shrinkable tubes, 2 antennas, and 1 user manual.

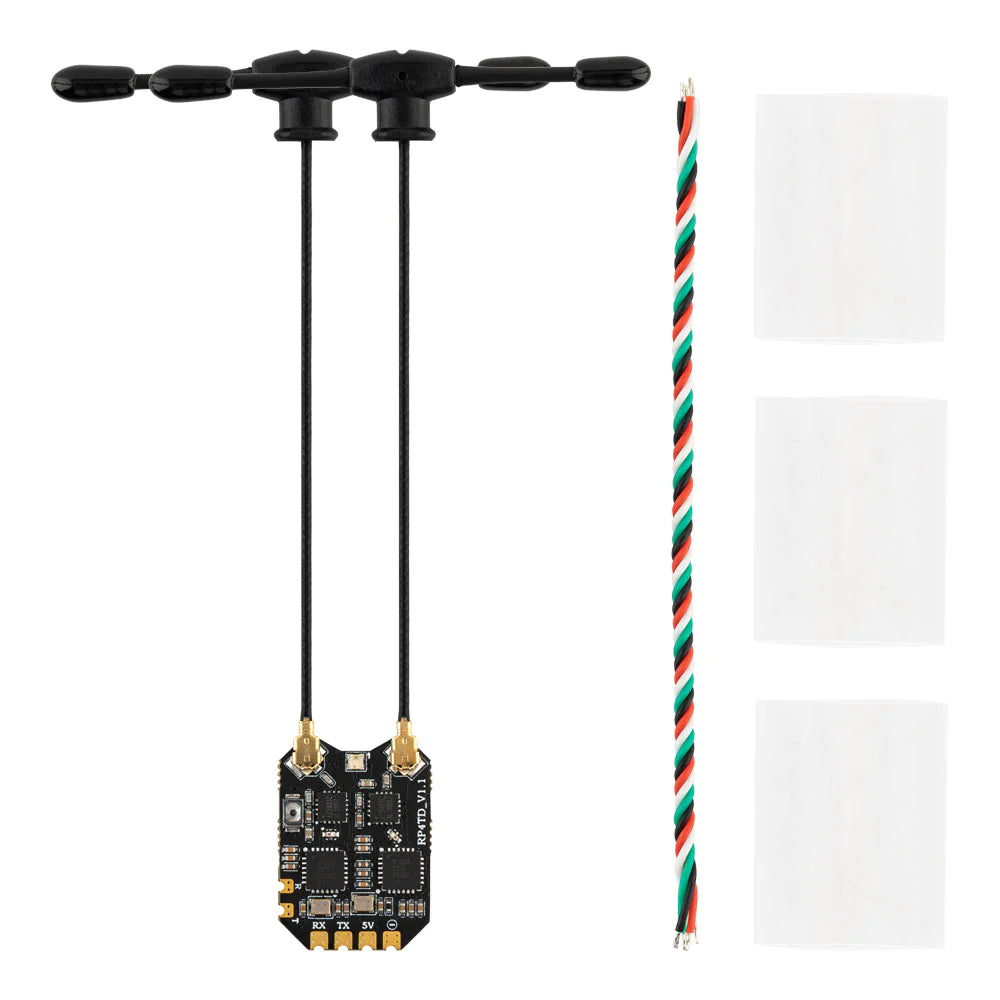

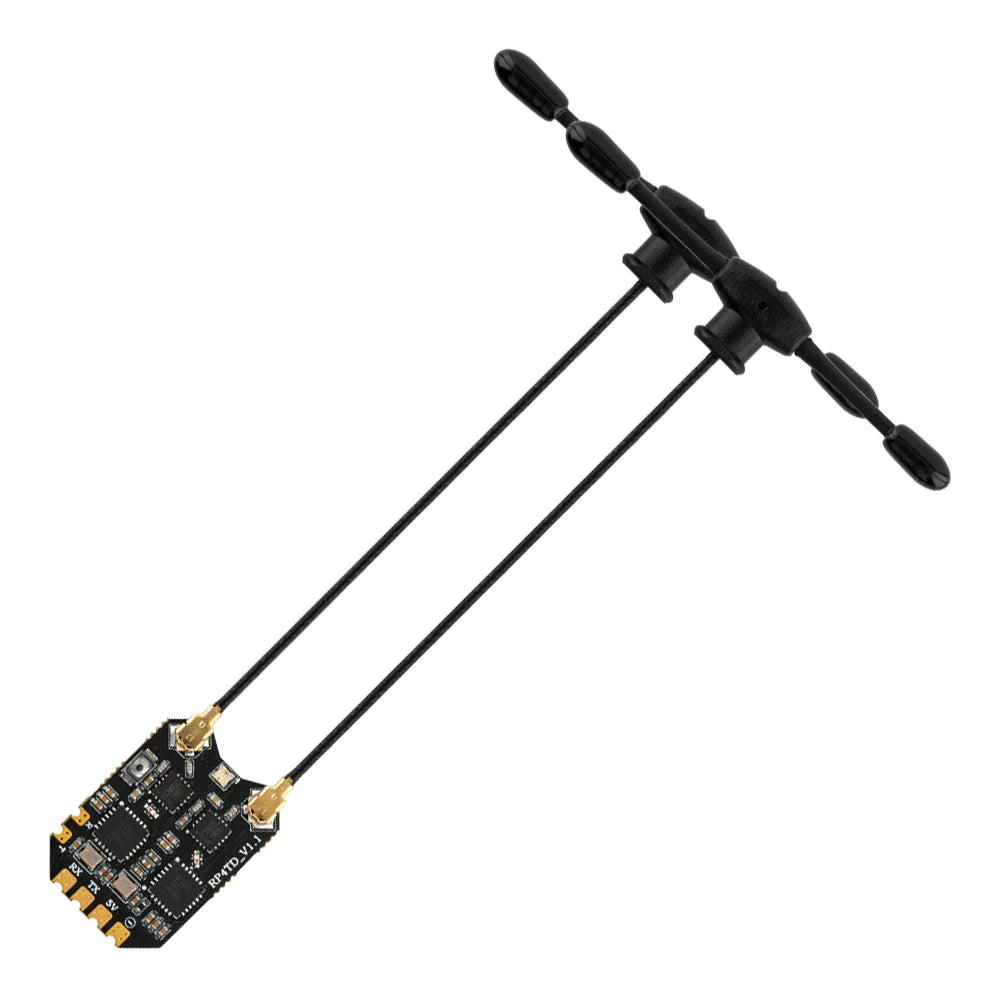

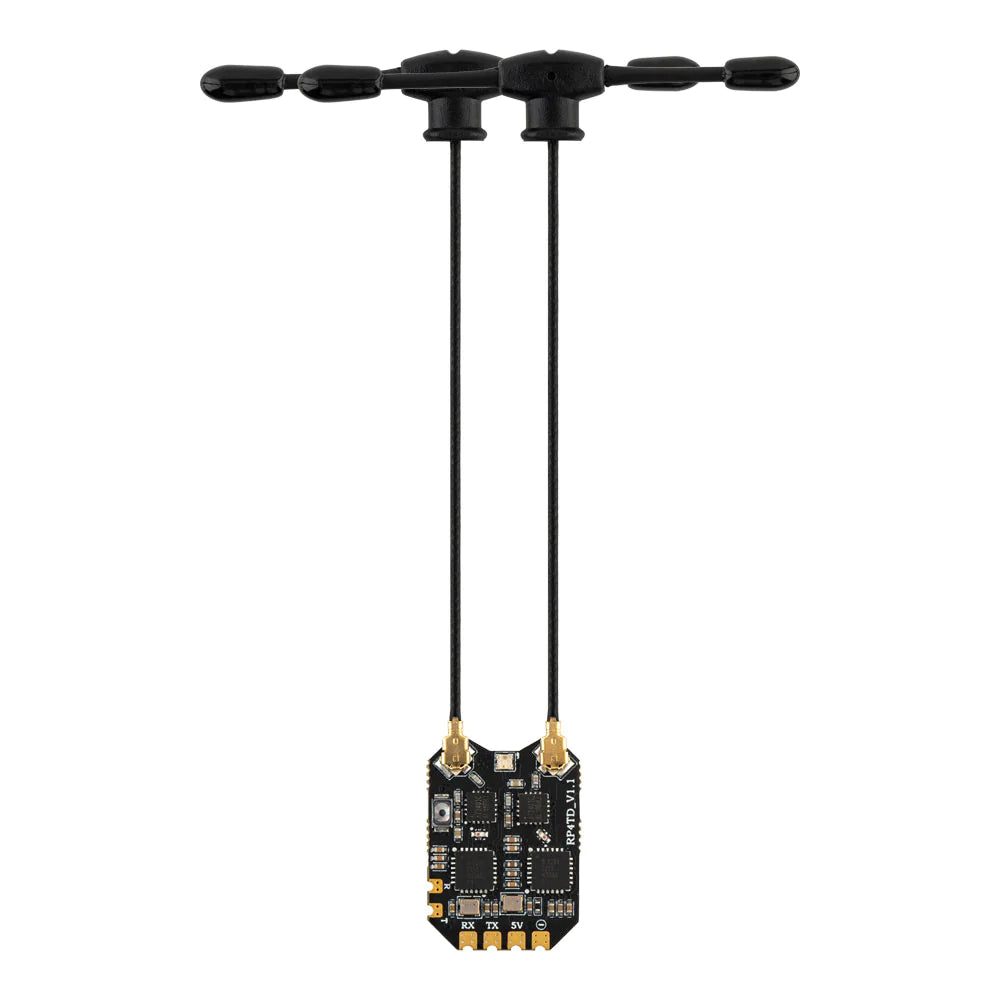

Using the RadioMaster RP4TD ExpressLRS 2.4GHz Diversity Receiver is easy. First, make sure your device's voltage is within the 4.5 - 12.0V range. Install the included antennas on the receiver. Connect it to your drone or fixed - wing model using the CRSF wire. You can use the built - in WIFI to upgrade the firmware and configure the receiver on your PC or mobile phone via the WebUI. When it comes to maintenance, keep it in a dry and cool place. Avoid exposing it to extreme temperatures as this may affect the signal reception. Check the antennas regularly for any signs of damage. If you want to use the UART pads for extended applications, refer to the user manual for proper connection methods. And always follow the safety guidelines in the manual during operation.
