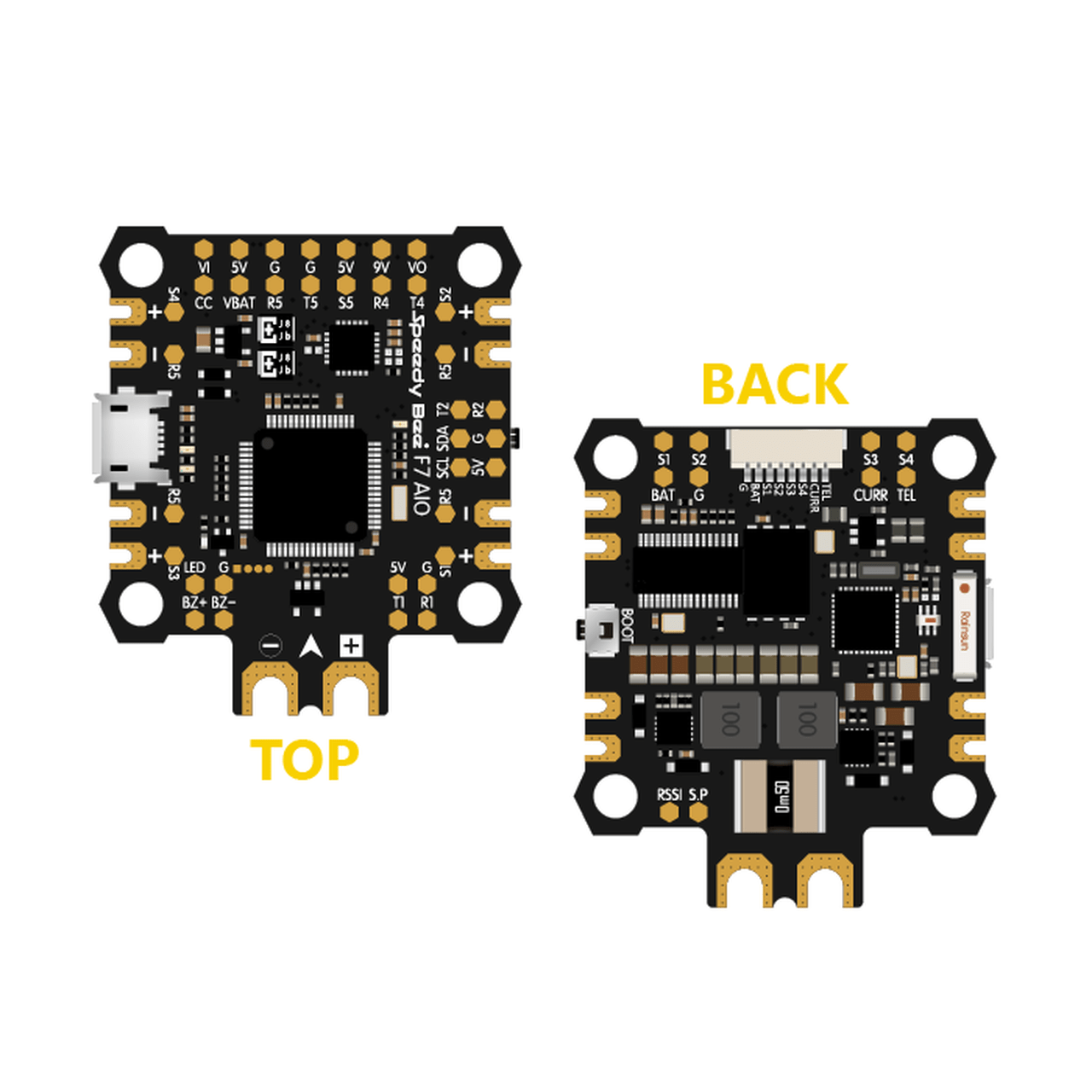

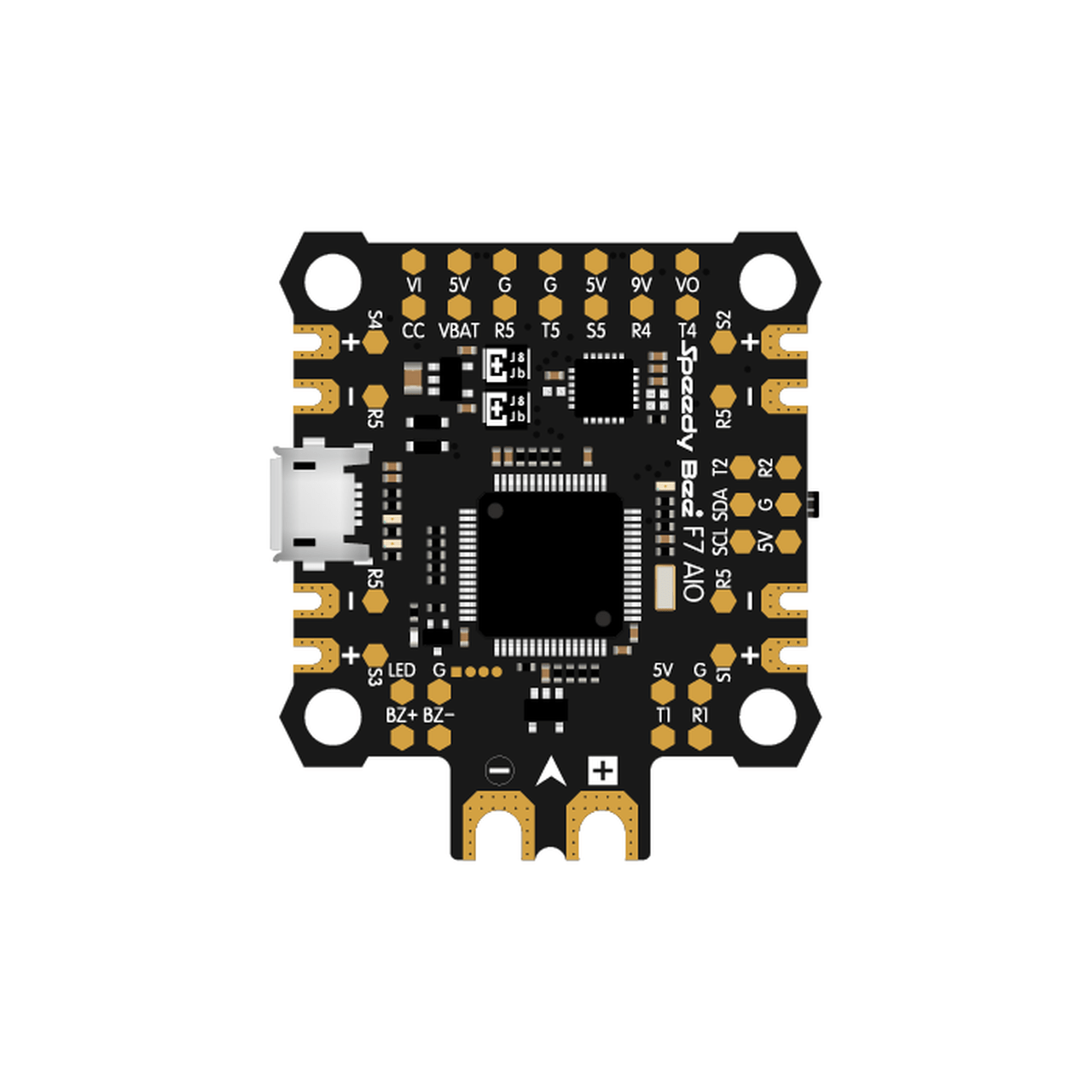

Runcam Speedy Bee F7 AIO Flight Controller

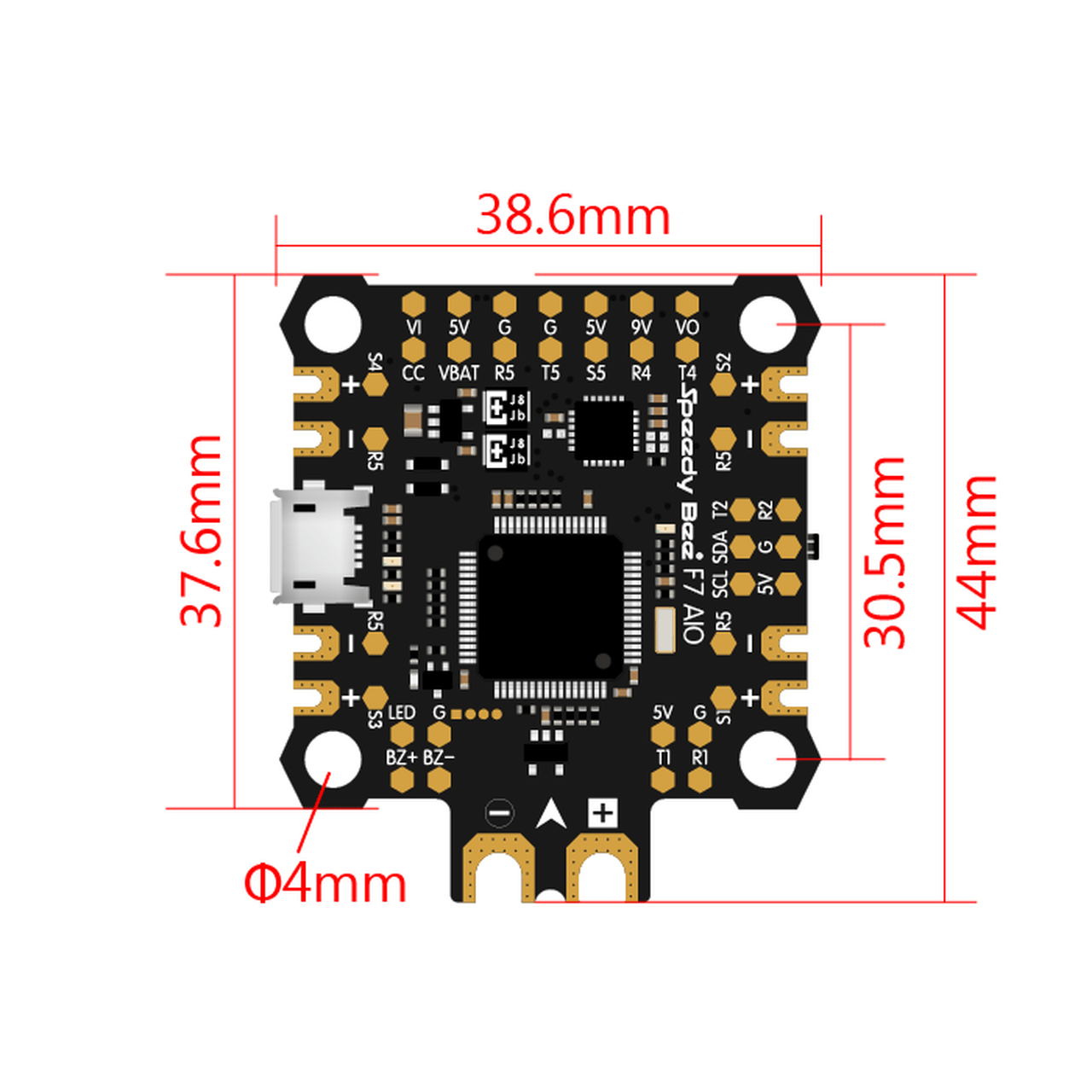

The Runcam Speedy Bee F7 AIO Flight Controller features a new layout with new functions. It supports a 4in1 ESC and offers two connection methods: 8 PIN connector or solder pads. This controller has better high - current support, with 5 * 5.0V/1 * 9.0V outputs (Max. 2.5A). It comes with an integrated BLE module for zero - configuration. You can set the FC parameters via a mobile device. For iOS 10.0+ (iPhone4S, iPad 3rd Gen and later) use the APP Store, and for Android 4.3+ get it from Google Play. When throttle is armed, the Bluetooth module deactivates automatically; when disarmed, it activates. With a built - in Bluetooth chip, it requires zero configuration and connects directly to the Speedy Bee App after power - on, making it easy to set FC parameters. Specifications include an STM32F722 MCU, ICM20689 IMU, BMP280 (I2C) baro, BetaFlight OSD w/ AT7456E chip, and more. It weighs approximately 8.8g and has dimensions of 36.5*44*7mm.

Using the Runcam Speedy Bee F7 AIO Flight Controller is quite straightforward. First, connect it to your drone according to the wiring guide. You can choose between the 8 PIN connector or solder pads. After powering it on, it will automatically connect to the Speedy Bee App via the built - in Bluetooth chip. Then, you can use your mobile device (iOS 10.0+ or Android 4.3+) to set the FC parameters easily. When flying, remember that when you arm the throttle, the Bluetooth module will turn off automatically, and it will turn on again when you disarm the throttle. For maintenance, keep it in a dry and clean place. Avoid exposing it to extreme temperatures or moisture. If you need to update the firmware, follow the instructions in the manual. Also, be careful when handling the delicate components to prevent any physical damage.
