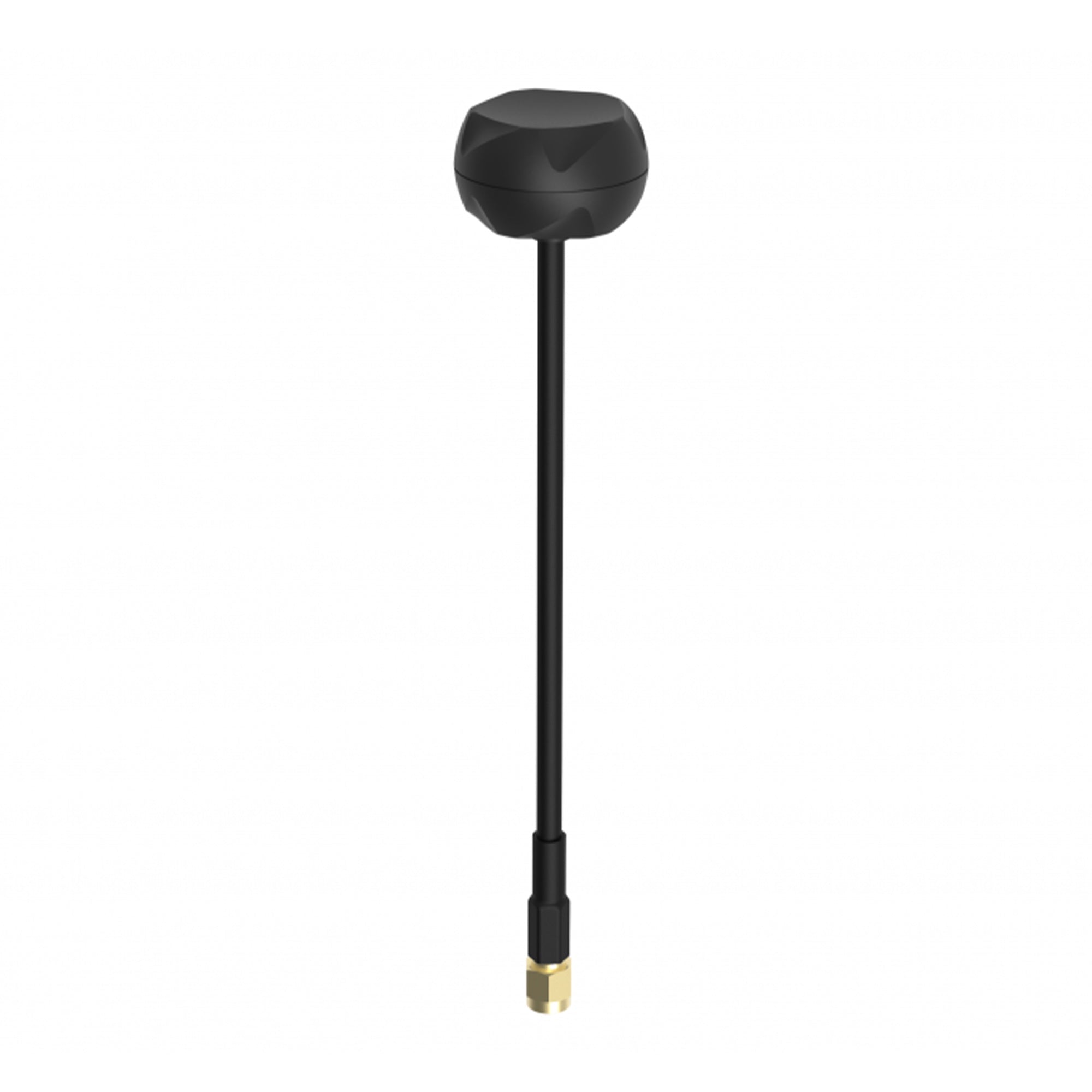

TBS Airscrew SMA Antenna (5.8ghz)

The TBS Airscrew SMA Antenna, a unique take on the VAS Airscrew, offers outstanding wideband performance across the 5GHz spectrum. Crafted by IBCrazy and made by TBS, its five multi - phase elements form a circular reception pattern. This pattern not only rejects cross - polarised signals but also works well over a very wide frequency range. With its long antenna connector, it's perfect for long - distance transmissions or mounting on a TBS Fusion for excellent omni - directional reception. It comes in three connector types: MMCX, SMA 90º, and SMA. Key features include high - standard manufacturing and testing, extremely wide band reception, a lightweight design, an ultrasonic welded plastic case for crash protection, and a double - jacket semi - rigid cable for impact resistance. Specifications are as follows: frequency range of 4900 - 6100MHz, RHCP polarisation, 1.3dbic gain, 0.95 axial ratio, 20g weight, 130mm height, and an SMA connector. The package includes 1x TBS Airscrew SMA Antenna. You can also check out TBS Tracer, TBS Tracer Receivers, TBS Tracer Aerials, and all other TBS products.

Using the TBS Airscrew SMA Antenna is easy. First, choose the right connector (MMCX, SMA 90º, or SMA) according to your needs. If you want to use it for long - distance transmission, simply connect it to your device. For omni - directional reception, mount it on a TBS Fusion. When handling the antenna, be gentle as it's lightweight. Avoid dropping it or subjecting it to heavy impacts, even though it has a double - jacket semi - rigid cable and an ultrasonic welded plastic case for protection. To maintain it, keep it in a dry place and clean it with a soft, dry cloth regularly. Check the connector from time to time to make sure it's in good condition.
