True Diversity, Full Range

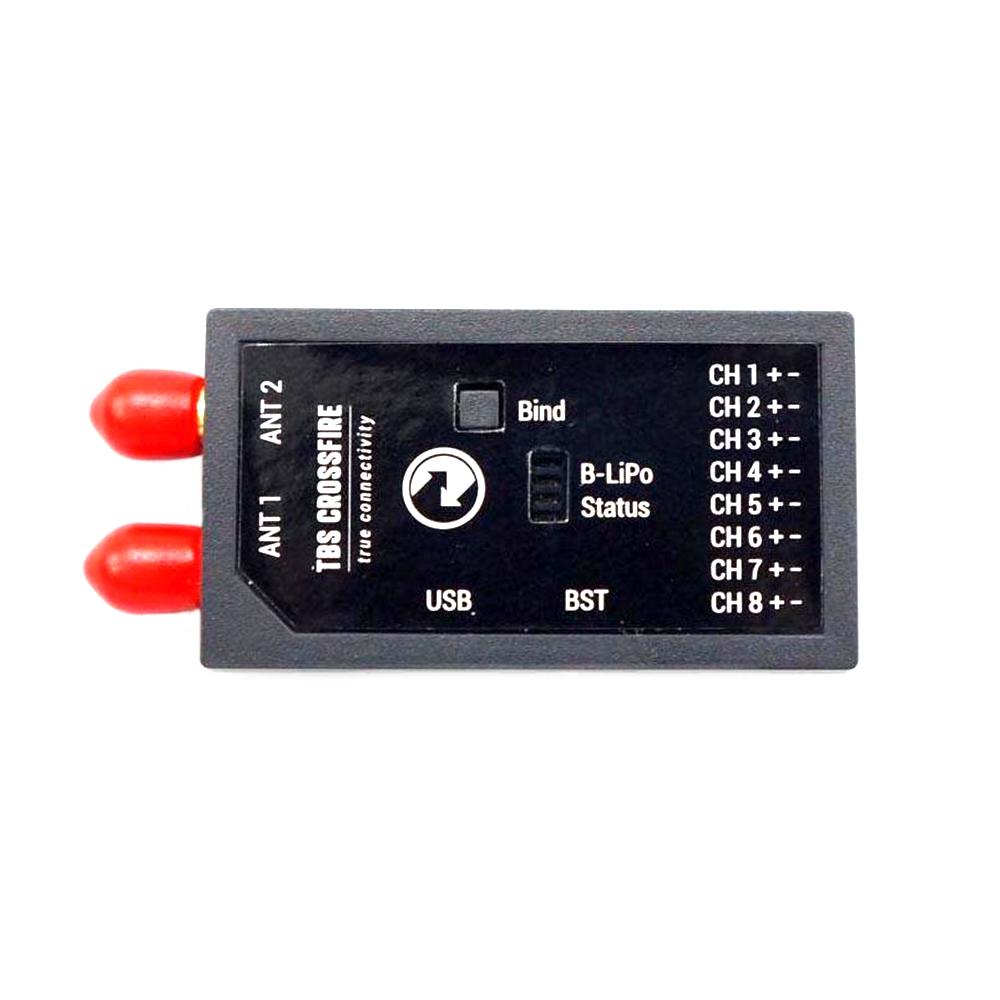

The TBS CROSSFIRE 8ch Diversity Receiver is a super - compact R/C receiver. It offers 8ch PWM outputs and supports PPM, SBUS, and CRSF. With industry - leading noise - rejection and an amazing range, it's the only receiver with a true dual - input stage and chip - based diversity. It also has great filtering and noise rejection for on - board video systems.

Beacon Mode

Ever lose a plane and waste hours searching? The TBS CROSSFIRE beacon mode is here to help. This 8ch diversity receiver has a built - in LiPo battery. Even after all on - board electronics are gone, it can run for a full day. It'll tell you its GPS coordinates and send out RF beacon signals, so you can find it easily, even without GPS on your plane.

BST for All

BST, the BlackSheepTelemetry port, spreads the benefits of the TBS CROSSFIRE to all listening devices. For example, the TBS CORE PRO can show RSSI and link quality info. Telemetry is sent to the ground via CRSF and can be captured by any Bluetooth smart device. Software updates are automatically spread across the ecosystem through a single entry point, like the CORE PNP PRO. It's user - friendly and safer! And if you're short on BST ports, we're giving a BST port splitter for free!

FLARM Available!

FLARM is a traffic awareness and collision - avoidance technology for general aviation, light aircraft, and UAVs. The TBS Crossfire Diversity RX can broadcast on the FLARM network for free. To get drone and general aviation traffic information on your OSD, you need additional licenses. Pair it with the CORE PRO or FPVision and TBS GPS, and you'll get a virtual radar showing other FLARM devices within about 3km. This helps you fly safely in crowded airspace or have exciting formation flights with friends. Full - scale aviation will be alerted if there's a collision risk, and vice versa.

• Download the manual
• Download TBS Agent (software updates)
• TBS Crossfire - RED Declaration of Conformity

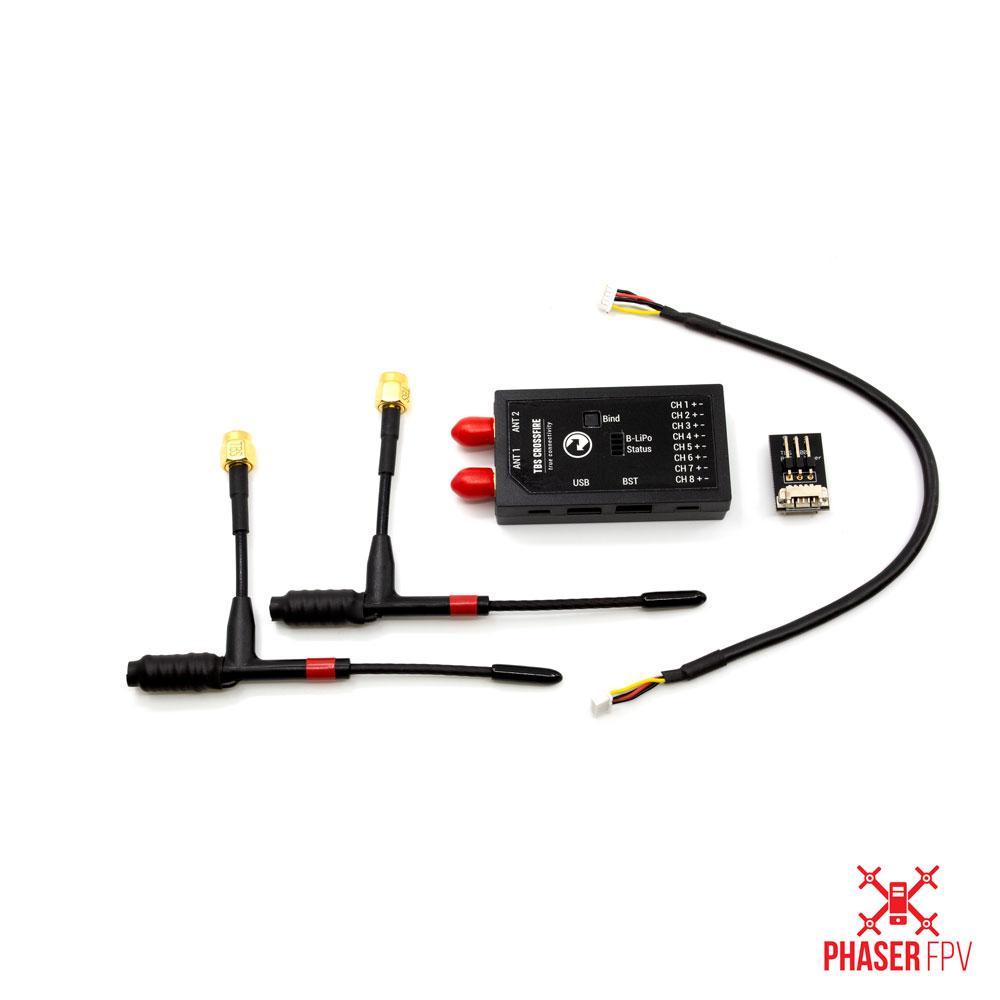

Package Includes

• TBS Crossfire 8Ch Diversity Rx

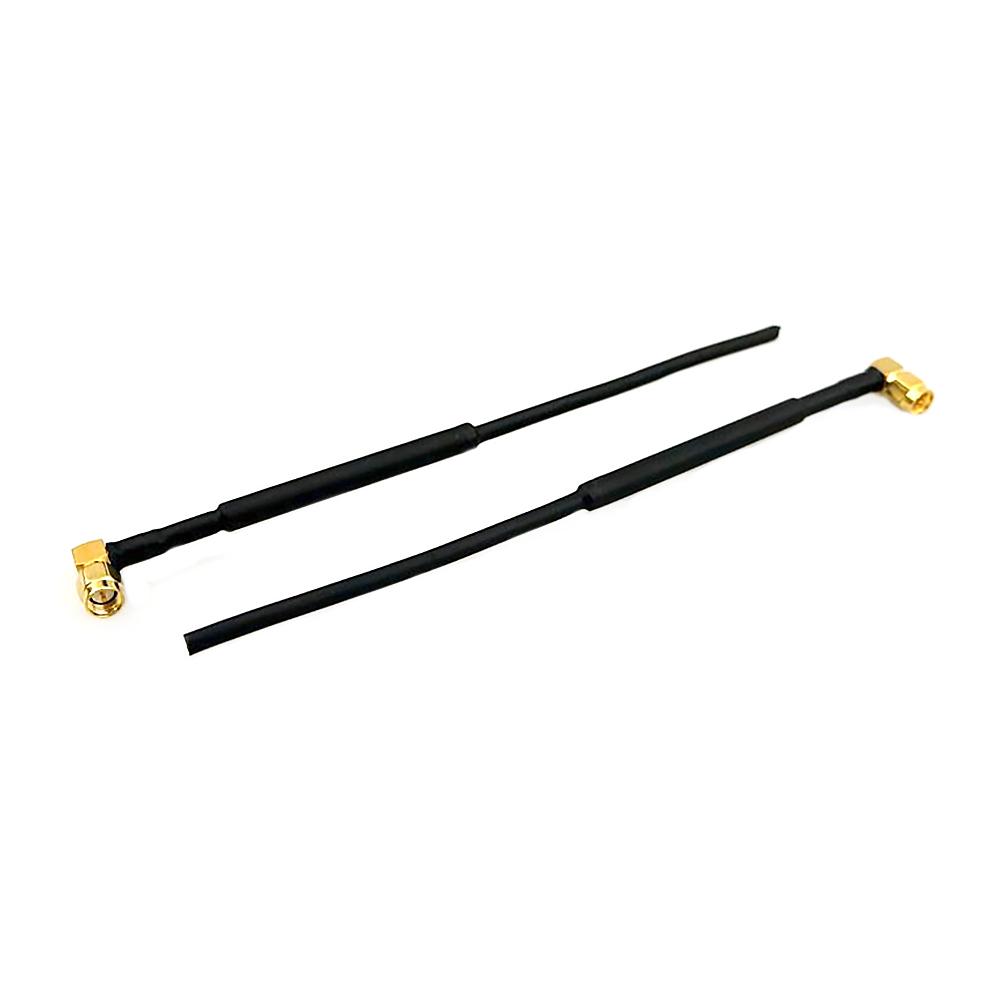

• TBS Crossfire Stock Rx Antenna (2pc)

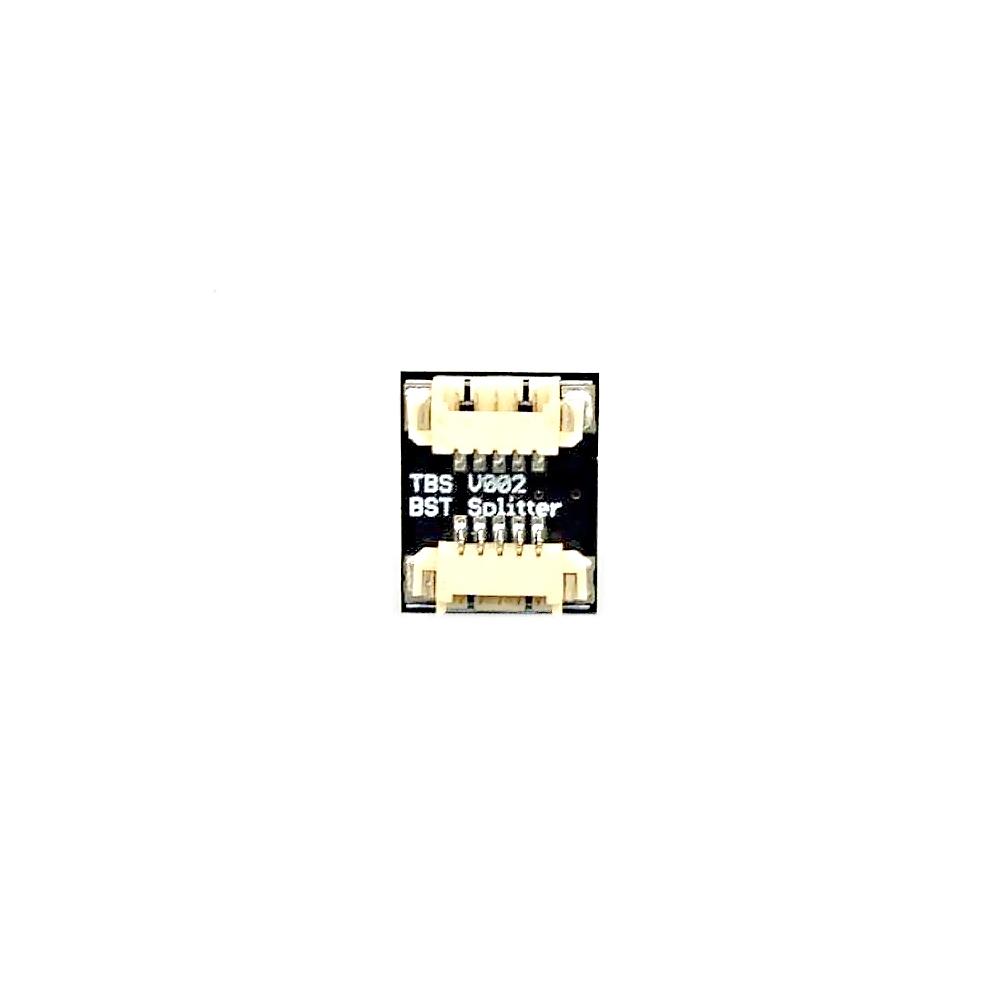

• BST splitter (one input to three output)
• BST cable (20cm)

Using the TBS Crossfire 8CH Diversity Rx is quite straightforward. First, connect it to your device following the included BST cable and splitter instructions. For the beacon mode, if your plane goes missing, just activate it, and the receiver will use its built - in LiPo battery to send out GPS coordinates and RF signals. When it comes to BST, make sure your devices can listen to it, and the telemetry data will be sent to the ground. For FLARM, if you want to use the traffic information, remember to get the necessary licenses. As for maintenance, keep the receiver in a dry and clean place. Regularly check the antenna connections and make sure they are secure. Also, always download the latest software updates using the TBS Agent to ensure optimal performance.
