TBS Crossfire Sixty9 V2 (5v input only) (915mhz)

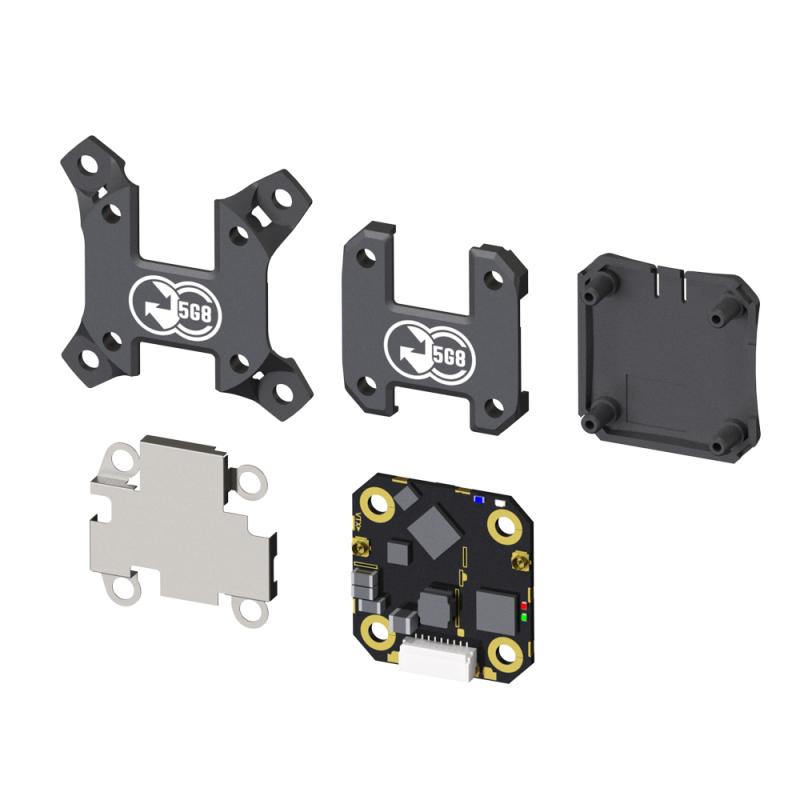

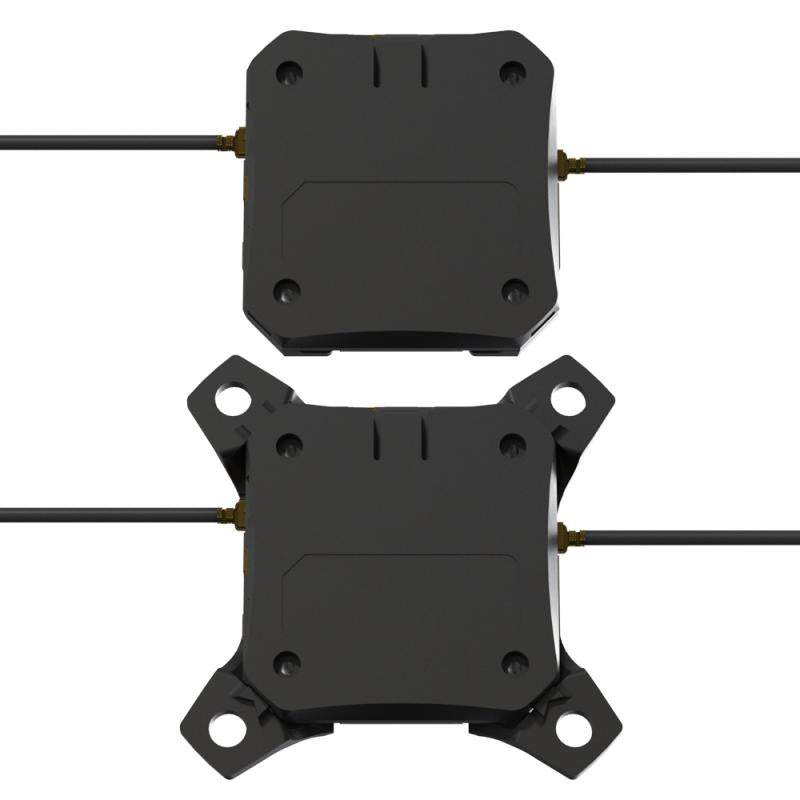

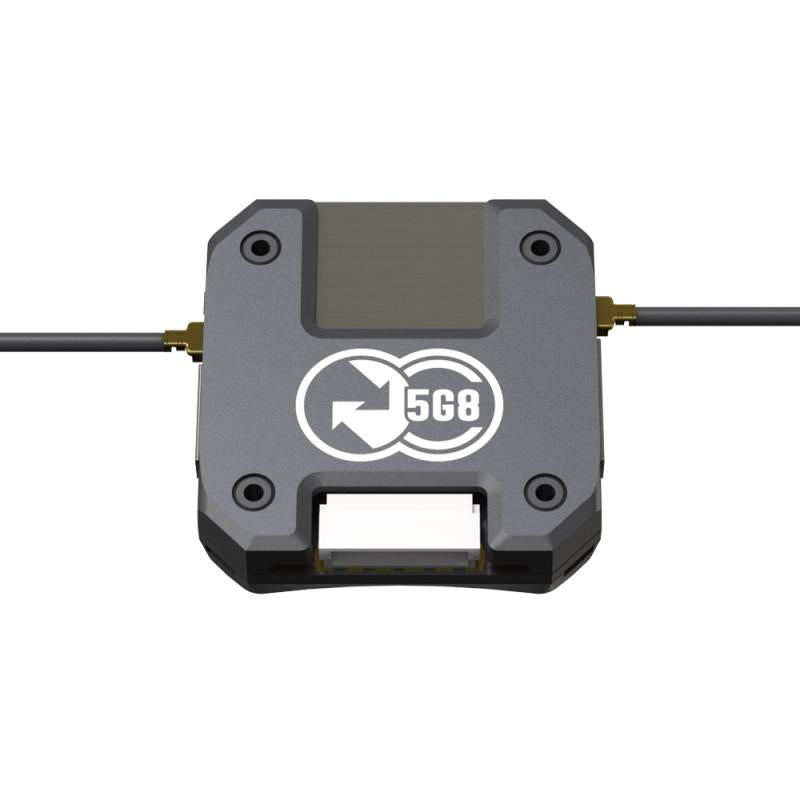

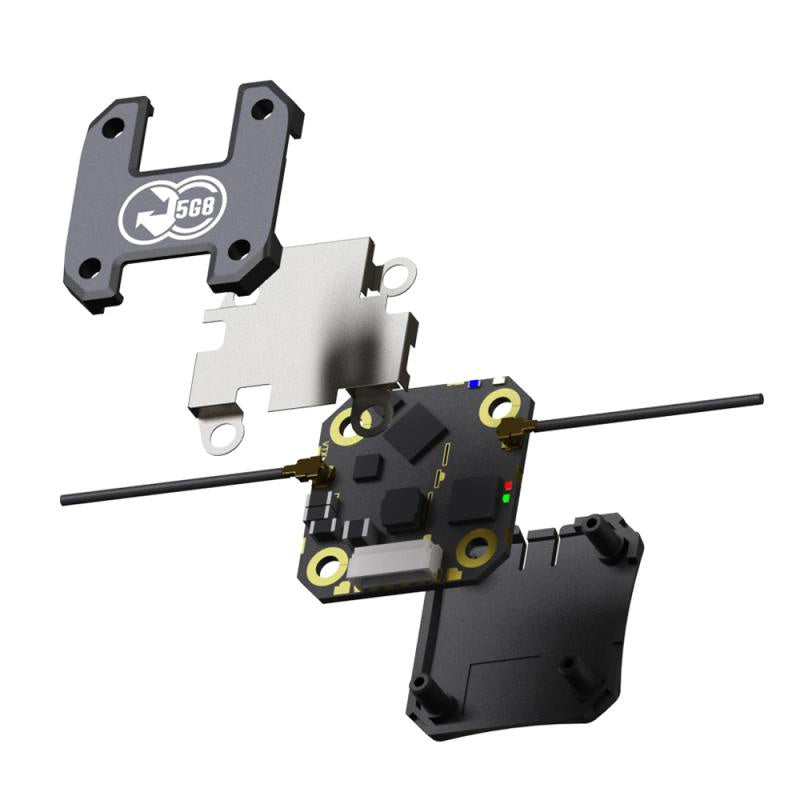

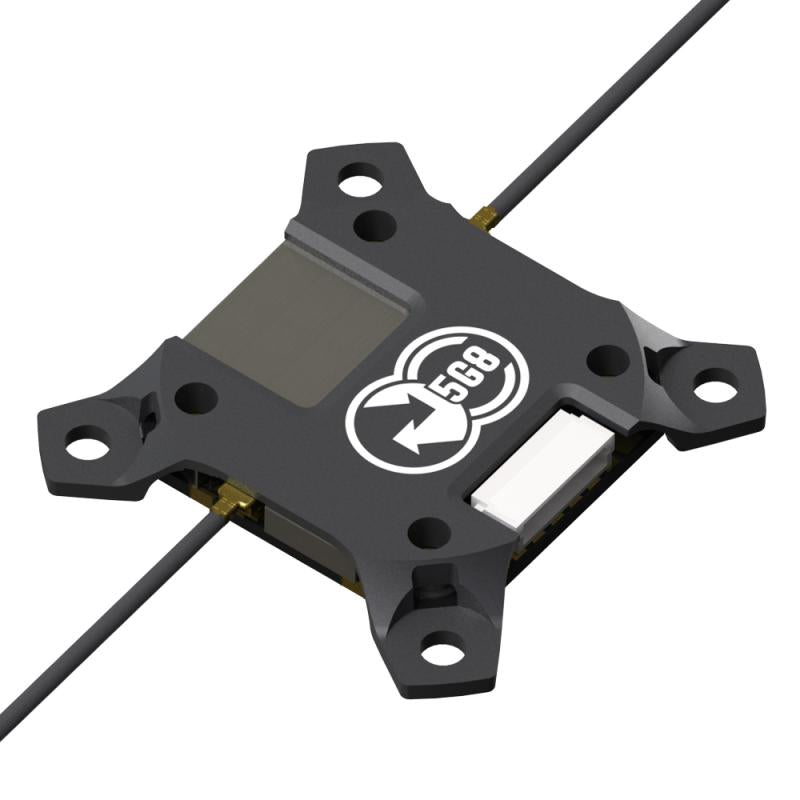

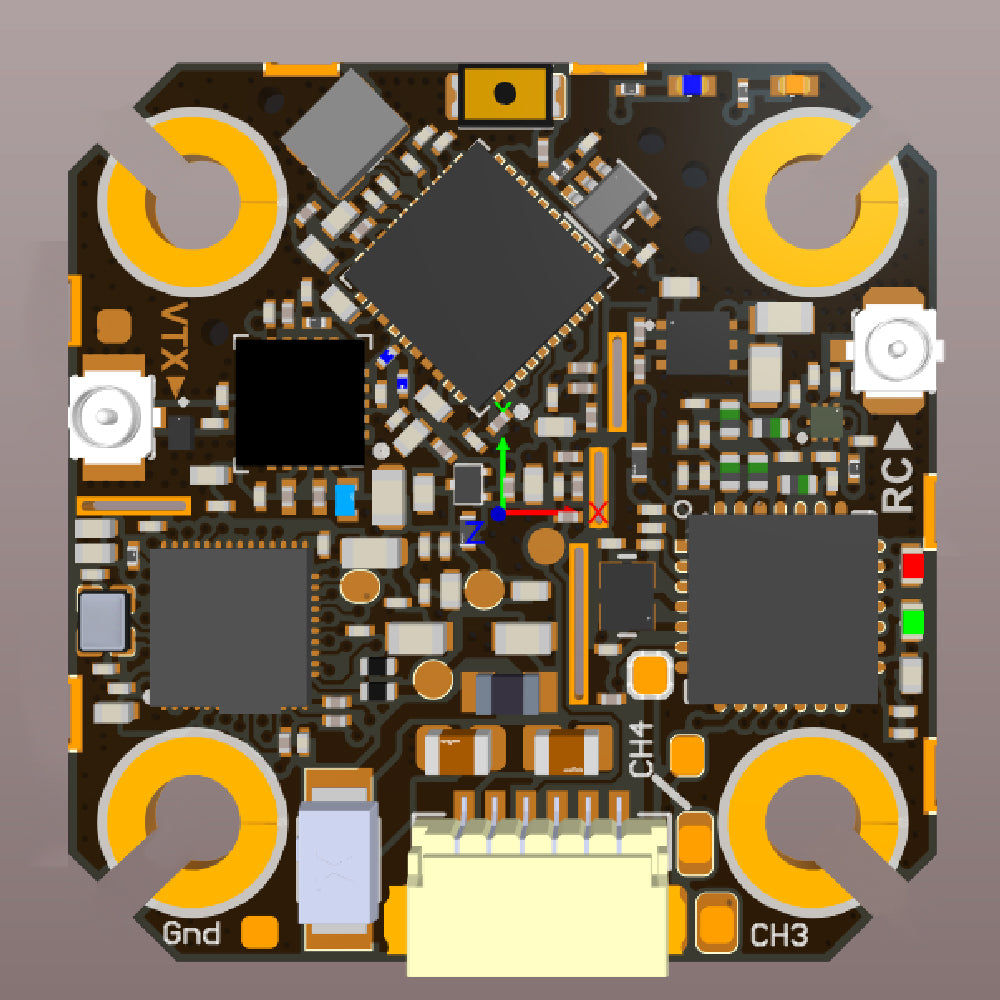

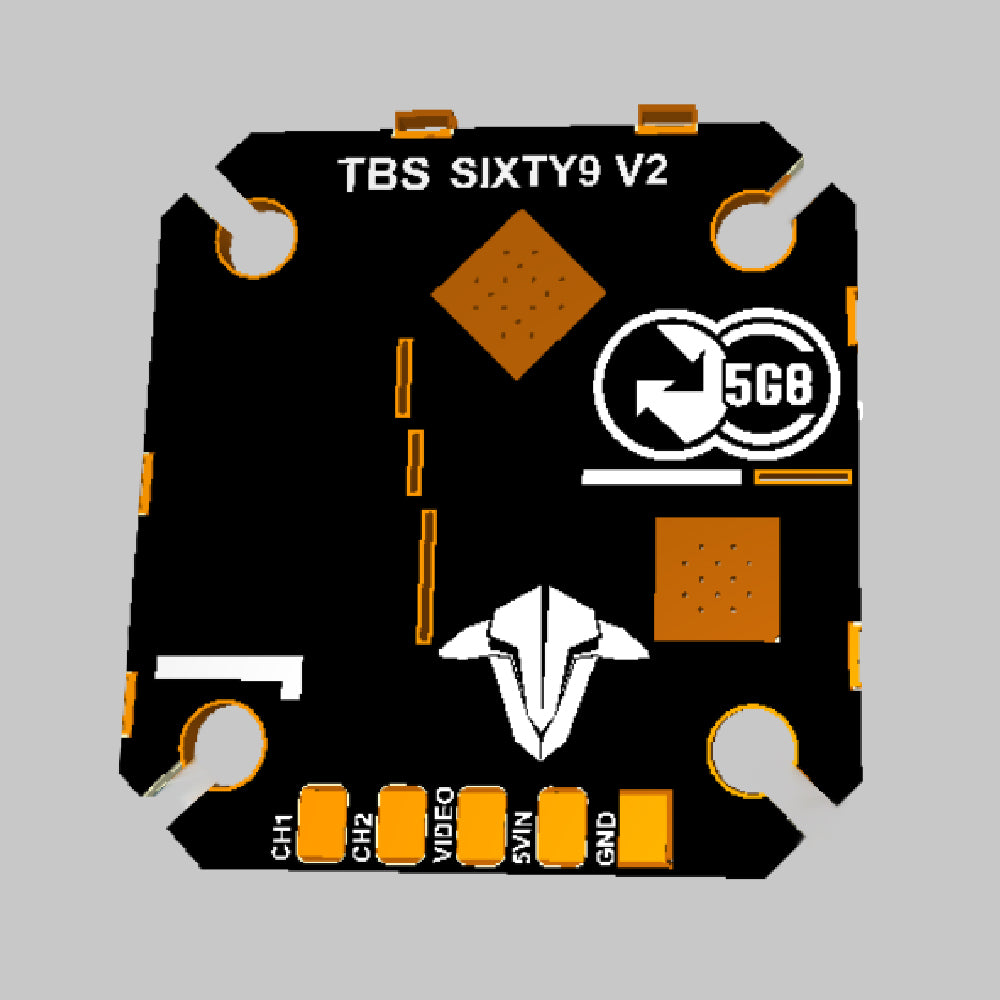

Are you in Australia and looking to buy the TBS Crossfire 69 v2? TBS now offers an integrated receiver and VTX AIO in the CROSSFIRE version. If you prefer the Tracer version, check out the Tracer Sixty9. This new version has some great changes compared to the old one. It has a flat bottom, which means no components on the bottom side of the board for easier stack - and top - plate mounting. It runs on a 5V power supply from your FC instead of direct battery input. The V2 Sixty9 comes with useful accessories like M3 grommets, IPEX locking connectors for the immortal T, and an SMA adapter for VTX. Combining the best Crossfire receiver with an improved Unify Pro32 video transmitter, it's a perfect match. It has 20x20 mounting holes, and we also include adapters for 30x30 stacks and a plastic case for easy mounting. It outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST - SH connector links to your flight controller and video camera. Specifications include a 4.1g board weight, 1x video transmitter and 1x R/C receiver antenna ports, 24mm x 24mm size, requires Firmware V4.62 and above, and is CRSF V3 ready. It comes with 1x TBS Crossfire Sixty9, 1x TBS Crossfire Immortal - T antenna, 1x u.FL to SMA mount, 1x 30x30 heatsink / case, 1x 20x20 heatsink / case, 1x optional tin - shield, and 1x JST - SH x 9 connector. You can also download the TBS Crossfire - RED Declaration of Conformity and the TBS Crossfire Manual. Browse more Crossfire receivers, transmitters, and Team Black Sheep products.

Using the TBS Crossfire Sixty9 V2 is quite straightforward. First, make sure your firmware is V4.62 or above as the device requires it. Connect the main JST - SH connector to your flight controller and video camera. The 5V power input should be taken from your FC. When mounting, you can use the provided 20x20 or 30x30 heatsink / cases according to your needs. The flat bottom design makes it easy to stack or mount on the top - plate. As for the antenna, connect the TBS Crossfire Immortal - T antenna to the appropriate port. When it comes to maintenance, keep the device clean and dry. Avoid exposing it to extreme temperatures. If you're not using the optional tin - shield, store it safely. If you encounter any issues, refer to the TBS Crossfire Manual for troubleshooting.
