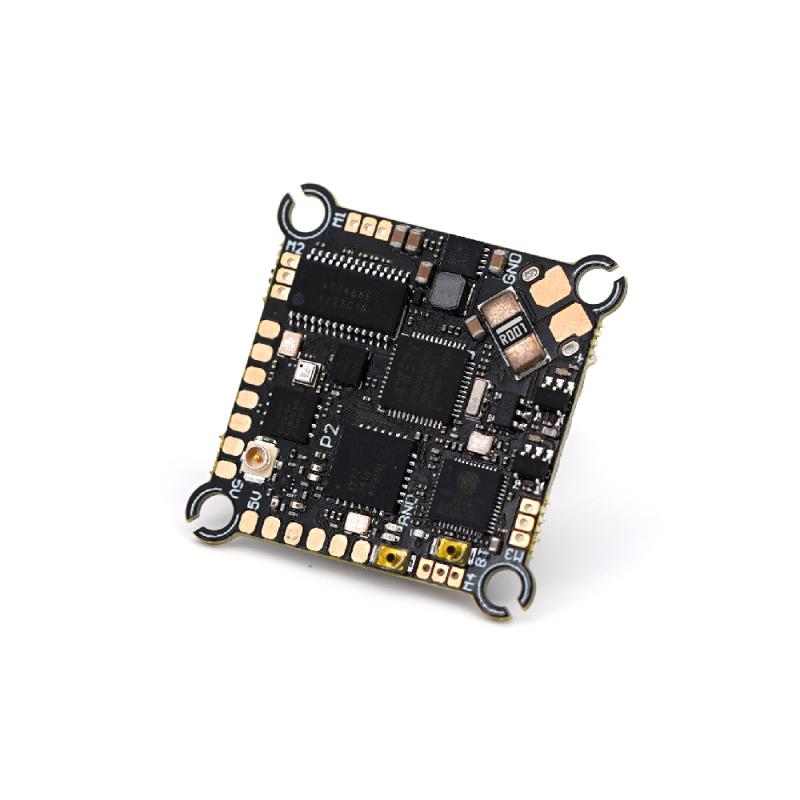

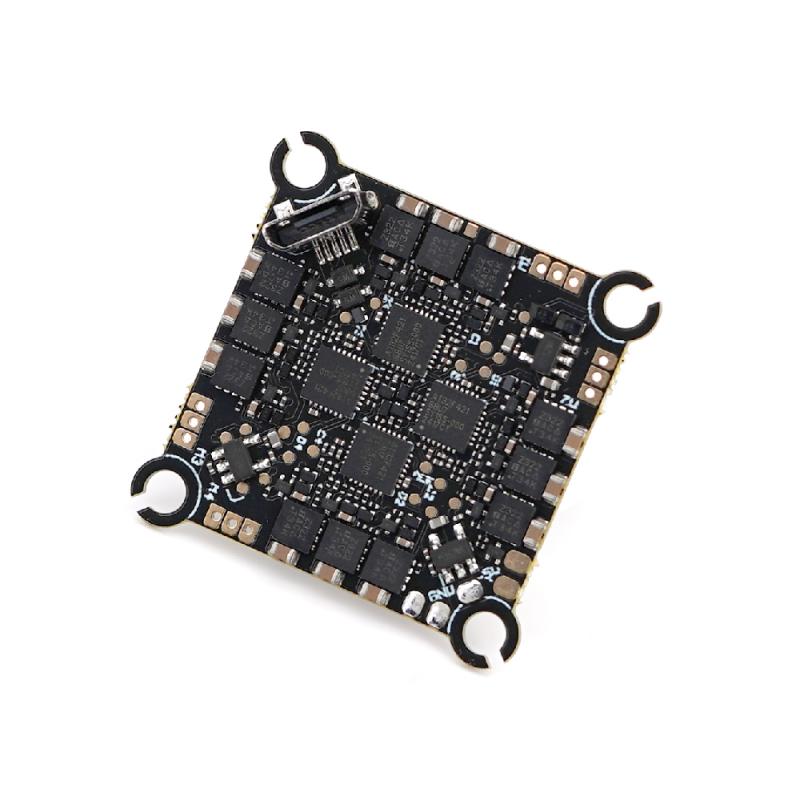

The TBS Lucid AIO 1 - 2S is a game - changer for long - range 1S/2S drone pilots and whoop pilots. It eliminates radio link limitations and offers extra power. With a 25x25 'Whoop' form factor, this is the only board that can run 2S boards without overheating and can drain 1S batteries efficiently. The 'AIO' means it's a 3 - in - 1 with a flight controller, 4in1 ESC, Crossfire Receiver, and an OSD chip for analog video. Each board is factory - tested and pre - approved by experienced whoop pilots. Specifications include an AT32F435RMT7 MCU at 288MHz, ICM - 42688P gyro, 4 x 7A ESC, 5V 2A BEC, AT7456E OSD, 8M blackbox, 3 UARTs, 1S - 2S input, 28mm x 28mm size (30mm x 30mm outer), 25mm*25mm mounting, and just 4g weight. It comes with the TBS Lucid AIO, a TBS Crossfire 'Micro RX' antenna, 4 rubber grommets, and 4 separate motor sockets for easy plug - and - play.
Using the TBS Lucid AIO 1 - 2S is quite straightforward. First, make sure to connect the TBS Crossfire 'Micro RX' antenna properly to ensure a stable radio link. Then, attach the motor sockets to the motors for plug - and - play functionality. When powering the board, you can use either a 1S or 2S battery as per your needs. For maintenance, keep the board clean and dry. Avoid exposing it to extreme temperatures or humidity. If you notice any issues, check the connections first. And remember, this board has been well - tested, but handle it with care to keep it in top - notch condition.
