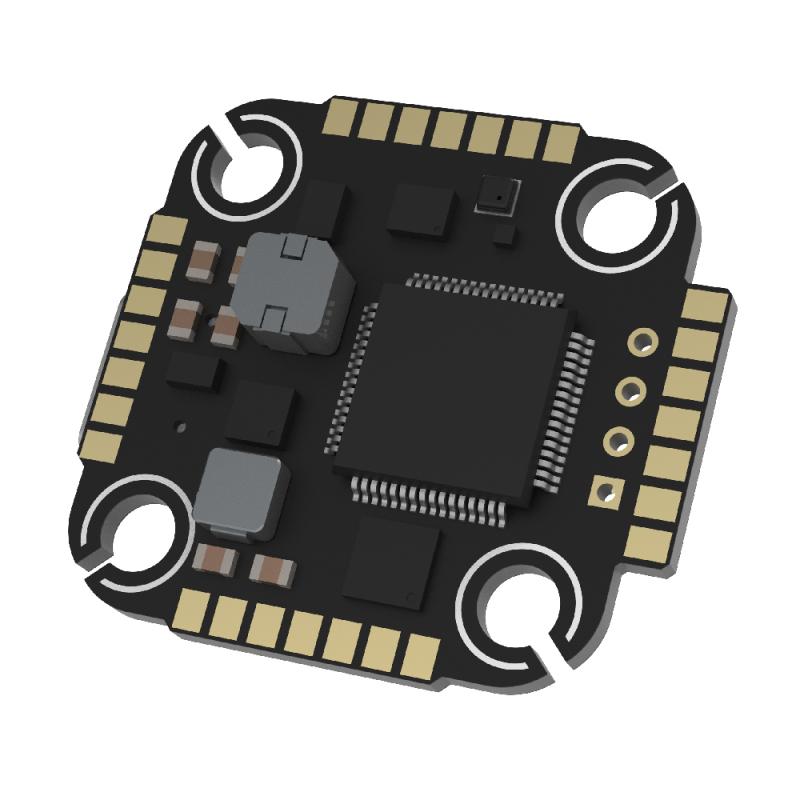

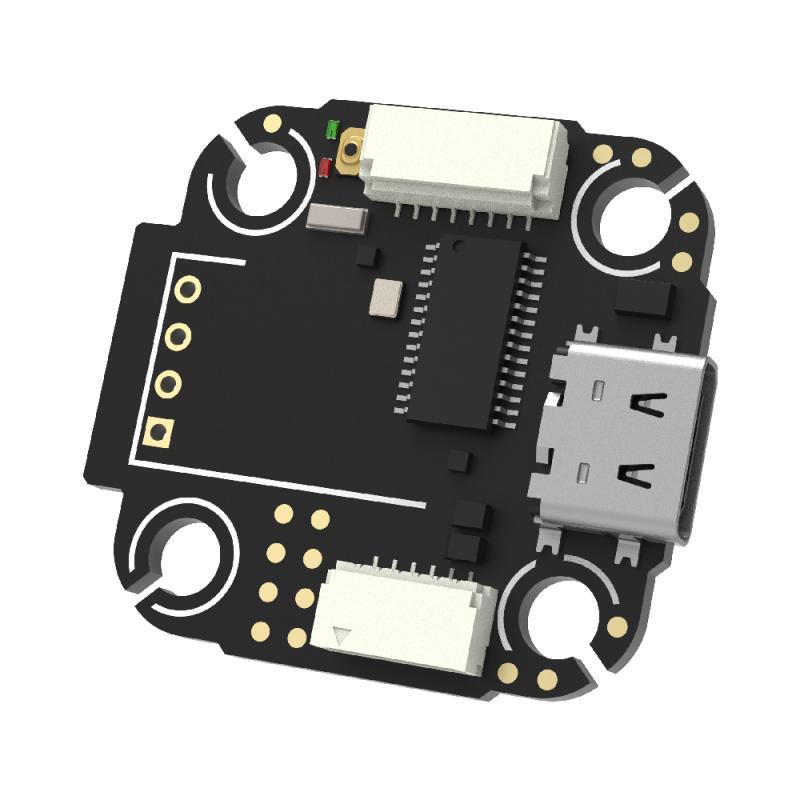

The TBS Lucid flight stack represents the latest innovation in TBS's product engineering. It's tailor - made for racing and freestyle flying, appealing to both experienced pilots and eager beginners. The TBS Lucid Flight controller, a 20x20 gem, is built for the Lucid flight stack but works well with all 20x20 ESCs. It's designed for the TBS Crossfire & TBS Tracer ecosystem, yet it can pair with any radio receiver. There are convenient plug - and - play connectors for the DJI O3 digital system and 4in1 ESCs, following the Betaflight standard. The solder pads for auxiliary devices are arranged for easy soldering and logical installation in popular drone frames like the TBS Source One. Professional pilots can opt for the MPU6000 (Pro) variant, while the ICM - 42688P (Freestyle) version offers a top - notch gyro solution at a great price. Specifications include an AT32F435RMT7 MCU at 288MHz, MPU - 6000 gyro, 4 motors with telemetry and current sensor, 9V 2.5A and 5V 2A BEC, AT7456E OSD, 8M blackbox, 6 UARTs, 3S - 6S input, 31mm*29mm size, 20mm*20mm mounting, and 4.51g weight. The package includes the TBS Lucid 20x20 FC, FC - to - ESC cable, DJI O3 cable, 4pcs M3 rubber dampers, and 4pcs M3x8 screws.

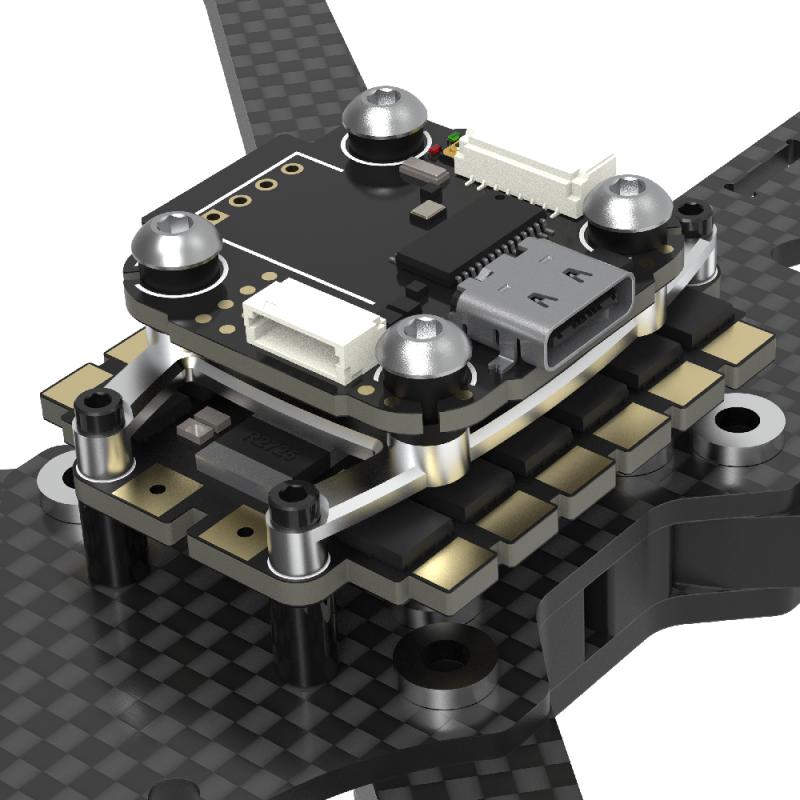

Using the TBS Lucid FC Pro is quite straightforward. First, connect it to your 20x20 ESCs using the provided plug - and - play FC - to - ESC cable. If you're using the DJI O3 digital system, use the included DJI O3 cable for an easy setup. When installing it in your drone frame like the TBS Source One, use the 4pcs M3x8 screws and 4pcs M3 rubber dampers to ensure a stable and vibration - free mount. Make sure to double - check your power input. The controller supports 3S - 6S input, so use the appropriate battery. For maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures and humidity. If you need to solder any auxiliary devices, follow the well - arranged solder pads for an easy job. Whether you're a pro choosing the MPU6000 (Pro) variant or a freestyle enthusiast with the ICM - 42688P (Freestyle) version, enjoy a great flying experience with this controller.
