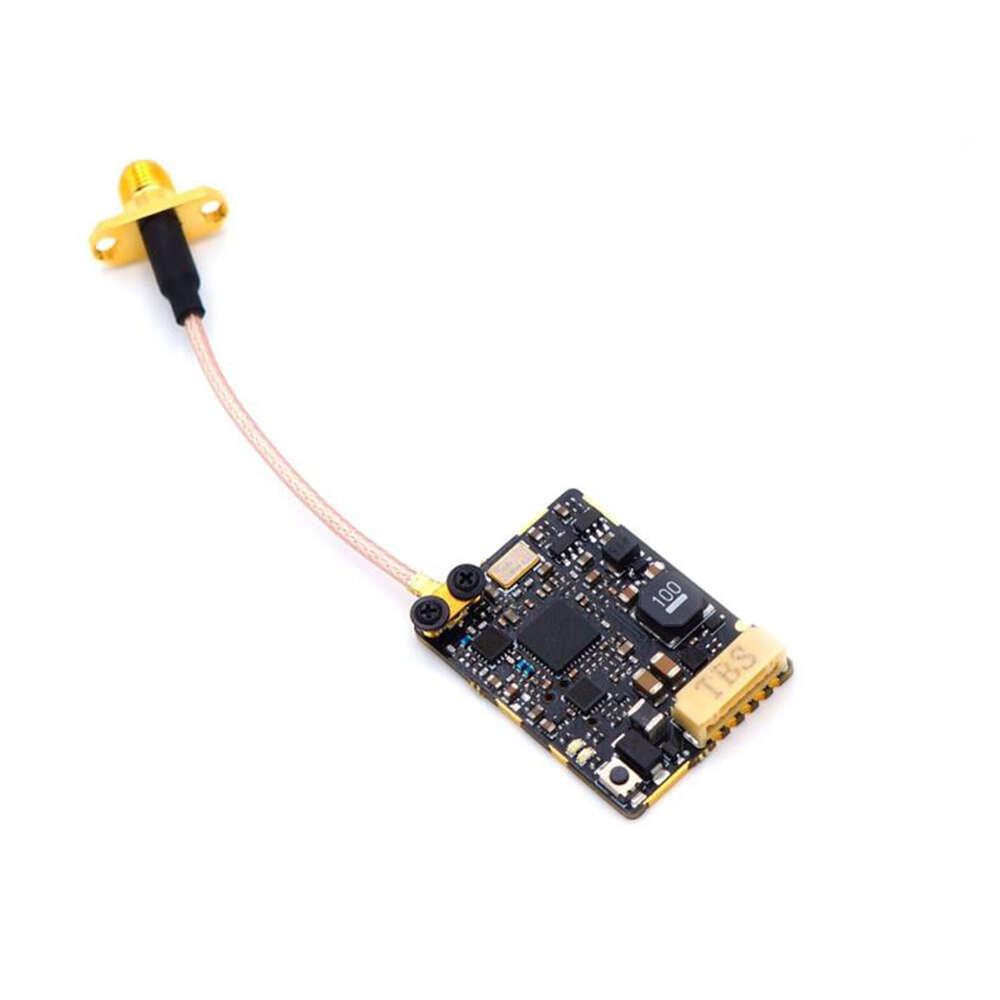

TBS Unify Pro 5G8 HV - RACE (SMA)

Are you in Australia and searching for the TBS Unify Pro Race? You're in the right spot! The newly updated Unify Race is here. It features screws on a tiny plate to secure the U.FL connector. The connections have been improved with an extra ground and data pin, enabling separate wiring for audio and SmartAudio. This is one of the smallest, lightest, and most powerful video transmitters on the market, perfect for FPV racing and offered at an attractive price. Main Features: It's the smallest and lightest video transmitter available. Supports 2 - 6S input power. Has 25mW / 200mW power settings. Offers ultra - clean transmission for up to 16 pilots simultaneously. Comes with PitMode to power up your quad during a race. Allows easy OSD, FC, and RC channel changes with a fallback button menu. The robust RF amplifier lets you power it up without an antenna for hours. Ensures clean powerup and video switching and is CE certified. PitMode: Now you can power up your quad during a race with zero interference. PitMode reduces output power to a minimum and uses frequencies not used by race organizers. SmartAudio V2: Provides full control of the video transmitter via UART and I2C. You can control output power, bands, channels, and frequency from a smart device, radio, or OSD. CleanSwitch: Developed by TBS, it ensures interference - free power - on and channel changes, even when other pilots are in the air. Say No to DIP Switches: Operating the video transmitter with a single - push button or OSD is much easier, avoiding frequency mismatches. Specifications: Operating Voltage: 2S - 6S. Supply current: 600mA. Watch for normal airflow for the operating temperature. Audio carrier Frequency: 6.5 MHz. Video Input Impedance: 75 Ohm. Weight: 7g (with SMA, without antenna). Input Connector: JST GH 7pin (after July 2018). Antenna Connector: SMA Female Socket with screw mounting holes, U.FL to VTx. Video Format: NTSC/PAL. Output Power: 13dBm (25mW), 23dBm (200mW). Included: TBS UNIFY 5G8 Video transmitter and a Video Transmitter pigtail cable. Downloads: TBS UNIFY Pro Manual, TBS UNIFY Pro Manual (German), TBS SmartAudio specifications. Note: A HAM license is required for operation on HAM channels and HAM power levels. The VTx ships with only legal channels enabled. Why buy TBS products from Phaser FPV in Australia? We're the official reseller in Australia. Get a free gift on first and recurring orders. Free shipping on orders over $120 and free express shipping over $250. Join our large Facebook community. We're active on social media. Our staff uses these products regularly. Visit us in - store in NSW, located 1 hour north of Sydney in Gosford. We've been around since 2012 with a great reputation and 5 - star reviews.

Using your TBS Unify Pro 5G8 HV - RACE is quite straightforward. First, make sure to connect the power source with an appropriate voltage between 2S - 6S. The input connector is a JST GH 7pin (after July 2018). Next, attach your antenna to the SMA Female Socket with screw mounting holes. When it comes to power settings, you can choose between 25mW and 200mW according to your needs. If you're in a race, PitMode is a great feature. Just activate it, and you can power up your quad without causing interference. You can change channels easily using the OSD, FC, or RC channel changes, and there's a fallback button menu if needed. For controlling the transmitter, SmartAudio V2 gives you a lot of options. You can use a smart device, radio, or OSD to adjust output power, bands, channels, and frequency. Remember, a HAM license is required if you want to operate on HAM channels and power levels. Check the manual for the unlocking procedure. When it comes to maintenance, keep an eye on the operating temperature and ensure there's normal airflow. Don't power it up for long periods without an antenna, even though the RF amplifier can handle it. If you're changing channels while other pilots are in the air, use CleanSwitch to avoid interference. And that's it! Enjoy your FPV racing with this amazing video transmitter.
