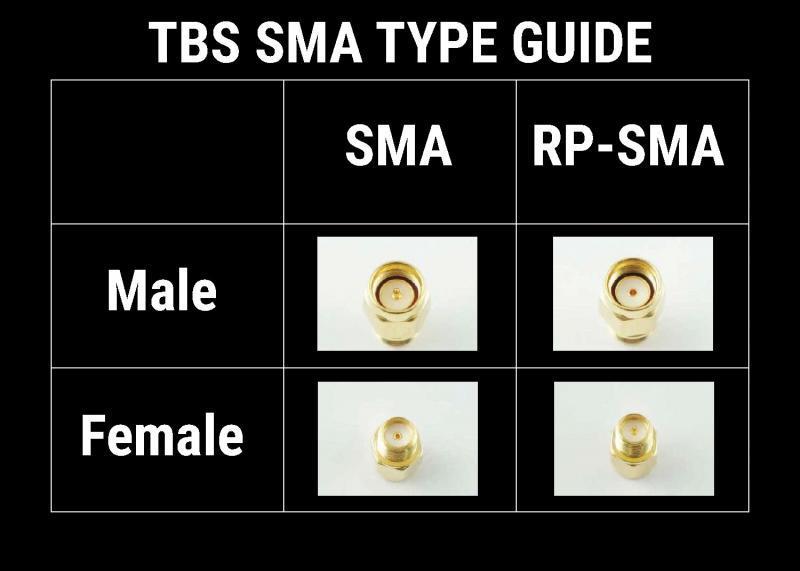

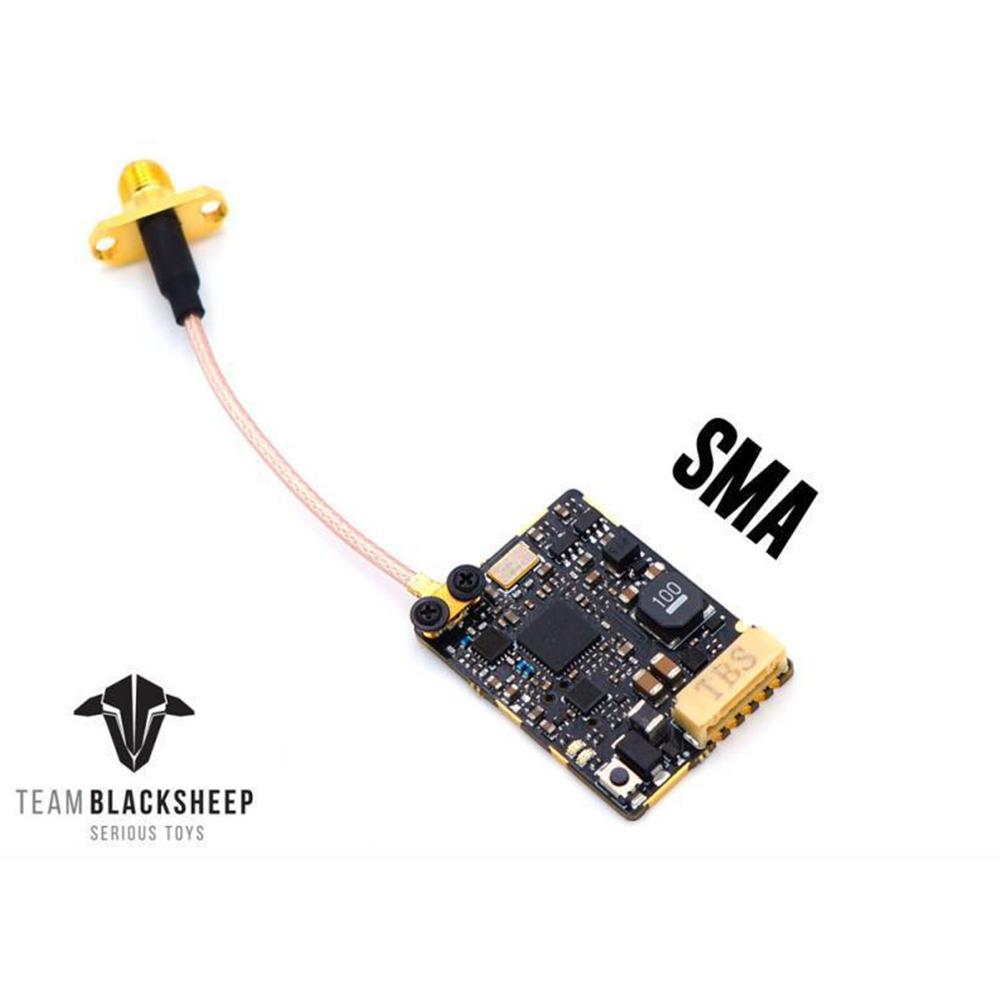

TBS Unify Pro 5G8 VTX Video Transmitter HV (SMA)

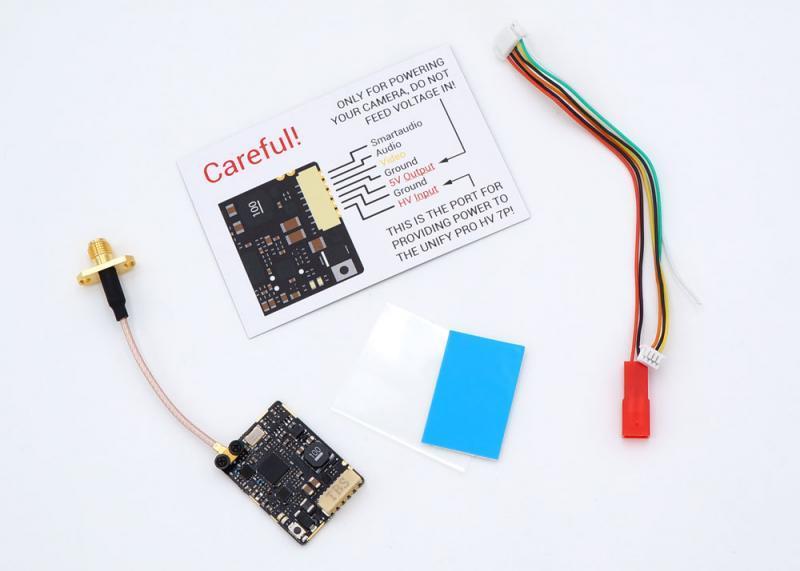

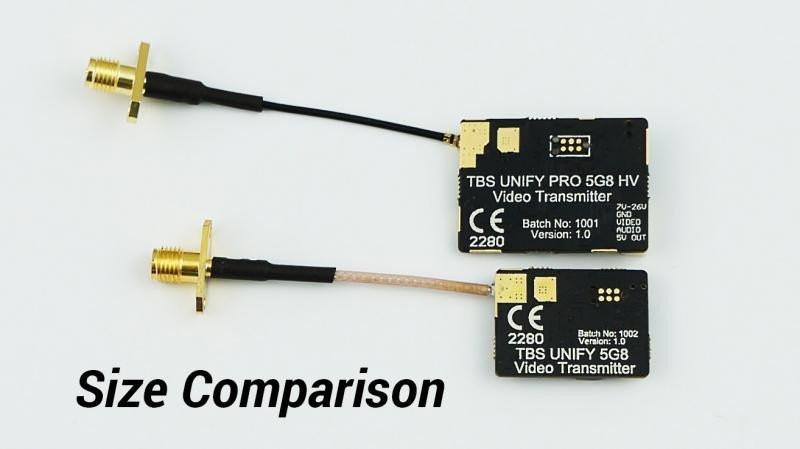

This SMA VTX has no pin. The TBS Unify Pro 5G8 VTX Video Transmitter HV (SMA) is the top - notch VTX in the market, especially great for channel - playing. It can directly connect to a 2S - 6S battery and offer 5V output for your camera. It filters power to ensure clean video, even without a TBS CORE or TBS PowerCube. With a new active output power monitor, it meets race requirements while providing excellent picture quality. Weighing only 7g and with a 31x22x6mm form factor, it's so light your quad won't notice. The 25mW - 800mW adjustable output power lets you race with friends and penetrate thick concrete with a few button - presses. The 40CH coverage allows you to fly at any race without swapping transmitters. PitMode enables zero - interference power - up, reducing output power to a minimum and shifting to unused frequencies. SmartAudio technology offers full control over output power, bands, channels, and frequency from a smart device, radio, or OSD. CleanSwitch ensures interference - free power - on and channel - changing, friendly to both races and pilots. Say goodbye to dip - switches! It's easy to operate with a single - push - button or OSD control. Specifications include an operating voltage of 2S - 6S, up to 600mA supply current, an audio frequency of 6.5 MHz, and more. It comes with a TBS UNIFY PRO 5G8 HV Video, a video transmitter/camera/power cable, and a TBS UNIFY Pro Manual.

Using this TBS Unify Pro 5G8 VTX is a breeze. First, connect it directly to a 2S - 6S battery. You'll get a 5V output for your camera right away. To adjust the output power, which ranges from 25mW to 800mW, just press a few buttons. When you're at a race, the 40CH coverage gives you the freedom to fly without changing transmitters. For PitMode, when you need to power up your quad for testing without interference, the device automatically reduces power and moves to unused frequencies. With SmartAudio technology, you can control the transmitter's parameters like output power, bands, and channels from a smart device, your radio, or the OSD. When it comes to powering on or changing channels, CleanSwitch ensures no interference to other pilots. As for maintenance, make sure to keep an eye on the normal airflow for the operating temperature. Also, check the supply current which can go up to 600mA. If you have any questions about the output power regulations in your country, just contact us. And don't forget, it's very light at 7g, so handle it gently.
