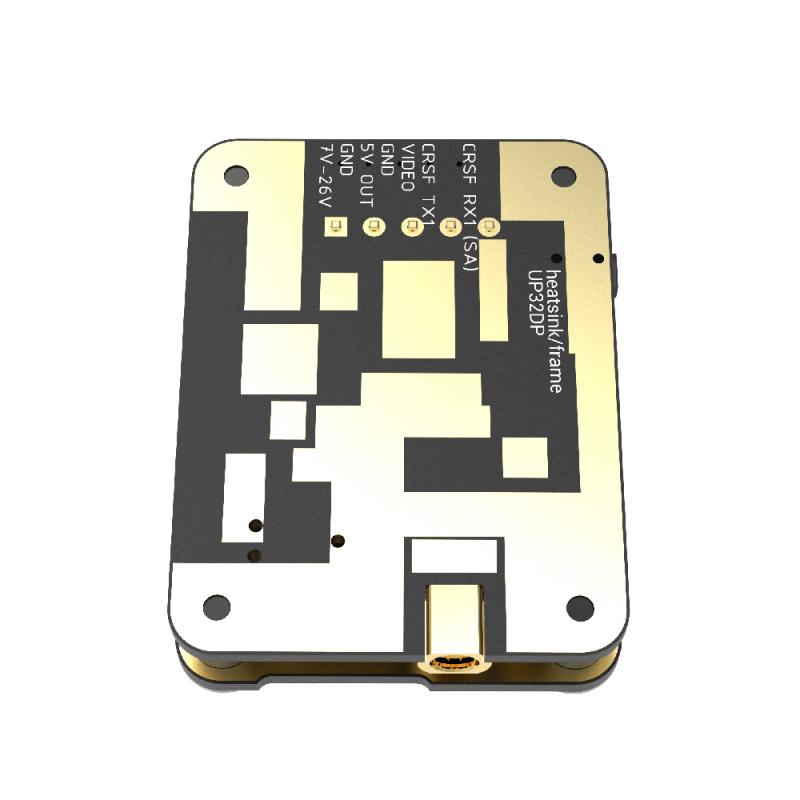

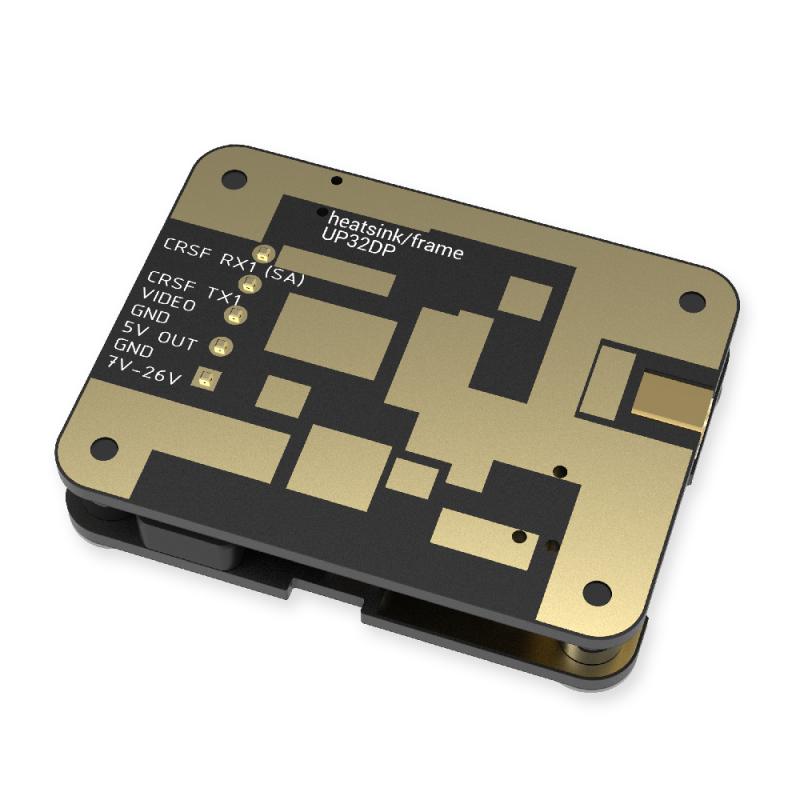

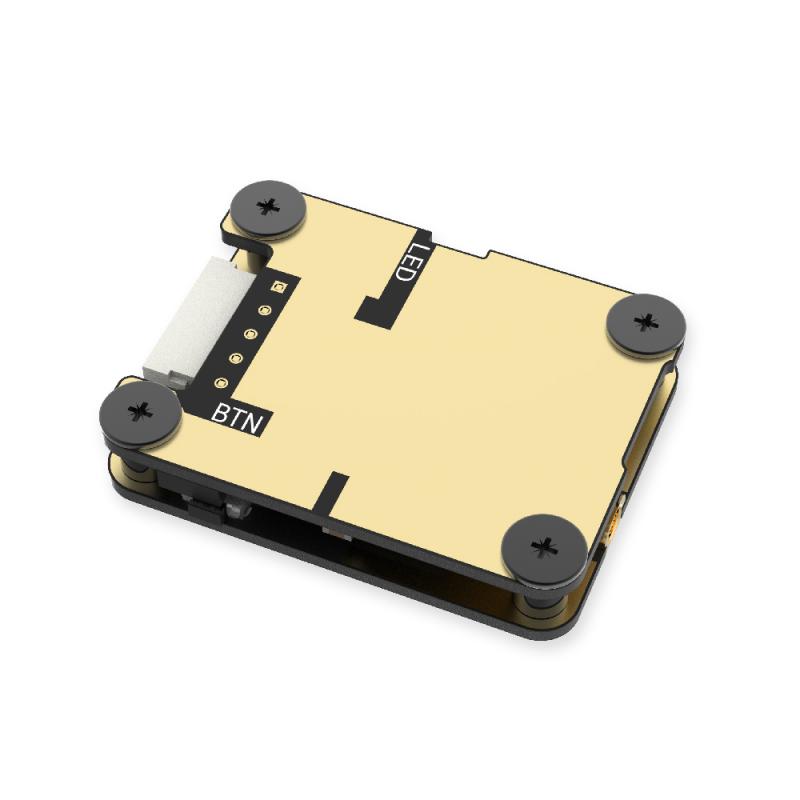

TBS Unify Pro32 DP (MMCX)

The TBS UNIFY PRO32 DP (MMCX) is an outstanding video transmitter (VTx) crafted for FPV drones. It offers remarkable features such as enhanced robustness, a smaller size, and lower power consumption. Thanks to advanced heat dissipation, it delivers better performance and durability without the need for an extra heatsink or fan. ### Features - World's lightest 3 - Watt video transmitter. - Frequency range from 4990 MHz to 6030 MHz. - Configure OSD with TBS Smart Audio 2.1 (via Betaflight, TBS Crossfire / Tracer or Ardupilot). - One - button setup for frequency and power. - LUA support for CRSF users. - MMCX connector. - 2 - 6S input. - Double noise filtering with >63dB SNR. - Optimized heat dissipation, no heatsink needed. - Optional matching circular polarized antenna available. ### Specifications - Operating Voltage: 6V - 25V (2 - 6S). - Video Input Impedance: 75 Ohm. - SNR: >63dBm. - Weight: 8.7g. - Dimensions: 37 x 25 x 5.8mm. - Antenna Connector: MMCX. - Video Format: NTSC/PAL. - Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 33dBm+ (2000mW+). ### Includes - 1x TBS UNIFY PRO32 DP 5G8 HV Video transmitter. - 1x Silicone cable with pre - tinned ends. - 1x MMCX to SMA pigtail. - 1x Heat transfer tape for easy FPV drone mounting.

Using the TBS UNIFY PRO32 DP (MMCX) video transmitter is easy. First, connect it to your FPV drone. You can use the included silicone cable and MMCX to SMA pigtail for connections. The one - button frequency and power setup makes it simple to adjust settings. You can configure the OSD using TBS Smart Audio 2.1 with supported systems like Betaflight. When it comes to power, it can handle a 2 - 6S input. Here are some important notes. Make sure the operating voltage is within the 6V - 25V range. The video input impedance should be 75 Ohm. Also, don't worry about adding an extra heatsink as it has optimized heat dissipation. For maintenance, keep it clean and free from dust. If you're not using the optional circular polarized antenna, store it properly. With proper use and care, this transmitter will serve you well in your FPV drone adventures.
