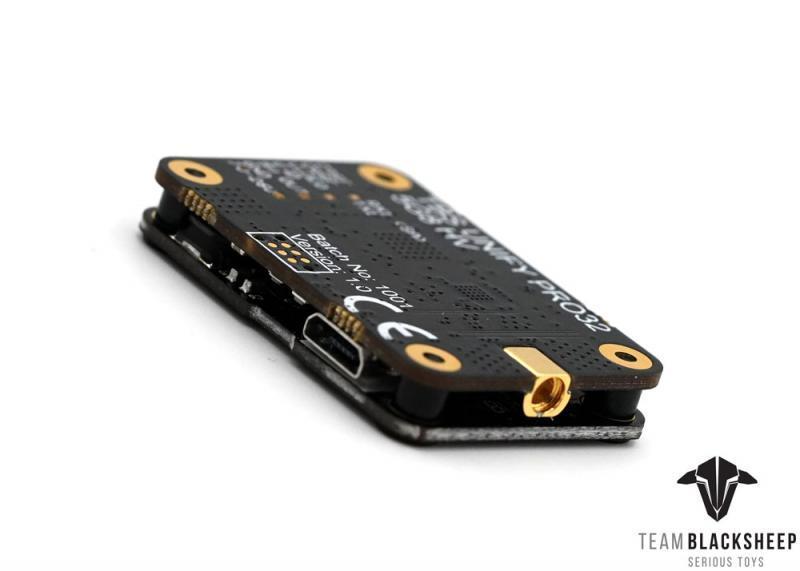

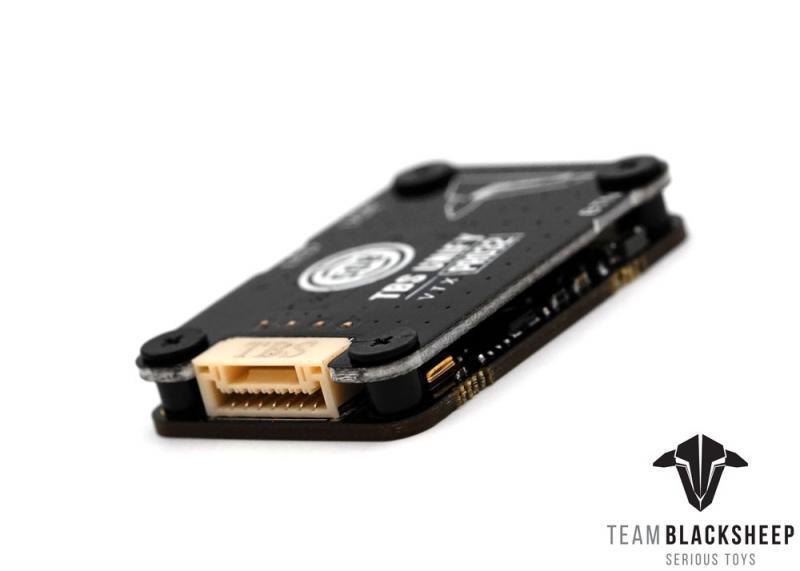

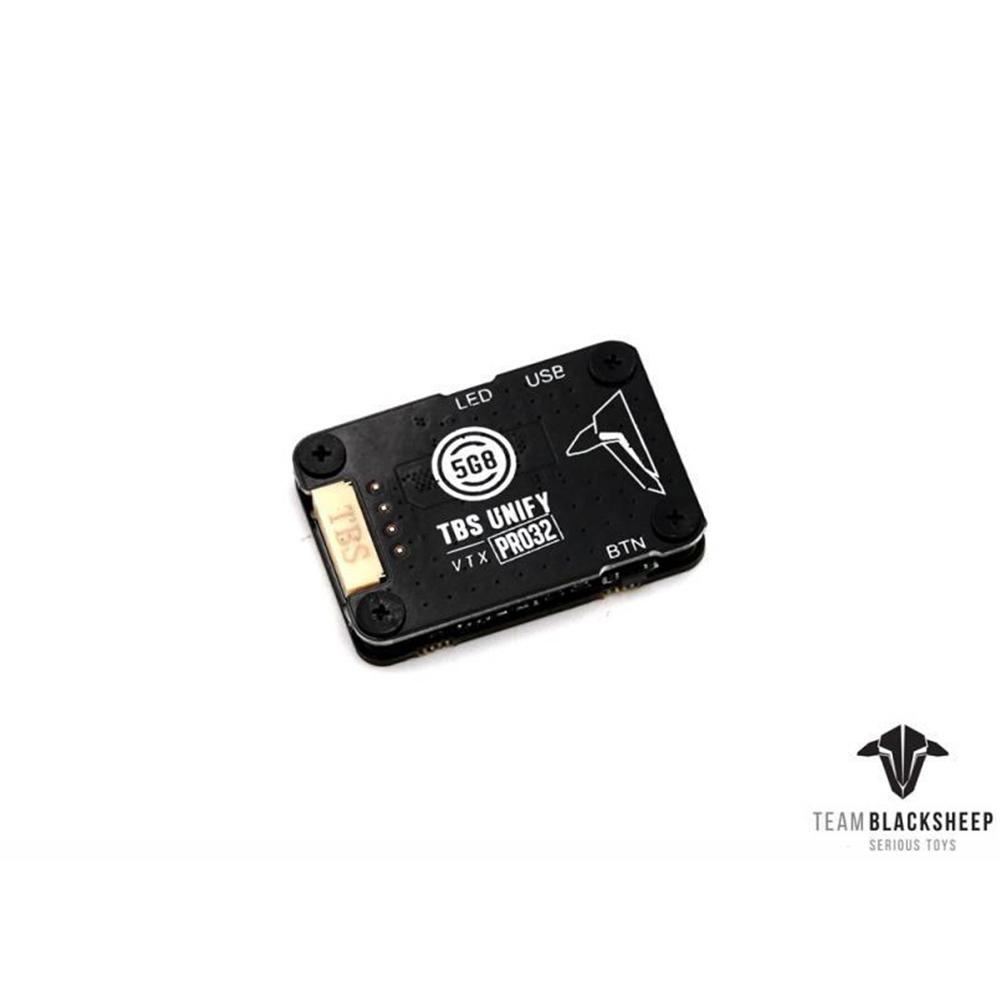

TBS Unify Pro32 HV (MMCX)

The TBS UNIFY PRO32 HV (MMCX) is a game - changer in the world of video transmitters. We've supercharged the output power, made it more robust, cut down on power consumption, added amazing features, and perfected its installation in your multirotor. It's the ultimate, future - proof, high - quality HV VTx ever created. ### Features - Double - decker design for excellent cooling and long - lasting durability. - Output power of 1000mW or more. - Ultra - clean transmission, allowing up to 16 pilots to fly simultaneously! - PitMode: Power up your quad during a race, now with team - race ability! - Easy changes for OSD, FC, and RC channels, with a fallback button menu. - A strong RF amplifier lets you power up without an antenna for hours. - Clean powerup and smooth video switching. - CE certified. - Built - in Mic. ### Pitmode - Made for Racing With PitMode, you can power up your quad during a race with zero interference. Before, repairing and testing a quad during a race was frustrating. Now, PitMode reduces the output power to almost nothing (below single - digit mW's), so you can power up and still see the image. You have less than one meter of range to test your quad before the race starts. Use SmartAudio or CRSF to power up the VTx from your remote! ### Smartaudio V2.1 & CRSF - Ready for Team Races SmartAudio technology gives you UART control over your entire video transmitter. You can freely control parameters like output power, bands, channels, and frequency. Control channels remotely from a smart device (requires TBS Crossfire, external Bluetooth or wifi module), your radio (requires TBS Crossfire with TBS Tango or OpenTX compatible remote), or the OSD (e.g., Betaflight OSD, TBS CORE PRO). With CleanSwitch, there are endless possibilities for race management, like jumping between channels without disturbing other pilots, creating backup frequencies, and global VTx power adjustments. ### CleanSwitch - Pilot Friendly TBS CleanSwitch ensures your video transmitter is interference - free when powering on or changing channels. Other transmitters cause flickering and interference to other pilots when powered on. But with CleanSwitch, you can power on and change channels while your friends are flying, without causing any problems. ### Specifications - Operating Voltage: 6V - 25V (2 - 6S) - Operating Temperature: Ensure normal airflow. - Video Input Impedance: 75 Ohm - Weight: 8.7g - Dimensions: 37 x 25 x 5.8mm - Antenna Connector: MMCX - Video Format: NTSC/PAL - Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 30dBm+ (1000mW+) ### Includes - 1x TBS UNIFY PRO32 5G8 HV Video transmitter - 1x Silicone cable (ends pre - tinned) - 1x MMCX to SMA pigtail - DOWNLOADS - TBS UNIFY Pro32 Manual - TBS UNIFY Pro32 Manual (German) - Declaration of Conformity * A HAM license is required for operation on HAM channels and at HAM power levels. The VTx comes with only legal channels enabled. Check the manual for the unlocking procedure. ### Browse More - Browse all Video Transmitters - Browse all TBS Video Transmitters - Browse all Team Black Sheep

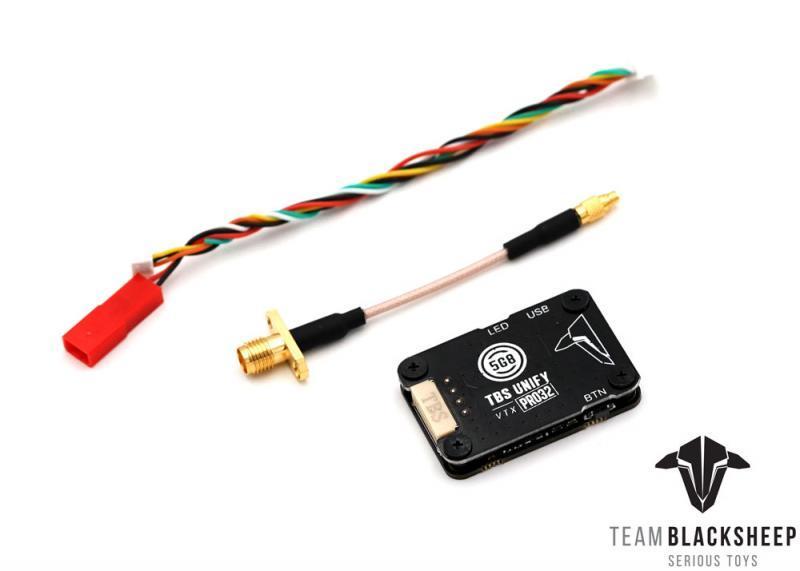

Using the TBS UNIFY PRO32 HV (MMCX) is quite straightforward. First, make sure to connect it properly to your multirotor according to the included instructions. You can use the provided silicone cable and MMCX to SMA pigtail for connections. When it comes to powering it on, if you're in a race situation, the PitMode is really handy. Just use SmartAudio or CRSF from your remote to power up the VTx. You can also adjust the output power, bands, channels, and frequency easily using SmartAudio technology. You can control these settings from a smart device, your radio, or the OSD. For the operating temperature, always ensure there's normal airflow around the transmitter to prevent overheating. And don't forget, if you want to use HAM channels and HAM power levels, you'll need a HAM license. Refer to the manual to unlock these channels. In terms of maintenance, keep it clean and dry. If there's any dust or debris, you can gently clean it with a soft, dry cloth. When not in use, store it in a safe place to avoid damage. Overall, this video transmitter is built to be durable, but following these steps will help it last even longer and perform at its best.
