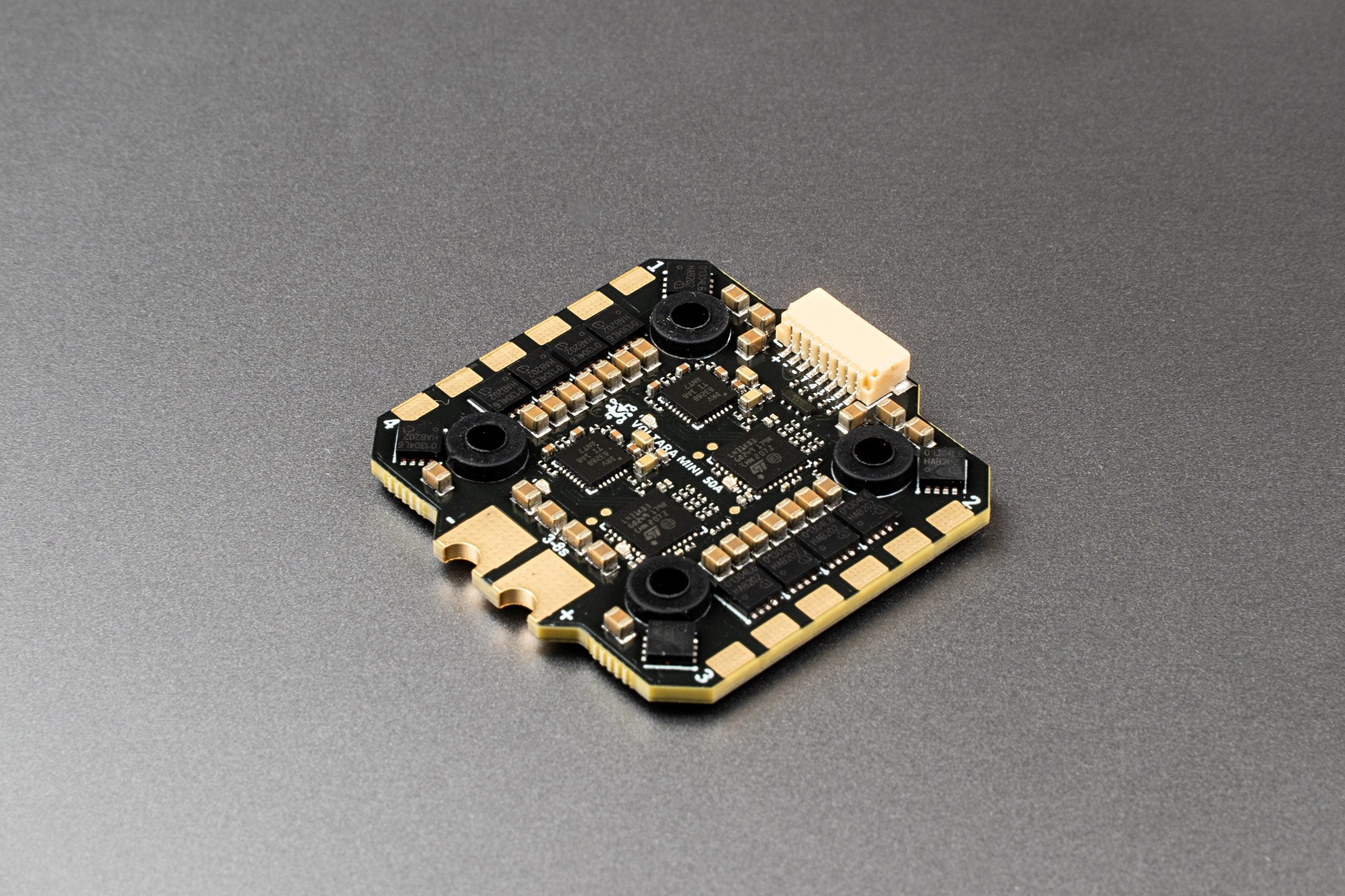

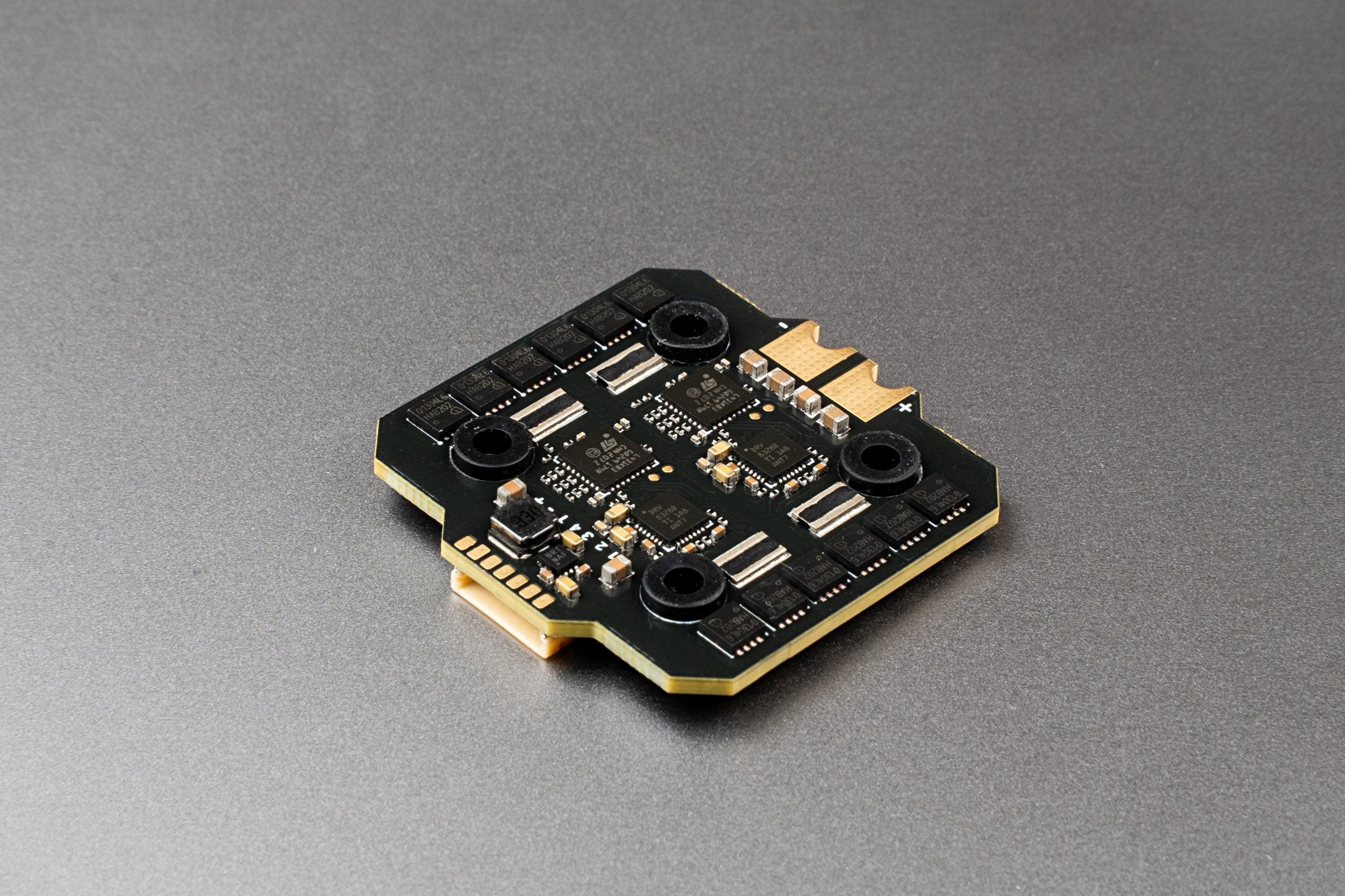

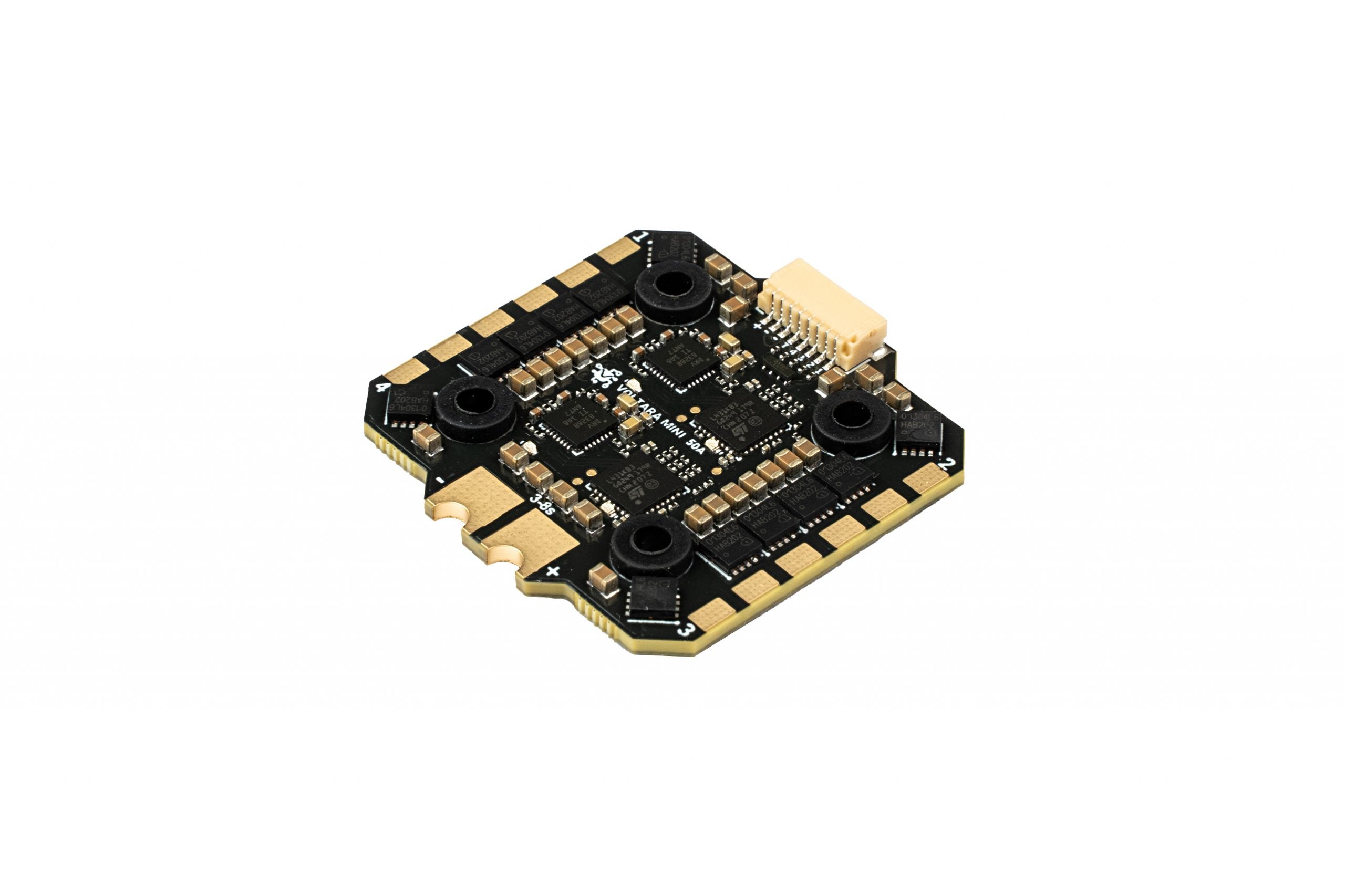

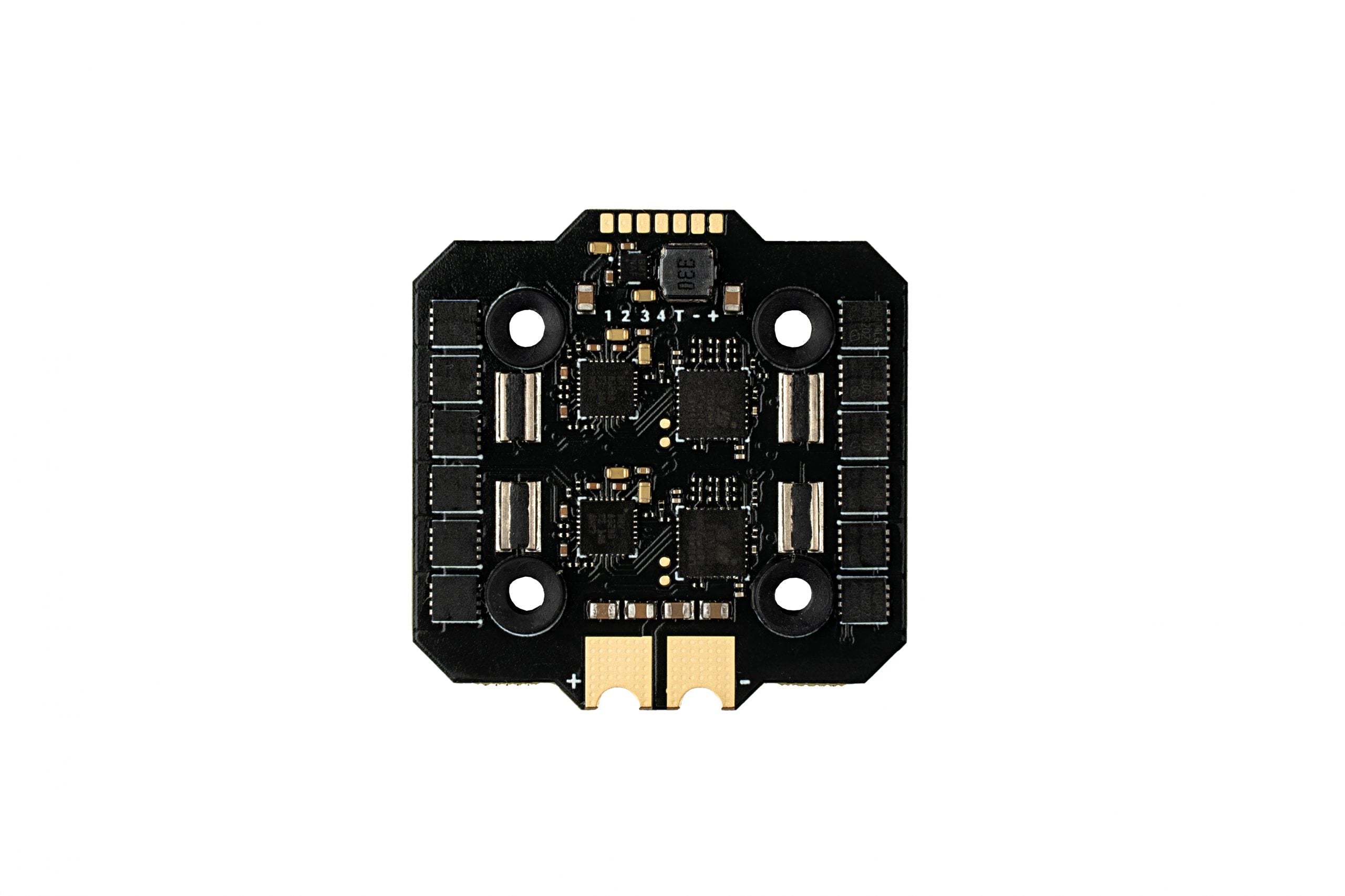

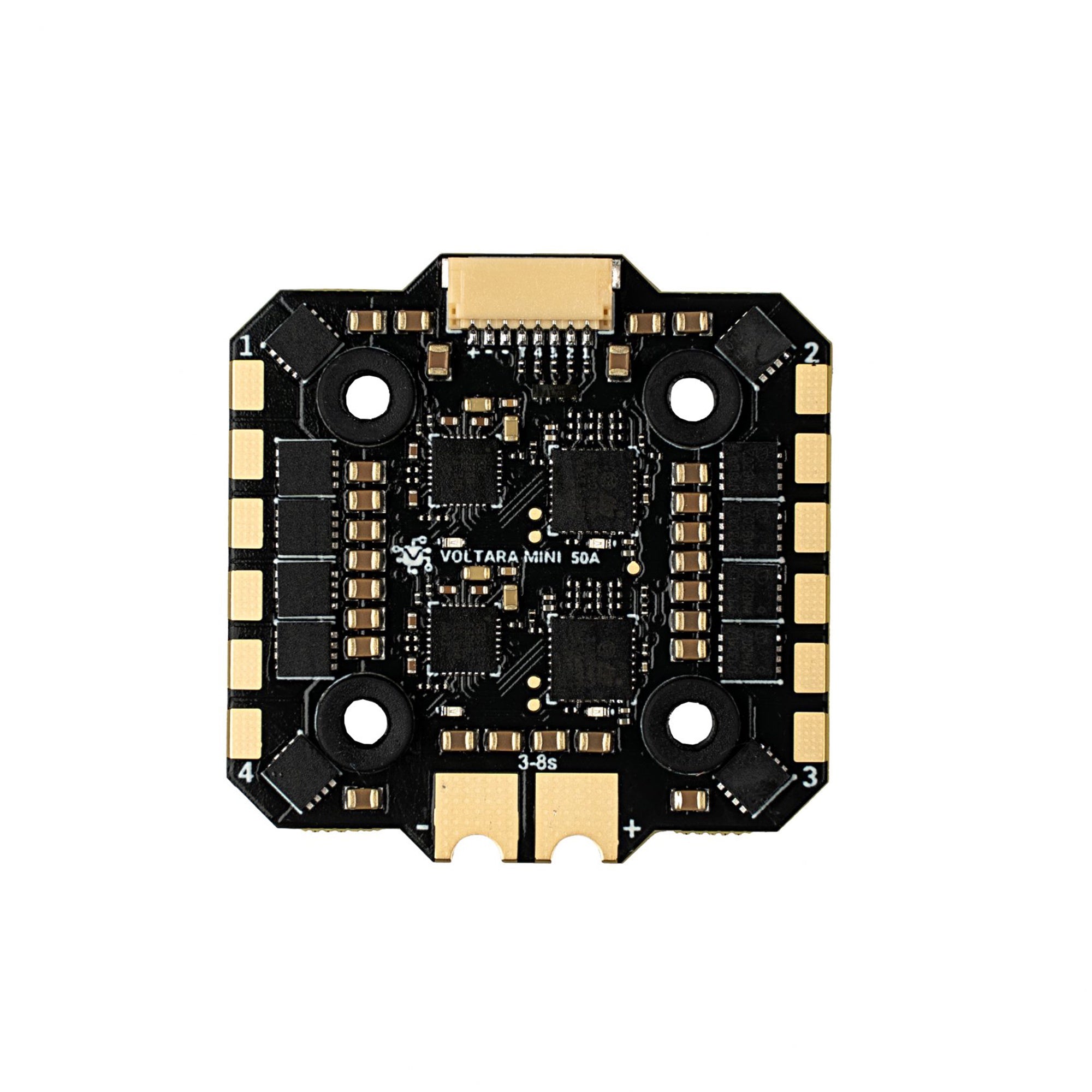

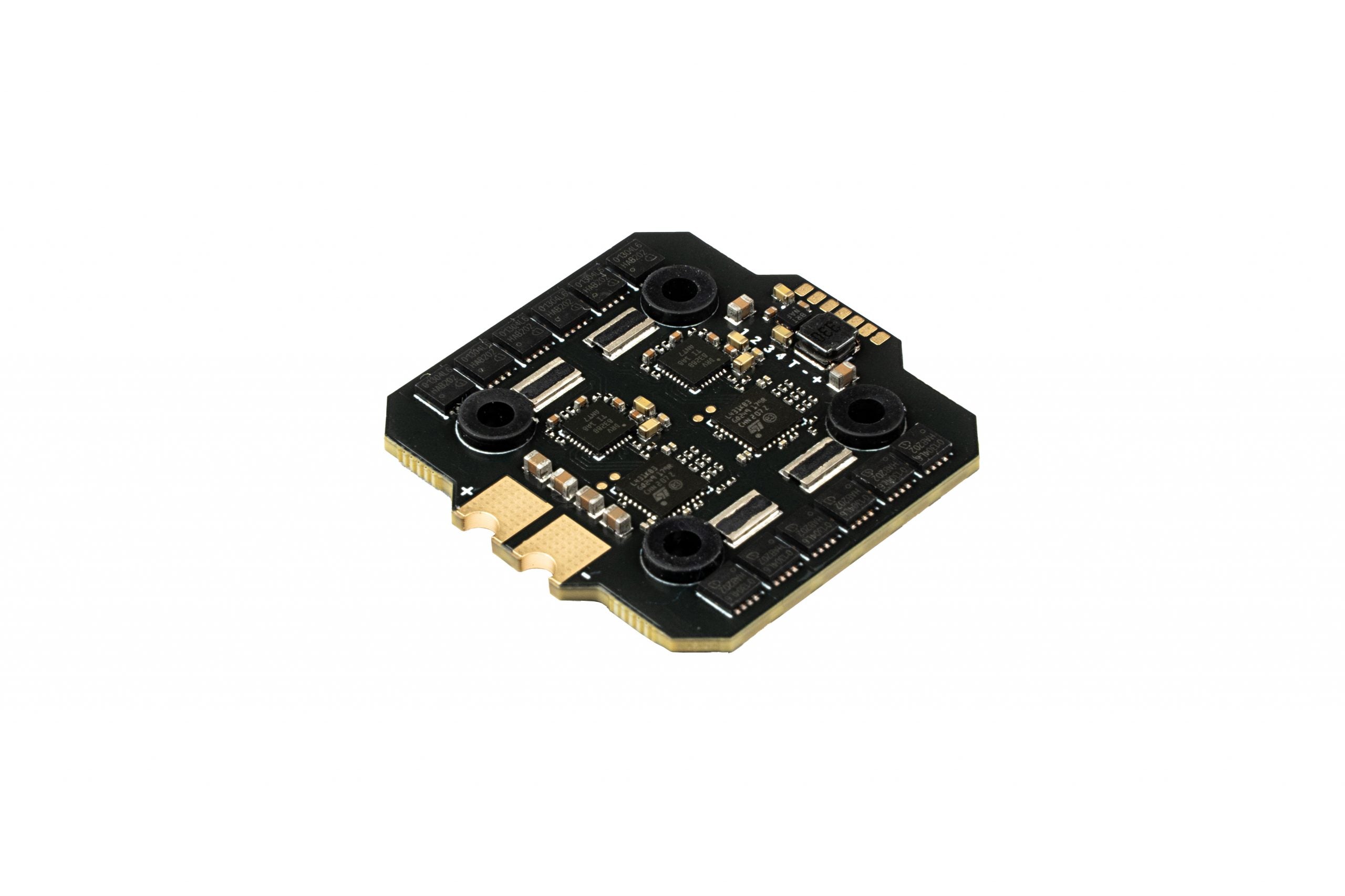

Voltara Mini 50A ESC

The Voltara Mini 50A ESC is the compact counterpart of the 70A ESC. It's designed with a focus on resilience, making it ideal for FPV rotor setups. This ESC can power setups from 2.5" to 7" with top - notch performance. During development, great attention was paid to the hardware. Despite size limitations, innovative design achieved excellent specifications. Every detail, from the PCB layout to component selection, was optimized for the best performance. The Voltara FW firmware at the core of this ESC maximizes hardware capabilities. It has smart protection mechanisms, safeguarding against the impacts of intense flights. You can push the limits with confidence, knowing your ESC is reliable. ### Features - Signal input: Dshot 150/300/600/1200/2400 (Dshot2400 recommended) - Telemetry: Voltage, Current, Temperature, RPM, mAh used. - Plug & Play with KISS ULTRA Flight Controllers - Compatible with Flight Controllers providing Dshot signals ### Specifications - **Hardware**: - Size: 37x33mm (37×37mm with wings) - Weight: ~12g - Mounting: M3 20×20mm pattern - Input: 3s - 8s (5v - 40v) - Current: 60A / ESC OUT (4x60A needs temperature attention) - PCB nano - coating: Hydrophobic (protects from water) - **Protections**: - Hardware: 2 x extreme overcurrent protections - Software: current, temperature & stall protections - **Available settings (using KISS ULTRA FC’s OSD)**: Current Limit, Temperature Limit, Rampup Power, Voltage Calibration, Current Calibration, Slow Start, Slow Spinup, Rotation Direction, Beeper Volume, Beacon Time ### Browse More - Browse All Fettec ESC - Browse All Fettec - Browse All Drone ESC

Using the Voltara Mini 50A ESC is quite straightforward. First, connect it to a compatible flight controller like the KISS ULTRA Flight Controller. It's a plug - and - play setup, so it should be easy to get it up and running. When using, pay attention to the current and temperature limits. If you're using 4x60A, make sure to keep an eye on the temperature as it can get high. You can adjust the current and temperature limits through the KISS ULTRA FC’s OSD according to your needs. The slow start and slow spinup features are adjustable. If you want a smoother start for your motor, you can turn these on. Also, you can configure the rotation direction through a flight controller with Dshot commands or the KISS ULTRA GUI. For maintenance, the PCB has a hydrophobic nano - coating that protects the components from water. But still, try to avoid exposing it to excessive moisture. If you notice any abnormal behavior, like the beeper going off or the motor not performing well, check the settings and make sure there are no hardware issues. Keep it clean and store it in a dry place when not in use.
