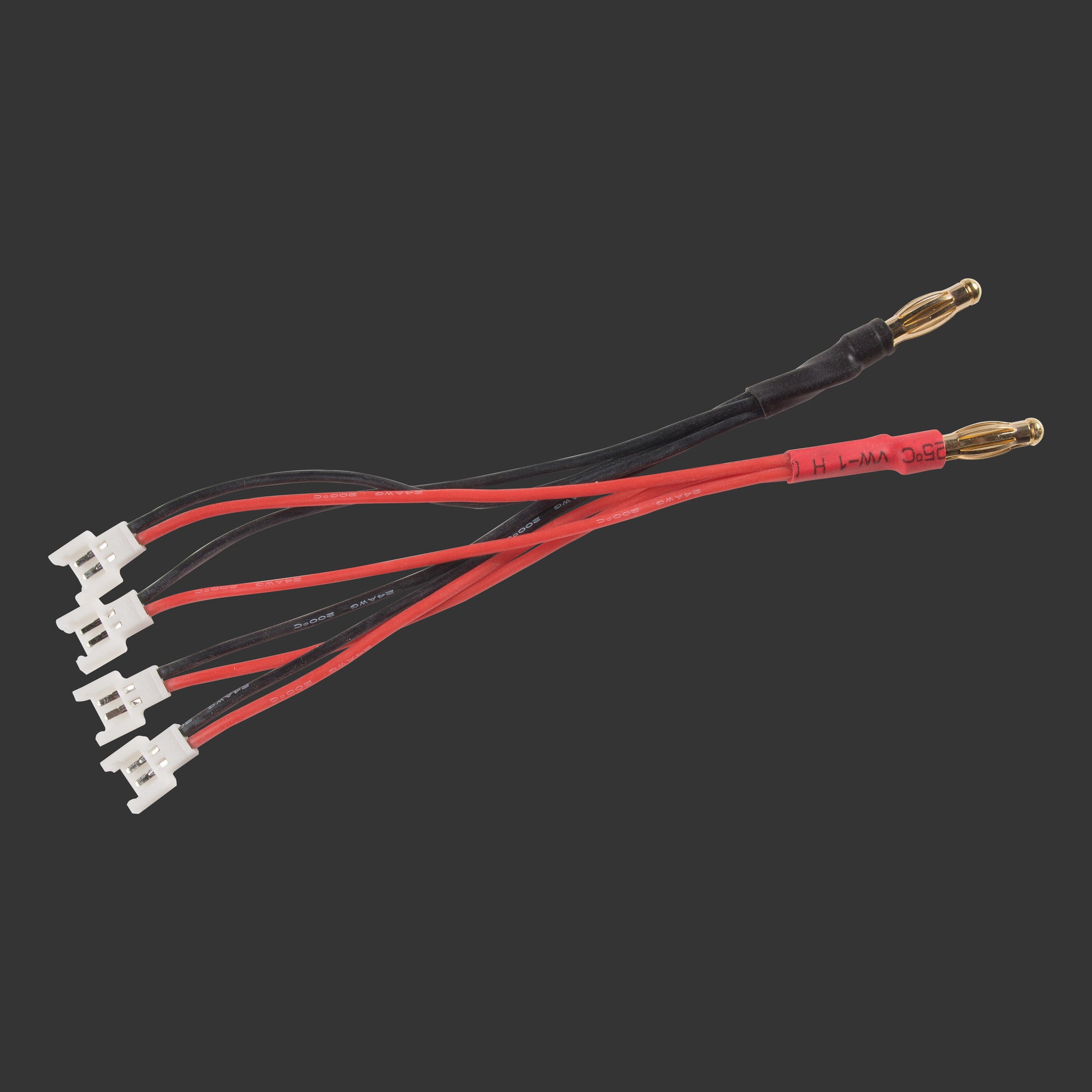

4-Way Parallel Charging Harness Cable - Losi

Charge four single - cell lipo batteries simultaneously using a regular hobby charger! This parallel charge cable features four Losi/Walkera battery connectors and ends with standard 4mm bullet connectors. It's compatible with numerous micro quad batteries ranging from 250 to 500mAh, like Hubsan 107 batteries. Crafted with top - notch components, it has the best plugs, thick wires, and a high - quality silicon coating. Note: When parallel charging, it's advisable to keep all battery packs at similar voltages. Avoid having a fully discharged pack and a nearly charged one on the board at the same time. To use, plug the cable into the charger, connect four discharged batteries, and charge at 1S voltage and combined 1C current. For example, if you have four 500mAh batteries, the combined capacity is 2000mAh, so a 1C charge rate for the combined pack is 2A.

Using this cable is easy. First, plug the cable into your charger. Then, connect four discharged single - cell lipo batteries. Charge them at 1S voltage and the combined 1C current. For instance, if each battery is 500mAh and you have four of them, charge at 2A. When using, make sure all the batteries are close to the same voltage. Don't put a fully discharged and a nearly charged battery on the board together. As for maintenance, keep the cable in a dry and cool place. Check the plugs regularly for any signs of wear or damage. If you notice any issues, stop using the cable and get it replaced.
