Aikon AK32PIN 4in1 20x20 35A 6S ESC (Without Heatsink) V2

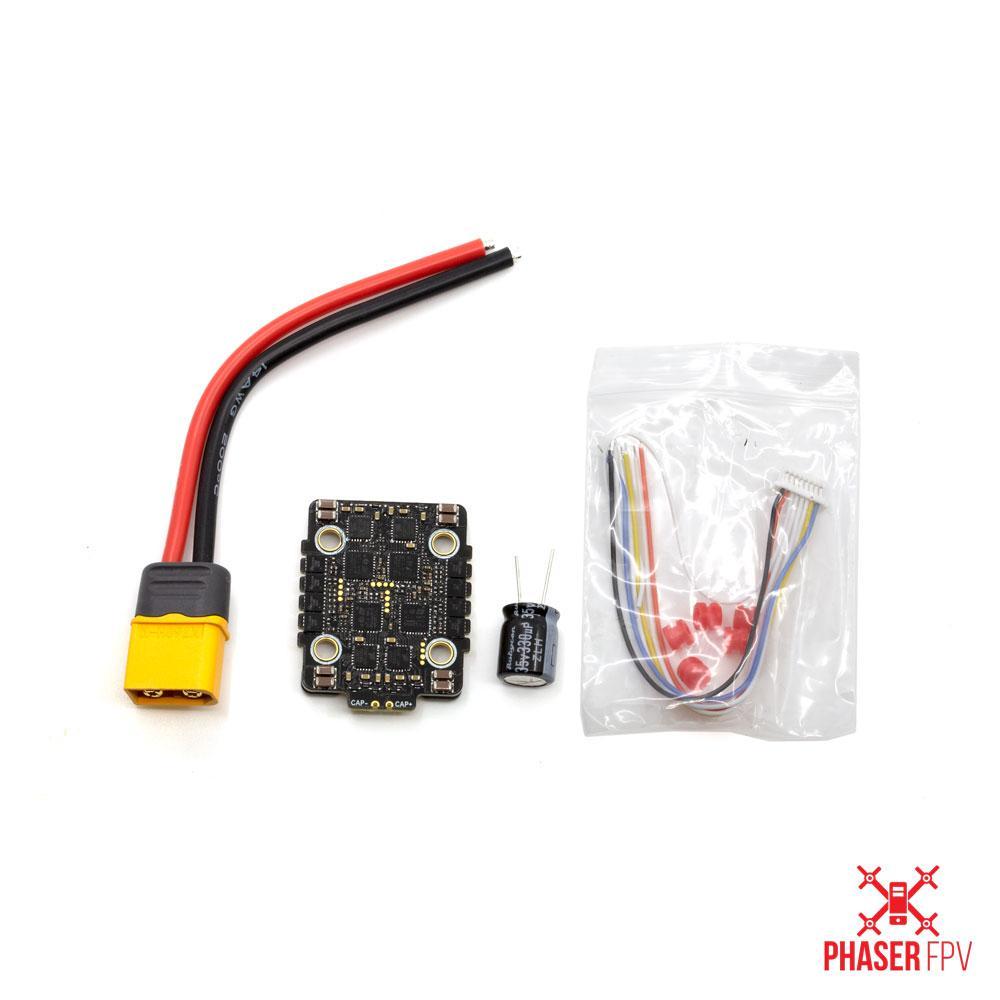

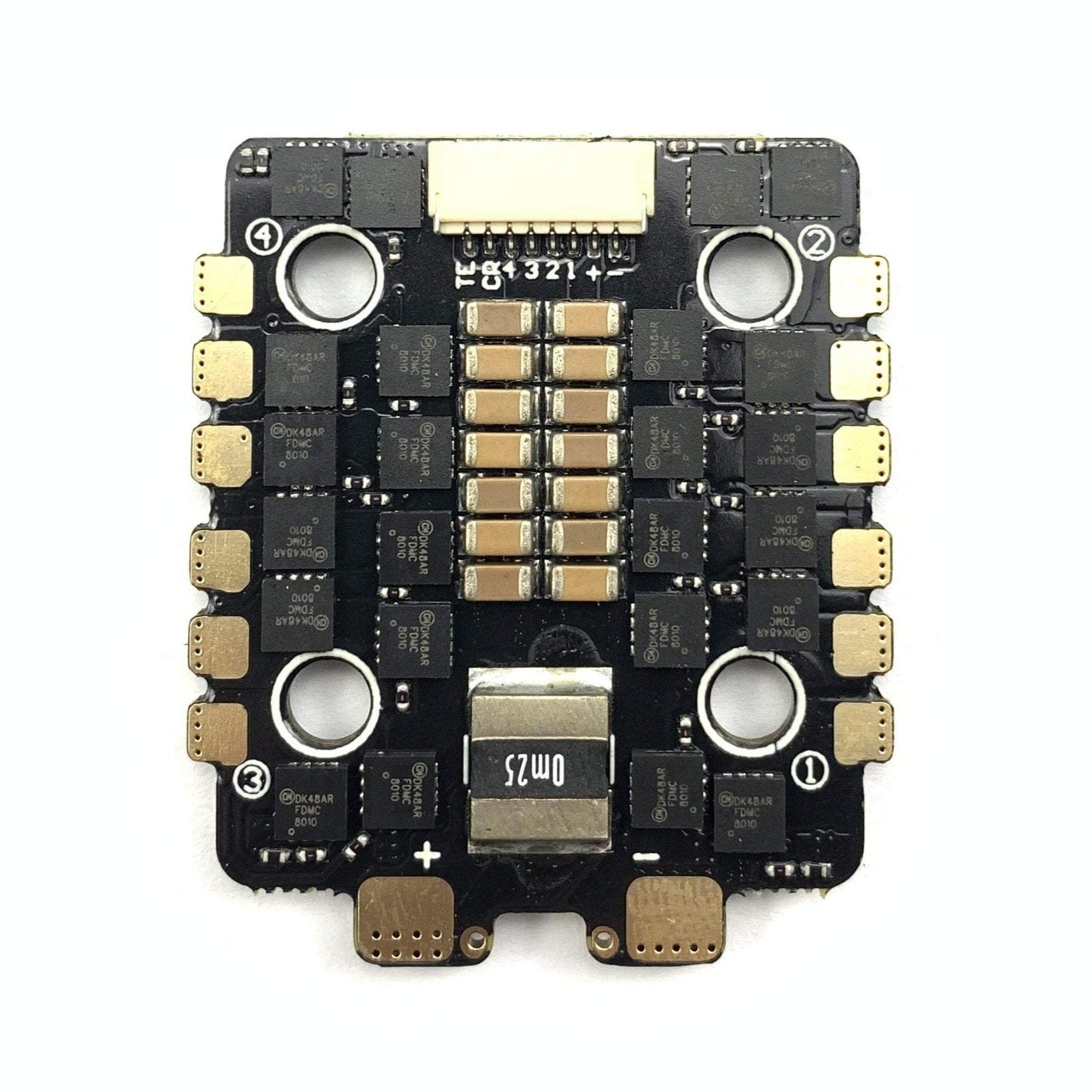

Are you in Australia searching for a high - performance ESC? Look no further! Aikon has ingeniously packed a larger ESC into a sleek 20x20 form factor. The AK32PIN 4 - in - 1 ESC V2 without a heatsink is an advanced choice. With the latest BLHeli32 firmware, current sensor, and ESC telemetry, it's a beast in a small package. This version skips the aluminium heatsink; if you want that version, check out the AK32PIN 20x20 with heatsink. It's over 5g lighter than its 30.5x30.5 counterpart but still packs a punch. Capable of handling 6S up to 35A per channel, it has enough power for most quads. Key features include BLHeli_32 code base, programmable PWM frequency up to 48KHz, auto - timing for efficiency, and more. Specifications show it can work with 2 - 6s batteries, has a constant current of 35A, and comes with a 10g weight. The package includes an AK32PIN ESC, XT30 Pigtail, mounting gummies, 8pin harness, and a 25v 330uf capacitor. Also, you can browse related 20x20 ESCs, FPV Stacks, and more.

Using your Aikon AK32PIN 4 - in - 1 20x20 35A 6S ESC V2 is a breeze. First, make sure your battery is within the 2 - 6s range as specified. Connect the ESC to your quad's power system using the provided battery and signal wires. When configuring, you can use DShot commands from your FC. Remember, this ESC is lightweight, so handle it gently during installation. As for maintenance, keep it clean from dust and debris. Avoid exposing it to excessive moisture. If you notice any unusual behavior like overheating or abnormal current draw, check the connections and make sure the battery is in good condition. Also, regularly update the firmware to keep it performing at its best.
