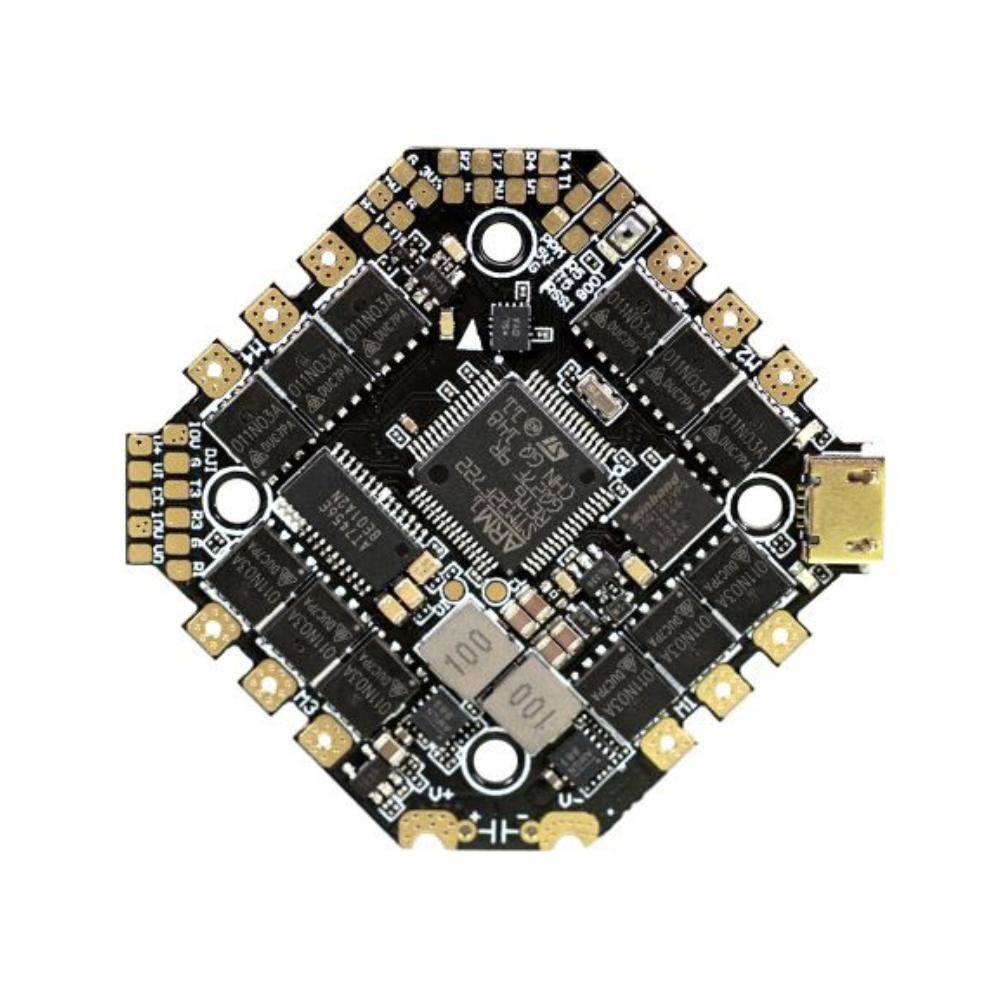

Aikon F7 AIO Board - BMI270 F7 FC + 60A 3-6S BLHeli_S ESC

Are you in Australia and looking to buy an Aikon F7 60A all-in-one flight controller? The Aikon F7 AIO Board combines a powerful F7 flight controller with a 60A 3 - 6S BLHeli_S ESC. It's designed for cinewhoops and high - current applications, featuring a 216mhz F7 processor for a seamless flight experience. Key features include high - overhead voltage regulators up to 6S, a software - controlled VTX power switch, LED and buzzer outputs, a 10v 1.5A voltage regulator for the DJI HD system, 5 software - invertible hardware UARTS, large high - current MOSFETs, onboard OSD and Blackbox. Specifications cover firmware, IMU, mount holes, current sensor scale, and more. It comes with an Aikon F7 AIO Board, a high - frequency capacitor, an Aikon F7 60A AIO Flight Controller, an Amass XT60 Connector, wires, and 8 - Pin SH1.0.

Using the Aikon F7 AIO Board is easy. First, mount it on your drone using the 25.5*25.5mm holes. Connect the battery (3 - 6S) using the Amass XT60 Connector. The board has a software - controlled VTX power switch, which is set to USER1 mode by default. You can use it to control the VTX power. For the DJI HD system, connect it to the 10v 1.5A voltage regulator. When flying, the high - overhead voltage regulators can handle voltage spikes up to 6S. Keep in mind that the constant current is 60A and the burst current is 70A. Don't exceed these limits to avoid damaging the board. For maintenance, keep the board clean and dry. Check the connections regularly to make sure they are secure. If you need to update the firmware, follow the instructions for Betaflight AIKONF7 Target for the flight control and BLHeli_S for the ESC.
