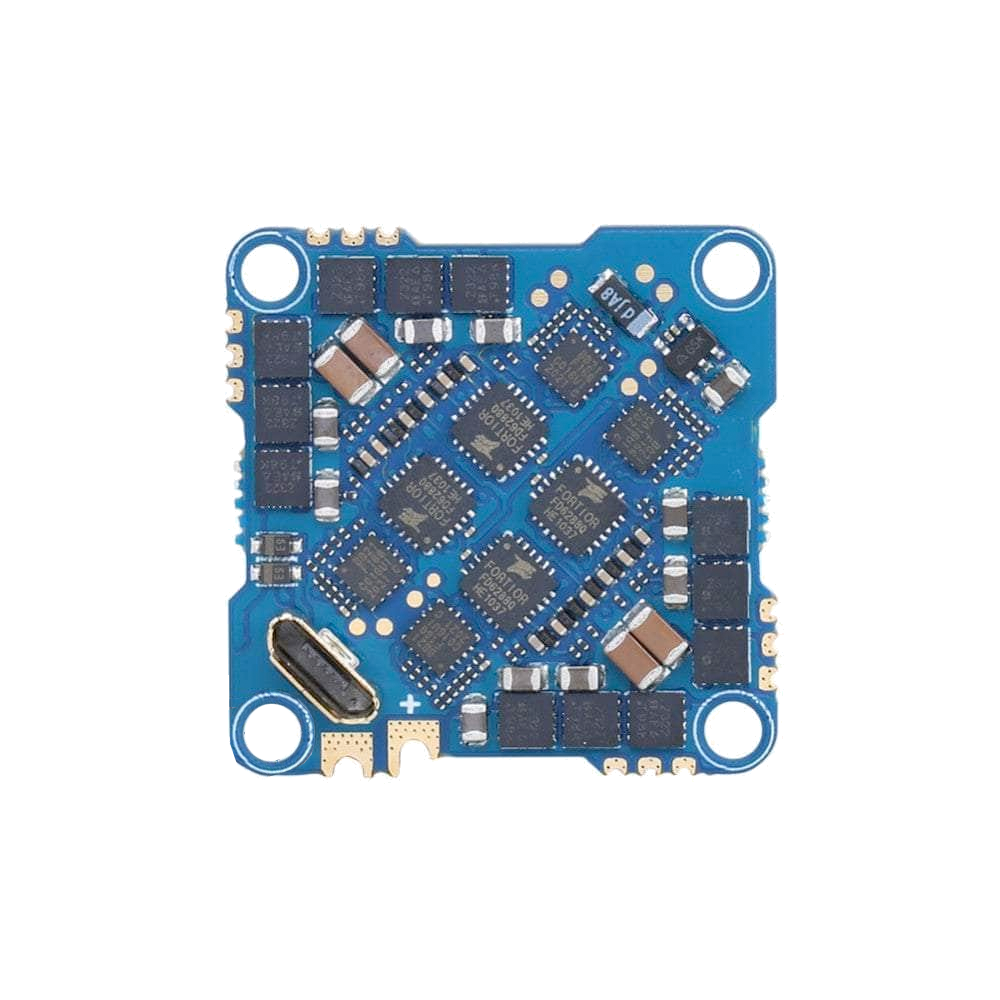

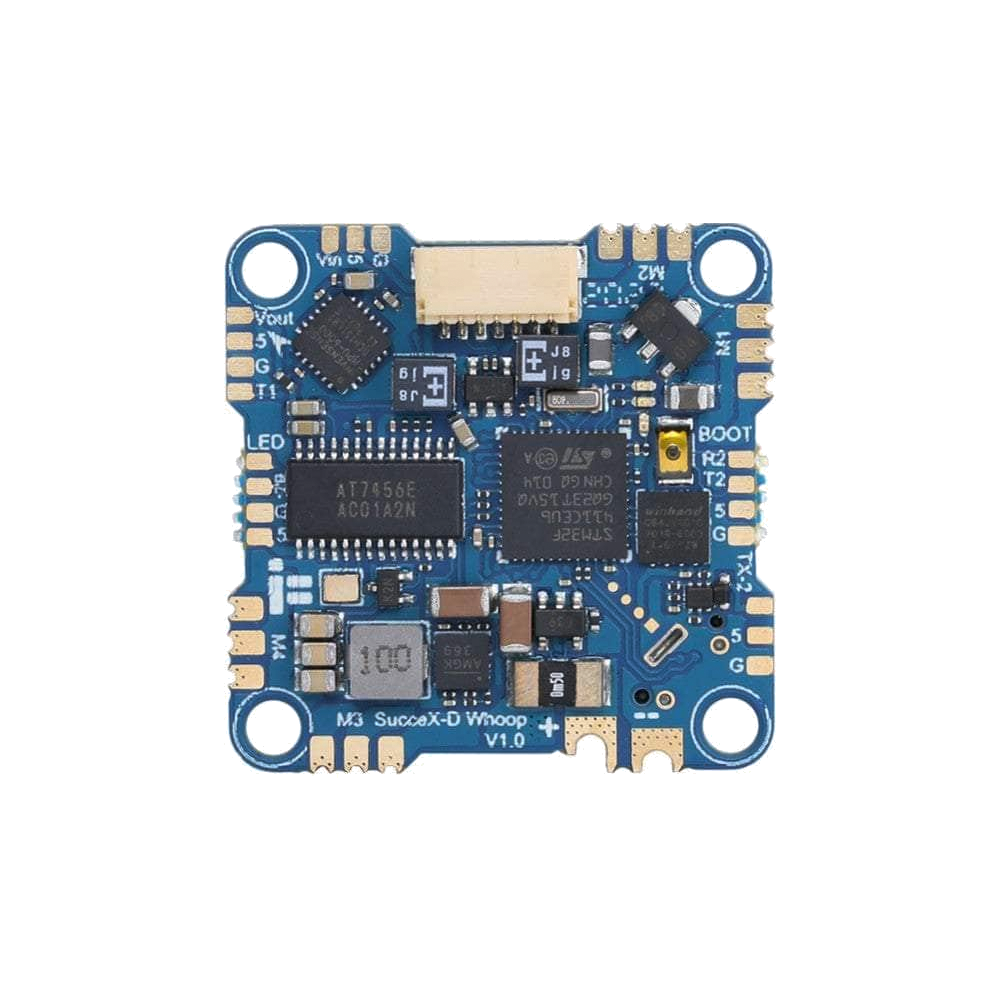

iFlight Whoop AIO BMI270 F411 Board v1.1

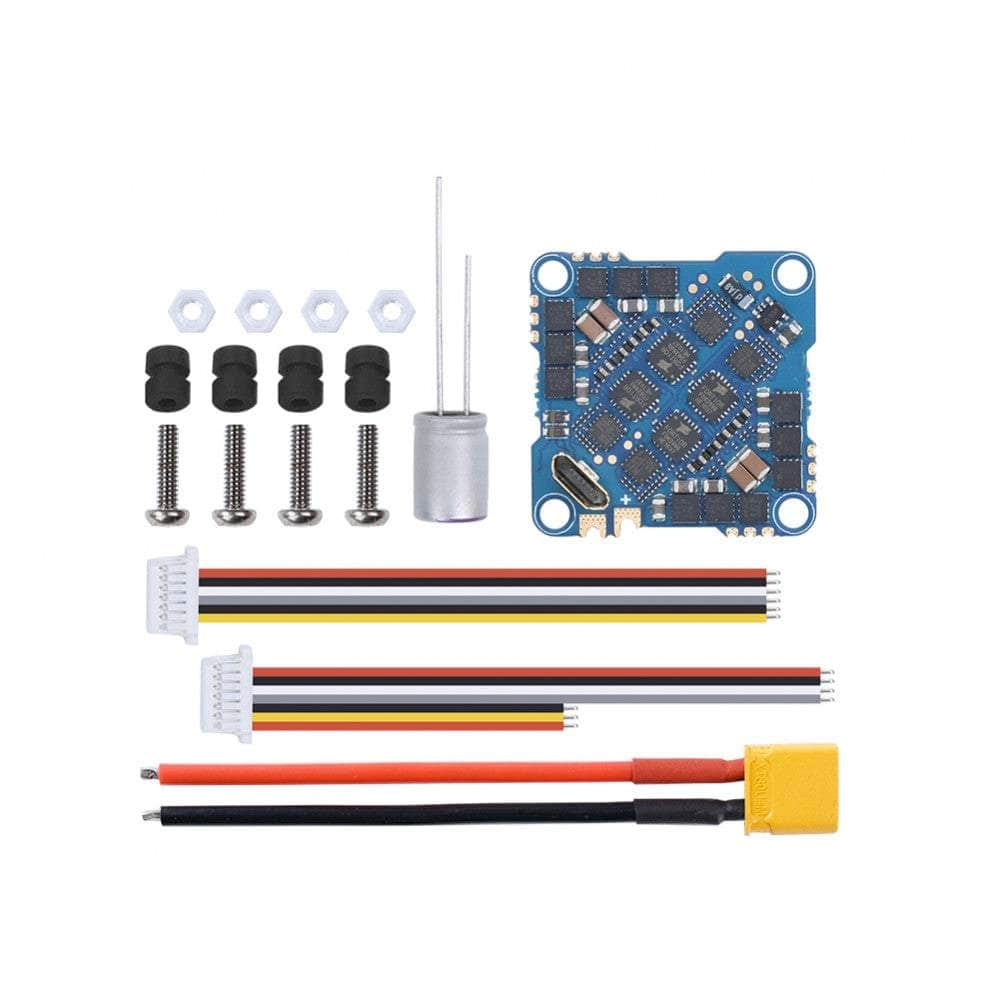

Are you in Australia and looking to purchase a high - quality SucceX - D 20A Whoop V3.2 AIO Flight Controller? Here's a great option! It comes with the iFLIGHT_F411_PRO firmware and has an iFlight SKU of S012863. This flight controller has a 30.5*30.5mm size and a 25.5*25.5mm/φ3mm mounting pattern. It weighs only 7.5g, making it lightweight. It uses an STM32F411 MCU and a BMI270 gyro. With an 8MB blackbox, it can record flight data. It has a 5V 2A BEC output. The config is IFLIGHT_F411_PRO.config, and the INA pad is nR2. There's no barometer. It can handle a constant current of 20A and 25A in burst mode, with an input of 2 - 4S. It has a current sensor and uses BLHeli - S. The ESC firmware is Bluejay Q - H - 50, though there's no ESC telemetry. What's included? You'll get a SucceX - D Whoop V2 F4 AIO Board, a 470uF/16V capacitor, an XT30 18awg cable, a plug - and - play wire harness for DJI Air Unit, 4 M2 silicon grommets, 4 M2 damping balls, and 4 M2*8mm screws. Browse more AIO Flight Controllers, F4 Flight Controllers, and iFlight products.

Using this iFlight flight controller is easy. First, make sure to connect all the included components properly, like the XT30 cable and the wire harness for the DJI Air Unit. When powering it on, double - check that the input voltage is within the 2 - 4S range. For takeoff and flight, the gyro and MCU work together to keep your aircraft stable. Remember, the current sensor helps monitor the power usage. When it comes to maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures or moisture. If you encounter any issues, check the 8MB blackbox for flight data that might give you clues. Also, be careful when handling the delicate components like the damping balls and grommets. And always follow the safety instructions when working with electronics.
