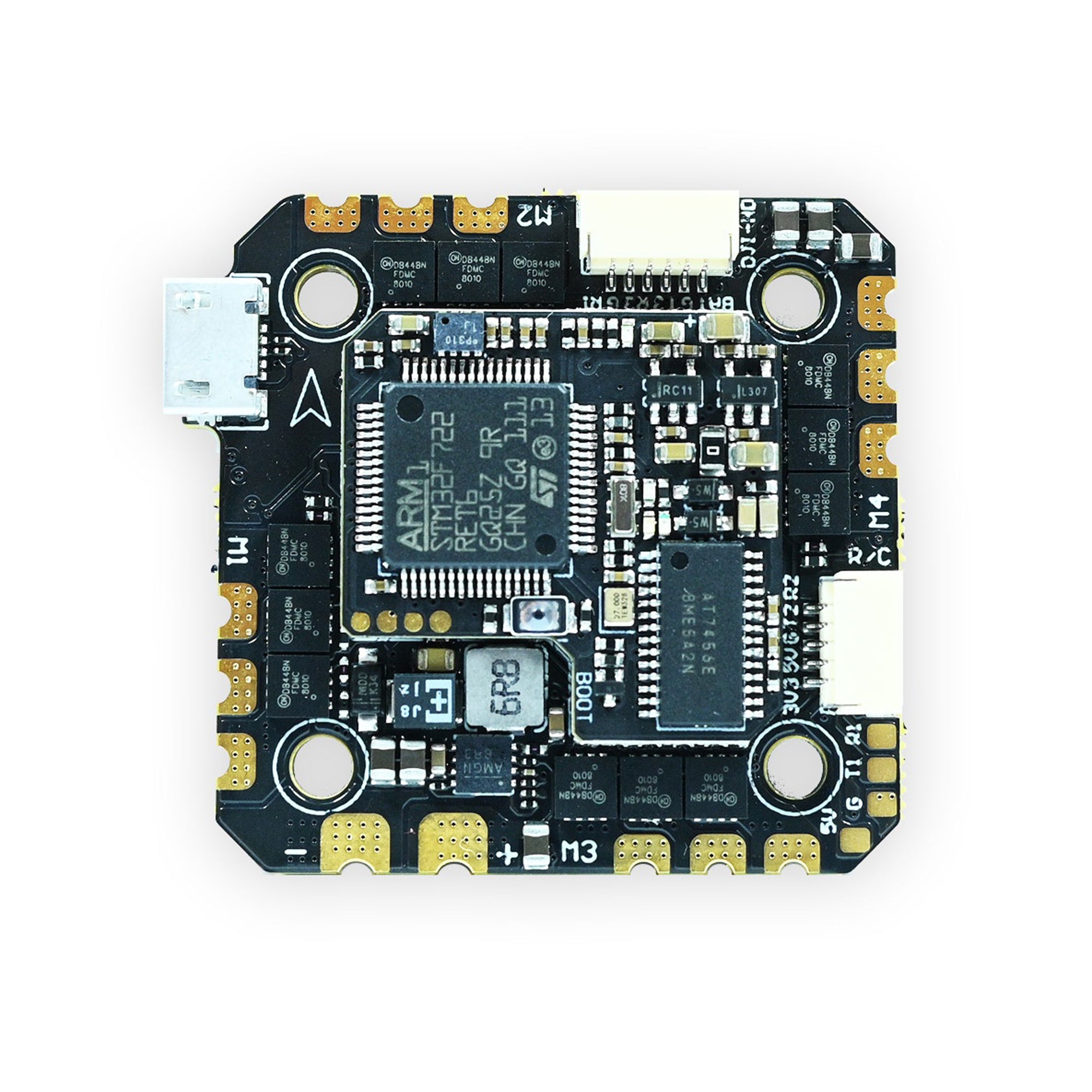

Aikon F7 Mini 45A AIO 25.5x25.5mm BMI270 Flight Controller

Are you in Australia and seeking to purchase an Aikon F7 Mini AIO 45A Flight Controller? This Aikon flight controller is a next - generation combo of flight control and ESC, tailor - made for cinewhoops and high - current uses. It bundles all the top features for a seamless flight experience. What sets the Aikon AIO Mini apart? It has a 216mhz F7 processor, independent FC and ESC PCBs for low noise, 5 software - invertible hardware UARTS, an onboard OSD and blackbox, a software - controlled VTX power switch (default to USER1 mode), connectors for DJI - HD and RC link, LED and buzzer outputs (LED pad doubles as PPM), on - board high - overhead voltage regulators up to 6S (50v peak for voltage spikes), a 10v 1.5A voltage regulator for the DJI HD system, and 3.3mm high - current MOSFETs. Aikon F7 Mini AIO specs: - Battery: 3 - 6s - Mount Holes: 25.5*25.5mm - Flight Control Firmware: Betaflight AIKONF7 Target - MCU: STM32F722 - IMU: BMI270 (interrupt pin connected) - Barometer: DSP310 - Blackbox: SPI 16MB - ESC Firmware: BLHeli_32 - Constant Current: 45A - Burst Current: 55A - Current Sensor Scale: 200 - Weight: 14.5g Browse more: All AIO Flight Controllers, All F7 Flight Controllers, All Flight Controllers.

Using the Aikon F7 Mini 45A AIO Flight Controller is quite straightforward. First, make sure to connect your battery within the 3 - 6s range. You can mount it easily using the 25.5x25.5mm holes. For the firmware, it comes pre - set with Betaflight AIKONF7 Target and BLHeli_32 for the ESC. When using the DJI HD system, the 10v 1.5A voltage regulator will take care of power supply. Here are some things to note. Don't exceed the 6S battery limit to avoid damaging the on - board high - overhead voltage regulators. Be careful when handling the connectors for DJI - HD and RC link to prevent any loose connections. Also, keep in mind that the burst current of 55A is for short - term use only. For maintenance, regularly check the soldering points of the components to ensure there are no loose connections. Clean the board gently with a soft brush to remove any dust. If you encounter any issues, you can refer to the blackbox data which is stored on the SPI 16MB memory.
