BetaFPV 1S 5A AIO Brushless Flight Controller (ELRS 2.4GHz)

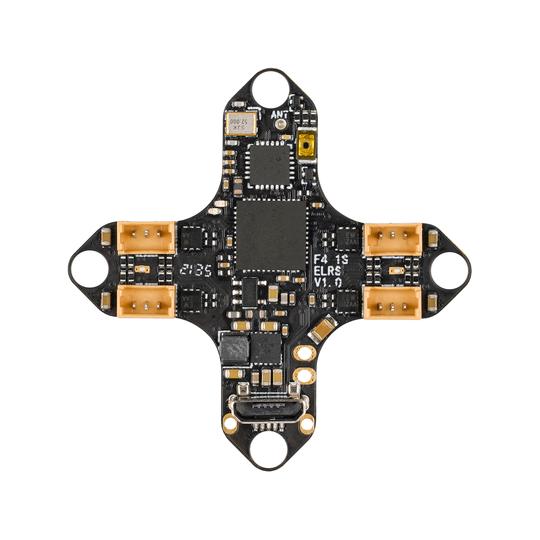

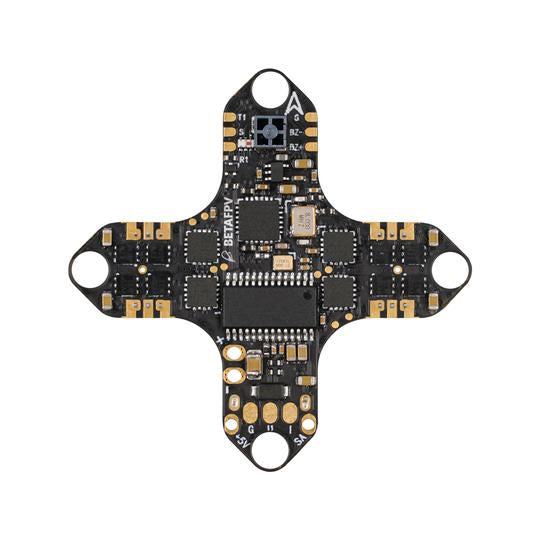

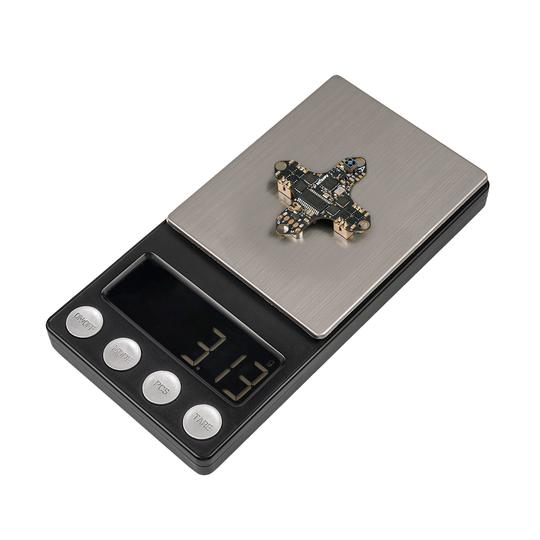

Are you in Australia and searching for a top - notch flight controller? Look no further! The BetaFPV 1S 5A AIO Brushless Flight Controller with a 2.4GHz ELRS receiver is here. This classic ultralight F4 1S brushless FC comes equipped with an SPI ExpressLRS 2.4G receiver. Key specs of the FC: It has a STM32F411CEU6 CPU running at 100MHZ, a six - axis ICM - 20689/MPU - 6000, a built - in SPI ExpressLRS 2.4G receiver with a 2.4GHz SMD ceramic antenna. Measuring 29mm x 29mm, it fits well with current market whoop frames. It has a built - in BetaFlight OSD and the firmware version is betaflight_4.3.0_STM32F411_norevision. We recommend a VTX of >=200mW like the BETAFPV M03 350mW VTX or TBS Unify VTX. The 55mm power cable comes with a BT2.0 connector, and the controller weighs 3.13g without the power cable. ESC specs: It runs on 1S power supply, can handle 5A continuous and 6A peak (3 seconds) current. It supports BLHeliSuite programming with factory firmware O_H_5_48_REV16_8.HEX and various signal types. Regarding the Betaflight firmware, it's currently a Beta version as the official one supporting SPI ExpressLRS isn't out yet. Download the firmware and CLI dump file as needed. When using, set the “PID loop frequency” to “4KHZ”. Recommended parts include a BT2.0 300mAh 1S battery, Meteor65/75 frames, 31mm or 40mm 4 - blades props, 0603/0703/0802 motors, and an M03 25 - 350mW VTX. The package includes 1 F4 1S brushless flight controller, 4 M1.2x4mm screws, 4 M1.4x5mm screws, and 4 anti - vibration rubber dampers.

Using the BetaFPV 1S 5A ELRS 2.4GHz AIO Brushless Flight Controller is easy. First, connect it to your chosen frame using the provided screws and anti - vibration rubber dampers. Then, attach the power cable with the BT2.0 connector to your battery. Make sure to set the “PID loop frequency” to “4KHZ” in the Betaflight Configurator to avoid issues with the SPI receiver. If you need to recover the FC board, use the provided firmware and CLI dump file. When it comes to binding with the SPI ExpressLRS Receiver, follow the included instructions. For maintenance, keep it clean and free from dust. Avoid exposing it to extreme temperatures or moisture. If you have any problems with the Beta version firmware, don't hesitate to contact us.
