BetaFPV A02 25-800mW 5.8G VTX

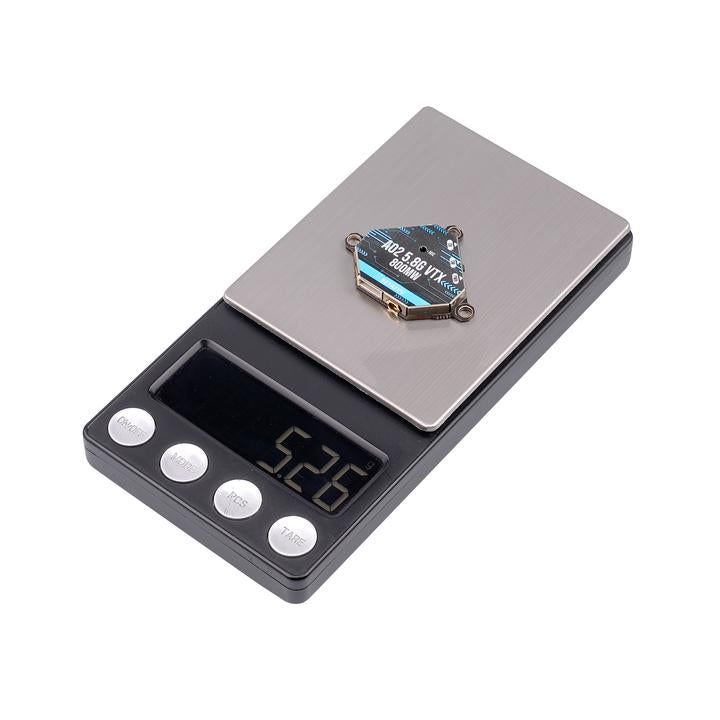

Are you in Australia and seeking a top - notch 5.8G VTX for your drone? The BetaFPV A02 is your go - to choice. This lightweight and compact VTX offers high - quality performance with selectable output power of 25/200/500/800mW. With 800mW, you can fly your drone up to 1100 meters away, unlocking endless FPV exploration. It has strong anti - interference ability and stable transmission. The A02 comes with a built - in microphone for real - time sound, enhancing your flight experience. Installation is a breeze thanks to the fixed mounting hole and 6 - pin connector, making it ideal for Whoop & Toothpick drones like X - Knight, Beta85X/95X, and TWIG series. Specifications include a supply voltage range of 7 - 35V, a weight of 5.26g (excluding antenna), and 37 channels at 5.8GHz. It also supports PitMode, allowing you to test and change settings without interfering with others.

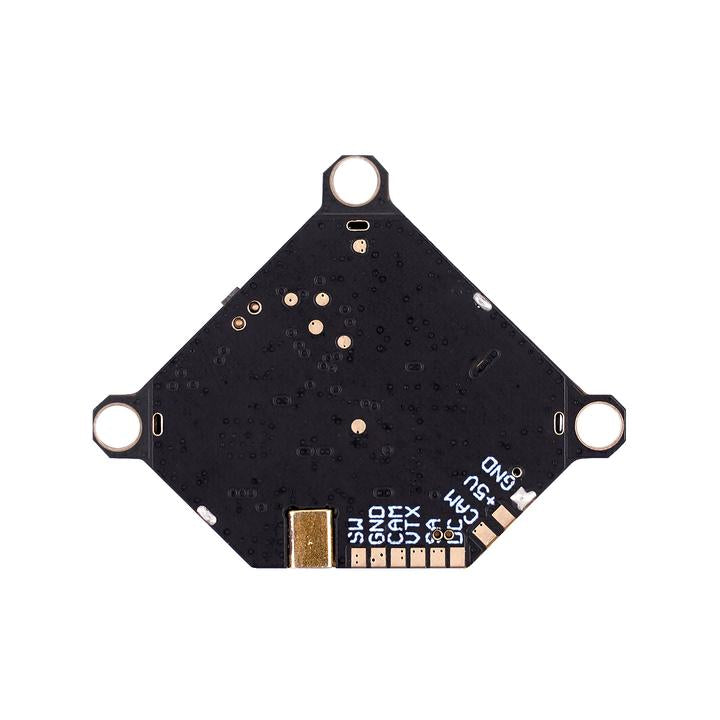

Using the BetaFPV A02 VTX is easy. First, connect it to your flight controller using the 6 - pin FC cable as shown in the connection diagram. Make sure to match the wire colors. To enter the OSD menu and change frequency, power, or channel, use your radio transmitter sticks (Pitch Stick UP and Yaw Stick Left), then go to FEATURES -> VTX SA. For PitMode, press the button on the VTX twice to activate it and double - press again to exit. When flying, keep in mind the operating temperature range of - 10℃ to + 60℃. Avoid exposing it to extreme conditions. For maintenance, gently clean the device with a soft, dry cloth. Check the antenna regularly for any signs of damage. If you encounter any issues, refer to the detailed specifications and troubleshooting guide provided.
