BrotherHobby LPD 2806.5 1300KV/1700KV Motor

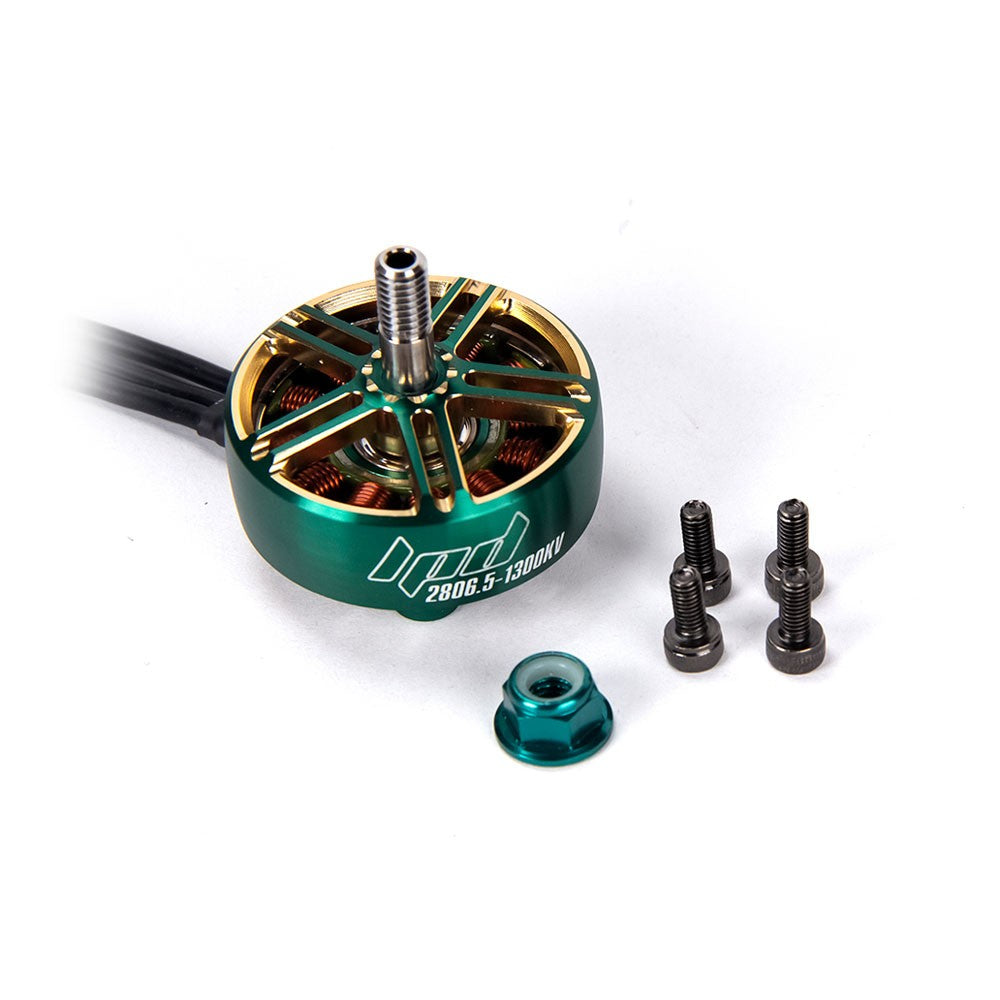

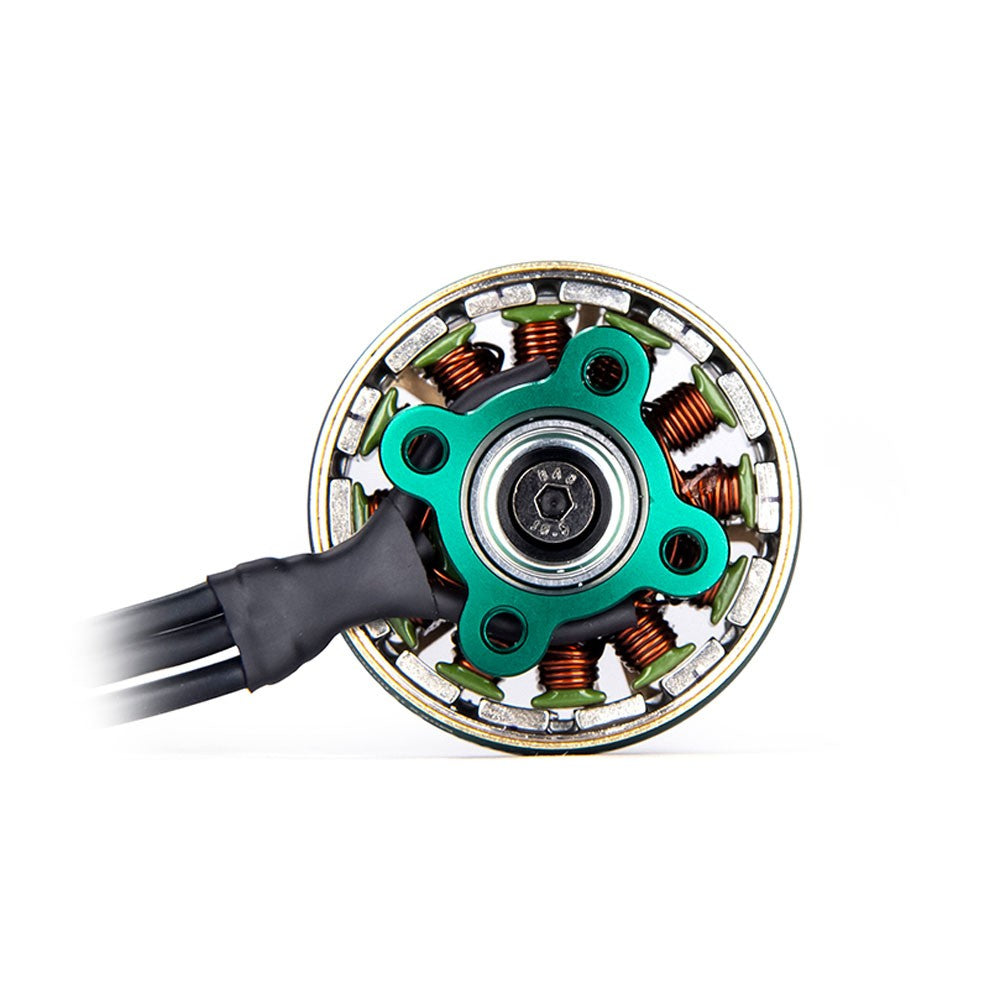

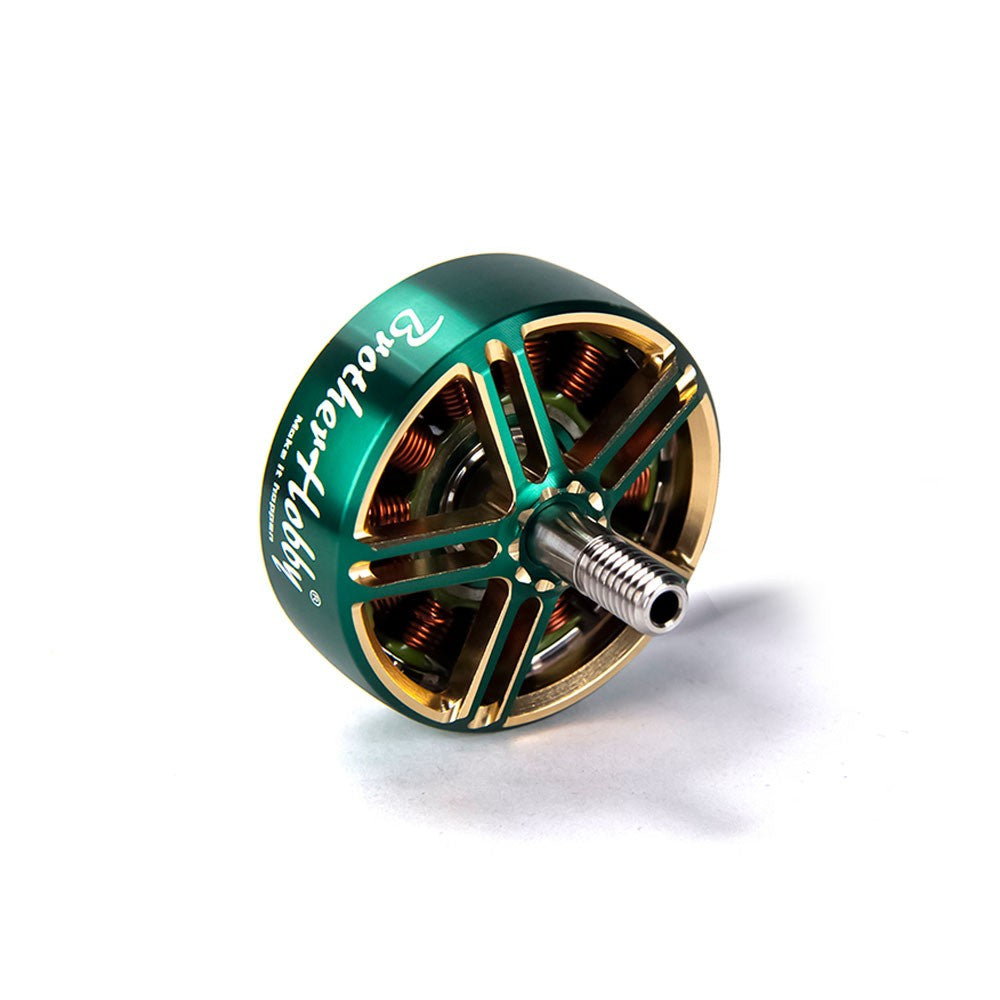

Are you in Australia and on the hunt for a top - notch drone motor? Look no further than the BrotherHobby LPD 2806.5 Drone Motor! Ideal for long - range FPV flights, this motor is a perfect fit for your 6', 7', and 8' quads. You can choose between 1300KV and 1700KV to suit your flying needs. With a 12N14P configuration, it offers great performance. It can work with 4 - 6S LiPo cells. The rotor uses N52H arc magnets, and the copper wire is 260 ℃ Military grade. The stator is made of 0.2mm Kawasaki silicon steel, and it has a Titanium Alloy hollow shaft. The bearings are Japanese NMB 12X6X4, ensuring smooth operation. The wire is 18AWG with a 20cm length. Both the bell cap and base casing are made of Al 7075. It has an M5 prop adapter shaft thread and an M3 (19X19mm) bolt pattern. The package includes 1 BrotherHobby LPD 2806.5 Motor, 1 M5 Prop Nut, and 4 Motor Screws. Browse more 28xx Motors, BrotherHobby Motors, or all Motors to find what you need.

Using the BrotherHobby LPD 2806.5 Drone Motor is quite straightforward. First, make sure to choose the right KV value (1300KV or 1700KV) according to your flight requirements. Install the motor on your 6', 7', or 8' quad using the provided motor screws and M5 prop nut. Connect the 18AWG wire to your power source and flight controller. When flying, start with a low - power test to ensure everything is working properly. For maintenance, regularly check the bearings for smooth rotation. Keep the motor clean and free from dust and debris. If you notice any unusual noises or vibrations, stop using the motor immediately and check for possible issues. Also, make sure to use the correct LiPo cell number (4 - 6S) to avoid damaging the motor.
