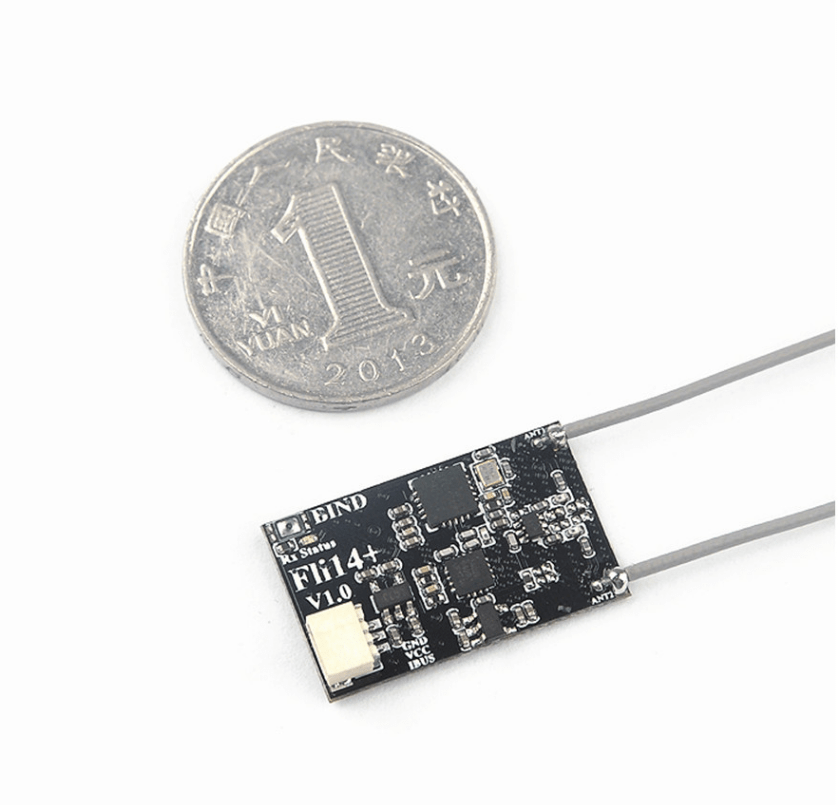

Flysky FLI14+ 14CH AFHDS 2A W/RSSI Receiver

The Flysky FLI14+ Receiver is a high - performance device designed for radio - controlled applications. It features 14 channels, using the AFHDS 2A protocol. With 70mm dual antennas, it offers excellent signal reception. The input voltage ranges from 4 - 6.5V DC, and it weighs just 1.7g with a compact size of 25x15x5mm. It comes in a sleek black color. The signal output is IBUS, and RSSI output is through Channel 14. It has no ground interference and can transmit and receive over 500m when 1m from the ground. This receiver is customized for Betaflight. It can display RSSI via OSD without any hack and is compatible with all Flysky AFHDS - 2A protocol transmitters. It also provides telemetry output for RSSI and RX battery. The RSSI can be accessed via Channel 14 (Aux10 in Betaflight). The binding process is simple: power the receiver while holding the bind button, wait for the LED to blink fast, enter binding mode on the transmitter, and when the LED turns solid, binding is successful.

Using the Flysky FLI14+ Receiver is straightforward. First, make sure to follow the binding procedure. Power the receiver while pressing the bind button. Once the LED blinks fast, it's in binding mode. Then, set your transmitter to binding mode. When the LED on the receiver goes solid, you're good to go. When using, keep in mind that the receiver needs an input voltage between 4 - 6.5V DC. Don't exceed this range to avoid damaging the device. Also, try to keep it at least 1m from the ground to get the best signal range of over 500m. For maintenance, keep it in a dry and clean place. Wipe it gently with a soft cloth if it gets dirty. Don't expose it to extreme temperatures or humidity, as this can affect its performance.
