GEPRC ELRS Nano 2.4G PA100 Receiver (2.4ghz)

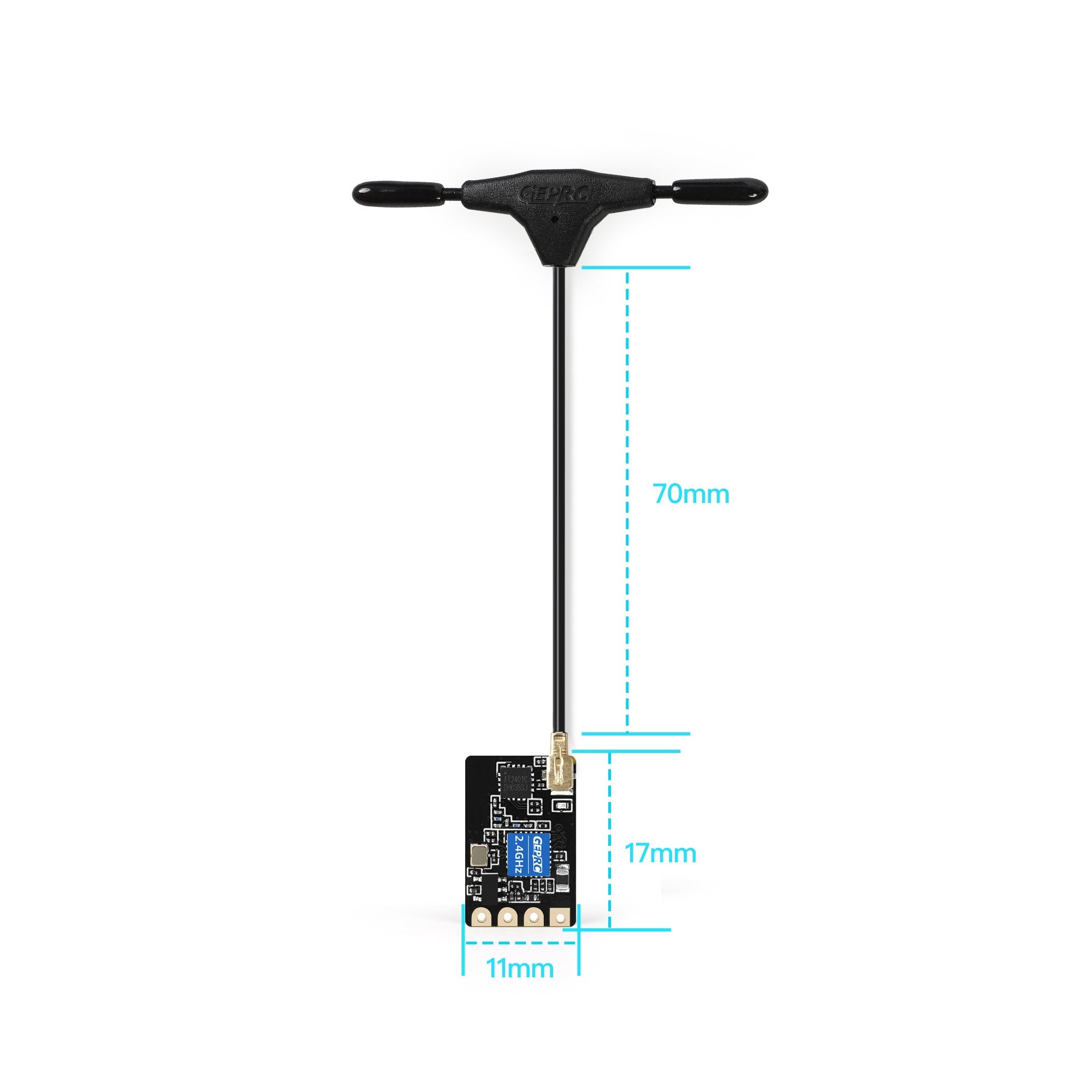

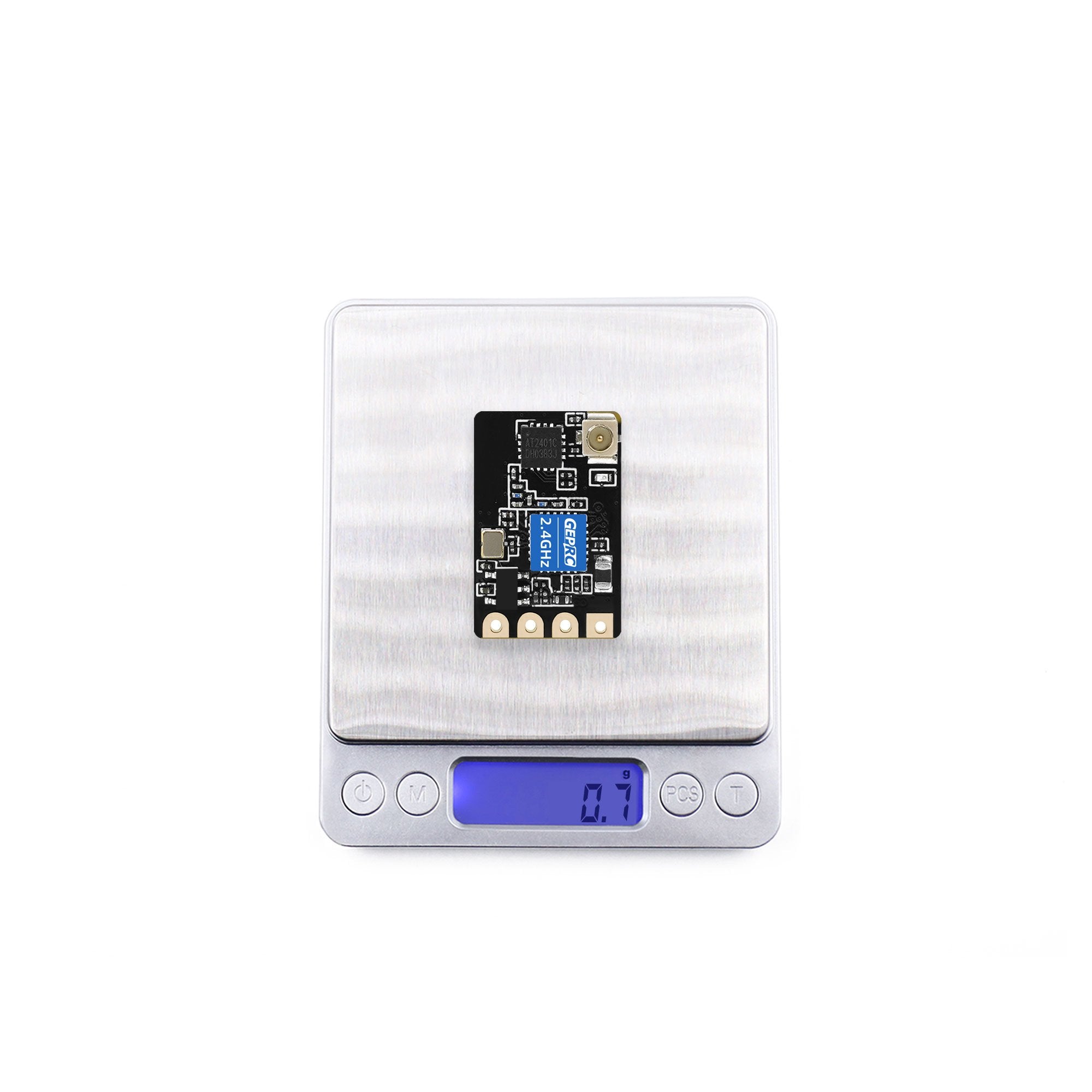

Are you searching for a top - notch 2.4G receiver in Australia? Look no further! The GEPRC ELRS Nano 2.4G PA100 Receiver, based on the ExpressLRS open - source project, is here to revolutionize your experience. With long - range operation, ultra - low latency, a maximum 1000Hz refresh rate, and an affordable price, it's a game - changer. This receiver uses a TCXO temperature - compensated crystal oscillator to prevent frequency shifts due to temperature changes. It has an integrated PA + LNA with a telemetry power of up to 100mW and a built - in WIFI antenna for easy firmware upgrades. Features include a tiny 17x11mm size, a mere 0.7g weight, WIFI firmware upgrade, stable performance under extreme temperatures, and high - power telemetry. Specifications are as follows: Size 17x11mm, weight 0.7g (RX only), chips ESP8285 and SX1281, TCXO crystal oscillator, 2.4GHz ISM frequency band, 25Hz - 1000Hz refresh rate, 5V input voltage, ipex1 antenna connector, 100mW TLM power, and GEPRC Nano 2.4GHz PA100 RX firmware. The package includes 1 receiver, 1 antenna, 1 heat shrink tube, 4 silicone cables, 1 4 - pin, and 1 instruction manual.

Using your GEPRC ELRS Nano 2.4G PA100 Receiver is easy. First, connect the antenna to the ipex1 connector. Then, power it up with a 5V input. You can upgrade the firmware through the built - in WIFI antenna. Just follow the instructions in the manual. When using it, avoid exposing it to extreme temperatures for long periods, as this might affect performance. Although it's designed to handle temperature changes well, too much heat or cold isn't ideal. For maintenance, keep it clean and dry. If you notice any issues, check the connections first. The receiver is small and lightweight, so handle it with care to prevent damage. That's it! Enjoy using your new receiver for long - range and low - latency control.
