GEPRC GEP-DS20 Frame

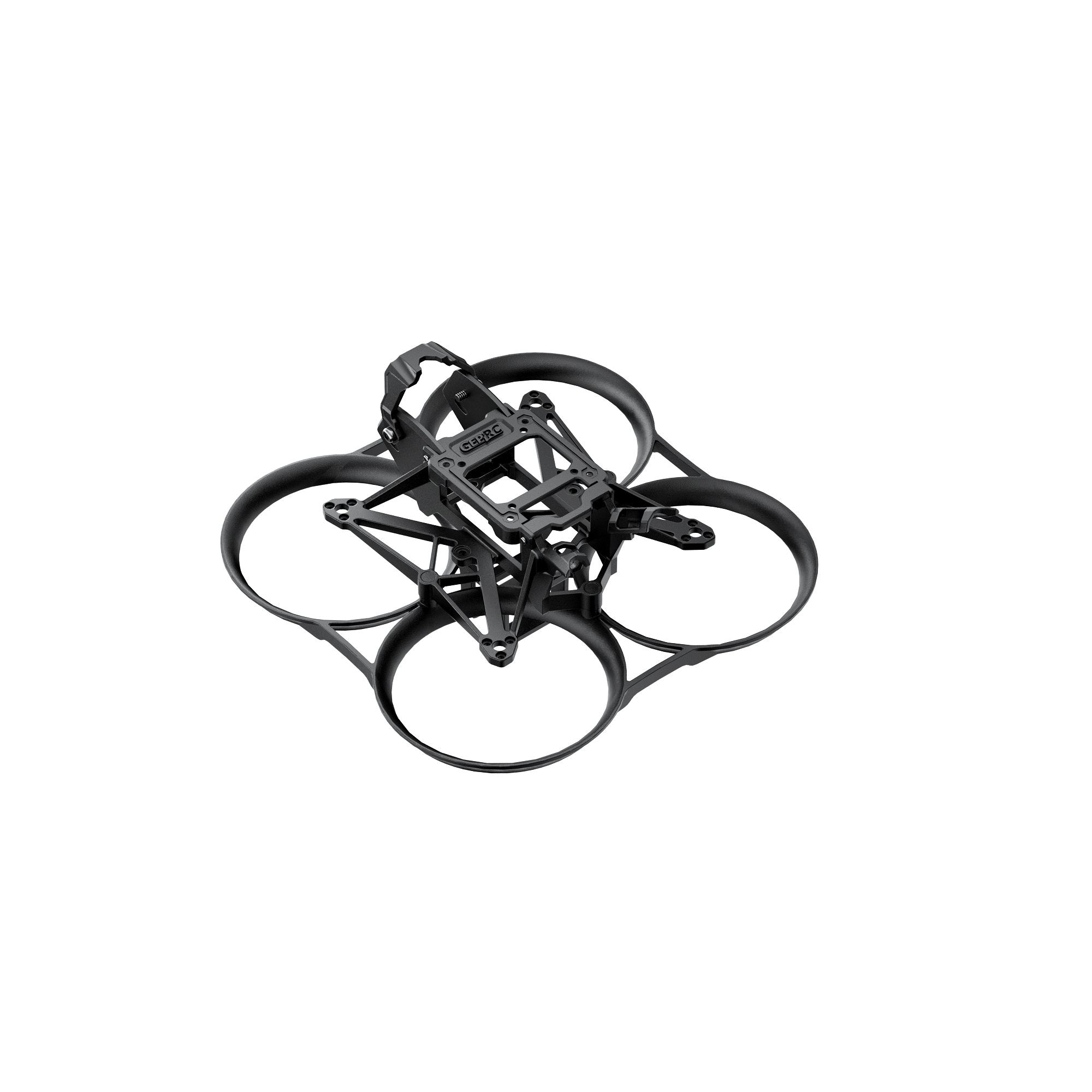

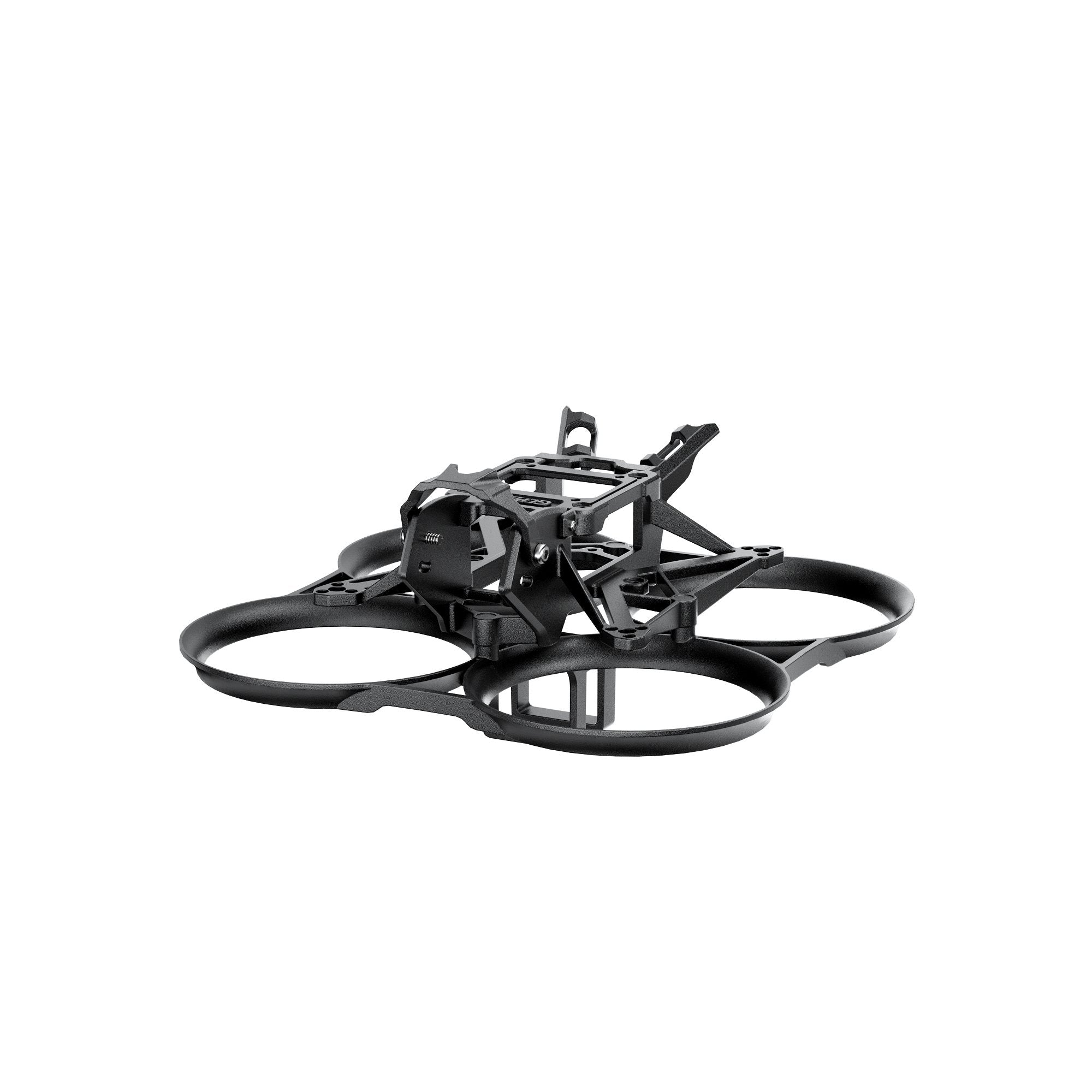

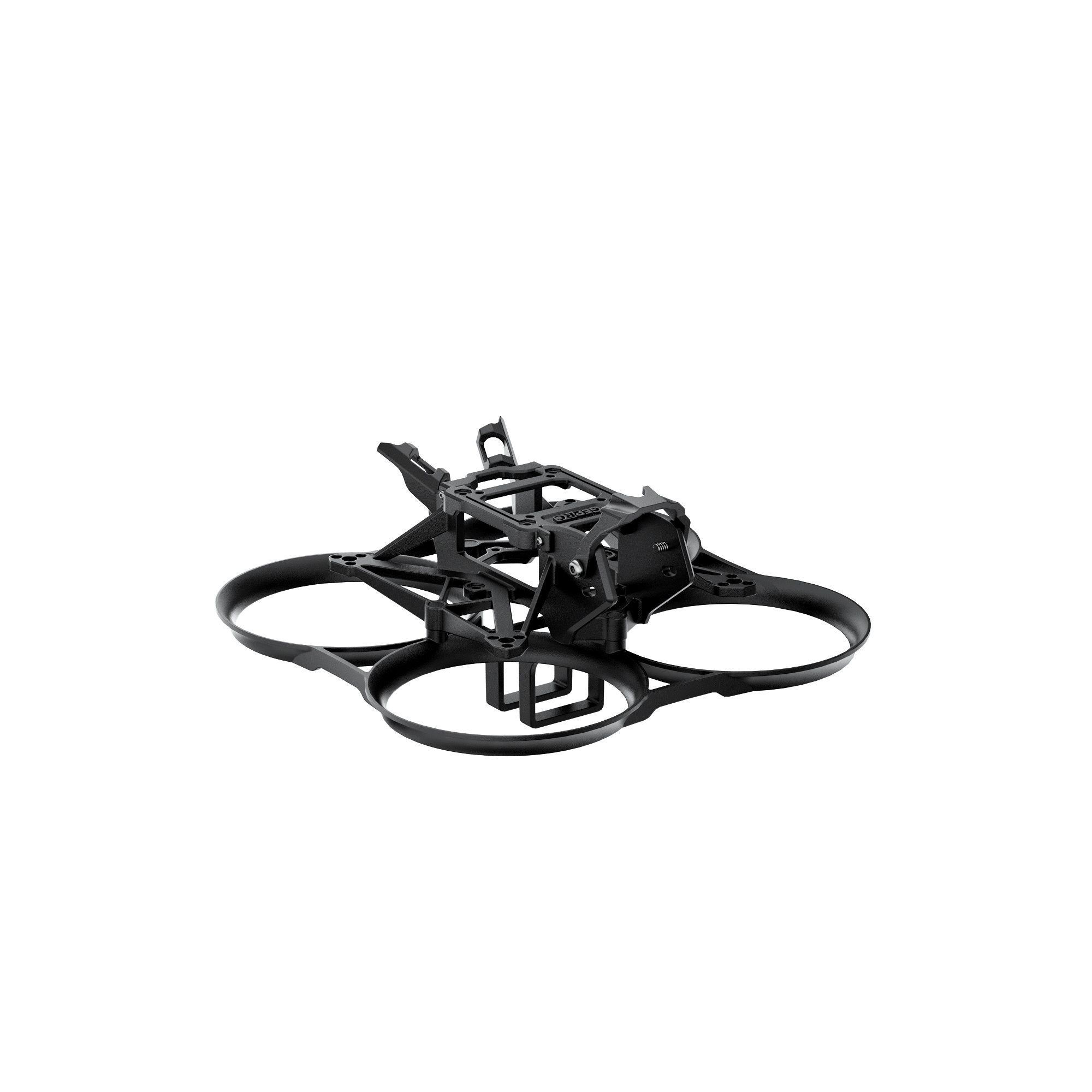

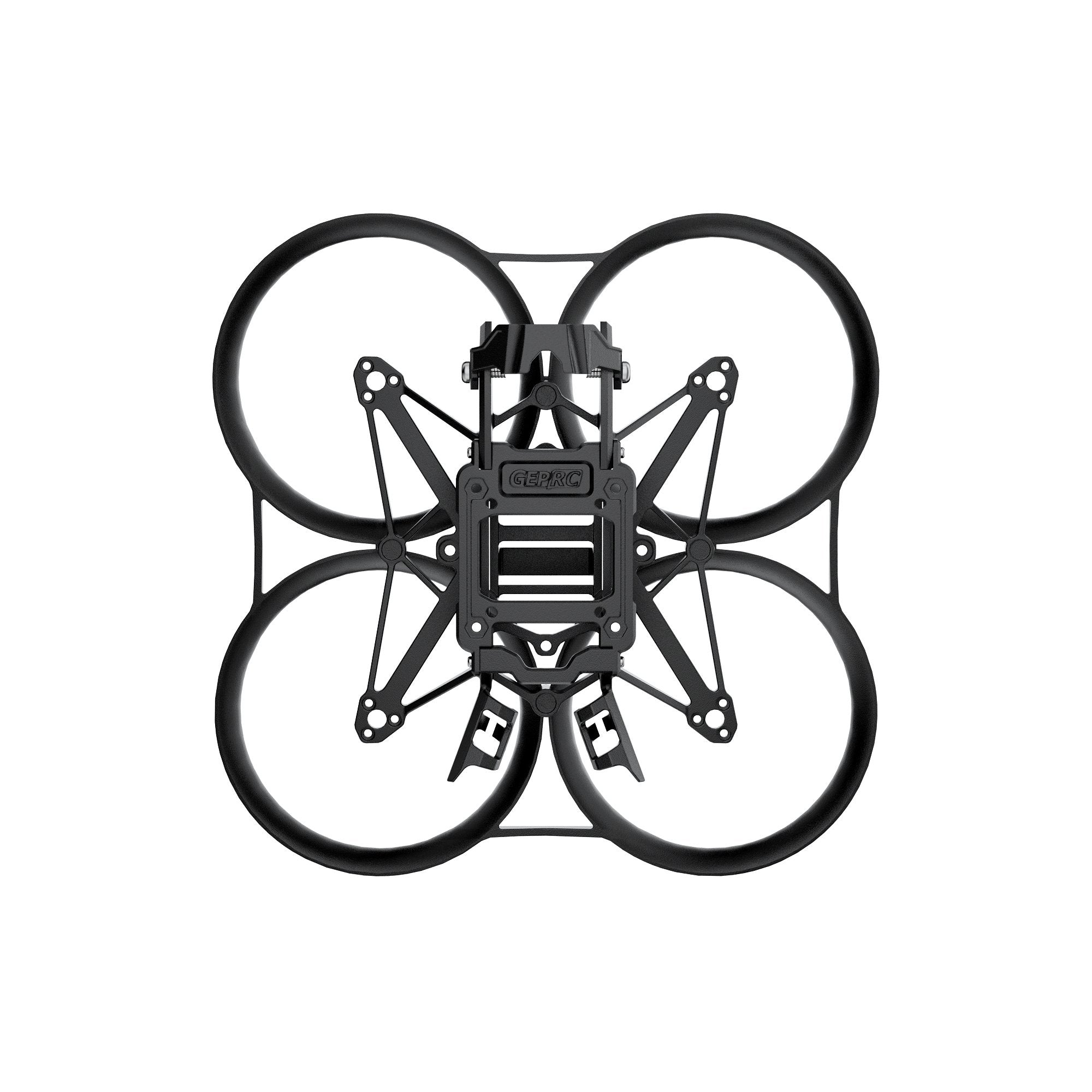

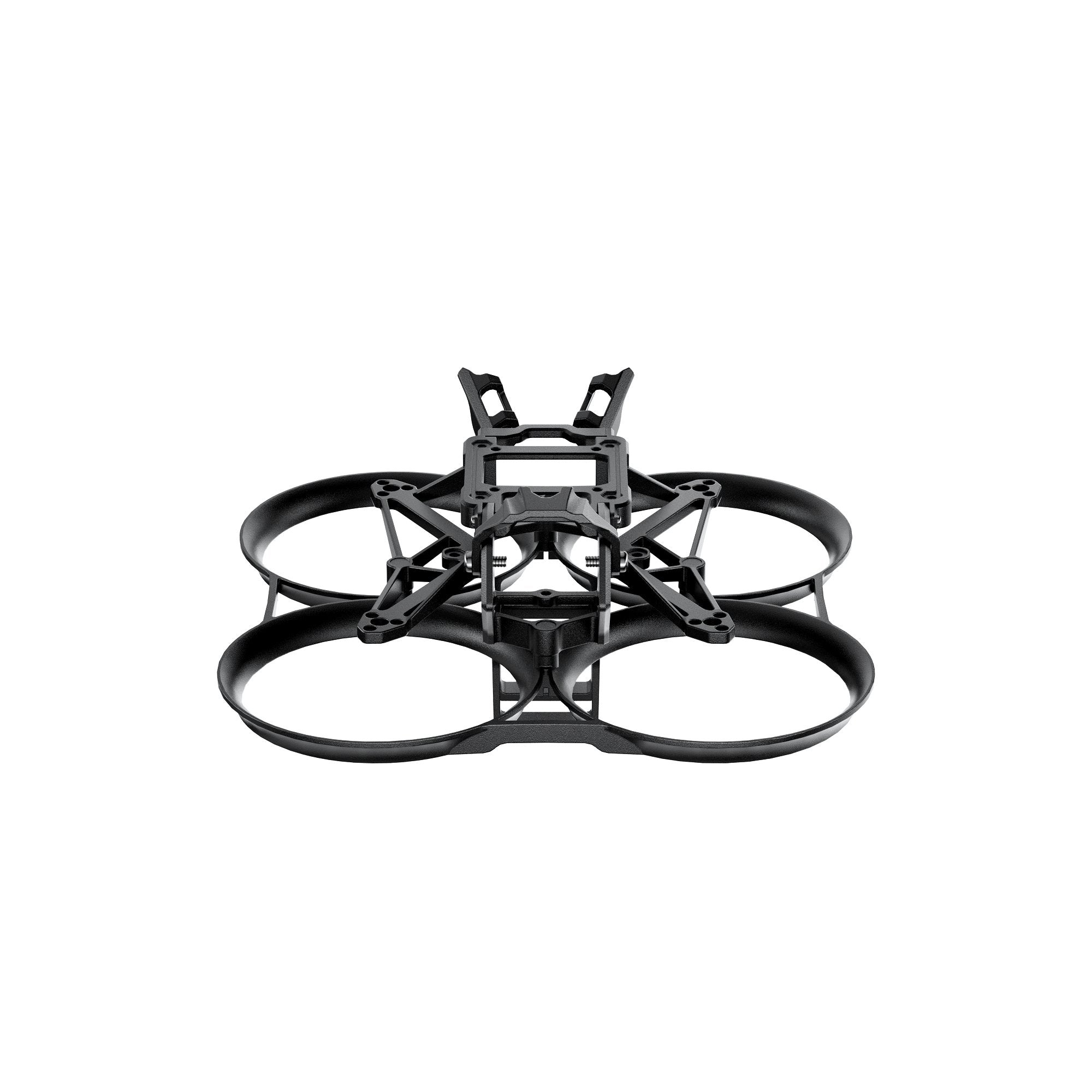

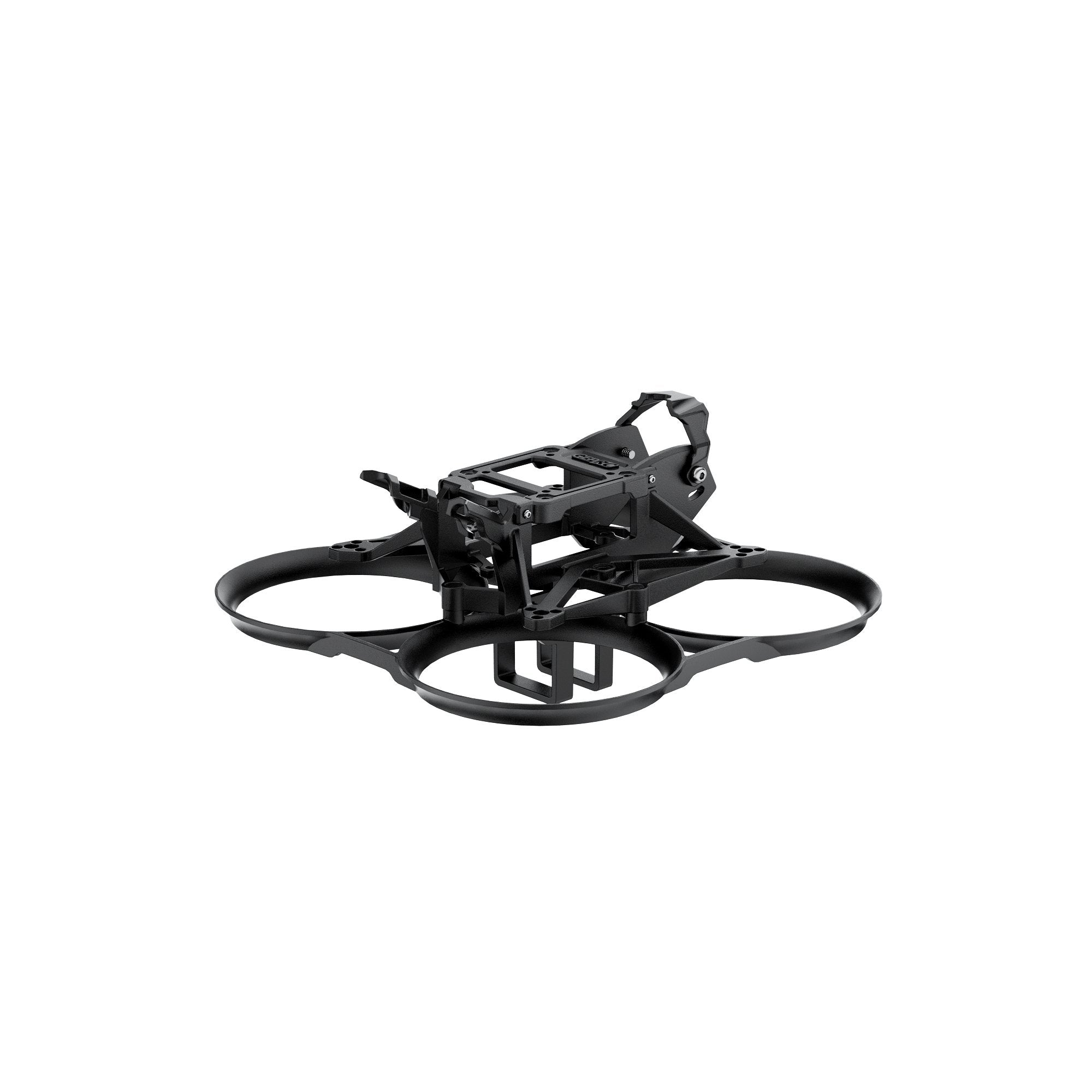

Are you searching for the GEPRC GEP - DS20 Frame in Australia? The GEP - DS20 is a super - light 2 - inch frame. It works well with O3 Air Unit, Link, and analog video transmission. Made from high - quality materials through injection molding, it combines toughness and strength. You can choose from five cool colors: white, pink, gray, black, and blue. Its arm axis and multi - directional triangular support frame guarantee excellent frame rigidity. The frame - type battery compartment makes battery disassembly and installation a breeze. With a 90mm wheelbase, it fits 1003/1102 motors with a three - hole base. Key features include a new design for strength, a modular structure for easy assembly, compatibility with various devices, and a carefully - designed antenna shield. Specifications are as follows: Model is GEP - DS20 Frame, dimensions are 126mm*126mm*57mm, wheelbase is 90mm, FC Mount is 25.5mm*25.5mm, VTX Mount has two options, motor mount is 3 - M1.4 - φ6.6mm, camera size can be 19mm/20mm, battery slot width is 17.3mm*13.5mm, propellers are 2 inches, and it weighs only 26g. The package includes an integrated protective frame, main frame, VTX mounting plate, camera protective cap, screw pack, 2 VTX antennas, a 1.5mm L - type screwdriver, and a Torx screwdriver. You can also browse more frame kits, quads, and GEPRC products.

Using the GEPRC GEP - DS20 Frame is easy. First, assemble the main frame with the parts in the package, like the VTX mounting plate and camera protective cap, using the provided screwdrivers. When installing the battery, just slide it into the frame - type battery compartment. For the motors, choose 1003 or 1102 motors with a three - hole base and attach them to the motor mount. When it comes to maintenance, keep the frame clean. Wipe it with a soft cloth regularly. If you notice any loose screws, use the screwdrivers in the package to tighten them. Avoid exposing the frame to extreme temperatures or rough handling. Also, when storing the frame, keep it in a dry and safe place to prevent any damage.
