HappyModel EP1 EP2 ELRS TCXO ExpressLRS Receiver RX (2.4ghz)

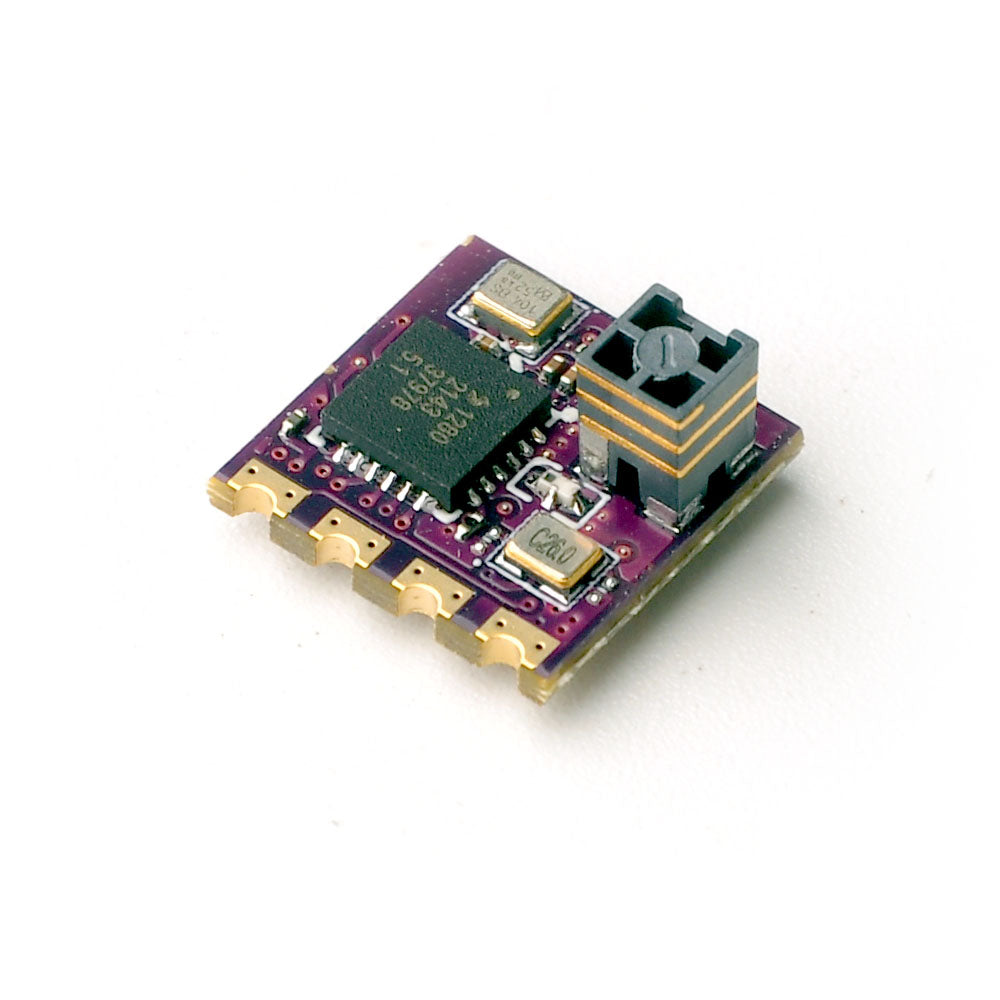

Are you in Australia and searching for a top - notch receiver? Look no further! The HappyModel EP1 and EP2 ELRS TCXO 2.4G ExpressLRS Receivers are here. Since their release, these have become the most popular Tiny ExpressLRS receivers. The new TCXO version of the EP series comes with a 'temperature compensated crystal oscillator'. This feature ensures accurate frequency and outstanding performance even in extreme temperatures, making them highly reliable. The EP1 TCXO Receiver has an omni - directional antenna, while the EP2 TCXO Receiver is equipped with an SMD Ceramic antenna. Both operate in the 2400 MHz to 2500 MHz frequency range, have a receive refresh rate of 25HZ - 500Hz, and work at 5v. They share similar dimensions of 10mm*10mm*6mm. The EP1 weighs 0.41 grams (without antenna) with a peak gain of 2.23dB, and the EP2 weighs 0.44 grams with a peak gain of 3.7dB. Both come with the default HappyModel_EP_2400_RX V3.0.1 firmware out of the factory. Each purchase includes 1x Happymodel 2.4G ExpressLRS EP1 or EP2 TCXO RX True Diversity Receiver Module.

Using your HappyModel EP1 or EP2 receiver is a breeze. First, make sure your device is powered at 5 volts. Connect it to your compatible equipment. When using, keep it within the 2400 MHz to 2500 MHz frequency range. For best results, try to maintain a stable environment as extreme temperatures can affect performance, although the TCXO feature helps a lot. When it comes to maintenance, keep the receiver clean and dry. Avoid dropping it or subjecting it to strong impacts as this could damage the internal components. If you need to update the firmware, follow the official instructions carefully. And that's it, enjoy your reliable receiver!
