Happymodel ES24TX Pro Micro ExpressLRS ELRS TX module

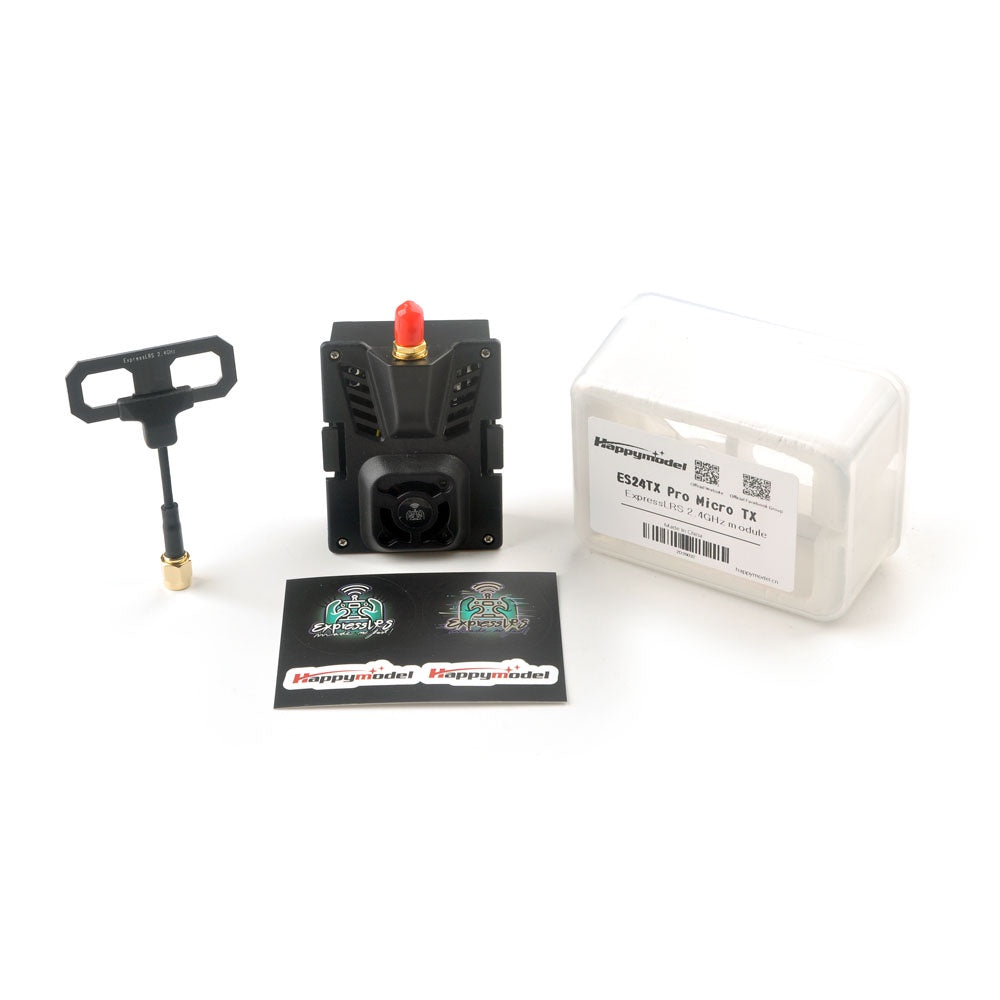

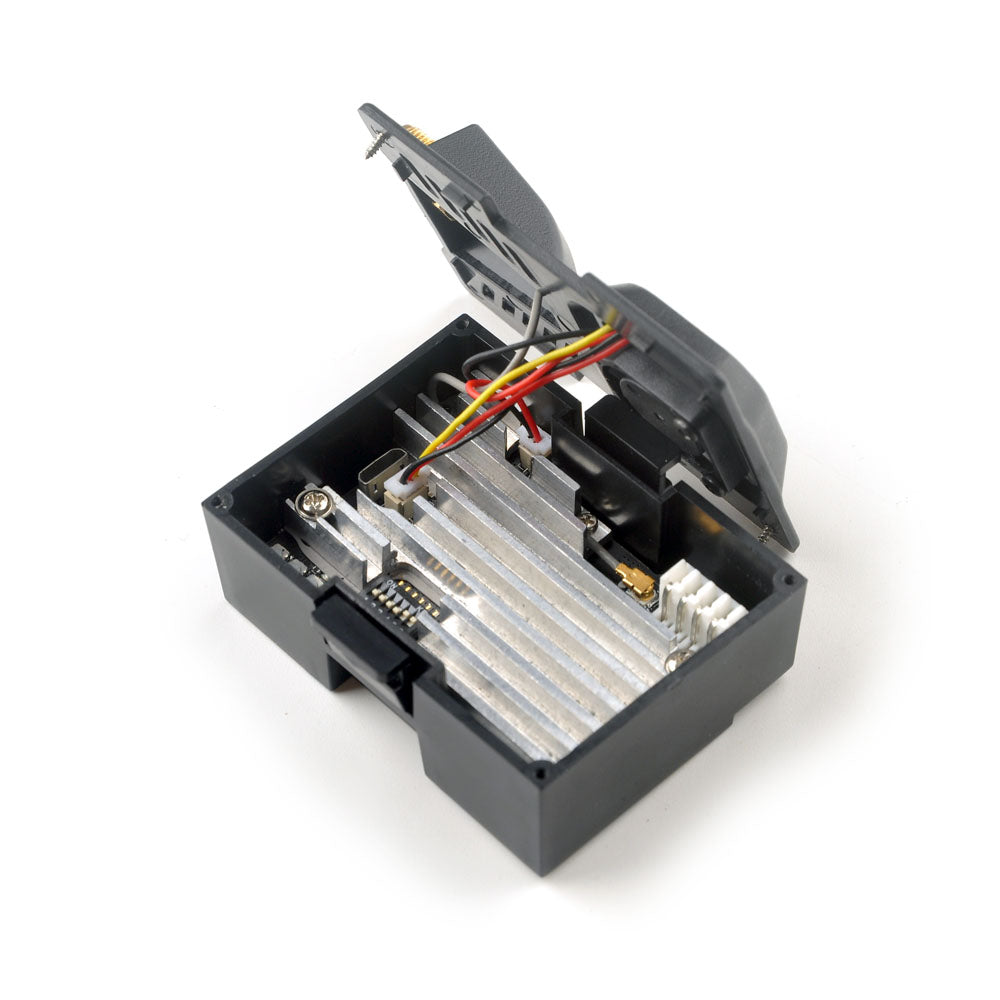

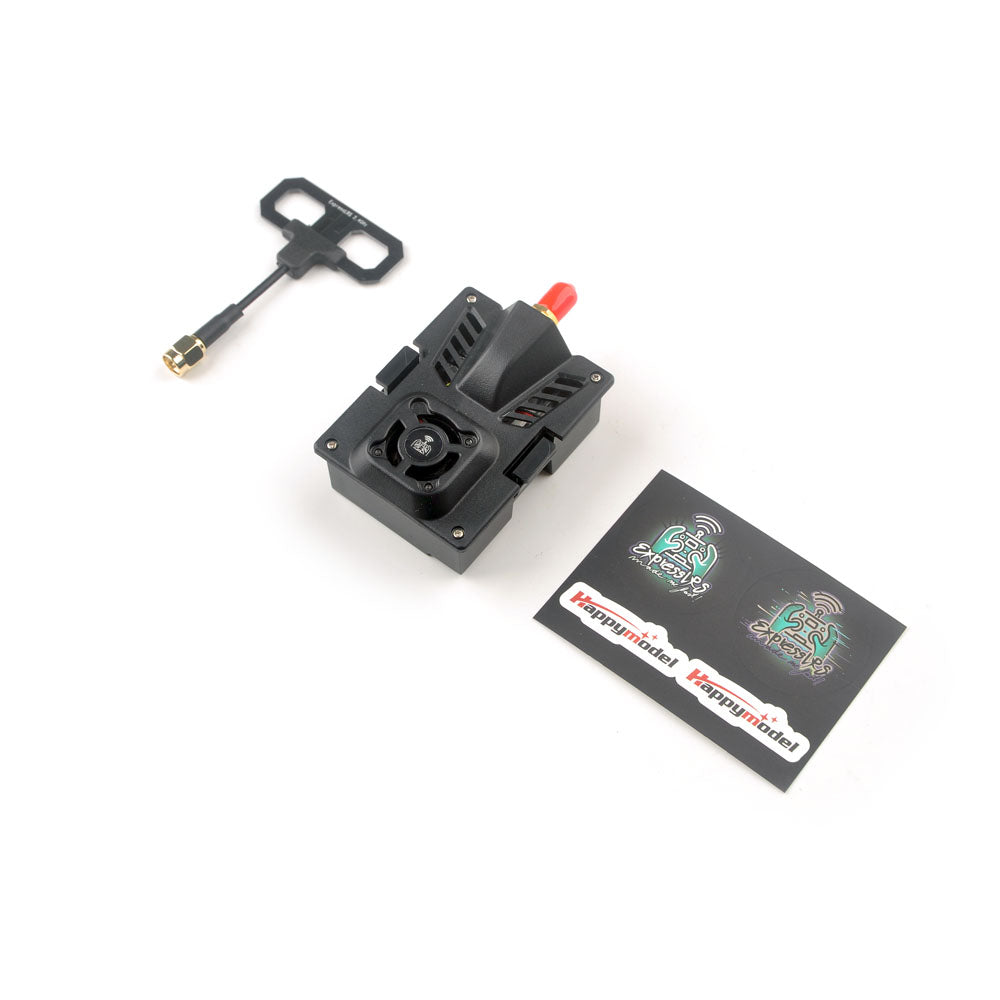

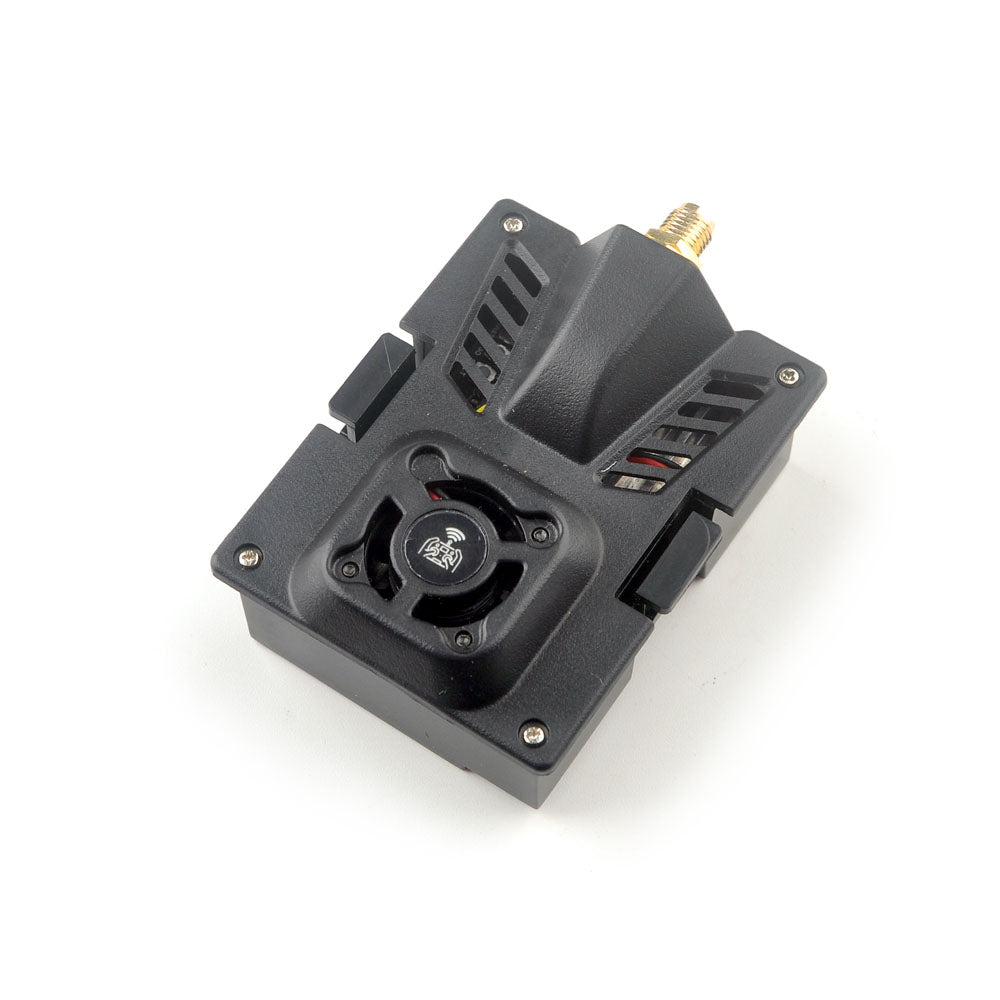

Are you in Australia and looking to buy a top - notch radio transmitter module? The HappyModel ES24TX Pro Micro ExpressLRS TX module is here for you! It's an upgraded version of the ES24TX module. With a max output of up to 1000mw, it has a reserved cooling fan and RGB LED module. This micro TX module is compatible with most OpenTX radio transmitters having a Micro JR bay. And the best part? It comes fully assembled straight from the factory. Specifications: - Regulatory Domain: ISM2400 - MCU: ESP32 (main), ESP8285 (aux, as espbackpack) - RF chip: SX1281IMLTRT - JR standard 5 - pin socket - Frequency Range: 2400 MHz to 2500 MHz - Maximum receive refresh rate: 500Hz - Minimum receiver refresh rate: 25Hz - RF Output Power: >30dBm - Power supply voltage: 5v - 10v - Weight: 51g (without antenna) - Dimension: 70mm x 49mm x 32.5mm - Antenna gain: 4.18dBi Firmware: - Target: HappyModel_ES24TX_Pro_Series_2400_TX Includes: - 1x ES24TX Pro Micro TX module - 1x Happymodel 2.4GHz Moxon antenna Browse more: - Browse all Receivers - Browse all Happymodel - Browse all Antennas

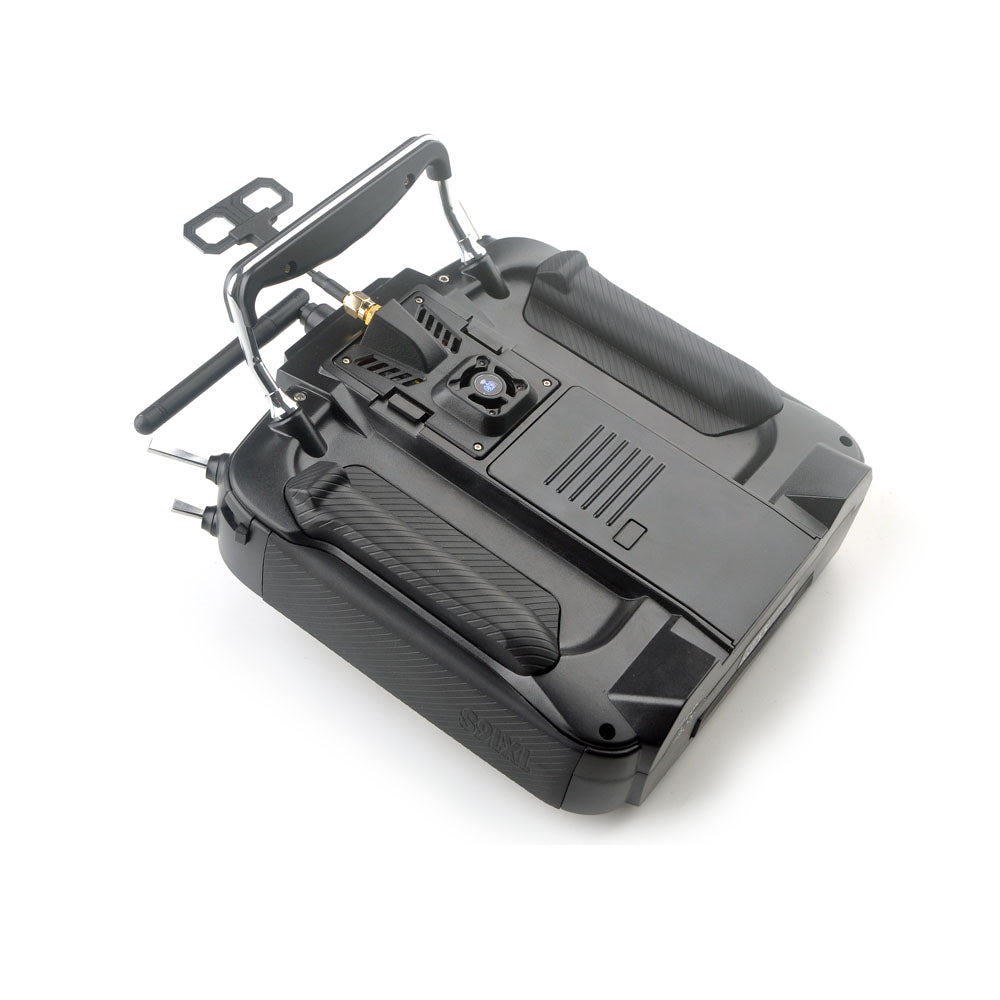

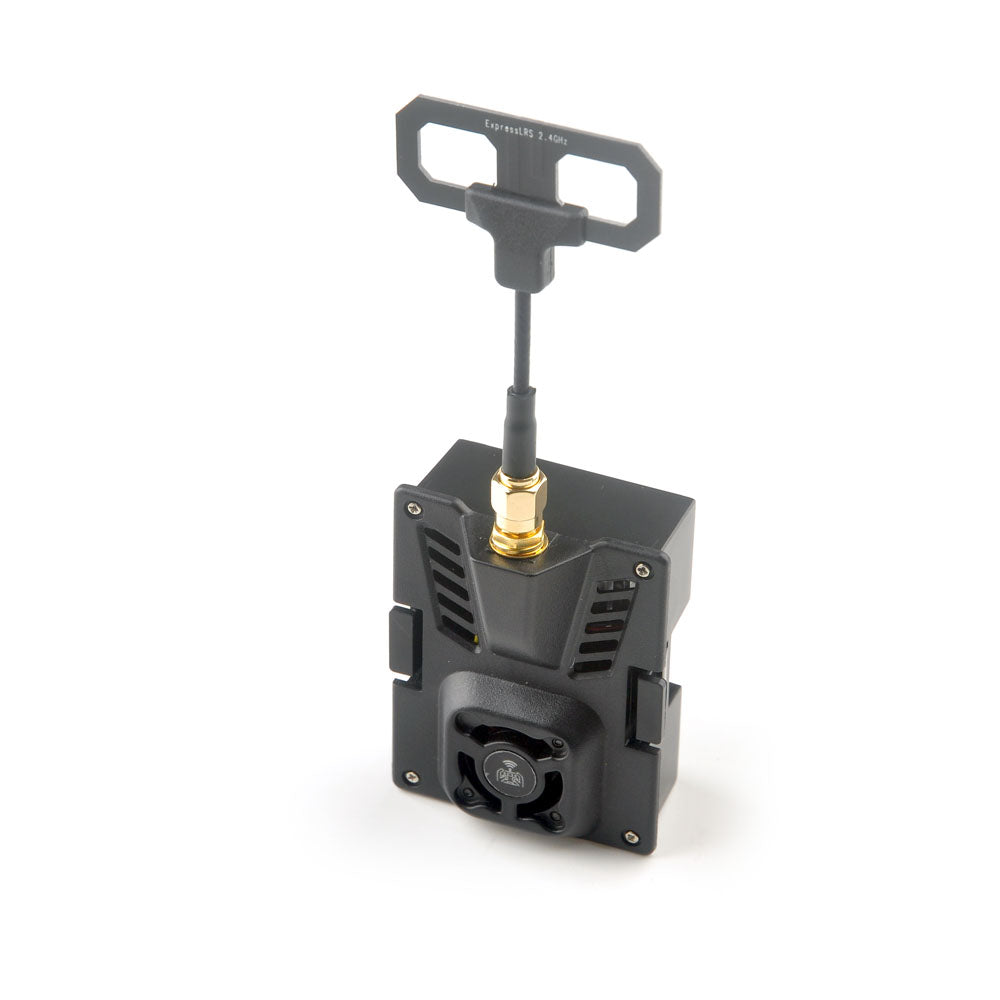

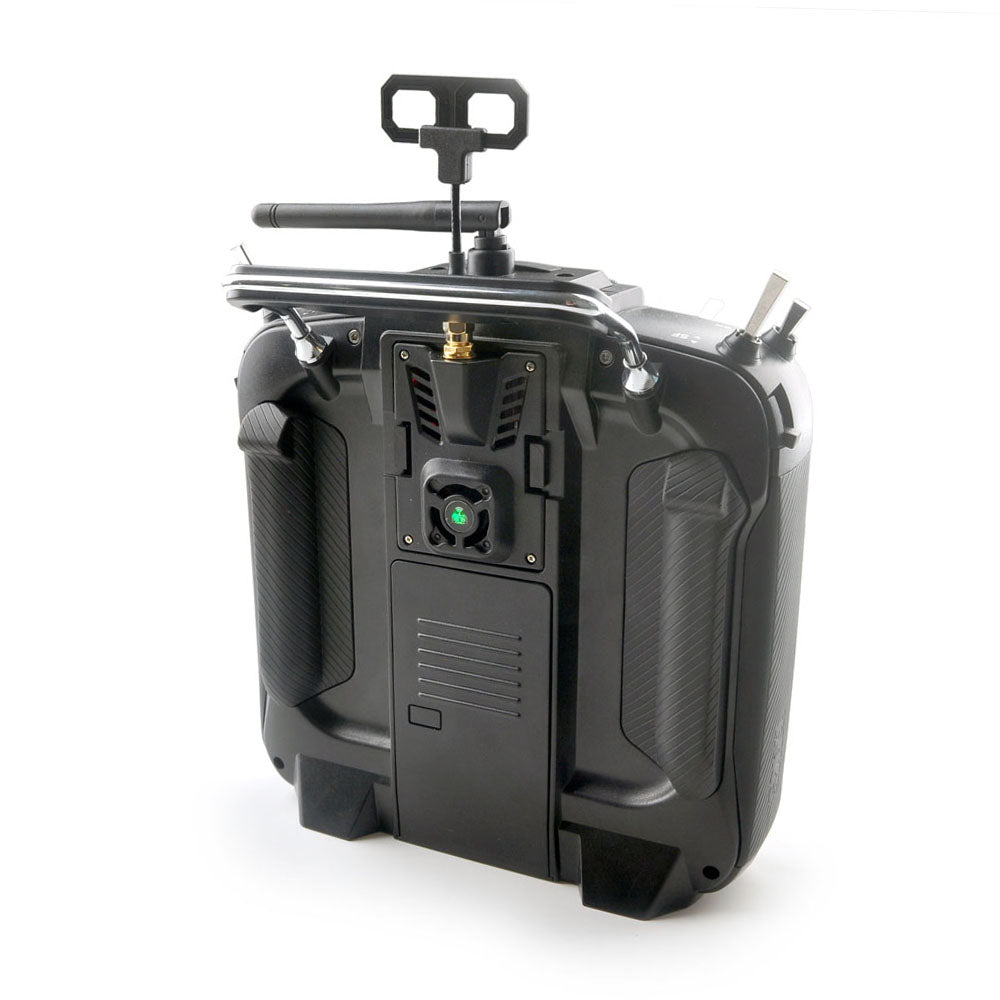

Using the HappyModel ES24TX Pro Micro ExpressLRS TX module is quite easy. First, make sure your radio transmitter has a Micro JR bay. Then, simply insert the module into it. Connect the power supply within the 5v - 10v range. Once connected, you're ready to use it for your radio - controlled devices. When it comes to the antenna, attach the Happymodel 2.4GHz Moxon antenna that comes with the module for the best signal performance. Here are some important things to note. Don't exceed the power supply voltage range of 5v - 10v, as it may damage the module. Avoid exposing the module to extreme temperatures or moisture. For maintenance, keep the module clean. You can use a soft, dry cloth to wipe it gently. If you notice any dust inside the module, you can use compressed air to blow it out. And remember, if you have any issues, always refer to the official documentation or contact the manufacturer.
