iFlight BLITZ E80 4-IN-1 Pro 80A ESC (G2)

$399.00 $92.00
Save: 77% off

Tax included & free shipping

Availability : In-Stock

This product is already at its best price

Free Exchanges for 30 Days

100% Original Products

Limited Time

Ship to me This item ships free on all orders

Product Information

Looking for the BLITZ E80 4-IN-1 Pro 80A ESC (G2) in Australia?

PRODUCT DESCRIPTION

The BLITZ E80 uses the PSMN1R0-40YLD MOSFET, which can handle a continuous current of 80A at 25°C and has a maximum power dissipation of 198W. The BEC power supply features a TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1 - 4 layer power board of the PCB circuit is made of ultra-thick 4OZ copper, ensuring continuous output during high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, offers a faster running speed!

Features:

Rational layout with countersunk holes on extended solder pads for better PCB layer connection
G071 MCU with a maximum clock speed of 48mHz
TDK MLCC Low ESR ceramic capacitors
Top-quality PSMN1R0-40YLD MOSFET
8-layer double-sided PCB board

Specification:

Download BLHeliSuite (BL32): https://github.com/blheli-configurator/blheli-configurator/releases
Supports DShot modes like DShot150/300/600/MultiShot/OneShot
Constant current: 80A, 100A (Burst)
Mounting Holes: 35*35mm/Φ3mm
Current sensor: Yes, scale 100
Firmware: IFLIGHT_BLITZ_G2
Telemetry: Supported

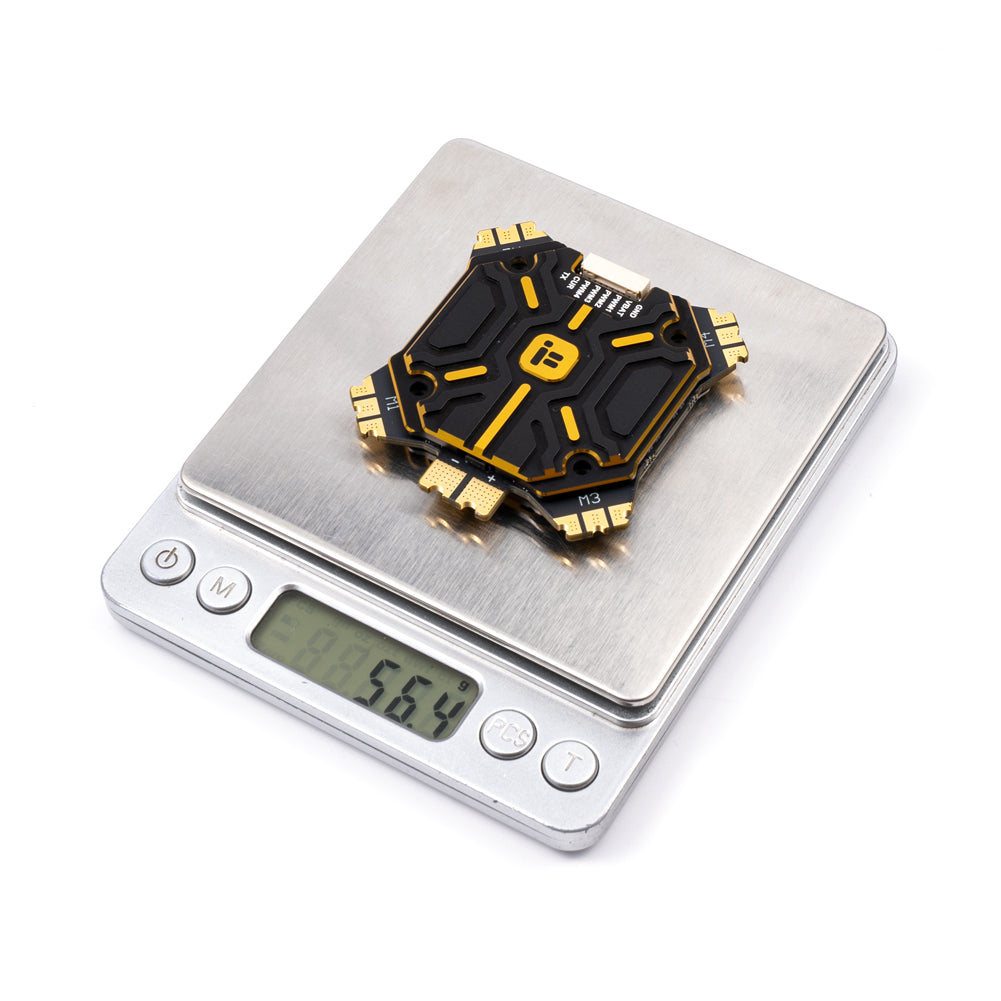

Weight: 65g (±10)
Volts input: 2 - 8S
BEC: No

Package included:

1 x BLITZ E80 4-IN-1 Pro ESC (G2)

Browse More

Browse All iFlight ESC
Browse All Iflight
Browse All ESC

Hot Sale! iFlight BLITZ E80 4-IN-1 Pro 80A Electronic Speed Controller (G2)

Using the iFlight BLITZ E80 4-IN-1 Pro 80A ESC (G2) is easy. First, make sure to connect it properly according to the wiring diagram. You can download the BLHeliSuite from the provided link to configure it. It supports various DShot modes, so you can choose the one that suits your needs. When mounting, use the 35*35mm holes with a diameter of 3mm. Remember, the continuous current is 80A, but it can handle 100A in short bursts. Keep an eye on the temperature during high-power operation. For maintenance, keep it clean and dry. If you notice any signs of damage, stop using it immediately and check for replacements. Also, always use the correct voltage input between 2 - 8S.
