iFlight BLITZ Whoop F7 AIO BMI270 v1.1

Searching for BLITZ Whoop F7 AIO in Australia?

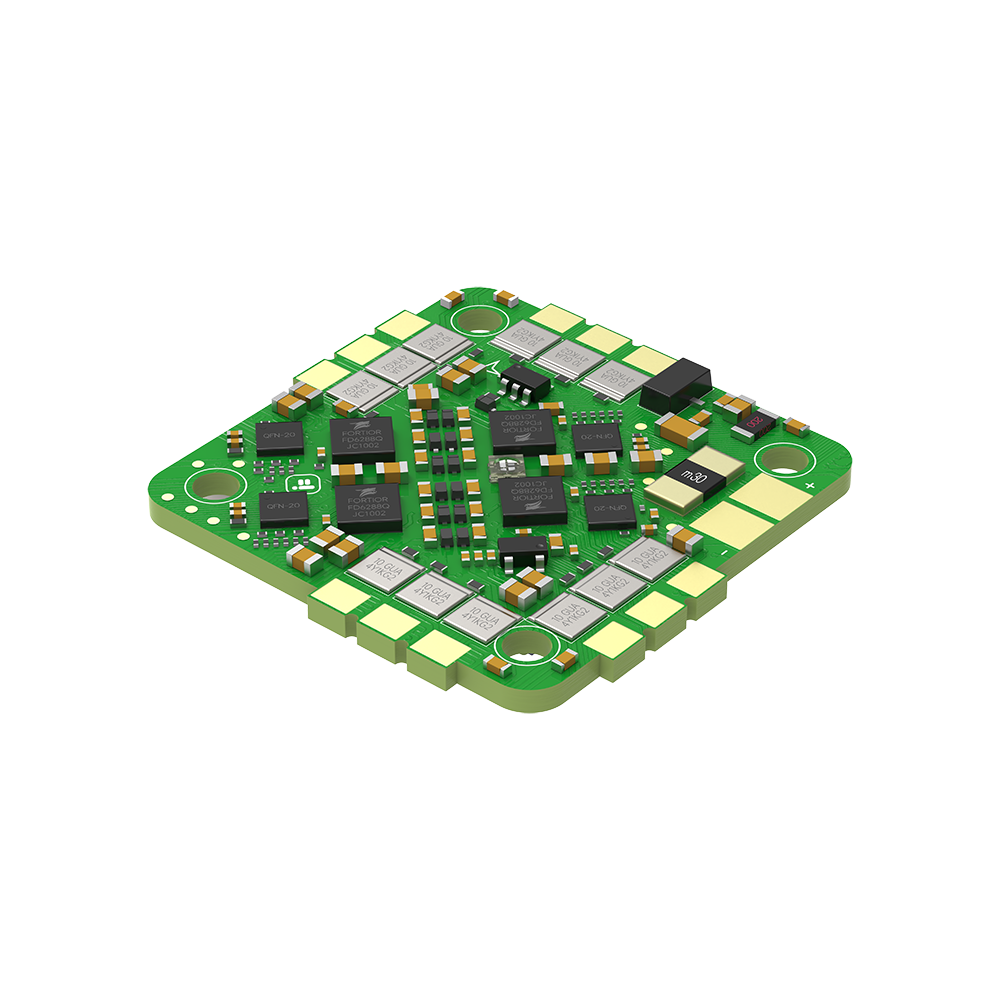

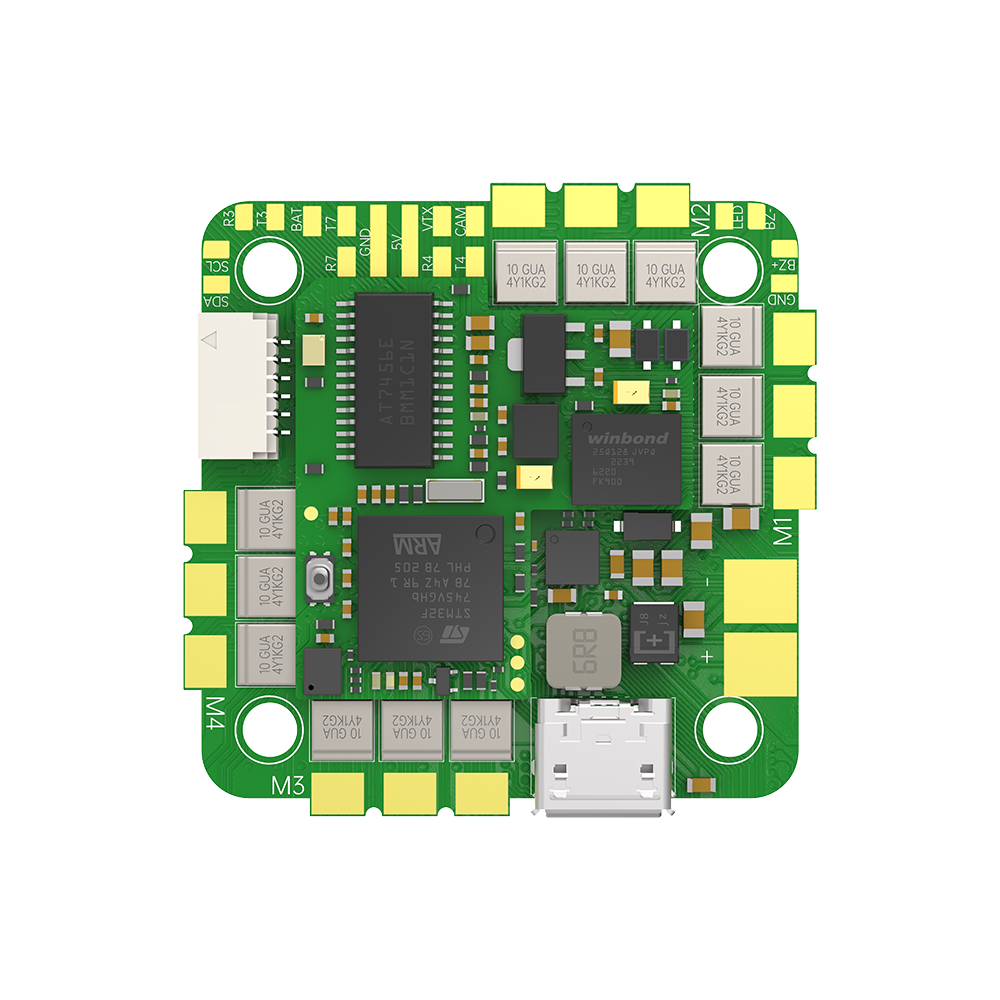

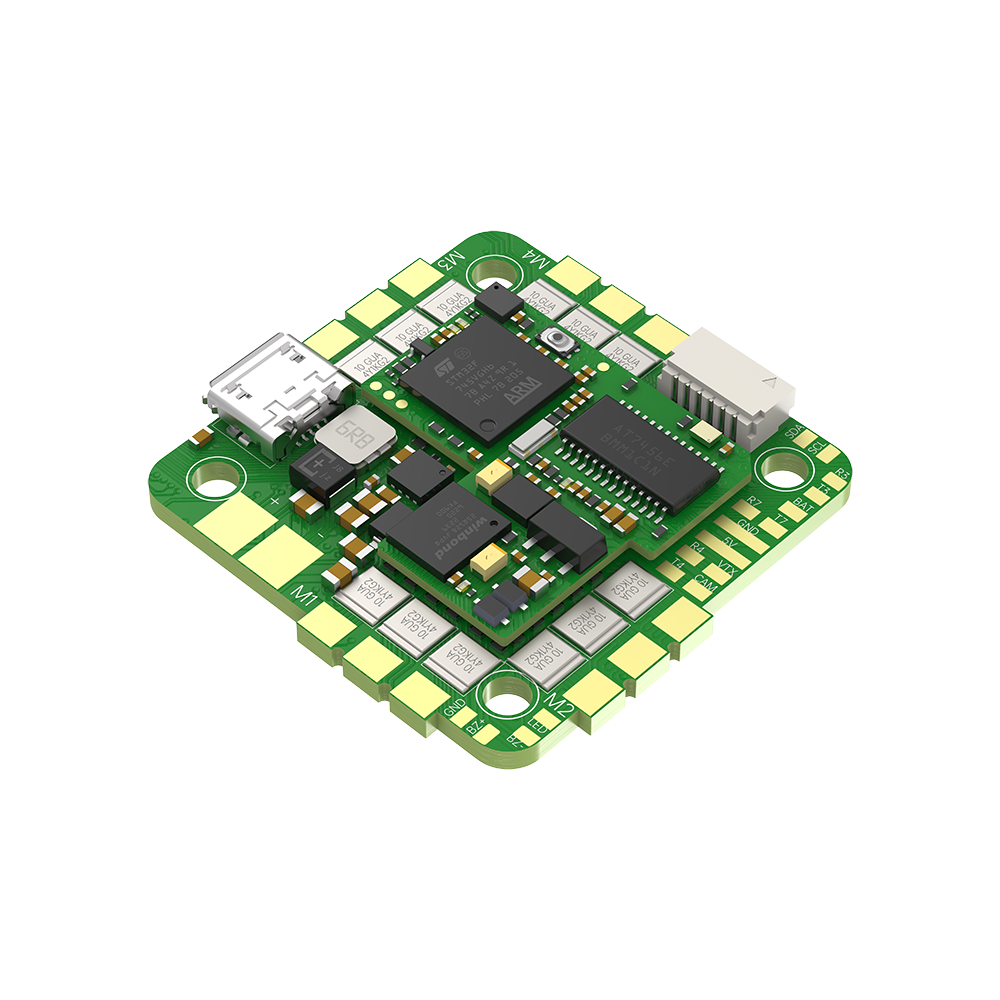

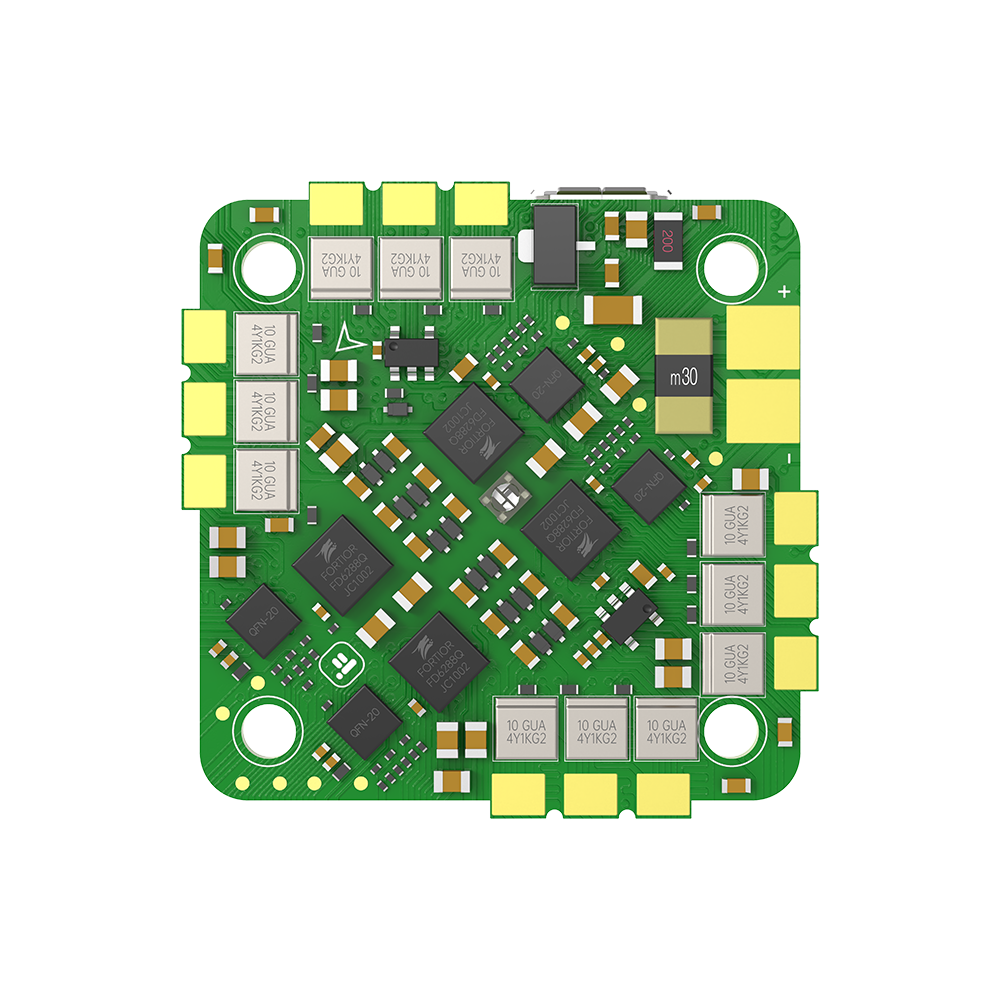

This new iFlight BLITZ series all - in - one flight controller (AIO FC) is your top choice for an ultimate build. It's a future - proof solution that gives you more space for upcoming flight firmware like Betaflight and Emuflight. It's lightweight, compact, and easy to set up. Achieved by using BGA chipsets instead of large QFP MCUs and powerful Mosfets, it suits almost any build. Just solder on your motor wires and take off!

Features

• Separate flight control board reduces electrical gyro noise
• Pass - through for DJI O3 and Caddx Vista/Polar
• Detachable FC PCB from ESC PCB for easy repair
• MCU: BGA - STM32F745, 216MHz
• OSD: AT7456E
• 16MB onboard flash for blackbox
• Gyro: DPS310

Specifications

• MCU: BGA - STM32F745
  • Gyro: BMI270
  • 16MB onboard flash blackbox
  • 5V 2.5A BEC output
  • WS2812 LED strip supported
  • Buzzer included
  • Barometer: DPS310
  • Micro - USB connector
  • IFLIGHT OSD (AT745E)
  • FC Firmware: IFLIGHT_BLITZ_F7_AIO
  • 25.5*25.5mm φ3mm mounting pattern
  • 35*35mm dimensions
  • 10.5g weight
  • 5V 2A / 3A BEC
  • 2 - 6S input voltage, supports LIHV battery
  • Supports Smartaudio / IRC Tramp VTX protocol
• ESC
  • ESC MCU: BB21
  • Driver: FD6288
  • 2 - 6S input voltage, supports LIHV battery
  • 55A output current, 65A peak (10 seconds)
  • ESC firmware: Q - H - 40 - Bluejay, 0.16, 24kHz
  • Current sensor ratio: 200 (1/10mV/A)
  • No BEC
  • No ESC telemetry
  • Bidirectional DShot supported (with Bluejay firmware)
  • Supports DShot 150/300/600/MultiShot/OneShot etc.

Included

• 1 x BLITZ F7 AIO
• 2 x 470uF/35V capacitors
• 1 x 70mm XT30U male 18AWG cable
• 1 x 50mm - 28mm 1.0 - 7P cable
• 1 x 50mm 1.0 - 7P cable
• 4 x M2 silicon grommets
• 8 x M2*12mm screws
• 8 x M2 transparent nylon nuts
• 10 x 10mm 0.8mm black heat shrink tubes

Browse More

• Browse All F7 Flight Controllers
• Browse All AIO
• Browse All iflight

Using the iFlight BLITZ Whoop F7 AIO v1.1 is straightforward. First, solder your motor wires onto the board. Then, connect it to your other components like the DJI O3 or Caddx Vista/Polar using the pass - through connectors. When it comes to power, make sure to use a 2 - 6S battery, and it can support LIHV batteries. You can also connect the WS2812 LED strip for some cool lighting effects. For the ESC, you can use the Bluejay firmware to enable bidirectional DShot. As for maintenance, the best part is that the FC PCB can be disassembled from the ESC PCB. So if something goes wrong, you can easily repair it. Just keep an eye on the electrical connections and make sure there are no loose wires. Also, avoid exposing it to extreme temperatures or moisture, as this could damage the components. And that's it! With this AIO, you're ready to enjoy a great flight experience.
