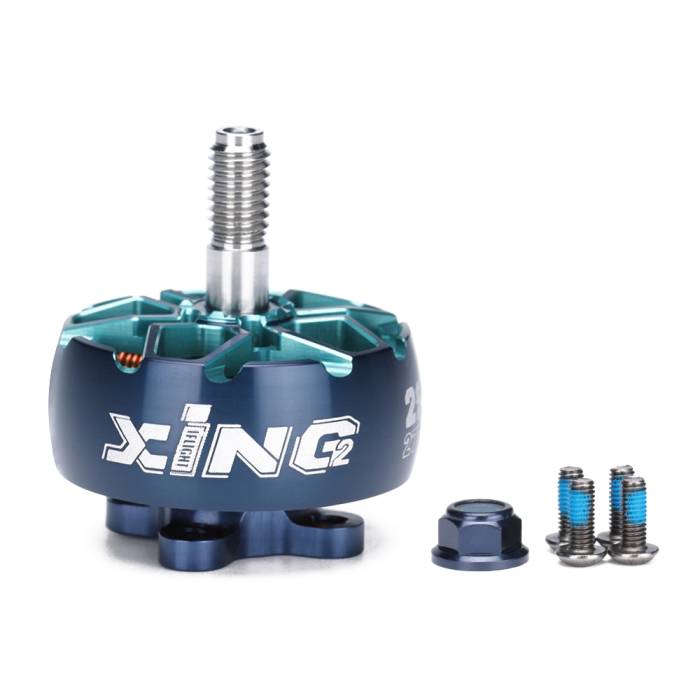

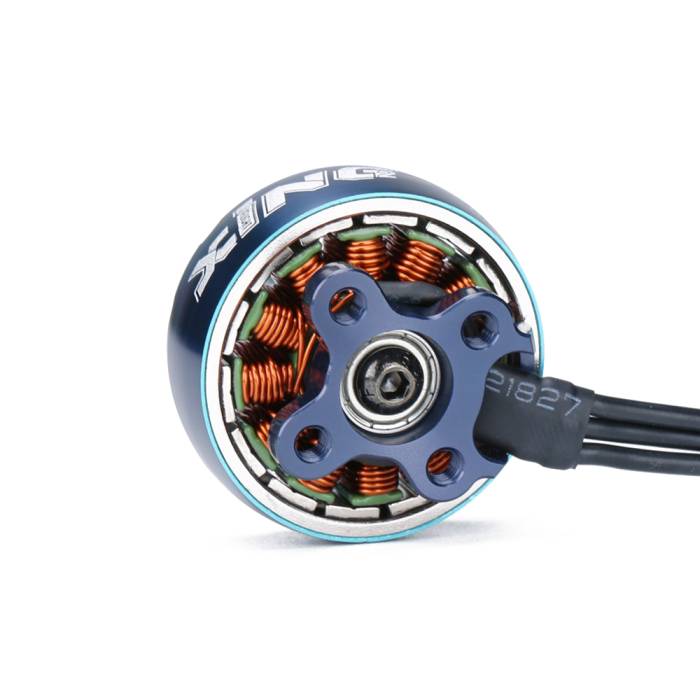

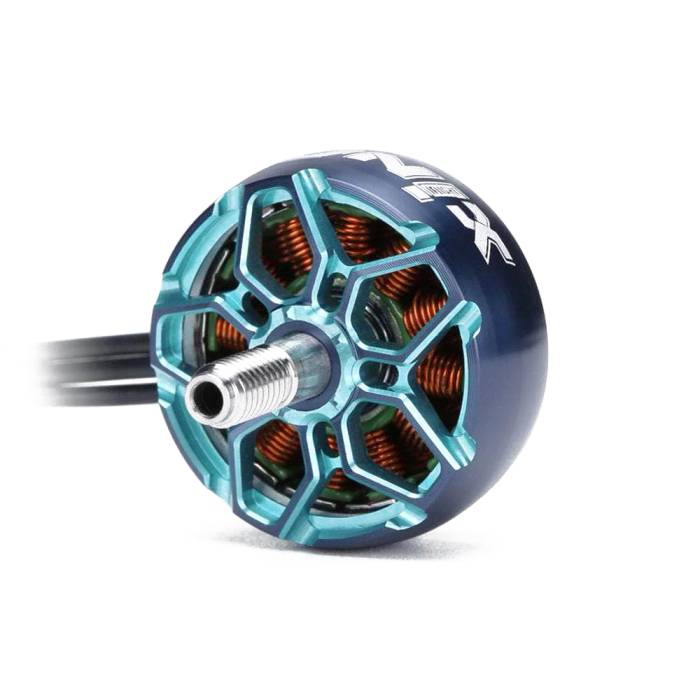

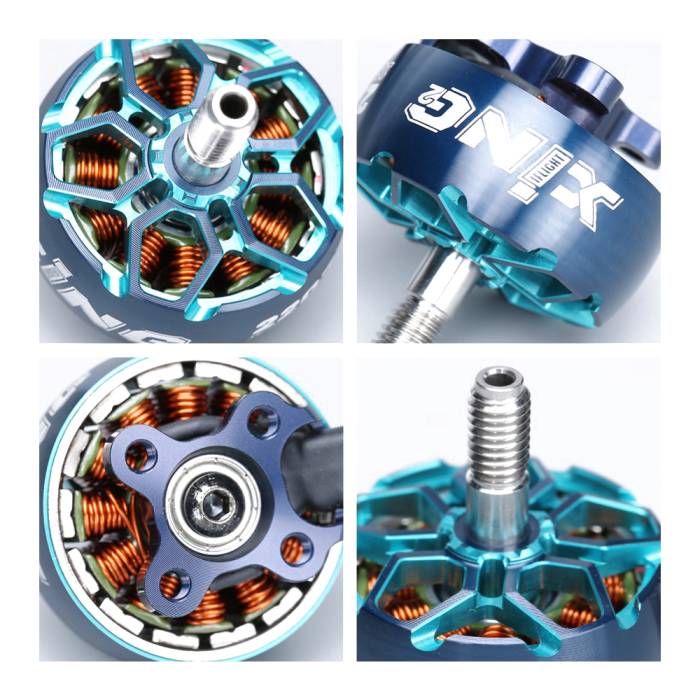

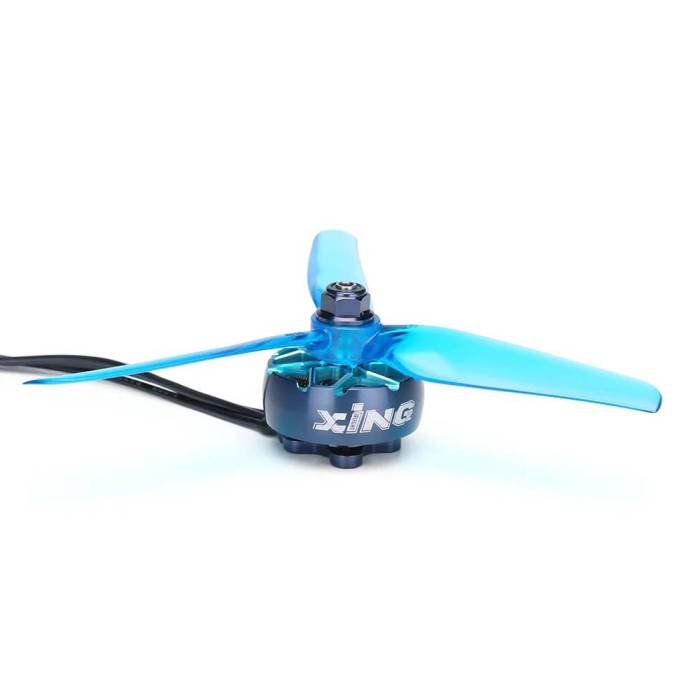

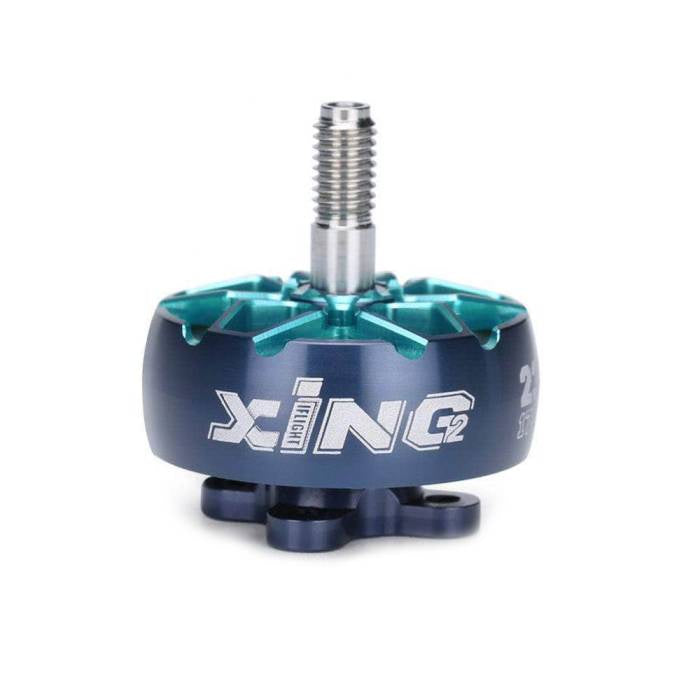

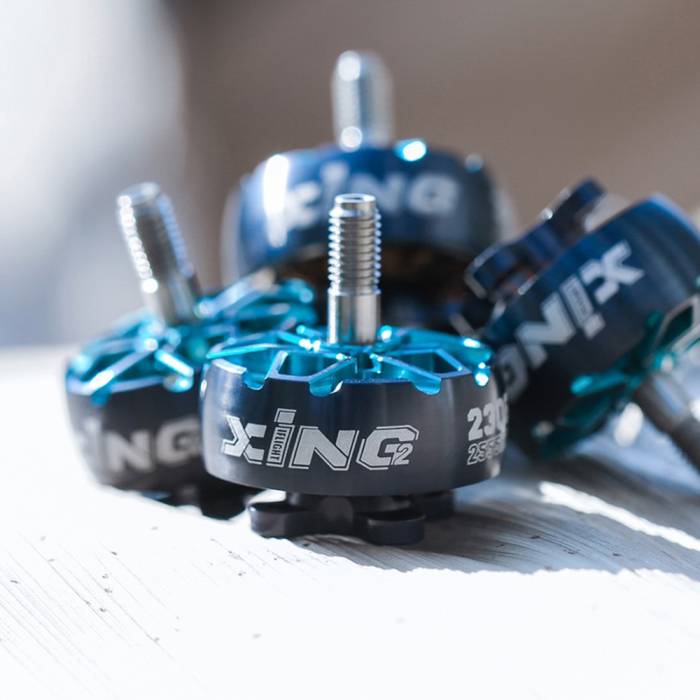

Are you in Australia and looking to purchase top - notch iFlight XING2 2306 motors? iFlight has upgraded its XING motors to the new XING2 series. These motors are smooth, reliable, and extremely powerful. They offer a faster response, quickly translating your PID loop and giving you that locked - in feeling you've always craved. Thanks to high - quality materials and a durable bell - shaft joint, iFlight minimized the magnet air gap and stator lamination. A smaller air gap means lower reluctance, higher magnetic flux, greater efficiency, and more power! Key features include a 5mm titanium alloy shaft (the strongest ever), smooth and long - lasting NSK 9x9x4 bearings, center - slotted N52H curved arc magnets, XING O - ring bearing gap protection, a crash - resistant 7075 aluminum bell, dynamic balancing, and a motor wires protector. Specifications: Cable length is 20AWG 160mm, mounting pattern is 16x16mm, weight with wires is 31.6g, stator diameter is 23mm, suitable for 4 - 6S LiPo, configuration is 12N14P, KV is 1755KV/2555KV, shaft diameter is 5mm, and stator length is 6mm. The package includes 1x M5 Flanged Nylon Insert Lock Nut, 1x XING2 2306 Motor, and 4x M3 6mm screws. Also, you can browse all 22xx Motors, all iFlight Motors, or all Motors.
Using these iFlight XING2 2306 motors is quite straightforward. First, make sure your drone is powered off. Use the M3 6mm screws included in the package to mount the motor on your drone according to the 16x16mm mounting pattern. Connect the 20AWG 160mm cables to the appropriate power source on your drone. When powering on, start with a low throttle to test the motor's response. Remember, these motors are designed for 4 - 6S LiPo batteries, so always use the correct battery type. As for maintenance, keep the motors clean. After each flight, check the bearings for any signs of wear or damage. If you notice any issues with the 5mm titanium alloy shaft or the 7075 aluminum bell, stop using the motor immediately. Also, protect the motor wires from getting tangled or cut. If you follow these steps, your iFlight XING2 2306 motors will serve you well for a long time.
